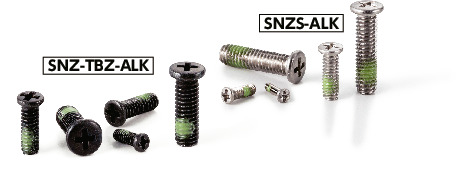

Pan Head Machine Screws for Precision Instruments (Miniature Screws with Nylon Patch)

SNZ-TBZ-ALK

Vibration resistant treatment
Miniature

SNZ-TBZ-ALKPan Head Machine Screws for Precision Instruments (Miniature Screws with Nylon Patch)

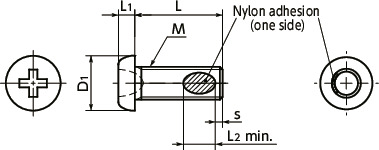

Dimension Drawing

Specs/CAD

Select

M (Coarse) Nominal of Thread: All; M1.4; M1.7; M2; M2.6

L: All; 2; 3; 4; 5; 6; 8; 2.5; 3.5

Unit : mm

Part Number	M (Coarse) Nominal of Thread	Pitch	L	D₁	L₁	s^＊1	L₂	Max. Tightening Torque (N・m)	Qty per Pack	Mass (g)	CAD Download	RFQ
SNZ-M1.4-2-TBZ-ALK	M1.4	0.3	2	2	0.5	0	1.1	0.05	50	0.023	CAD	RFQ
SNZ-M1.4-3-TBZ-ALK	M1.4	0.3	3	2	0.5	0	1.1	0.05	50	0.031	CAD	RFQ
SNZ-M1.4-4-TBZ-ALK	M1.4	0.3	4	2	0.5	0.6	1.1	0.05	50	0.04	CAD	RFQ
SNZ-M1.4-5-TBZ-ALK	M1.4	0.3	5	2	0.5	0.6	1.1	0.05	50	0.048	CAD	RFQ
SNZ-M1.4-6-TBZ-ALK	M1.4	0.3	6	2	0.5	0.6	1.1	0.05	50	0.057	CAD	RFQ
SNZ-M1.4-8-TBZ-ALK	M1.4	0.3	8	2	0.5	0.6	1.1	0.05	50	0.074	CAD	RFQ
SNZ-M1.7-2-TBZ-ALK	M1.7	0.35	2	2.5	0.5	0	1.3	0.09	50	0.037	CAD	RFQ
SNZ-M1.7-3-TBZ-ALK	M1.7	0.35	3	2.5	0.5	0	1.3	0.09	50	0.049	CAD	RFQ
SNZ-M1.7-4-TBZ-ALK	M1.7	0.35	4	2.5	0.5	0.7	1.3	0.09	50	0.062	CAD	RFQ
SNZ-M1.7-5-TBZ-ALK	M1.7	0.35	5	2.5	0.5	0.7	1.3	0.09	50	0.075	CAD	RFQ
SNZ-M1.7-6-TBZ-ALK	M1.7	0.35	6	2.5	0.5	0.7	1.3	0.09	50	0.087	CAD	RFQ
SNZ-M1.7-8-TBZ-ALK	M1.7	0.35	8	2.5	0.5	0.7	1.3	0.09	50	0.11	CAD	RFQ
SNZ-M2-2-TBZ-ALK	M2	0.4	2	3	0.6	0	1.6	0.18	50	0.055	CAD	RFQ
SNZ-M2-2.5-TBZ-ALK	M2	0.4	2.5	3	0.6	0	1.6	0.18	50	0.063	CAD	RFQ
SNZ-M2-3-TBZ-ALK	M2	0.4	3	3	0.6	0	1.6	0.18	50	0.072	CAD	RFQ
SNZ-M2-3.5-TBZ-ALK	M2	0.4	3.5	3	0.6	0	1.6	0.18	50	0.08	CAD	RFQ
SNZ-M2-4-TBZ-ALK	M2	0.4	4	3	0.6	0.8	1.6	0.18	50	0.089	CAD	RFQ
SNZ-M2-5-TBZ-ALK	M2	0.4	5	3	0.6	0.8	1.6	0.18	50	0.1	CAD	RFQ
SNZ-M2-6-TBZ-ALK	M2	0.4	6	3	0.6	0.8	1.6	0.18	50	0.12	CAD	RFQ
SNZ-M2-8-TBZ-ALK	M2	0.4	8	3	0.6	0.8	1.6	0.18	50	0.16	CAD	RFQ
SNZ-M2.6-3-TBZ-ALK	M2.6	0.45	3	4	0.8	0	2.1	0.39	50	0.14	CAD	RFQ
SNZ-M2.6-4-TBZ-ALK	M2.6	0.45	4	4	0.8	0.9	2.1	0.39	50	0.18	CAD	RFQ
SNZ-M2.6-5-TBZ-ALK	M2.6	0.45	5	4	0.8	0.9	2.1	0.39	50	0.21	CAD	RFQ
SNZ-M2.6-6-TBZ-ALK	M2.6	0.45	6	4	0.8	0.9	2.1	0.39	50	0.24	CAD	RFQ
SNZ-M2.6-8-TBZ-ALK	M2.6	0.45	8	4	0.8	0.9	2.1	0.39	50	0.3	CAD	RFQ

＊1：　If L＜4, dimension s is 0.

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

● When purchasing less volume than one full bag, a separate handling fee is charged. For details, see the Sold Separately Service.

Related Services

Individual Sales Service

Material/Finish

	SNZ-TBZ-ALK
Main Body	SWCH16A Black Trivalent Chromate Treatment
Nylon Patch	Nylon 11

Application

Reducing the size of equipment and devices / Compact precision instruments / Return and fall prevention of screws

Characteristics

M1.4-M2.6. Miniature screw with nylon patch for precision instruments.
The friction of the nylon adhered to the thread suppresses the return rotation of the thread.
Even if the tightening force is lost, the return rotation is suppressed, preventing the screws from falling off.
The heat resistance temperature of nylon patch is 120℃.
Pan head machine screw type with low head height. For applications with limited overhead space.
