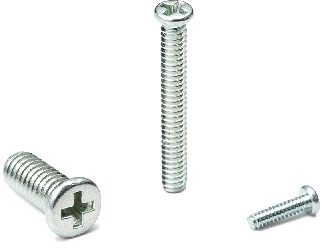

SNZ-TZB/Cross Recessed Micro Pan Head Screws - Type 0-1

Miniature

SNZ-TZBCross Recessed Micro Pan Head Screws - Type 0-1

Dimension Drawing

Specs/CAD

Select

M (Coarse) Nominal of Thread: All; M1; M1.2; M1.4; M1.6; M1.7; M2; M2.5; M2.6

L: All; 3; 4; 2; 2.5; 5; 1.5; 3.5; 6; 8; 10; 12; 14; 16; 18

Unit : mm

Part Number	M (Coarse) Nominal of Thread	Pitch	L	D₁	L₁	Max. Tightening Torque (N・m)	Qty per Pack	Mass (g)	CAD Download	RFQ
SNZ-M1-3-TZB	M1	0.25	3	1.8	0.5	0.02	50	0.02	CAD	RFQ
SNZ-M1-4-TZB	M1	0.25	4	1.8	0.5	0.02	50	0.02	CAD	RFQ
SNZ-M1.2-2-TZB	M1.2	0.25	2	1.8	0.5	0.05	50	0.02	CAD	RFQ
SNZ-M1.2-2.5-TZB	M1.2	0.25	2.5	1.8	0.5	0.05	50	0.02	CAD	RFQ
SNZ-M1.2-3-TZB	M1.2	0.25	3	1.8	0.5	0.05	50	0.02	CAD	RFQ
SNZ-M1.2-4-TZB	M1.2	0.25	4	1.8	0.5	0.05	50	0.03	CAD	RFQ
SNZ-M1.2-5-TZB	M1.2	0.25	5	1.8	0.5	0.05	50	0.04	CAD	RFQ
SNZ-M1.4-1.5-TZB	M1.4	0.3	1.5	2	0.5	0.07	50	0.02	CAD	RFQ
SNZ-M1.4-2-TZB	M1.4	0.3	2	2	0.5	0.07	50	0.02	CAD	RFQ
SNZ-M1.4-2.5-TZB	M1.4	0.3	2.5	2	0.5	0.07	50	0.03	CAD	RFQ
SNZ-M1.4-3-TZB	M1.4	0.3	3	2	0.5	0.07	50	0.03	CAD	RFQ
SNZ-M1.4-3.5-TZB	M1.4	0.3	3.5	2	0.5	0.07	50	0.03	CAD	RFQ
SNZ-M1.4-4-TZB	M1.4	0.3	4	2	0.5	0.07	50	0.04	CAD	RFQ
SNZ-M1.4-5-TZB	M1.4	0.3	5	2	0.5	0.07	50	0.05	CAD	RFQ
SNZ-M1.4-6-TZB	M1.4	0.3	6	2	0.5	0.07	50	0.06	CAD	RFQ
SNZ-M1.4-8-TZB	M1.4	0.3	8	2	0.5	0.07	50	0.07	CAD	RFQ
SNZ-M1.4-10-TZB	M1.4	0.3	10	2	0.5	0.07	50	0.09	CAD	RFQ
SNZ-M1.4-12-TZB	M1.4	0.3	12	2	0.5	0.07	50	0.1	CAD	RFQ
SNZ-M1.6-1.5-TZB	M1.6	0.35	1.5	2.4	0.55	0.11	50	0.03	CAD	RFQ
SNZ-M1.6-2-TZB	M1.6	0.35	2	2.4	0.55	0.11	50	0.03	CAD	RFQ
SNZ-M1.6-2.5-TZB	M1.6	0.35	2.5	2.4	0.55	0.11	50	0.04	CAD	RFQ
SNZ-M1.6-3-TZB	M1.6	0.35	3	2.4	0.55	0.11	50	0.04	CAD	RFQ
SNZ-M1.6-3.5-TZB	M1.6	0.35	3.5	2.4	0.55	0.11	50	0.05	CAD	RFQ
SNZ-M1.6-4-TZB	M1.6	0.35	4	2.4	0.55	0.11	50	0.05	CAD	RFQ
SNZ-M1.6-5-TZB	M1.6	0.35	5	2.4	0.55	0.11	50	0.06	CAD	RFQ
SNZ-M1.6-6-TZB	M1.6	0.35	6	2.4	0.55	0.11	50	0.07	CAD	RFQ
SNZ-M1.6-8-TZB	M1.6	0.35	8	2.4	0.55	0.11	50	0.09	CAD	RFQ
SNZ-M1.6-10-TZB	M1.6	0.35	10	2.4	0.55	0.11	50	0.12	CAD	RFQ
SNZ-M1.6-12-TZB	M1.6	0.35	12	2.4	0.55	0.11	50	0.14	CAD	RFQ
SNZ-M1.7-1.5-TZB	M1.7	0.35	1.5	2.5	0.5	0.14	50	0.03	CAD	RFQ
SNZ-M1.7-2-TZB	M1.7	0.35	2	2.5	0.5	0.14	50	0.04	CAD	RFQ
SNZ-M1.7-2.5-TZB	M1.7	0.35	2.5	2.5	0.5	0.14	50	0.04	CAD	RFQ
SNZ-M1.7-3-TZB	M1.7	0.35	3	2.5	0.5	0.14	50	0.05	CAD	RFQ
SNZ-M1.7-3.5-TZB	M1.7	0.35	3.5	2.5	0.5	0.14	50	0.05	CAD	RFQ
SNZ-M1.7-4-TZB	M1.7	0.35	4	2.5	0.5	0.14	50	0.06	CAD	RFQ
SNZ-M1.7-5-TZB	M1.7	0.35	5	2.5	0.5	0.14	50	0.07	CAD	RFQ
SNZ-M1.7-6-TZB	M1.7	0.35	6	2.5	0.5	0.14	50	0.09	CAD	RFQ
SNZ-M1.7-8-TZB	M1.7	0.35	8	2.5	0.5	0.14	50	0.11	CAD	RFQ
SNZ-M1.7-10-TZB	M1.7	0.35	10	2.5	0.5	0.14	50	0.14	CAD	RFQ
SNZ-M1.7-12-TZB	M1.7	0.35	12	2.5	0.5	0.14	50	0.16	CAD	RFQ
SNZ-M1.7-14-TZB	M1.7	0.35	14	2.5	0.5	0.14	50	0.19	CAD	RFQ
SNZ-M2-1.5-TZB	M2	0.4	1.5	3	0.6	0.22	50	0.05	CAD	RFQ
SNZ-M2-2-TZB	M2	0.4	2	3	0.6	0.22	50	0.06	CAD	RFQ
SNZ-M2-2.5-TZB	M2	0.4	2.5	3	0.6	0.22	50	0.07	CAD	RFQ
SNZ-M2-3-TZB	M2	0.4	3	3	0.6	0.22	50	0.08	CAD	RFQ
SNZ-M2-3.5-TZB	M2	0.4	3.5	3	0.6	0.22	50	0.09	CAD	RFQ
SNZ-M2-4-TZB	M2	0.4	4	3	0.6	0.22	50	0.1	CAD	RFQ
SNZ-M2-5-TZB	M2	0.4	5	3	0.6	0.22	50	0.11	CAD	RFQ
SNZ-M2-6-TZB	M2	0.4	6	3	0.6	0.22	50	0.13	CAD	RFQ
SNZ-M2-8-TZB	M2	0.4	8	3	0.6	0.22	50	0.16	CAD	RFQ
SNZ-M2-10-TZB	M2	0.4	10	3	0.6	0.22	50	0.2	CAD	RFQ
SNZ-M2-12-TZB	M2	0.4	12	3	0.6	0.22	50	0.23	CAD	RFQ
SNZ-M2-14-TZB	M2	0.4	14	3	0.6	0.22	50	0.27	CAD	RFQ
SNZ-M2-16-TZB	M2	0.4	16	3	0.6	0.22	50	0.31	CAD	RFQ
SNZ-M2-18-TZB	M2	0.4	18	3	0.6	0.22	50	0.35	CAD	RFQ
SNZ-M2.5-3-TZB	M2.5	0.45	3	3.8	0.9	0.46	50	0.14	CAD	RFQ
SNZ-M2.5-4-TZB	M2.5	0.45	4	3.8	0.9	0.46	50	0.17	CAD	RFQ
SNZ-M2.5-5-TZB	M2.5	0.45	5	3.8	0.9	0.46	50	0.2	CAD	RFQ
SNZ-M2.5-6-TZB	M2.5	0.45	6	3.8	0.9	0.46	50	0.22	CAD	RFQ
SNZ-M2.6-2.5-TZB	M2.6	0.45	2.5	4	0.8	0.53	50	0.14	CAD	RFQ
SNZ-M2.6-3-TZB	M2.6	0.45	3	4	0.8	0.53	50	0.15	CAD	RFQ
SNZ-M2.6-3.5-TZB	M2.6	0.45	3.5	4	0.8	0.53	50	0.16	CAD	RFQ
SNZ-M2.6-4-TZB	M2.6	0.45	4	4	0.8	0.53	50	0.19	CAD	RFQ
SNZ-M2.6-5-TZB	M2.6	0.45	5	4	0.8	0.53	50	0.22	CAD	RFQ
SNZ-M2.6-6-TZB	M2.6	0.45	6	4	0.8	0.53	50	0.25	CAD	RFQ
SNZ-M2.6-8-TZB	M2.6	0.45	8	4	0.8	0.53	50	0.31	CAD	RFQ
SNZ-M2.6-10-TZB	M2.6	0.45	10	4	0.8	0.53	50	0.37	CAD	RFQ
SNZ-M2.6-12-TZB	M2.6	0.45	12	4	0.8	0.53	50	0.43	CAD	RFQ

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

● When purchasing less volume than one full bag, a separate handling fee is charged. For details, see the Sold Separately Service.

Related Services

Material/Finish

	SNZ-TZB
Main Body	Steel Trivalent Chromate Treatment

Application

For making devices and equipment more compact
Compact precision equipment

Characteristics

Miniature screws for precision instruments (No. 0 Class 1).
M1 - M2.6.
Pan head machine screw type with low head height. For applications with limited overhead space.
