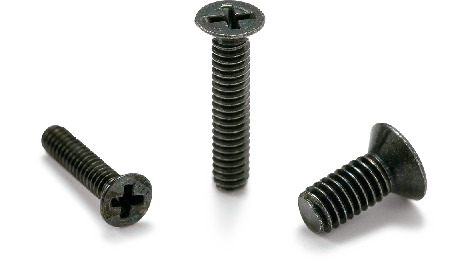

SNZF3-TBZ/Cross Recessed Micro Flat Head Machine Screws - Type 0-3

Safety Precautions

RoHS Compliant

  • Miniature
SNZF3-TBZCross Recessed Micro Flat Head Machine Screws - Type 0-3

Dimension Drawing

SNZF3-TBZCross Recessed Micro Flat Head Machine Screws - Type 0-3寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M1.4
M1.7
M2
M2.6
L
All
3
3.5
4
5
6
8

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 Cross-recessed Socket No. Max. Tightening
Torque
(N・m)＊1		 Qty per Pack Mass
(g)		 CAD
Download		 RFQ
SNZF3-M1.4-3-TBZ M1.4 0.3 3 2.5 0.7 0 0.07 50 0.04 CAD RFQ
SNZF3-M1.4-3.5-TBZ M1.4 0.3 3.5 2.5 0.7 0 0.07 50 0.04 CAD RFQ
SNZF3-M1.4-4-TBZ M1.4 0.3 4 2.5 0.7 0 0.07 50 0.05 CAD RFQ
SNZF3-M1.4-5-TBZ M1.4 0.3 5 2.5 0.7 0 0.07 50 0.05 CAD RFQ
SNZF3-M1.4-6-TBZ M1.4 0.3 6 2.5 0.7 0 0.07 50 0.06 CAD RFQ
SNZF3-M1.7-3-TBZ M1.7 0.35 3 3 0.8 0 0.14 50 0.06 CAD RFQ
SNZF3-M1.7-3.5-TBZ M1.7 0.35 3.5 3 0.8 0 0.14 50 0.06 CAD RFQ
SNZF3-M1.7-4-TBZ M1.7 0.35 4 3 0.8 0 0.14 50 0.07 CAD RFQ
SNZF3-M1.7-5-TBZ M1.7 0.35 5 3 0.8 0 0.14 50 0.08 CAD RFQ
SNZF3-M1.7-6-TBZ M1.7 0.35 6 3 0.8 0 0.14 50 0.09 CAD RFQ
SNZF3-M2-3-TBZ M2 0.4 3 3.5 0.9 0 0.22 50 0.09 CAD RFQ
SNZF3-M2-3.5-TBZ M2 0.4 3.5 3.5 0.9 0 0.22 50 0.09 CAD RFQ
SNZF3-M2-4-TBZ M2 0.4 4 3.5 0.9 0 0.22 50 0.1 CAD RFQ
SNZF3-M2-5-TBZ M2 0.4 5 3.5 0.9 0 0.22 50 0.12 CAD RFQ
SNZF3-M2-6-TBZ M2 0.4 6 3.5 0.9 0 0.22 50 0.14 CAD RFQ
SNZF3-M2-8-TBZ M2 0.4 8 3.5 0.9 0 0.22 50 0.17 CAD RFQ
SNZF3-M2.6-3.5-TBZ M2.6 0.45 3.5 4.5 1.1 0 0.53 50 0.18 CAD RFQ
SNZF3-M2.6-4-TBZ M2.6 0.45 4 4.5 1.1 0 0.53 50 0.19 CAD RFQ
SNZF3-M2.6-5-TBZ M2.6 0.45 5 4.5 1.1 0 0.53 50 0.22 CAD RFQ
SNZF3-M2.6-6-TBZ M2.6 0.45 6 4.5 1.1 0 0.53 50 0.25 CAD RFQ

＊1：　Values in chart are for reference only. They are not guaranteed values.

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

● When purchasing less volume than one full bag, a separate handling fee is charged. For details, see the Sold Separately Service.


Related Services

Material/Finish

SNZF3-TBZ
Main Body SWCH16A
Black Trivalent Chromate Treatment

Application

For making devices and equipment more compact
Compact precision equipment

Characteristics

  • Miniature screws for precision instruments (Type 0-3).
  • M1.4 - M2.6.
  • Flat head machine screw type with low head height. For applications with limited overhead space.

Product List

Click here to see Micro Screws

SNZF3-TZB

Part Name

Cross Recessed Micro Flat Head Machine Screws - Type 0-3

Part Number

SNZF3-TZB

Feature

Flat Head Machine Screws
for Precision Instruments

SNZF3-TZB-ALK

Part Name

Cross Recessed Micro Flat Head Machine Screws with Nylon Patch - Type 0-3

Part Number

SNZF3-TZB-ALK

Feature

Flat Head Machine Screws
for Precision Instruments
Nylon Patch

SNZF3-TBZ-ALK

Part Name

Cross Recessed Micro Flat Head Machine Screws with Nylon Patch - Type 0-3

Part Number

SNZF3-TBZ-ALK

Feature

Flat Head Machine Screws
for Precision Instruments
Nylon Patch

SNZFS

Part Name

Cross Recessed Flat Head Machine Screws for Precision Instruments

Part Number

SNZFS

Feature

For Precision Instruments

Click here to see Special Screws

Cleanroom

Cleanroom

UNC Screws / UNF Screws

UNC Screws / UNF Screws

Loosening Prevention

Loosening Prevention

High Specific Strength

High Specific Strength
