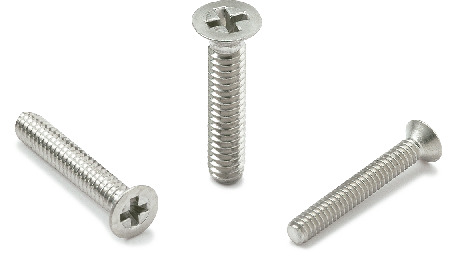

SNZF3S/Cross Recessed Micro Flat Head Machine Screws - Type 0-3

Safety Precautions

RoHS Compliant

  • Miniature
SNZF3SCross Recessed Micro Flat Head Machine Screws - Type 0-3

Dimension Drawing

SNZF3SCross Recessed Micro Flat Head Machine Screws - Type 0-3寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M1.4
M1.6
M1.7
M2
L
All
2
2.5
3
3.5
4
5
6
8
10

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 Cross-recessed Socket No. Max. Tightening
Torque
(N・m)＊1		 Qty per Pack Mass
(g)		 CAD
Download		 RFQ
SNZF3S-M1.4-2 M1.4 0.3 2 2.5 0.7 0 0.07 50 0.03 CAD RFQ
SNZF3S-M1.4-2.5 M1.4 0.3 2.5 2.5 0.7 0 0.07 50 0.03 CAD RFQ
SNZF3S-M1.4-3 M1.4 0.3 3 2.5 0.7 0 0.07 50 0.04 CAD RFQ
SNZF3S-M1.4-3.5 M1.4 0.3 3.5 2.5 0.7 0 0.07 50 0.04 CAD RFQ
SNZF3S-M1.4-4 M1.4 0.3 4 2.5 0.7 0 0.07 50 0.05 CAD RFQ
SNZF3S-M1.4-5 M1.4 0.3 5 2.5 0.7 0 0.07 50 0.05 CAD RFQ
SNZF3S-M1.4-6 M1.4 0.3 6 2.5 0.7 0 0.07 50 0.06 CAD RFQ
SNZF3S-M1.4-8 M1.4 0.3 8 2.5 0.7 0 0.07 50 0.08 CAD RFQ
SNZF3S-M1.4-10 M1.4 0.3 10 2.5 0.7 0 0.07 50 0.09 CAD RFQ
SNZF3S-M1.6-2 M1.6 0.35 2 2.8 0.8 0 0.1 50 0.034 CAD RFQ
SNZF3S-M1.6-2.5 M1.6 0.35 2.5 2.8 0.8 0 0.1 50 0.04 CAD RFQ
SNZF3S-M1.6-3 M1.6 0.35 3 2.8 0.8 0 0.1 50 0.05 CAD RFQ
SNZF3S-M1.6-4 M1.6 0.35 4 2.8 0.8 0 0.1 50 0.05 CAD RFQ
SNZF3S-M1.6-5 M1.6 0.35 5 2.8 0.8 0 0.1 50 0.063 CAD RFQ
SNZF3S-M1.6-6 M1.6 0.35 6 2.8 0.8 0 0.1 50 0.08 CAD RFQ
SNZF3S-M1.6-8 M1.6 0.35 8 2.8 0.8 0 0.1 50 0.1 CAD RFQ
SNZF3S-M1.6-10 M1.6 0.35 10 2.8 0.8 0 0.1 50 0.12 CAD RFQ
SNZF3S-M1.7-2.5 M1.7 0.35 2.5 3 0.8 0 0.14 50 0.04 CAD RFQ
SNZF3S-M1.7-3 M1.7 0.35 3 3 0.8 0 0.14 50 0.04 CAD RFQ
SNZF3S-M1.7-3.5 M1.7 0.35 3.5 3 0.8 0 0.14 50 0.052 CAD RFQ
SNZF3S-M1.7-4 M1.7 0.35 4 3 0.8 0 0.14 50 0.07 CAD RFQ
SNZF3S-M1.7-5 M1.7 0.35 5 3 0.8 0 0.14 50 0.07 CAD RFQ
SNZF3S-M1.7-6 M1.7 0.35 6 3 0.8 0 0.14 50 0.08 CAD RFQ
SNZF3S-M1.7-8 M1.7 0.35 8 3 0.8 0 0.14 50 0.1 CAD RFQ
SNZF3S-M1.7-10 M1.7 0.35 10 3 0.8 0 0.14 50 0.13 CAD RFQ
SNZF3S-M2-3 M2 0.4 3 3.5 0.9 0 0.22 50 0.09 CAD RFQ
SNZF3S-M2-4 M2 0.4 4 3.5 0.9 0 0.22 50 0.1 CAD RFQ
SNZF3S-M2-5 M2 0.4 5 3.5 0.9 0 0.22 50 0.12 CAD RFQ
SNZF3S-M2-6 M2 0.4 6 3.5 0.9 0 0.22 50 0.14 CAD RFQ
SNZF3S-M2-8 M2 0.4 8 3.5 0.9 0 0.22 50 0.17 CAD RFQ
SNZF3S-M2-10 M2 0.4 10 3.5 0.9 0 0.22 50 0.21 CAD RFQ

＊1：　Values in chart are for reference only. They are not guaranteed values.

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

● When purchasing less volume than one full bag, a separate handling fee is charged. For details, see the Sold Separately Service.


Related Services

Material/Finish

SNZF3S
Main Body Stainless Steel

Application

For making devices and equipment more compact
Compact precision equipment

Characteristics

  • Miniature screws for precision instruments (Type 0-3).
  • M1.4 - M2.
  • Flat head machine screw type with low head height. For applications with limited overhead space.

Product List

Click here to see Micro Screws
