Pan Head Machine Screws for Precision Instruments

SNZS-M

Safety Precautions

RoHS Compliant

  • Miniature
SNZS-MPan Head Machine Screws for Precision Instruments

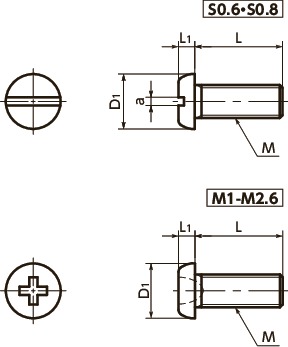

Dimension Drawing

SNZS-MPan Head Machine Screws for Precision Instruments寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M1
M1.4
M1.6
M1.7
M2
M2.5
M2.6
L
All
2
3
4
5
6
8
10
12
14
2.5
3.5

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 Cross-recessed
Socket Number		 Max.
Torque
(N・m)		 Qty per Pack Mass
(g)		 CAD
Download		 RFQ
SNZS-M1-2 M1 0.25 2 1.8 0.45 0 0.02 50 0.013 CAD RFQ
SNZS-M1-3 M1 0.25 3 1.8 0.45 0 0.02 50 0.017 CAD RFQ
SNZS-M1-4 M1 0.25 4 1.8 0.45 0 0.02 50 0.021 CAD RFQ
SNZS-M1-5 M1 0.25 5 1.8 0.45 0 0.02 50 0.025 CAD RFQ
SNZS-M1.4-2 M1.4 0.3 2 2 0.5 0 0.07 50 0.024 CAD RFQ
SNZS-M1.4-3 M1.4 0.3 3 2 0.5 0 0.07 50 0.032 CAD RFQ
SNZS-M1.4-4 M1.4 0.3 4 2 0.5 0 0.07 50 0.04 CAD RFQ
SNZS-M1.4-5 M1.4 0.3 5 2 0.5 0 0.07 50 0.048 CAD RFQ
SNZS-M1.4-6 M1.4 0.3 6 2 0.5 0 0.07 50 0.057 CAD RFQ
SNZS-M1.4-8 M1.4 0.3 8 2 0.5 0 0.07 50 0.073 CAD RFQ
SNZS-M1.4-10 M1.4 0.3 10 2 0.5 0 0.07 50 0.09 CAD RFQ
SNZS-M1.6-2 M1.6 0.35 2 2.3 0.5 0 0.1 50 0.033 CAD RFQ
SNZS-M1.6-3 M1.6 0.35 3 2.3 0.5 0 0.1 50 0.043 CAD RFQ
SNZS-M1.6-4 M1.6 0.35 4 2.3 0.5 0 0.1 50 0.053 CAD RFQ
SNZS-M1.6-5 M1.6 0.35 5 2.3 0.5 0 0.1 50 0.063 CAD RFQ
SNZS-M1.6-6 M1.6 0.35 6 2.3 0.5 0 0.1 50 0.071 CAD RFQ
SNZS-M1.6-8 M1.6 0.35 8 2.3 0.5 0 0.1 50 0.09 CAD RFQ
SNZS-M1.6-10 M1.6 0.35 10 2.3 0.5 0 0.1 50 0.11 CAD RFQ
SNZS-M1.6-12 M1.6 0.35 12 2.3 0.5 0 0.1 50 0.13 CAD RFQ
SNZS-M1.7-2 M1.7 0.35 2 2.5 0.5 0 0.14 50 0.036 CAD RFQ
SNZS-M1.7-3 M1.7 0.35 3 2.5 0.5 0 0.14 50 0.048 CAD RFQ
SNZS-M1.7-4 M1.7 0.35 4 2.5 0.5 0 0.14 50 0.06 CAD RFQ
SNZS-M1.7-5 M1.7 0.35 5 2.5 0.5 0 0.14 50 0.072 CAD RFQ
SNZS-M1.7-6 M1.7 0.35 6 2.5 0.5 0 0.14 50 0.084 CAD RFQ
SNZS-M1.7-8 M1.7 0.35 8 2.5 0.5 0 0.14 50 0.11 CAD RFQ
SNZS-M1.7-10 M1.7 0.35 10 2.5 0.5 0 0.14 50 0.13 CAD RFQ
SNZS-M1.7-12 M1.7 0.35 12 2.5 0.5 0 0.14 50 0.16 CAD RFQ
SNZS-M1.7-14 M1.7 0.35 14 2.5 0.5 0 0.14 50 0.18 CAD RFQ
SNZS-M2-2 M2 0.4 2 3 0.6 0 0.22 50 0.055 CAD RFQ
SNZS-M2-2.5 M2 0.4 2.5 3 0.6 0 0.22 50 0.064 CAD RFQ
SNZS-M2-3 M2 0.4 3 3 0.6 0 0.22 50 0.072 CAD RFQ
SNZS-M2-3.5 M2 0.4 3.5 3 0.6 0 0.22 50 0.081 CAD RFQ
SNZS-M2-4 M2 0.4 4 3 0.6 0 0.22 50 0.089 CAD RFQ
SNZS-M2-5 M2 0.4 5 3 0.6 0 0.22 50 0.11 CAD RFQ
SNZS-M2-6 M2 0.4 6 3 0.6 0 0.22 50 0.12 CAD RFQ
SNZS-M2-8 M2 0.4 8 3 0.6 0 0.22 50 0.16 CAD RFQ
SNZS-M2-10 M2 0.4 10 3 0.6 0 0.22 50 0.19 CAD RFQ
SNZS-M2-12 M2 0.4 12 3 0.6 0 0.22 50 0.23 CAD RFQ
SNZS-M2-14 M2 0.4 14 3 0.6 0 0.22 50 0.26 CAD RFQ
SNZS-M2.5-3 M2.5 0.45 3 3.8 0.8 0 0.46 50 0.13 CAD RFQ
SNZS-M2.5-4 M2.5 0.45 4 3.8 0.8 0 0.46 50 0.15 CAD RFQ
SNZS-M2.5-5 M2.5 0.45 5 3.8 0.8 0 0.46 50 0.18 CAD RFQ
SNZS-M2.5-6 M2.5 0.45 6 3.8 0.8 0 0.46 50 0.21 CAD RFQ
SNZS-M2.5-8 M2.5 0.45 8 3.8 0.8 0 0.46 50 0.28 CAD RFQ
SNZS-M2.5-10 M2.5 0.45 10 3.8 0.8 0 0.46 50 0.34 CAD RFQ
SNZS-M2.6-2.5 M2.6 0.45 2.5 4 0.8 0 0.53 50 0.13 CAD RFQ
SNZS-M2.6-3 M2.6 0.45 3 4 0.8 0 0.53 50 0.15 CAD RFQ
SNZS-M2.6-4 M2.6 0.45 4 4 0.8 0 0.53 50 0.18 CAD RFQ
SNZS-M2.6-5 M2.6 0.45 5 4 0.8 0 0.53 50 0.21 CAD RFQ
SNZS-M2.6-6 M2.6 0.45 6 4 0.8 0 0.53 50 0.24 CAD RFQ
SNZS-M2.6-8 M2.6 0.45 8 4 0.8 0 0.53 50 0.3 CAD RFQ
SNZS-M2.6-10 M2.6 0.45 10 4 0.8 0 0.53 50 0.36 CAD RFQ

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here
● When purchasing less volume than one full bag, a separate handling fee is charged. For details, see the Sold Separately Service.

Related Services

Material/Finish

SNZS-M
Main Body SUSXM7
(Equivalent to SUS304)

Application

Reducing the size of equipment and devices
Compact precision instruments

Characteristics

  • Miniature screws for precision instruments in sizes from M1 to M2.6.
  • Pan head machine screws of low profile. For applications with limited overhead space.

Product List

Click here to see Micro Screws
