Low Outgassing

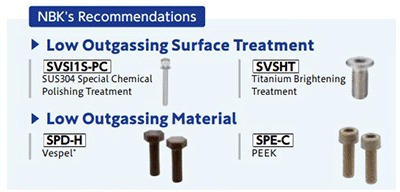

These are screws made of materials and surface treatments that emit low levels of outgassing.
Due to their minimal outgassing, these screws are ideal for vacuum environments such as vacuum chambers used in semiconductor manufacturing.

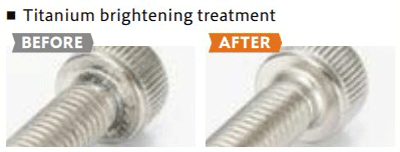

There are also titanium screws with low outgassing that have undergone brightening treatment.
Low-Outgassing_2en Low-Outgassing_1en
＊Vespel is a registered trademark of DuPont.

Part Name	Socket Head Cap Screws with Ventilation Hole	Socket Head Cap Screws with Ventilation Hole - Chemical Polish	Hex Socket Head Cap Screws (with Ventilation Hole / Inch Screws)	Hex Socket Head Cap Screw with Captive Washer and Ventilation Hole - Chemical Polish	High Strength Stainless Steel Socket Head Cap Screws - Specialized Chemical Polishing	Hex Socket Head Cap Screws with Ventilation Hole - Titanium	Vented Socket Head Cap Screws with Ultra Low Profile - Titanium	Socket Head Cap Screws with Small Head - Titanium	Vented Socket Head Cap Screws with Small Head - Titanium
Part Number	SVSS	SVSS-PC	SVSS(INCH)	SVSI1S-PC	SNSLG-PC	SVST	SVSHT	SNST-SD	SVST-SD
Feature	Standard	Low outgas	Inch Thread Socket Head Cap Screws	Integrated Washers I=1	High Strength (Strength Class 10.8 Equivalent) Low Outgas Non-magnetic	Lightweight Nonmagnetic Chemical Resistance	Lightweight Nonmagnetic Chemical Resistance	Small Head Lightweight Non-magnetic Chemical Resistance	Small Head Lightweight Non-magnetic Chemical Resistance Lightweight
Material	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	Equivalent to SUS304	SUSXM7 (Equivalent to SUS304)	SUS316L	Grade 2 Titanium	Grade 2 Titanium	Grade 2 Titanium	Grade 2 Titanium
Surface Treatment	-	Special Chemical Polishing	-	Special Chemical Polishing	Special Chemical Polishing	Special Chemical Polishing	Special Chemical Polishing	Special Chemical Polishing	Special Chemical Polishing
Thread Size	M2 ～ M12	M3 ～ M12	No.4-40UNC ～ 1/4-20UNC	M3 ～ M6	M3 ～ M6	M3 ～ M5	M3 ～ M6	M3 ～ M6	M3 ～ M5
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SVSS-M10 SVSS-M12 SVSS-M2 SVSS-M2.5 SVSS-M3 SVSS-M4 SVSS-M5 SVSS-M6 SVSS-M8	SVSS-M10-PC SVSS-M12-PC SVSS-M3-PC SVSS-M4-PC SVSS-M5-PC SVSS-M6-PC SVSS-M8-PC	SVSS-#10-24 SVSS-#10-32 SVSS-#4-40 SVSS-#5-40 SVSS-#6-32 SVSS-#8-32 SVSS-1/4-20	SVSI1S-M3-PC SVSI1S-M4-PC SVSI1S-M5-PC SVSI1S-M6-PC	SNSLG-M3-PC SNSLG-M4-PC SNSLG-M5-PC SNSLG-M6-PC	SVST-M3 SVST-M4 SVST-M5	SVSHT-M3 SVSHT-M4 SVSHT-M5 SVSHT-M6	SNST-M3-SD SNST-M4-SD SNST-M5-SD SNST-M6-SD	SVST-M3-SD SVST-M4-SD SVST-M5-SD

Part Name	Socket Head Cap Screws with Ultra Low Small Head - Titanium	Vented Socket Head Cap Screws with Ultra Low Profile & Small Head - Titanium	Hexagon Head Bolts (with Ventilation Hole)	Phillips Cross Recessed Flat Head Titanium Machine Screws (with Ventilation Hole)	Phillips Cross Recessed Pan Head Titanium Machine Screws (with Ventilation Hole)	Washers with Ventilation Grooves	Washers with Ventilation Grooves - Chemical Polish	Hex Socket Head Cap Screws - Super Black	Hex Socket Head Cap Screws - Low Temperature Black Chrome
Part Number	SSHT-SD	SVSHT-SD	SVHS	SVFT	SVPT	SWAS-VF	SWAS-VF-PC	SNSS-BK	SNSS-RY
Feature	Special Low Profile Space-saving Lightweight Non-magnetic Chemical Resistance Small Head	Special Low Profile Small Head Space-saving Lightweight Non-magnetic Chemical Resistance Lightweight	Hex head screws	Titanium Phillips Cross Recessed Flat Head Machine Screw Low outgas Nonmagnetic	Titanium Phillips Cross Recessed Pan Head Machine Screw Low outgas Nonmagnetic	Standard	Low outgas	Reflection Resistance Corrosion Resistance	Chemical Resistance Reflection Resistance Seizing Prevention
Material	Grade 2 Titanium	Grade 2 Titanium	SUSXM7 (Equivalent to SUS304)	Grade 2 Titanium	Grade 2 Titanium	SUS304	SUS304	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)
Surface Treatment	Special Chemical Polishing	Special Chemical Polishing	-	Special Chemical Polishing	Special Chemical Polishing	-	Special Chemical Polishing	Stainless Steel Black	Low temperature black chrome treatment
Thread Size	M3 ～ M6	M3 ～ M6	M3 ～ M8	M3 ～ M4	M3 ～ M5	M2 ～ M12	M3 ～ M12	M2 ～ M10	M3 ～ M10
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SSHT-M3-SD SSHT-M4-SD SSHT-M5-SD SSHT-M6-SD	SVSHT-M3-SD SVSHT-M4-SD SVSHT-M5-SD SVSHT-M6-SD	SVHS-M3 SVHS-M4 SVHS-M5 SVHS-M6 SVHS-M8	SVFT-M3 SVFT-M4	SVPT-M3 SVPT-M4 SVPT-M5	SWAS-10-VF SWAS-12-VF SWAS-2.5-VF SWAS-2-VF SWAS-3-VF SWAS-4-VF SWAS-5-VF SWAS-6-VF SWAS-8-VF	SWAS-10-VF-PC SWAS-12-VF-PC SWAS-3-VF-PC SWAS-4-VF-PC SWAS-5-VF-PC SWAS-6-VF-PC SWAS-8-VF-PC	SNSS-M10-BK SNSS-M2-BK SNSS-M3-BK SNSS-M4-BK SNSS-M5-BK SNSS-M6-BK SNSS-M8-BK	SNSS-M10-RY SNSS-M3-RY SNSS-M4-RY SNSS-M5-RY SNSS-M6-RY SNSS-M8-RY

Part Name	Titanium Hex Socket Head Cap Screws with Captive Washers	Titanium Hex Socket Head Cap Screws with Captive Washers	Socket Head Cap Captive Screws - Low Temperature Black Chrome Treatment	Plastic Screw - Socket Head Cap Screws - VESPEL（Grade：SP-1）	Plastic Screw - Hex Head Screws - VESPEL（Grade：SP-1）	Plastic Screw - Socket Head Cap Screws - VESPEL（Grade：SCP-5000）	Plastic Screw - Hex Head Screws - VESPEL（Grade：SCP-5000）	Plastic Screws - Hex Socket Head Cap Screws - PEEK GF30	Plastic Screws - Hex Socket Head Cap Screws - PEEK
Part Number	SNSI1T	SNSI3T	SSC-RY	SPD-C	SPD-H	SPDC-C	SPDC-H	SPEG-C	SPE-C
Feature	Integrated Washers I=1	Integrated Washers I=3	Chemical Resistance Anti-reflection Seizing Prevention Captive/Loss Prevention	Heat Resistance Chemical Resistance Low Outgas	Heat Resistance Chemical Resistance Low Outgas	Heat Resistance Chemical Resistance Low Outgas	Heat Resistance Chemical Resistance Low Outgas	Chemical Resistance Heat Resistance High Strength	Chemical Resistance Heat Resistance
Material	Grade 2 Titanium	Grade 2 Titanium	SUSXM7 (Equivalent to SUS304)	VESPEL® SP-1	VESPEL® SP-1	VESPEL® SCP-5000	VESPEL® SCP-5000	PEEK GF30	PEEK
Surface Treatment	Special Chemical Polishing	Special Chemical Polishing	Low temperature black chrome treatment	-	-	-	-	-	-
Thread Size	M3 ～ M6	M3 ～ M6	M3 ～ M8	M3 ～ M8	M3 ～ M8	M3 ～ M8	M3 ～ M8	M3 ～ M5	M3 ～ M12
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SNSI1T-M3 SNSI1T-M4 SNSI1T-M5 SNSI1T-M6	SNSI3T-M3 SNSI3T-M4 SNSI3T-M5 SNSI3T-M6	SSC-M3-RY SSC-M4-RY SSC-M5-RY SSC-M6-RY SSC-M8-RY	SPD-M3-C SPD-M4-C SPD-M5-C SPD-M6-C SPD-M8-C	SPD-M3-H SPD-M4-H SPD-M5-H SPD-M6-H SPD-M8-H	SPDC-M3-C SPDC-M4-C SPDC-M5-C SPDC-M6-C SPDC-M8-C	SPDC-M3-H SPDC-M4-H SPDC-M5-H SPDC-M6-H SPDC-M8-H	SPEG-M3-C SPEG-M4-C SPEG-M5-C	SPE-M10-C SPE-M12-C SPE-M3-C SPE-M4-C SPE-M5-C SPE-M6-C SPE-M8-C

Part Name	Plastic Screws - Hexalobular Socket Head Cap Screw with Low Head - PEEK	Plastic Screws - Hexalobular Socket Head Cap Screw with Ultra Low Head - PEEK	Plastic Standoff - PEEK	Plastic Screw - Cross Recessed Flat Head Machine Screws - PEEK	Plastic Set Screw - PEEK	Plastic Screws - Cross Recessed Pan Head Machine Screws - PEEK	Plastic Screw - Socket Head Cap Screws - Full Thread - PEEK	Plastic Screw - Hex Head Screws - PEEK	Plastic Hex Nut - PEEK
Part Number	SPE-LH	SPE-SH	SPE-HB	SPE-F	SPE-T	SPE-P	SPE-FT	SPE-H	SPE-N
Feature	Heat Resistance Chemical Resistance Low Profile Space Saving	Heat Resistance Chemical Resistance Low Profile Space Saving	PEEK Chemical Resistance Heat Resistance	Chemical Resistance Heat Resistance	Chemical Resistance Heat Resistance	Chemical Resistance Heat Resistance	Chemical Resistance Heat Resistance Full Thread	Chemical Resistance Heat Resistance	Chemical Resistance Heat Resistance
Material	PEEK	PEEK	PEEK	PEEK	PEEK	PEEK	PEEK	PEEK	PEEK
Surface Treatment	-	-	-	-	-	-	-	-	-
Thread Size	M3 ～ M6	M3 ～ M6	M3 ～ M8	M2 ～ M8	M3 ～ M8	M1.7 ～ M8	M3 ～ M6	M4 ～ M12	M2 ～ M10
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SPE-M3-LH SPE-M4-LH SPE-M5-LH SPE-M6-LH	SPE-M3-SH SPE-M4-SH SPE-M5-SH SPE-M6-SH	SPE-M3-HB SPE-M4-HB SPE-M5-HB SPE-M6-HB SPE-M8-HB	SPE-M2.6-F SPE-M2-F SPE-M3-F SPE-M4-F SPE-M5-F SPE-M6-F SPE-M8-F	SPE-M3-T SPE-M4-T SPE-M5-T SPE-M6-T SPE-M8-T	SPE-M1.7-P SPE-M2.6-P SPE-M2-P SPE-M3-P SPE-M4-P SPE-M5-P SPE-M6-P SPE-M8-P	SPE-M3-C-FT SPE-M4-C-FT SPE-M5-C-FT SPE-M6-C-FT	SPE-M10-H SPE-M12-H SPE-M4-H SPE-M5-H SPE-M6-H SPE-M8-H	SPE-M10-N SPE-M2.6-N SPE-M2-N SPE-M3-N SPE-M4-N SPE-M5-N SPE-M6-N SPE-M8-N

Part Name	Plastic Washer - PEEK	Plastic Plug - PEEK	Plastic Screw - Cross Recessed Pan Head Machine Screw - PEEK - Inch Thread	Plastic Screw - Hex Head Screw - Inch Thread - PEEK	Plastic Screw - Hex Socket Head Cap Screw - Inch Thread - PEEK	Plastic Screw - Slotted Pan Head Machine Screw - PEEK - Inch Thread	Plastic Screw - Slotted Flat Head Machine Screw - PEEK - Inch Thread	Plastic Hex Nut for Inch Screw - PEEK	Cover Caps
Part Number	SPE-W	SPE-R	SPE-P(INCH)	SPE-H(INCH)	SPE-C(INCH)	SPE-PS(INCH)	SPE-FS(INCH)	SPE-N(INCH)	SCAP-AL
Feature	Chemical Resistance Heat Resistance	Chemical Resistance Heat Resistance	Heat Resistance Chemical Resistance	Chemical Resistance Heat Resistance	Chemical Resistance	Chemical Resistance	Chemical Resistance	Chemical Resistance	Low Outgas Corrosion Resistance
Material	PEEK	PEEK	PEEK	PEEK	PEEK	PEEK	PEEK	PEEK	A5056
Surface Treatment	-	-	-	-	-	-	-	-	-
Thread Size	M2 ～ M10	R1/8" ～ R3/8"	No.2-56UNC ～ 1/4-20UNC	1/4-20UNC	No.4-40UNC ～ 1/4-20UNC	No.4-40UNC ～ No.10-32UNF	No.4-40UNC ～ No.10-32UNF	No.4-40UNC ～ No.8-32UNC	M5 ～ M16
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SPE-10-W SPE-2.6-W SPE-2-W SPE-3-W SPE-4-W SPE-5-W SPE-6-W SPE-8-W	SPE-1-R SPE-2-R SPE-3-R	SPE-#10-24-P SPE-#10-32-P SPE-#2-56-P SPE-#4-40-P SPE-#6-32-P SPE-#8-32-P SPE-1/4-20	SPE-1/4-20-H	SPE-#10-24-C SPE-#10-32-C SPE-#4-40-C SPE-#6-32-C SPE-#8-32-C SPE-1/4-20-C	SPE-#10-32-PS SPE-#4-40-PS SPE-#6-32-PS SPE-#8-32-PS	SPE-#10-32-FS SPE-#4-40-FS SPE-#6-32-FS SPE-#8-32-FS	SPE-#4-40-N SPE-#6-32-N SPE-#8-32-N	SCAP-10-AL SCAP-3-AL SCAP-4-AL SCAP-5-AL SCAP-6-AL SCAP-8-AL
