SPC-P/Plastic Cross Recessed Pan Head Machine Screws - PC

Light Weight
Electrical Insulation
Shock Resistance
Weather Resistance

SPC-PPlastic Screw - Cross Recessed Pan Head Machine Screws - PC

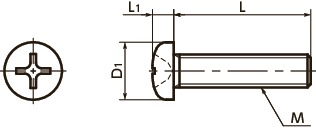

Dimension Drawing

Specs/CAD

Select

M (Coarse) Nominal of Thread: All; M1.7; M2; M2.6; M3; M4; M5; M6; M8

L: All; 3; 4; 5; 6; 8; 10; 12; 15; 16; 18; 20; 25; 30; 40; 35

Unit : mm

Part Number	M (Coarse) Nominal of Thread	Pitch	L	D₁	L₁	Cross-recessed Socket No.	Tensile Breaking Load (N)^＊1	Torsional Torque (N・m)^＊1	Qty per Pack	Mass (g)	CAD Download	RFQ
SPC-M1.7-3-P	M1.7	0.35	3	2.5	0.5	0	51	0.022	50	0.0066	CAD	RFQ
SPC-M1.7-4-P	M1.7	0.35	4	2.5	0.5	0	51	0.022	50	0.0085	CAD	RFQ
SPC-M2-3-P	M2	0.4	3	3.5	1.3	1	107	0.055	50	0.02	CAD	RFQ
SPC-M2-4-P	M2	0.4	4	3.5	1.3	1	107	0.055	50	0.022	CAD	RFQ
SPC-M2-5-P	M2	0.4	5	3.5	1.3	1	107	0.055	50	0.025	CAD	RFQ
SPC-M2-6-P	M2	0.4	6	3.5	1.3	1	107	0.055	50	0.028	CAD	RFQ
SPC-M2-8-P	M2	0.4	8	3.5	1.3	1	107	0.055	50	0.042	CAD	RFQ
SPC-M2-10-P	M2	0.4	10	3.5	1.3	1	107	0.055	50	0.047	CAD	RFQ
SPC-M2-12-P	M2	0.4	12	3.5	1.3	1	107	0.055	50	0.053	CAD	RFQ
SPC-M2-3-P(1000)	M2	0.4	3	3.5	1.3	1	107	0.055	1000	0.02	CAD	RFQ
SPC-M2-4-P(1000)	M2	0.4	4	3.5	1.3	1	107	0.055	1000	0.022	CAD	RFQ
SPC-M2-5-P(1000)	M2	0.4	5	3.5	1.3	1	107	0.055	1000	0.025	CAD	RFQ
SPC-M2-6-P(1000)	M2	0.4	6	3.5	1.3	1	107	0.055	1000	0.028	CAD	RFQ
SPC-M2-8-P(1000)	M2	0.4	8	3.5	1.3	1	107	0.055	1000	0.042	CAD	RFQ
SPC-M2-10-P(1000)	M2	0.4	10	3.5	1.3	1	107	0.055	1000	0.047	CAD	RFQ
SPC-M2-12-P(1000)	M2	0.4	12	3.5	1.3	1	107	0.055	1000	0.053	CAD	RFQ
SPC-M2.6-3-P	M2.6	0.45	3	4.5	1.7	1	196	0.12	50	0.052	CAD	RFQ
SPC-M2.6-4-P	M2.6	0.45	4	4.5	1.7	1	196	0.12	50	0.056	CAD	RFQ
SPC-M2.6-5-P	M2.6	0.45	5	4.5	1.7	1	196	0.12	50	0.061	CAD	RFQ
SPC-M2.6-6-P	M2.6	0.45	6	4.5	1.7	1	196	0.12	50	0.066	CAD	RFQ
SPC-M2.6-8-P	M2.6	0.45	8	4.5	1.7	1	196	0.12	50	0.075	CAD	RFQ
SPC-M2.6-10-P	M2.6	0.45	10	4.5	1.7	1	196	0.12	50	0.084	CAD	RFQ
SPC-M2.6-12-P	M2.6	0.45	12	4.5	1.7	1	196	0.12	50	0.093	CAD	RFQ
SPC-M2.6-15-P	M2.6	0.45	15	4.5	1.7	1	196	0.12	50	0.1	CAD	RFQ
SPC-M2.6-3-P(1000)	M2.6	0.45	3	4.5	1.7	1	196	0.12	1000	0.052	CAD	RFQ
SPC-M2.6-4-P(1000)	M2.6	0.45	4	4.5	1.7	1	196	0.12	1000	0.056	CAD	RFQ
SPC-M2.6-5-P(1000)	M2.6	0.45	5	4.5	1.7	1	196	0.12	1000	0.061	CAD	RFQ
SPC-M2.6-6-P(1000)	M2.6	0.45	6	4.5	1.7	1	196	0.12	1000	0.066	CAD	RFQ
SPC-M2.6-8-P(1000)	M2.6	0.45	8	4.5	1.7	1	196	0.12	1000	0.075	CAD	RFQ
SPC-M2.6-10-P(1000)	M2.6	0.45	10	4.5	1.7	1	196	0.12	1000	0.084	CAD	RFQ
SPC-M2.6-12-P(1000)	M2.6	0.45	12	4.5	1.7	1	196	0.12	1000	0.093	CAD	RFQ
SPC-M2.6-15-P(1000)	M2.6	0.45	15	4.5	1.7	1	196	0.12	1000	0.1	CAD	RFQ
SPC-M3-4-P	M3	0.5	4	5.5	2	2	266	0.18	50	0.062	CAD	RFQ
SPC-M3-5-P	M3	0.5	5	5.5	2	2	266	0.18	50	0.068	CAD	RFQ
SPC-M3-6-P	M3	0.5	6	5.5	2	2	266	0.18	50	0.074	CAD	RFQ
SPC-M3-8-P	M3	0.5	8	5.5	2	2	266	0.18	50	0.087	CAD	RFQ
SPC-M3-10-P	M3	0.5	10	5.5	2	2	266	0.18	50	0.099	CAD	RFQ
SPC-M3-12-P	M3	0.5	12	5.5	2	2	266	0.18	50	0.11	CAD	RFQ
SPC-M3-15-P	M3	0.5	15	5.5	2	2	266	0.18	50	0.13	CAD	RFQ
SPC-M3-16-P	M3	0.5	16	5.5	2	2	266	0.18	50	0.14	CAD	RFQ
SPC-M3-18-P	M3	0.5	18	5.5	2	2	266	0.18	50	0.15	CAD	RFQ
SPC-M3-20-P	M3	0.5	20	5.5	2	2	266	0.18	50	0.16	CAD	RFQ
SPC-M3-25-P	M3	0.5	25	5.5	2	2	266	0.18	50	0.19	CAD	RFQ
SPC-M3-30-P	M3	0.5	30	5.5	2	2	266	0.18	50	0.22	CAD	RFQ
SPC-M3-4-P(1000)	M3	0.5	4	5.5	2	2	266	0.18	1000	0.062	CAD	RFQ
SPC-M3-5-P(1000)	M3	0.5	5	5.5	2	2	266	0.18	1000	0.068	CAD	RFQ
SPC-M3-6-P(1000)	M3	0.5	6	5.5	2	2	266	0.18	1000	0.074	CAD	RFQ
SPC-M3-8-P(1000)	M3	0.5	8	5.5	2	2	266	0.18	1000	0.087	CAD	RFQ
SPC-M3-10-P(1000)	M3	0.5	10	5.5	2	2	266	0.18	1000	0.099	CAD	RFQ
SPC-M3-12-P(1000)	M3	0.5	12	5.5	2	2	266	0.18	1000	0.11	CAD	RFQ
SPC-M3-15-P(1000)	M3	0.5	15	5.5	2	2	266	0.18	1000	0.13	CAD	RFQ
SPC-M3-16-P(1000)	M3	0.5	16	5.5	2	2	266	0.18	1000	0.14	CAD	RFQ
SPC-M3-18-P(1000)	M3	0.5	18	5.5	2	2	266	0.18	1000	0.15	CAD	RFQ
SPC-M3-20-P(1000)	M3	0.5	20	5.5	2	2	266	0.18	1000	0.16	CAD	RFQ
SPC-M3-25-P(1000)	M3	0.5	25	5.5	2	2	266	0.18	1000	0.19	CAD	RFQ
SPC-M3-30-P(1000)	M3	0.5	30	5.5	2	2	266	0.18	1000	0.22	CAD	RFQ
SPC-M4-5-P	M4	0.7	5	7	2.6	2	481	0.39	50	0.13	CAD	RFQ
SPC-M4-6-P	M4	0.7	6	7	2.6	2	481	0.39	50	0.14	CAD	RFQ
SPC-M4-8-P	M4	0.7	8	7	2.6	2	481	0.39	50	0.17	CAD	RFQ
SPC-M4-10-P	M4	0.7	10	7	2.6	2	481	0.39	50	0.19	CAD	RFQ
SPC-M4-12-P	M4	0.7	12	7	2.6	2	481	0.39	50	0.21	CAD	RFQ
SPC-M4-15-P	M4	0.7	15	7	2.6	2	481	0.39	50	0.24	CAD	RFQ
SPC-M4-16-P	M4	0.7	16	7	2.6	2	481	0.39	50	0.25	CAD	RFQ
SPC-M4-18-P	M4	0.7	18	7	2.6	2	481	0.39	50	0.27	CAD	RFQ
SPC-M4-20-P	M4	0.7	20	7	2.6	2	481	0.39	50	0.3	CAD	RFQ
SPC-M4-25-P	M4	0.7	25	7	2.6	2	481	0.39	50	0.35	CAD	RFQ
SPC-M4-30-P	M4	0.7	30	7	2.6	2	481	0.39	50	0.4	CAD	RFQ
SPC-M4-40-P	M4	0.7	40	7	2.6	2	481	0.39	50	0.51	CAD	RFQ
SPC-M4-5-P(1000)	M4	0.7	5	7	2.6	2	481	0.39	1000	0.13	CAD	RFQ
SPC-M4-6-P(1000)	M4	0.7	6	7	2.6	2	481	0.39	1000	0.14	CAD	RFQ
SPC-M4-8-P(1000)	M4	0.7	8	7	2.6	2	481	0.39	1000	0.17	CAD	RFQ
SPC-M4-10-P(1000)	M4	0.7	10	7	2.6	2	481	0.39	1000	0.19	CAD	RFQ
SPC-M4-12-P(1000)	M4	0.7	12	7	2.6	2	481	0.39	1000	0.21	CAD	RFQ
SPC-M4-15-P(1000)	M4	0.7	15	7	2.6	2	481	0.39	1000	0.24	CAD	RFQ
SPC-M4-16-P(1000)	M4	0.7	16	7	2.6	2	481	0.39	1000	0.25	CAD	RFQ
SPC-M4-18-P(1000)	M4	0.7	18	7	2.6	2	481	0.39	1000	0.27	CAD	RFQ
SPC-M4-20-P(1000)	M4	0.7	20	7	2.6	2	481	0.39	1000	0.3	CAD	RFQ
SPC-M4-25-P(500)	M4	0.7	25	7	2.6	2	481	0.39	500	0.35	CAD	RFQ
SPC-M4-30-P(500)	M4	0.7	30	7	2.6	2	481	0.39	500	0.4	CAD	RFQ
SPC-M4-40-P(500)	M4	0.7	40	7	2.6	2	481	0.39	500	0.51	CAD	RFQ
SPC-M5-6-P	M5	0.8	6	9	3.3	2	797	0.8	50	0.28	CAD	RFQ
SPC-M5-8-P	M5	0.8	8	9	3.3	2	797	0.8	50	0.32	CAD	RFQ
SPC-M5-10-P	M5	0.8	10	9	3.3	2	797	0.8	50	0.36	CAD	RFQ
SPC-M5-12-P	M5	0.8	12	9	3.3	2	797	0.8	50	0.4	CAD	RFQ
SPC-M5-15-P	M5	0.8	15	9	3.3	2	797	0.8	50	0.45	CAD	RFQ
SPC-M5-16-P	M5	0.8	16	9	3.3	2	797	0.8	50	0.47	CAD	RFQ
SPC-M5-18-P	M5	0.8	18	9	3.3	2	797	0.8	50	0.51	CAD	RFQ
SPC-M5-20-P	M5	0.8	20	9	3.3	2	797	0.8	50	0.55	CAD	RFQ
SPC-M5-25-P	M5	0.8	25	9	3.3	2	797	0.8	50	0.65	CAD	RFQ
SPC-M5-30-P	M5	0.8	30	9	3.3	2	797	0.8	50	0.74	CAD	RFQ
SPC-M5-35-P	M5	0.8	35	9	3.3	2	797	0.8	50	0.84	CAD	RFQ
SPC-M5-6-P(1000)	M5	0.8	6	9	3.3	2	797	0.8	1000	0.28	CAD	RFQ
SPC-M5-8-P(1000)	M5	0.8	8	9	3.3	2	797	0.8	1000	0.32	CAD	RFQ
SPC-M5-10-P(1000)	M5	0.8	10	9	3.3	2	797	0.8	1000	0.36	CAD	RFQ
SPC-M5-12-P(1000)	M5	0.8	12	9	3.3	2	797	0.8	1000	0.4	CAD	RFQ
SPC-M5-15-P(500)	M5	0.8	15	9	3.3	2	797	0.8	500	0.45	CAD	RFQ
SPC-M5-16-P(500)	M5	0.8	16	9	3.3	2	797	0.8	500	0.47	CAD	RFQ
SPC-M5-18-P(500)	M5	0.8	18	9	3.3	2	797	0.8	500	0.51	CAD	RFQ
SPC-M5-20-P(500)	M5	0.8	20	9	3.3	2	797	0.8	500	0.55	CAD	RFQ
SPC-M5-25-P(500)	M5	0.8	25	9	3.3	2	797	0.8	500	0.65	CAD	RFQ
SPC-M5-30-P(250)	M5	0.8	30	9	3.3	2	797	0.8	250	0.74	CAD	RFQ
SPC-M5-35-P(250)	M5	0.8	35	9	3.3	2	797	0.8	250	0.84	CAD	RFQ
SPC-M6-10-P	M6	1	10	10.5	3.9	3	1136	1.2	20	0.6	CAD	RFQ
SPC-M6-12-P	M6	1	12	10.5	3.9	3	1136	1.2	20	0.65	CAD	RFQ
SPC-M6-15-P	M6	1	15	10.5	3.9	3	1136	1.2	20	0.76	CAD	RFQ
SPC-M6-20-P	M6	1	20	10.5	3.9	3	1136	1.2	20	0.87	CAD	RFQ
SPC-M6-25-P	M6	1	25	10.5	3.9	3	1136	1.2	20	1	CAD	RFQ
SPC-M6-30-P	M6	1	30	10.5	3.9	3	1136	1.2	20	1.3	CAD	RFQ
SPC-M6-35-P	M6	1	35	10.5	3.9	3	1136	1.2	20	1.4	CAD	RFQ
SPC-M6-40-P	M6	1	40	10.5	3.9	3	1136	1.2	20	1.6	CAD	RFQ
SPC-M6-10-P(500)	M6	1	10	10.5	3.9	3	1136	1.2	500	0.6	CAD	RFQ
SPC-M6-12-P(500)	M6	1	12	10.5	3.9	3	1136	1.2	500	0.65	CAD	RFQ
SPC-M6-15-P(500)	M6	1	15	10.5	3.9	3	1136	1.2	500	0.76	CAD	RFQ
SPC-M6-20-P(250)	M6	1	20	10.5	3.9	3	1136	1.2	250	0.87	CAD	RFQ
SPC-M6-25-P(250)	M6	1	25	10.5	3.9	3	1136	1.2	250	1	CAD	RFQ
SPC-M6-30-P(250)	M6	1	30	10.5	3.9	3	1136	1.2	250	1.3	CAD	RFQ
SPC-M6-35-P(200)	M6	1	35	10.5	3.9	3	1136	1.2	200	1.4	CAD	RFQ
SPC-M6-40-P(200)	M6	1	40	10.5	3.9	3	1136	1.2	200	1.6	CAD	RFQ
SPC-M8-12-P	M8	1.25	12	14	5.2	3	2088	3.2	20	1.7	CAD	RFQ
SPC-M8-15-P	M8	1.25	15	14	5.2	3	2088	3.2	20	1.8	CAD	RFQ
SPC-M8-20-P	M8	1.25	20	14	5.2	3	2088	3.2	20	2.1	CAD	RFQ
SPC-M8-25-P	M8	1.25	25	14	5.2	3	2088	3.2	20	2.3	CAD	RFQ
SPC-M8-30-P	M8	1.25	30	14	5.2	3	2088	3.2	20	2.6	CAD	RFQ
SPC-M8-40-P	M8	1.25	40	14	5.2	3	2088	3.2	20	3.1	CAD	RFQ
SPC-M8-12-P(250)	M8	1.25	12	14	5.2	3	2088	3.2	250	1.7	CAD	RFQ
SPC-M8-15-P(250)	M8	1.25	15	14	5.2	3	2088	3.2	250	1.8	CAD	RFQ
SPC-M8-20-P(200)	M8	1.25	20	14	5.2	3	2088	3.2	200	2.1	CAD	RFQ
SPC-M8-25-P(200)	M8	1.25	25	14	5.2	3	2088	3.2	200	2.3	CAD	RFQ
SPC-M8-30-P(100)	M8	1.25	30	14	5.2	3	2088	3.2	100	2.6	CAD	RFQ
SPC-M8-40-P(100)	M8	1.25	40	14	5.2	3	2088	3.2	100	3.1	CAD	RFQ

＊1：　Values in chart are for reference only. They are not guaranteed values. The recommended tightening torque is 50% of the torsional torque.
● M1.7 is black.

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

●When purchasing less volume than one full bag, a separate handling fee is charged. For details, see the Sold Separately Service.

Related Services

Material/Finish

	SPC-P
Main Body	PC (Polycarbonate) (Transparent)＊1
Heat Resistance Temperature＊2	115℃

＊1：　SPC-M1.7-3-P and SPC-M1.7-4-P are black.
＊2：　This is the value for the resin material. The operating temperature of the product changes with performance conditions such as tightening torque.

Application

Electrical and electronic equipment

Characteristics

PC (polycarbonate) Phillips cross recessed pan head machine screws.
PC (polycarbonate) has the highest shock resistance of engineering plastics.
Allowable operating temperature＊2 (min./max.): -40°C/115°C
PC has low water absorbency and excellent weather resistance.
For the properties and precautions for use of plastic screws, see “Properties of Plastic Screws.”⇒Plastic Screws

Click here to see Plastic Screws
