Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L | B | L1 | Tension Rupture Load (N)＊1 |
Torsional Torque (N・m)＊1 |
Qty per Pack | Mass (g) |
CAD Download |
RFQ |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SPP-M4-10-H | M4 | 0.7 | 10 | 7 | 2.8 | 276 | 0.22 | 20 | 0.2 | CAD | RFQ |
| SPP-M4-12-H | M4 | 0.7 | 12 | 7 | 2.8 | 276 | 0.22 | 20 | 0.22 | CAD | RFQ |
| SPP-M4-15-H | M4 | 0.7 | 15 | 7 | 2.8 | 276 | 0.22 | 20 | 0.25 | CAD | RFQ |
| SPP-M4-20-H | M4 | 0.7 | 20 | 7 | 2.8 | 276 | 0.22 | 20 | 0.29 | CAD | RFQ |
| SPP-M4-25-H | M4 | 0.7 | 25 | 7 | 2.8 | 276 | 0.22 | 20 | 0.34 | CAD | RFQ |
| SPP-M5-10-H | M5 | 0.8 | 10 | 8 | 3.5 | 437 | 0.39 | 20 | 0.32 | CAD | RFQ |
| SPP-M5-12-H | M5 | 0.8 | 12 | 8 | 3.5 | 437 | 0.39 | 20 | 0.35 | CAD | RFQ |
| SPP-M5-15-H | M5 | 0.8 | 15 | 8 | 3.5 | 437 | 0.39 | 20 | 0.41 | CAD | RFQ |
| SPP-M5-20-H | M5 | 0.8 | 20 | 8 | 3.5 | 437 | 0.39 | 20 | 0.47 | CAD | RFQ |
| SPP-M5-25-H | M5 | 0.8 | 25 | 8 | 3.5 | 437 | 0.39 | 20 | 0.54 | CAD | RFQ |
| SPP-M5-30-H | M5 | 0.8 | 30 | 8 | 3.5 | 437 | 0.39 | 20 | 0.62 | CAD | RFQ |
| SPP-M6-10-H | M6 | 1 | 10 | 10 | 4 | 634 | 0.69 | 10 | 0.52 | CAD | RFQ |
| SPP-M6-12-H | M6 | 1 | 12 | 10 | 4 | 634 | 0.69 | 10 | 0.57 | CAD | RFQ |
| SPP-M6-15-H | M6 | 1 | 15 | 10 | 4 | 634 | 0.69 | 10 | 0.65 | CAD | RFQ |
| SPP-M6-20-H | M6 | 1 | 20 | 10 | 4 | 634 | 0.69 | 10 | 0.73 | CAD | RFQ |
| SPP-M6-25-H | M6 | 1 | 25 | 10 | 4 | 634 | 0.69 | 10 | 0.84 | CAD | RFQ |
| SPP-M6-30-H | M6 | 1 | 30 | 10 | 4 | 634 | 0.69 | 10 | 0.94 | CAD | RFQ |
| SPP-M8-10-H | M8 | 1.25 | 10 | 13 | 5.5 | 1143 | 1.58 | 10 | 1.1 | CAD | RFQ |
| SPP-M8-12-H | M8 | 1.25 | 12 | 13 | 5.5 | 1143 | 1.58 | 10 | 1.2 | CAD | RFQ |
| SPP-M8-15-H | M8 | 1.25 | 15 | 13 | 5.5 | 1143 | 1.58 | 10 | 1.3 | CAD | RFQ |
| SPP-M8-20-H | M8 | 1.25 | 20 | 13 | 5.5 | 1143 | 1.58 | 10 | 1.5 | CAD | RFQ |
| SPP-M8-25-H | M8 | 1.25 | 25 | 13 | 5.5 | 1143 | 1.58 | 10 | 1.7 | CAD | RFQ |
| SPP-M8-30-H | M8 | 1.25 | 30 | 13 | 5.5 | 1143 | 1.58 | 10 | 1.9 | CAD | RFQ |
| SPP-M8-40-H | M8 | 1.25 | 40 | 13 | 5.5 | 1143 | 1.58 | 10 | 2.2 | CAD | RFQ |
| SPP-M10-20-H | M10 | 1.5 | 20 | 17 | 7 | 1705 | 3.32 | 10 | 2.8 | CAD | RFQ |
| SPP-M10-25-H | M10 | 1.5 | 25 | 17 | 7 | 1705 | 3.32 | 10 | 3.1 | CAD | RFQ |
| SPP-M10-30-H | M10 | 1.5 | 30 | 17 | 7 | 1705 | 3.32 | 10 | 3.4 | CAD | RFQ |
| SPP-M10-40-H | M10 | 1.5 | 40 | 17 | 7 | 1705 | 3.32 | 10 | 4 | CAD | RFQ |
| SPP-M12-20-H | M12 | 1.75 | 20 | 19 | 8 | 2497 | 5.36 | 10 | 4 | CAD | RFQ |
| SPP-M12-25-H | M12 | 1.75 | 25 | 19 | 8 | 2497 | 5.36 | 10 | 4.5 | CAD | RFQ |
| SPP-M12-30-H | M12 | 1.75 | 30 | 19 | 8 | 2497 | 5.36 | 10 | 4.9 | CAD | RFQ |
| SPP-M12-35-H | M12 | 1.75 | 35 | 19 | 8 | 2497 | 5.36 | 10 | 5.4 | CAD | RFQ |
| SPP-M12-40-H | M12 | 1.75 | 40 | 19 | 8 | 2497 | 5.36 | 10 | 5.9 | CAD | RFQ |
| SPP-M12-70-H | M12 | 1.75 | 70 | 19 | 8 | 2497 | 5.36 | 10 | 9 | CAD | RFQ |
＊1： Values in chart are for reference only. They are not guaranteed values.The recommendation torque is 50% of the torsional torque.
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form here●When purchasing less volume than one full bag, a separate handling fee is charged. For details, see the Sold Separately Service.
Related Services
Material/Finish
| SPP-H | |
|---|---|

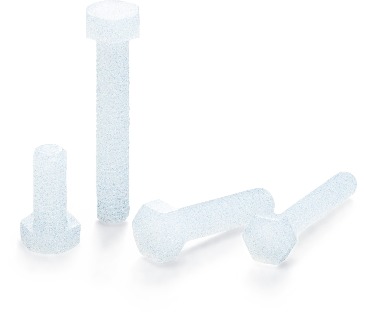

| Main body | PP（Polypropylene）（Milky White） |
| Heat Resistance Temperature＊1 | 65℃ |
＊1： This is the value for the plastic material. The maximum operating temperature of the product changes with performance conditions such as tightening torque.
Application
FPD production equipment / Semiconductor devices / Printedcircuit board etching devices / Metallic surface treatment
equipment and facilities / Chemical plants
Characteristics
- PP plastic has excellent resistance to chemicals such as strong acids and organic solvents.
- It is used as a replacement for vinyl chloride type plastic screws.
- The properties and precautions of plastic screws⇒Plastic Screws
