Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L | B | L1 | Torsional Torque (N・m)＊1 |
Qty per Pack | Mass (g) |
CAD Download |
RFQ |
|---|---|---|---|---|---|---|---|---|---|---|
| SPV-M4-10-H1 | M4 | 0.7 | 10 | 7 | 2.8 | 0.26 | 20 | 0.39 | CAD | RFQ |
| SPV-M4-15-H1 | M4 | 0.7 | 15 | 7 | 2.8 | 0.26 | 20 | 0.49 | CAD | RFQ |
| SPV-M4-20-H1 | M4 | 0.7 | 20 | 7 | 2.8 | 0.26 | 20 | 0.6 | CAD | RFQ |
| SPV-M4-25-H1 | M4 | 0.7 | 25 | 7 | 2.8 | 0.26 | 20 | 0.71 | CAD | RFQ |
| SPV-M5-10-H1 | M5 | 0.8 | 10 | 8 | 3.5 | 0.44 | 20 | 0.64 | CAD | RFQ |
| SPV-M5-12-H1 | M5 | 0.8 | 12 | 8 | 3.5 | 0.44 | 20 | 0.69 | CAD | RFQ |
| SPV-M5-15-H1 | M5 | 0.8 | 15 | 8 | 3.5 | 0.44 | 20 | 0.81 | CAD | RFQ |
| SPV-M5-20-H1 | M5 | 0.8 | 20 | 8 | 3.5 | 0.44 | 20 | 0.92 | CAD | RFQ |
| SPV-M5-25-H1 | M5 | 0.8 | 25 | 8 | 3.5 | 0.44 | 20 | 1.1 | CAD | RFQ |
| SPV-M5-30-H1 | M5 | 0.8 | 30 | 8 | 3.5 | 0.44 | 20 | 1.3 | CAD | RFQ |
| SPV-M5-35-H1 | M5 | 0.8 | 35 | 8 | 3.5 | 0.44 | 20 | 1.5 | CAD | RFQ |
| SPV-M6-10-H1 | M6 | 1 | 10 | 10 | 4 | 0.81 | 10 | 1 | CAD | RFQ |
| SPV-M6-12-H1 | M6 | 1 | 12 | 10 | 4 | 0.81 | 10 | 1.2 | CAD | RFQ |
| SPV-M6-15-H1 | M6 | 1 | 15 | 10 | 4 | 0.81 | 10 | 1.3 | CAD | RFQ |
| SPV-M6-20-H1 | M6 | 1 | 20 | 10 | 4 | 0.81 | 10 | 1.4 | CAD | RFQ |
| SPV-M6-25-H1 | M6 | 1 | 25 | 10 | 4 | 0.81 | 10 | 1.8 | CAD | RFQ |
| SPV-M6-30-H1 | M6 | 1 | 30 | 10 | 4 | 0.81 | 10 | 2 | CAD | RFQ |
| SPV-M6-35-H1 | M6 | 1 | 35 | 10 | 4 | 0.81 | 10 | 2.3 | CAD | RFQ |
| SPV-M6-40-H1 | M6 | 1 | 40 | 10 | 4 | 0.81 | 10 | 2.5 | CAD | RFQ |
| SPV-M8-10-H1 | M8 | 1.25 | 10 | 13 | 5.5 | 1.56 | 10 | 2.2 | CAD | RFQ |
| SPV-M8-12-H1 | M8 | 1.25 | 12 | 13 | 5.5 | 1.56 | 10 | 2.4 | CAD | RFQ |
| SPV-M8-15-H1 | M8 | 1.25 | 15 | 13 | 5.5 | 1.56 | 10 | 2.5 | CAD | RFQ |
| SPV-M8-20-H1 | M8 | 1.25 | 20 | 13 | 5.5 | 1.56 | 10 | 2.9 | CAD | RFQ |
| SPV-M8-25-H1 | M8 | 1.25 | 25 | 13 | 5.5 | 1.56 | 10 | 3.3 | CAD | RFQ |
| SPV-M8-30-H1 | M8 | 1.25 | 30 | 13 | 5.5 | 1.56 | 10 | 3.8 | CAD | RFQ |
| SPV-M8-35-H1 | M8 | 1.25 | 35 | 13 | 5.5 | 1.56 | 10 | 4.3 | CAD | RFQ |
| SPV-M8-40-H1 | M8 | 1.25 | 40 | 13 | 5.5 | 1.56 | 10 | 4.7 | CAD | RFQ |
| SPV-M10-15-H1 | M10 | 1.5 | 15 | 17 | 7 | 3.16 | 10 | 4.9 | CAD | RFQ |
| SPV-M10-20-H1 | M10 | 1.5 | 20 | 17 | 7 | 3.16 | 10 | 5.5 | CAD | RFQ |
| SPV-M10-25-H1 | M10 | 1.5 | 25 | 17 | 7 | 3.16 | 10 | 6.1 | CAD | RFQ |
| SPV-M10-30-H1 | M10 | 1.5 | 30 | 17 | 7 | 3.16 | 10 | 6.8 | CAD | RFQ |
| SPV-M10-35-H1 | M10 | 1.5 | 35 | 17 | 7 | 3.16 | 10 | 7.5 | CAD | RFQ |
| SPV-M10-40-H1 | M10 | 1.5 | 40 | 17 | 7 | 3.16 | 10 | 8.2 | CAD | RFQ |
| SPV-M12-20-H1 | M12 | 1.75 | 20 | 19 | 8 | 5.73 | 10 | 7.9 | CAD | RFQ |
| SPV-M12-25-H1 | M12 | 1.75 | 25 | 19 | 8 | 5.73 | 10 | 8.7 | CAD | RFQ |
| SPV-M12-30-H1 | M12 | 1.75 | 30 | 19 | 8 | 5.73 | 10 | 9.6 | CAD | RFQ |
| SPV-M12-35-H1 | M12 | 1.75 | 35 | 19 | 8 | 5.73 | 10 | 11 | CAD | RFQ |
| SPV-M12-40-H1 | M12 | 1.75 | 40 | 19 | 8 | 5.73 | 10 | 12 | CAD | RFQ |
＊1： Values in chart are for reference only. They are not guaranteed values. The recommended tightening torque is 50% of the torsional torque.
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form here● When purchasing less volume than one full bag, a separate handling fee is charged. For details, see the Sold Separately Service.
Related Services
Material/Finish
| SPV-H1 | |
|---|---|
| Main Body | PVDF (Polyvinylidene Fluoride) (Milky White) |
| Heat Resistance Temperature＊1 | 150℃ |
＊1： This is the value for the resin material. The operating temperature of the product changes with performance conditions such as tightening torque.
Application
FPD production equipment / Semiconductor manufacturing equipment / Printed circuit board etching devices / Metallic surface treatment equipment and facilities / Chemical plants / Food machineryCharacteristics

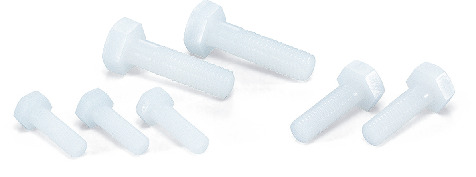

- PVDF hex head bolts.
- PVDF has excellent chemical resistance against strong acids and organic solvents as well as halogen compounds such as chlorine and bromine.
- It can be used in atmospheres in which metal and PVC (polyvinyl chloride) cannot be used.
- Allowable operating temperature＊1 (min./max.): -40°C/150°C
- Its tensile strength equals or exceeds that of PVC, and its impact strength is 3 times that of PVC.
- It is self-extinguishing and has excellent incombustibility.
- For the properties and precautions for use of plastic screws, see “Properties of Plastic Screws.”⇒Plastic Screws
