SFMS-M10-CS

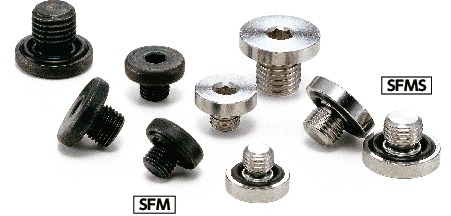

Hex socket flange head screw plugs

Hex socket flange head screw plugs with O-ring

Safety Precautions

RoHS Compliant

SFMS-MHex Socket Flange Head Screw Plugs

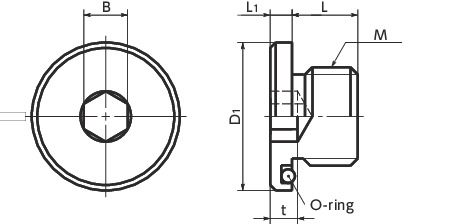

Dimension Drawing

SFMS-MHex Socket Flange Head Screw Plugs寸法図

Unit : mm

Part Number M
Nominal of Thread		 Coarse/Fine Pitch L D1 L1 B t O-ring
No.		 Recommended Torque
(N・m)		 Mass
(g)		 CAD
Download		 RFQ
SFMS-M10-CS M10 Coarse 1.5 9 19.5 4 4 4 P12.5 13.7 11 CAD RFQ
Part Number M
Nominal of Thread		 Coarse/Fine Pitch L D1 L1 B t O-ring
No.		 Recommended Torque
(N・m)		 Mass
(g)		 CAD
Download		 RFQ
SFMS-M10-CS M10 Coarse 1.5 9 19.5 4 4 4 P12.5 13.7 11 CAD RFQ
Part Number M
Nominal of Thread		 Coarse/Fine Pitch L D1 L1 B t O-ring
No.		 Recommended Torque
(N・m)		 Mass
(g)		 CAD
Download		 RFQ
SFMS-M10-CS M10 Coarse 1.5 9 19.5 4 4 4 P12.5 13.7 11 CAD RFQ
Part Number M
Nominal of Thread		 Coarse/Fine Pitch L D1 L1 B t O-ring
No.		 Recommended Torque
(N・m)		 Mass
(g)		 CAD
Download		 RFQ
SFMS-M10-CS M10 Coarse 1.5 9 19.5 4 4 4 P12.5 13.7 11 CAD RFQ

Related Services

Material/Finish

SFMS
Main Body SUS304
O-Ring Fluoro-rubber
(Type 4 D of JIS B 2401)

Application

Hydraulic equipment / Pneumatic machinery and equipment / General industrial machines

Characteristics

  • Because an O-ring is included, grooving is not required on the surface surrounding the female screw.
  • Because this is a parallel thread, strain on the female screw like a tightened taper thread does not occur. It is suitable for hydraulic equipment/pneumatic devices that are often mounted and removed.
  • For the stainless steel SFMS, metric screw threads and parallel pipe threads are standardized.

Related Services

Product List

Click here to see SFMS-M

SFMS-M10

Part Name

Hex socket flange head screw plugs

Part Number

SFMS-M10

Feature

Metric Coarse or Fine Screw threads
O-ring

SFMS-M12

Part Name

Hex socket flange head screw plugs

Part Number

SFMS-M12

Feature

Metric Coarse or Fine Screw threads
O-ring

SFMS-M14

Part Name

Hex socket flange head screw plugs

Part Number

SFMS-M14

Feature

Metric Coarse or Fine Screw threads
O-ring

SFMS-M16

Part Name

Hex socket flange head screw plugs

Part Number

SFMS-M16

Feature

Metric Coarse or Fine Screw threads
O-ring

Click here to see Plugs

SFFS

Part Name

Hex Socket Flange Head Screw Plugs - Stainless Steel

Part Number

SFFS

Feature

Parallel Pipe Thread

SFT-PS

Part Name

Hex Socket Pipe Plugs

Part Number

SFT-PS

Feature

Sunk Head Plug with Hex Socket
Tapered Pipe thread
Precoated Seal

SFTS

Part Name

Hex Socket Pipe Plugs

Part Number

SFTS

Feature

Sunk Head Plug with Hex Socket
Tapered Pipe thread

SFF

Part Name

Hex Socket Flange Head Screw Plugs - Steel

Part Number

SFF

Feature

Parallel Pipe Thread
