Galling & Seizing Prevention

These screws have surface treatments that prevent galling during tightening.
By reducing the friction coefficient of the thread surfaces with plating or coatings, the required axial force can be achieved with lower tightening torque.
As a result, he generation of friction heat during tightening is minimized, effectively preventing galling and seizing.

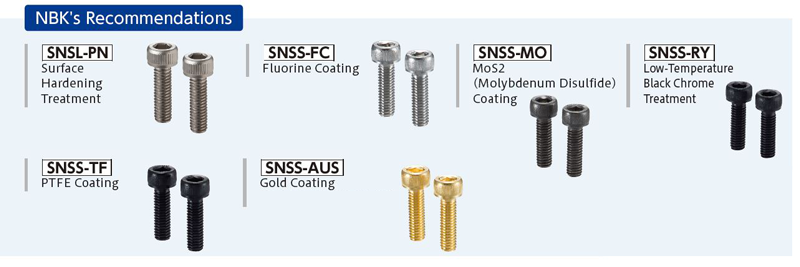

There are surface-hardened screws that do not cause contamination, as well as screws with gold, fluorine, MoS2, and PTFE coatings.

GallingSeizingPrevention1en1

Part Name	Hex Socket Head Cap Screws - SUS316L / Surface hardening treatment	High Strength Stainless Steel Socket Head Cap Screws - Surface Hardening	Hex Socket Head Cap Screws - Fluorine Coating	Socket Head Cap Screws with Small Head - Fluorine Coating	Socket Head Cap Screws with Ultra Low Profile & Small Head - Fluorine Coating	Hex Socket Head Cap Screws - MoS₂ Coating	Socket Head Cap Screws with Small Head - MoS₂ Coating	Socket Head Cap Screws with Ultra Low Profile & Small Head - MoS₂ Coating	Hex Socket Head Cap Screws - Low Temperature Black Chrome
Part Number	SNSL-PN	SNSLG-PN	SNSS-FC	SNSS-SD-FC	SSHS-SD-FC	SNSS-MO	SNSS-SD-MO	SSHS-SD-MO	SNSS-RY
Feature	Seizing Prevention	High Strength (Strength Class 10.8 Equivalent) Heat Resistance Seizing Prevention	Seizing prevention	Small Head Space-saving Seizing Prevention	Special Low Profile Small Head Space-saving Seizing Prevention	Seizing prevention	Small Head Space-saving Seizing Prevention	Special Low Profile Small Head Space-saving Seizing Prevention	Chemical Resistance Reflection Resistance Seizing Prevention
Material	SUS316L	SUS316L	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)
Surface Treatment	Surface hardening treatment	Surface hardening treatment	Fluorine coating	Fluorine coating	Fluorine coating	Molybdenum disulfide coating	Molybdenum disulfide coating	Molybdenum disulfide coating	Low temperature black chrome treatment
Thread Size	M3 ～ M8	M3 ～ M6	M3 ～ M10	M3 ～ M10	M3 ～ M10	M3 ～ M10	M3 ～ M10	M3 ～ M10	M3 ～ M10
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SNSL-M3-PN SNSL-M4-PN SNSL-M5-PN SNSL-M6-PN SNSL-M8-PN	SNSLG-M3-PN SNSLG-M4-PN SNSLG-M5-PN SNSLG-M6-PN	SNSS-M10-FC SNSS-M3-FC SNSS-M4-FC SNSS-M5-FC SNSS-M6-FC SNSS-M8-FC	SNSS-M10-SD-FC SNSS-M3-SD-FC SNSS-M4-SD-FC SNSS-M5-SD-FC SNSS-M6-SD-FC SNSS-M8-SD-FC	SSHS-M10-SD-FC SSHS-M3-SD-FC SSHS-M4-SD-FC SSHS-M5-SD-FC SSHS-M6-SD-FC SSHS-M8-SD-FC	SNSS-M10-MO SNSS-M3-MO SNSS-M4-MO SNSS-M5-MO SNSS-M6-MO SNSS-M8-MO	SNSS-M10-SD-MO SNSS-M3-SD-MO SNSS-M4-SD-MO SNSS-M5-SD-MO SNSS-M6-SD-MO SNSS-M8-SD-MO	SSHS-M10-SD-MO SSHS-M3-SD-MO SSHS-M4-SD-MO SSHS-M5-SD-MO SSHS-M6-SD-MO SSHS-M8-SD-MO	SNSS-M10-RY SNSS-M3-RY SNSS-M4-RY SNSS-M5-RY SNSS-M6-RY SNSS-M8-RY

Part Name	Flanged Socket Head Cap Screws - Low Temperature Black Chrome Treatment	High Strength Stainless Steel Socket Head Cap Screws – Low Temperature Black Chrome Treatment	Hex Socket Head Cap Screws - PTFE Coating	Flanged Socket Head Cap Screws - PTFE Coating	High Strength Stainless Steel Socket Head Cap Screws – PTFE Coating	Hex Socket Head Cap Screws - Gold Coating	Socket Head Cap Captive Screws - Fluorine Coating	Socket Head Cap Captive Screws - Low Temperature Black Chrome Treatment	Socket Head Cap Captive Screws - PTFE Coating
Part Number	SFSS-RY	SNSLG-RY	SNSS-TF	SFSS-TF	SNSLG-TF	SNSS-AUS	SSC-FC	SSC-RY	SSC-TF
Feature	Flanged Chemical Resistance Anti-reflection Seizing Prevention	High Strength (Strength Class 10.8 Equivalent) Non-magnetic Chemical Resistance Anti-reflection Seizing Prevention	Chemical Resistance Seizing Prevention	Flanged Chemical Resistance Seizing Prevention	High Strength (Strength Class 10.8 Equivalent) Non-magnetic Chemical Resistance Seizing Prevention	Seizing prevention	Seizing Prevention Captive / Loss Prevention	Chemical Resistance Anti-reflection Seizing Prevention Captive / Loss Prevention	Chemical Resistance Seizing Prevention Captive / Loss Prevention
Material	SUSXM7 (Equivalent to SUS304)	SUS316L	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUS316L	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)
Surface Treatment	Low temperature black chrome treatment	Low temperature black chrome treatment	PTFE coating	PTFE coating	PTFE coating	Gold Coating (Gold Purity: 99.99 wt%)	Fluorine coating	Low temperature black chrome treatment	PTFE coating
Thread Size	M4 ～ M8	M3 ～ M6	M3 ～ M10	M4 ～ M8	M3 ～ M6	M3 ～ M10	M3 ～ M8	M3 ～ M8	M3 ～ M8
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SFSS-M4-RY SFSS-M5-RY SFSS-M6-RY SFSS-M8-RY	SNSLG-M3-RY SNSLG-M4-RY SNSLG-M5-RY SNSLG-M6-RY	SNSS-M10-TF SNSS-M3-TF SNSS-M4-TF SNSS-M5-TF SNSS-M6-TF SNSS-M8-TF	SFSS-M4-TF SFSS-M5-TF SFSS-M6-TF SFSS-M8-TF	SNSLG-M3-TF SNSLG-M4-TF SNSLG-M5-TF SNSLG-M6-TF	SNSS-M10-AUS SNSS-M3-AUS SNSS-M4-AUS SNSS-M5-AUS SNSS-M6-AUS SNSS-M8-AUS	SSC-M3-FC SSC-M4-FC SSC-M5-FC SSC-M6-FC SSC-M8-FC	SSC-M3-RY SSC-M4-RY SSC-M5-RY SSC-M6-RY SSC-M8-RY	SSC-M3-TF SSC-M4-TF SSC-M5-TF SSC-M6-TF SSC-M8-TF

Part Name	Hex socket Head Cap Screws with Ventilation Hole / Surface Hardening Treatment	Vented High Strength Stainless Steel Socket Head Cap Screws – Surface Hardening	Socket Head Cap Screws with Ventilation Hole - MoS₂ Shot	Socket Head Cap Screws with Ventilation Hole - Silver Plating	Vented High Strength Stainless Steel Socket Head Cap Screws – Silver Plating
Part Number	SVSL-PN	SVSLG-PN	SVSS-MOS	SVSS-AG	SVSLG-AG
Feature	Seizing prevention	High Strength (Strength Class 10.8 Equivalent)	Seizing prevention	Seizing prevention	High Strength (Strength Class 10.8 Equivalent)
Material	SUS316L	SUS316L	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUS316L
Surface Treatment	Surface hardening treatment	Surface hardening treatment	Molybdenum Disulfide Shot Treatment	Silver plating	Silver plating
Thread Size	M3 ～ M8	M3 ～ M6	M3 ～ M8	M3 ～ M8	M3 ～ M6
Operating Temperature (℃)	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SVSL-M3-PN SVSL-M4-PN SVSL-M5-PN SVSL-M6-PN SVSL-M8-PN	SVSLG-M3-PN SVSLG-M4-PN SVSLG-M5-PN SVSLG-M6-PN	SVSS-M3-MOS SVSS-M4-MOS SVSS-M5-MOS SVSS-M6-MOS SVSS-M8-MOS	SVSS-M3-AG SVSS-M4-AG SVSS-M5-AG SVSS-M6-AG SVSS-M8-AG	SVSLG-M3-AG SVSLG-M4-AG SVSLG-M5-AG SVSLG-M6-AG
