Dimension Drawing
Specs/CAD
Unit : mm
Material/Finish
| SWF | |
|---|---|
| Main Body | SCM435（Hardness 350-430 HV） Ferrosoferric Oxide Coating（Black） |
Application
Prevention of bearing surface sinking and looseningCharacteristics

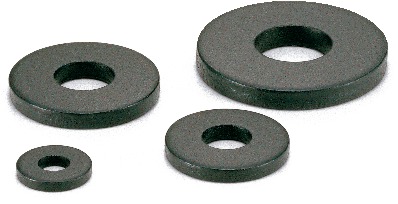

- Flat washers for high intensity screws.
- The surface area is twice or more of that of standard washers. Washers eliminate bolt looseness by preventing the sinking of the bearing surface.
- For the connection of materials with low limits for bearing surface pressure such as aluminum and plastic.
