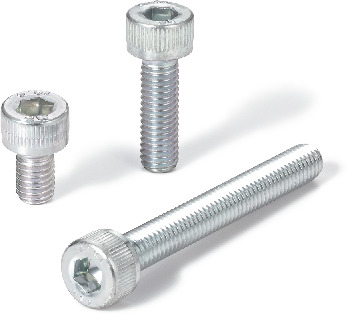

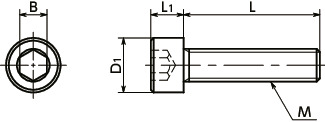

Dimension Drawing
Specs/CAD
Select
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L | D1 | L1 | B | Qty per Pack | Mass (g) |
CAD Download |
RFQ |
|---|---|---|---|---|---|---|---|---|---|---|
| SNS-M3-5-TZB | M3 | 0.5 | 5 | 5.5 | 3 | 2.5 | 20 | 0.72 | CAD | RFQ |
| SNS-M3-6-TZB | M3 | 0.5 | 6 | 5.5 | 3 | 2.5 | 20 | 0.76 | CAD | RFQ |
| SNS-M3-8-TZB | M3 | 0.5 | 8 | 5.5 | 3 | 2.5 | 20 | 0.84 | CAD | RFQ |
| SNS-M3-10-TZB | M3 | 0.5 | 10 | 5.5 | 3 | 2.5 | 20 | 0.92 | CAD | RFQ |
| SNS-M3-12-TZB | M3 | 0.5 | 12 | 5.5 | 3 | 2.5 | 20 | 0.99 | CAD | RFQ |
| SNS-M3-16-TZB | M3 | 0.5 | 16 | 5.5 | 3 | 2.5 | 20 | 1.2 | CAD | RFQ |
| SNS-M3-20-TZB | M3 | 0.5 | 20 | 5.5 | 3 | 2.5 | 20 | 1.4 | CAD | RFQ |
| SNS-M3-25-TZB | M3 | 0.5 | 25 | 5.5 | 3 | 2.5 | 20 | 1.5 | CAD | RFQ |
| SNS-M4-5-TZB | M4 | 0.7 | 5 | 7 | 4 | 3 | 20 | 1.6 | CAD | RFQ |
| SNS-M4-6-TZB | M4 | 0.7 | 6 | 7 | 4 | 3 | 20 | 1.7 | CAD | RFQ |
| SNS-M4-8-TZB | M4 | 0.7 | 8 | 7 | 4 | 3 | 20 | 1.8 | CAD | RFQ |
| SNS-M4-10-TZB | M4 | 0.7 | 10 | 7 | 4 | 3 | 20 | 1.9 | CAD | RFQ |
| SNS-M4-12-TZB | M4 | 0.7 | 12 | 7 | 4 | 3 | 20 | 2.1 | CAD | RFQ |
| SNS-M4-16-TZB | M4 | 0.7 | 16 | 7 | 4 | 3 | 20 | 2.3 | CAD | RFQ |
| SNS-M4-20-TZB | M4 | 0.7 | 20 | 7 | 4 | 3 | 20 | 2.6 | CAD | RFQ |
| SNS-M4-25-TZB | M4 | 0.7 | 25 | 7 | 4 | 3 | 20 | 3 | CAD | RFQ |
| SNS-M4-30-TZB | M4 | 0.7 | 30 | 7 | 4 | 3 | 20 | 3.3 | CAD | RFQ |
| SNS-M4-35-TZB | M4 | 0.7 | 35 | 7 | 4 | 3 | 20 | 3.6 | CAD | RFQ |
| SNS-M5-6-TZB | M5 | 0.8 | 6 | 8.5 | 5 | 4 | 20 | 2.8 | CAD | RFQ |
| SNS-M5-8-TZB | M5 | 0.8 | 8 | 8.5 | 5 | 4 | 20 | 3 | CAD | RFQ |
| SNS-M5-10-TZB | M5 | 0.8 | 10 | 8.5 | 5 | 4 | 20 | 3.2 | CAD | RFQ |
| SNS-M5-12-TZB | M5 | 0.8 | 12 | 8.5 | 5 | 4 | 20 | 3.4 | CAD | RFQ |
| SNS-M5-16-TZB | M5 | 0.8 | 16 | 8.5 | 5 | 4 | 20 | 3.9 | CAD | RFQ |
| SNS-M5-20-TZB | M5 | 0.8 | 20 | 8.5 | 5 | 4 | 20 | 4.3 | CAD | RFQ |
| SNS-M5-25-TZB | M5 | 0.8 | 25 | 8.5 | 5 | 4 | 20 | 4.9 | CAD | RFQ |
| SNS-M5-30-TZB | M5 | 0.8 | 30 | 8.5 | 5 | 4 | 20 | 5.4 | CAD | RFQ |
| SNS-M5-35-TZB | M5 | 0.8 | 35 | 8.5 | 5 | 4 | 20 | 6 | CAD | RFQ |
| SNS-M5-40-TZB | M5 | 0.8 | 40 | 8.5 | 5 | 4 | 20 | 6.5 | CAD | RFQ |
| SNS-M6-8-TZB | M6 | 1 | 8 | 10 | 6 | 5 | 20 | 4.9 | CAD | RFQ |
| SNS-M6-10-TZB | M6 | 1 | 10 | 10 | 6 | 5 | 20 | 5.2 | CAD | RFQ |
| SNS-M6-12-TZB | M6 | 1 | 12 | 10 | 6 | 5 | 20 | 5.5 | CAD | RFQ |
| SNS-M6-16-TZB | M6 | 1 | 16 | 10 | 6 | 5 | 20 | 6.1 | CAD | RFQ |
| SNS-M6-20-TZB | M6 | 1 | 20 | 10 | 6 | 5 | 20 | 6.7 | CAD | RFQ |
| SNS-M6-25-TZB | M6 | 1 | 25 | 10 | 6 | 5 | 20 | 7.5 | CAD | RFQ |
| SNS-M6-30-TZB | M6 | 1 | 30 | 10 | 6 | 5 | 20 | 8.3 | CAD | RFQ |
| SNS-M6-35-TZB | M6 | 1 | 35 | 10 | 6 | 5 | 20 | 9.1 | CAD | RFQ |
| SNS-M6-40-TZB | M6 | 1 | 40 | 10 | 6 | 5 | 20 | 9.9 | CAD | RFQ |
| SNS-M6-45-TZB | M6 | 1 | 45 | 10 | 6 | 5 | 20 | 11 | CAD | RFQ |
| SNS-M6-50-TZB | M6 | 1 | 50 | 10 | 6 | 5 | 20 | 12 | CAD | RFQ |
| SNS-M8-10-TZB | M8 | 1.25 | 10 | 13 | 8 | 6 | 20 | 12 | CAD | RFQ |
| SNS-M8-12-TZB | M8 | 1.25 | 12 | 13 | 8 | 6 | 20 | 12 | CAD | RFQ |
| SNS-M8-16-TZB | M8 | 1.25 | 16 | 13 | 8 | 6 | 20 | 13 | CAD | RFQ |
| SNS-M8-20-TZB | M8 | 1.25 | 20 | 13 | 8 | 6 | 20 | 14 | CAD | RFQ |
| SNS-M8-25-TZB | M8 | 1.25 | 25 | 13 | 8 | 6 | 20 | 16 | CAD | RFQ |
| SNS-M8-30-TZB | M8 | 1.25 | 30 | 13 | 8 | 6 | 20 | 17 | CAD | RFQ |
| SNS-M8-35-TZB | M8 | 1.25 | 35 | 13 | 8 | 6 | 20 | 19 | CAD | RFQ |
| SNS-M8-40-TZB | M8 | 1.25 | 40 | 13 | 8 | 6 | 20 | 20 | CAD | RFQ |
| SNS-M8-45-TZB | M8 | 1.25 | 45 | 13 | 8 | 6 | 20 | 22 | CAD | RFQ |
| SNS-M8-50-TZB | M8 | 1.25 | 50 | 13 | 8 | 6 | 20 | 23 | CAD | RFQ |
| SNS-M8-60-TZB | M8 | 1.25 | 60 | 13 | 8 | 6 | 20 | 26 | CAD | RFQ |
| SNS-M10-16-TZB | M10 | 1.5 | 16 | 16 | 10 | 8 | 5 | 23 | CAD | RFQ |
| SNS-M10-20-TZB | M10 | 1.5 | 20 | 16 | 10 | 8 | 5 | 24 | CAD | RFQ |
| SNS-M10-25-TZB | M10 | 1.5 | 25 | 16 | 10 | 8 | 5 | 27 | CAD | RFQ |
| SNS-M10-30-TZB | M10 | 1.5 | 30 | 16 | 10 | 8 | 5 | 29 | CAD | RFQ |
| SNS-M10-35-TZB | M10 | 1.5 | 35 | 16 | 10 | 8 | 5 | 31 | CAD | RFQ |
| SNS-M10-40-TZB | M10 | 1.5 | 40 | 16 | 10 | 8 | 5 | 33 | CAD | RFQ |
| SNS-M10-45-TZB | M10 | 1.5 | 45 | 16 | 10 | 8 | 5 | 36 | CAD | RFQ |
| SNS-M10-50-TZB | M10 | 1.5 | 50 | 16 | 10 | 8 | 5 | 38 | CAD | RFQ |
| SNS-M10-60-TZB | M10 | 1.5 | 60 | 16 | 10 | 8 | 5 | 42 | CAD | RFQ |
| SNS-M12-30-TZB | M12 | 1.75 | 30 | 18 | 12 | 10 | 5 | 41 | CAD | RFQ |
| SNS-M12-35-TZB | M12 | 1.75 | 35 | 18 | 12 | 10 | 5 | 45 | CAD | RFQ |
| SNS-M12-40-TZB | M12 | 1.75 | 40 | 18 | 12 | 10 | 5 | 48 | CAD | RFQ |
| SNS-M12-45-TZB | M12 | 1.75 | 45 | 18 | 12 | 10 | 5 | 51 | CAD | RFQ |
| SNS-M12-50-TZB | M12 | 1.75 | 50 | 18 | 12 | 10 | 5 | 54 | CAD | RFQ |
| SNS-M12-60-TZB | M12 | 1.75 | 60 | 18 | 12 | 10 | 5 | 61 | CAD | RFQ |
| SNS-M16-40-TZB | M16 | 2 | 40 | 24 | 16 | 14 | 1 | 97 | CAD | RFQ |
| SNS-M16-45-TZB | M16 | 2 | 45 | 24 | 16 | 14 | 1 | 104 | CAD | RFQ |
| SNS-M16-50-TZB | M16 | 2 | 50 | 24 | 16 | 14 | 1 | 110 | CAD | RFQ |
| SNS-M16-60-TZB | M16 | 2 | 60 | 24 | 16 | 14 | 1 | 122 | CAD | RFQ |
| SNS-M16-70-TZB | M16 | 2 | 70 | 24 | 16 | 14 | 1 | 134 | CAD | RFQ |
| SNS-M16-80-TZB | M16 | 2 | 80 | 24 | 16 | 14 | 1 | 146 | CAD | RFQ |
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form here● When purchasing less volume than one full bag, a separate handling fee is charged. For details, see the Sold Separately Service.
Related Services
Material/Finish
| SNS-TZB | |
|---|---|
| Main Body | SCM435 Trivalent Chromate Treatment |
| Strength Class | 10.9 |
Characteristics
- Conforms to JIS B 1176, ISO 4762, and DIN 912.
- M3 - M16. Selection from abundant size variations is available to suit the device or equipment.
