Name: SECS
Brand: Nabeya Bi-tech Kaisha
Availability: OutOfStock

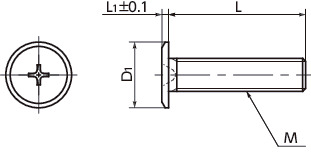

Dimension Drawing

Specs/CAD

Select

M (Coarse) Nominal of Thread: All; M3; M4; M5; M6

L: All; 4; 5; 6; 8; 10; 12; 16; 20; 25; 30

Unit : mm

Part Number	M (Coarse) Nominal of Thread	Pitch	L	D₁	L₁	Cross-recessed Socket No.	Max. Tightening Torque (N・m)^＊1	Qty per Pack	Mass (g)	CAD Download	RFQ
SECS-M3-4	M3	0.5	4	6	0.8	1	0.63	50	0.32	CAD	RFQ
SECS-M3-5	M3	0.5	5	6	0.8	1	0.63	50	0.34	CAD	RFQ
SECS-M3-6	M3	0.5	6	6	0.8	1	0.63	50	0.36	CAD	RFQ
SECS-M3-8	M3	0.5	8	6	0.8	1	0.63	50	0.38	CAD	RFQ
SECS-M3-10	M3	0.5	10	6	0.8	1	0.63	50	0.42	CAD	RFQ
SECS-M3-12	M3	0.5	12	6	0.8	1	0.63	50	0.46	CAD	RFQ
SECS-M3-16	M3	0.5	16	6	0.8	1	0.63	50	0.52	CAD	RFQ
SECS-M3-20	M3	0.5	20	6	0.8	1	0.63	50	0.63	CAD	RFQ
SECS-M3-25	M3	0.5	25	6	0.8	1	0.63	50	0.93	CAD	RFQ
SECS-M3-30	M3	0.5	30	6	0.8	1	0.63	50	0.95	CAD	RFQ
SECS-M4-6	M4	0.7	6	8	0.9	2	1.05	50	0.97	CAD	RFQ
SECS-M4-8	M4	0.7	8	8	0.9	2	1.05	50	0.98	CAD	RFQ
SECS-M4-10	M4	0.7	10	8	0.9	2	1.05	50	1.2	CAD	RFQ
SECS-M4-12	M4	0.7	12	8	0.9	2	1.05	50	1.4	CAD	RFQ
SECS-M4-16	M4	0.7	16	8	0.9	2	1.05	50	1.7	CAD	RFQ
SECS-M4-20	M4	0.7	20	8	0.9	2	1.05	50	1.6	CAD	RFQ
SECS-M4-25	M4	0.7	25	8	0.9	2	1.05	50	1.6	CAD	RFQ
SECS-M5-6	M5	0.8	6	9	1	2	1.47	50	1.9	CAD	RFQ
SECS-M5-8	M5	0.8	8	9	1	2	1.47	50	2.1	CAD	RFQ
SECS-M5-10	M5	0.8	10	9	1	2	1.47	50	2.4	CAD	RFQ
SECS-M5-12	M5	0.8	12	9	1	2	1.47	50	2.8	CAD	RFQ
SECS-M5-16	M5	0.8	16	9	1	2	1.47	50	2.2	CAD	RFQ
SECS-M5-20	M5	0.8	20	9	1	2	1.47	50	2.8	CAD	RFQ
SECS-M5-25	M5	0.8	25	9	1	2	1.47	50	2.9	CAD	RFQ
SECS-M5-30	M5	0.8	30	9	1	2	1.47	50	2.9	CAD	RFQ
SECS-M6-10	M6	1	10	10	1.2	2	3	20	3.4	CAD	RFQ
SECS-M6-12	M6	1	12	10	1.2	2	3	20	3.8	CAD	RFQ
SECS-M6-16	M6	1	16	10	1.2	2	3	20	4.4	CAD	RFQ
SECS-M6-20	M6	1	20	10	1.2	2	3	20	5	CAD	RFQ
SECS-M6-25	M6	1	25	10	1.2	2	3	20	5.5	CAD	RFQ
SECS-M6-30	M6	1	30	10	1.2	2	3	20	6	CAD	RFQ

＊1：　Values in chart are for reference only. They are not guaranteed values.

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

● When purchasing less volume than one full bag, a separate handling fee is charged. For details, see the Sold Separately Service.

Related Services

Material/Finish

	SECS
Main Body	SUSXM7 (Equivalent to SUS304)
Strength Class	A2 - 50

Application

Reducing the size of equipment and devices

Characteristics

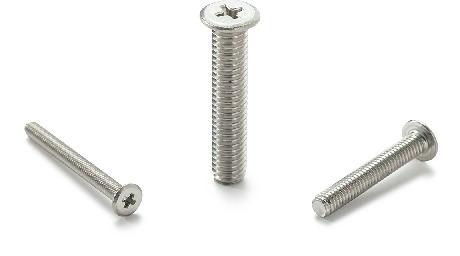

Cross recessed head cap screws with extra low profile.
For space-saving of equipment/devices and applications with limited overhead space.
SEQS, with special cross recesses helping to prevent cam-out, are also available. The lineup includes some M3/M4 L dimensions.SEQS
