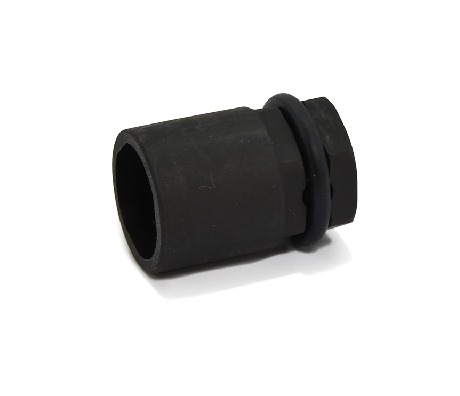

Sockets for Theft Prevention Nuts

Tamper Resistance

Hints for Correctly Using NBK Products

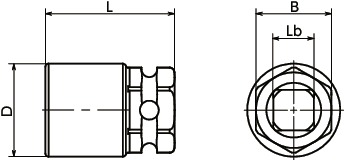

Dimension Drawing

Use in combination with a commercially available impact wrench or spanner, socket wrench, or ratchet handle.
O-ring and pin for impact wrench are supplied.

Specs/CAD

Part Number	Applicable Nut	D	L	B Nominal of Width Across Flats	Lb Insertion Angle	Mass (g)	RFQ
SKW-6	SHNRS-M6	19	32	17	9.5	42	RFQ
SKW-8	SHNRS-M8	22	32	19	9.5	53	RFQ
SKW-10	SHNRS-M10	27	39	24	12.7	93	RFQ
SKW-12	SHNRS-M12	29.5	41	24	12.7	106	RFQ
SKW-16	SHNRS-M16	37	52	32	19	215	RFQ

Application

Mounting and removing the tamper resistant screws

Characteristics

Dedicated tool for removing theft prevention nuts SHNRS.

Related Products

Theft Prevention NutsSHNRSSHNRS

SKWSockets for Theft Prevention Nuts

Product List

SKW

Click here to see Security screws, Tamper Resistant Screws

Part Name

Five-Lobe Socket Bits (with Pin) for Tamper Resistant Screws

Part Number

SRGB

Feature

Dedicated Bits for SRGS

Part Name

Triangle Socket Bits for Tamper Resistant Screws

Part Number

SRTRB

Feature

SRTRS Dedicated Bits

Part Name

Bits for Tamper Resistant Special Low Profile Cap Screws

Part Number

SRSHB

Feature

SRSHS Dedicated Bits

Part Name

Hexalobular Socket Wrench (with Pin) for Tamper Resistant Screws

Part Number

SRX

Feature

Special Keys for SRBS
