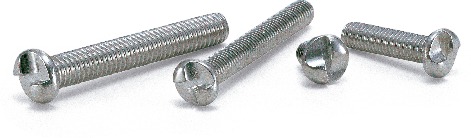

SROSOne Side Pan Head Machine Screws

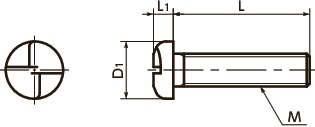

Dimension Drawing

SROSOne Side Pan Head Machine Screws寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M3
M4
M5
L
All
5
6
8
10
12
16
20
25

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 Removal Tool Part No. Qty per Pack Mass
(g)		 CAD
Download		 RFQ
SROS-M3-5 M3 0.5 5 5.5 2 SROT-410 20 0.49 CAD RFQ
SROS-M3-6 M3 0.5 6 5.5 2 SROT-410 20 0.53 CAD RFQ
SROS-M3-8 M3 0.5 8 5.5 2 SROT-410 20 0.61 CAD RFQ
SROS-M3-10 M3 0.5 10 5.5 2 SROT-410 20 0.69 CAD RFQ
SROS-M3-12 M3 0.5 12 5.5 2 SROT-410 20 0.77 CAD RFQ
SROS-M3-16 M3 0.5 16 5.5 2 SROT-410 20 0.94 CAD RFQ
SROS-M4-6 M4 0.7 6 7 2.6 SROT-410 20 1 CAD RFQ
SROS-M4-8 M4 0.7 8 7 2.6 SROT-410 20 1.2 CAD RFQ
SROS-M4-10 M4 0.7 10 7 2.6 SROT-410 20 1.3 CAD RFQ
SROS-M4-12 M4 0.7 12 7 2.6 SROT-410 20 1.5 CAD RFQ
SROS-M4-16 M4 0.7 16 7 2.6 SROT-410 20 1.8 CAD RFQ
SROS-M4-20 M4 0.7 20 7 2.6 SROT-410 20 2.1 CAD RFQ
SROS-M4-25 M4 0.7 25 7 2.6 SROT-410 20 2.5 CAD RFQ
SROS-M5-8 M5 0.8 8 9 3.3 SROT-510 20 2.2 CAD RFQ
SROS-M5-10 M5 0.8 10 9 3.3 SROT-510 20 2.4 CAD RFQ
SROS-M5-12 M5 0.8 12 9 3.3 SROT-510 20 2.7 CAD RFQ
Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 Removal Tool Part No. Qty per Pack Mass
(g)		 CAD
Download		 RFQ
SROS-M3-5 M3 0.5 5 5.5 2 SROT-410 20 0.49 CAD RFQ
SROS-M3-6 M3 0.5 6 5.5 2 SROT-410 20 0.53 CAD RFQ
SROS-M3-8 M3 0.5 8 5.5 2 SROT-410 20 0.61 CAD RFQ
SROS-M3-10 M3 0.5 10 5.5 2 SROT-410 20 0.69 CAD RFQ
SROS-M3-12 M3 0.5 12 5.5 2 SROT-410 20 0.77 CAD RFQ
SROS-M3-16 M3 0.5 16 5.5 2 SROT-410 20 0.94 CAD RFQ
SROS-M4-6 M4 0.7 6 7 2.6 SROT-410 20 1 CAD RFQ
SROS-M4-8 M4 0.7 8 7 2.6 SROT-410 20 1.2 CAD RFQ
SROS-M4-10 M4 0.7 10 7 2.6 SROT-410 20 1.3 CAD RFQ
SROS-M4-12 M4 0.7 12 7 2.6 SROT-410 20 1.5 CAD RFQ
SROS-M4-16 M4 0.7 16 7 2.6 SROT-410 20 1.8 CAD RFQ
SROS-M4-20 M4 0.7 20 7 2.6 SROT-410 20 2.1 CAD RFQ
SROS-M4-25 M4 0.7 25 7 2.6 SROT-410 20 2.5 CAD RFQ
SROS-M5-8 M5 0.8 8 9 3.3 SROT-510 20 2.2 CAD RFQ
SROS-M5-10 M5 0.8 10 9 3.3 SROT-510 20 2.4 CAD RFQ
SROS-M5-12 M5 0.8 12 9 3.3 SROT-510 20 2.7 CAD RFQ
Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 Removal Tool Part No. Qty per Pack Mass
(g)		 CAD
Download		 RFQ
SROS-M3-5 M3 0.5 5 5.5 2 SROT-410 20 0.49 CAD RFQ
SROS-M3-6 M3 0.5 6 5.5 2 SROT-410 20 0.53 CAD RFQ
SROS-M3-8 M3 0.5 8 5.5 2 SROT-410 20 0.61 CAD RFQ
SROS-M3-10 M3 0.5 10 5.5 2 SROT-410 20 0.69 CAD RFQ
SROS-M3-12 M3 0.5 12 5.5 2 SROT-410 20 0.77 CAD RFQ
SROS-M3-16 M3 0.5 16 5.5 2 SROT-410 20 0.94 CAD RFQ
SROS-M4-6 M4 0.7 6 7 2.6 SROT-410 20 1 CAD RFQ
SROS-M4-8 M4 0.7 8 7 2.6 SROT-410 20 1.2 CAD RFQ
SROS-M4-10 M4 0.7 10 7 2.6 SROT-410 20 1.3 CAD RFQ
SROS-M4-12 M4 0.7 12 7 2.6 SROT-410 20 1.5 CAD RFQ
SROS-M4-16 M4 0.7 16 7 2.6 SROT-410 20 1.8 CAD RFQ
SROS-M4-20 M4 0.7 20 7 2.6 SROT-410 20 2.1 CAD RFQ
SROS-M4-25 M4 0.7 25 7 2.6 SROT-410 20 2.5 CAD RFQ
SROS-M5-8 M5 0.8 8 9 3.3 SROT-510 20 2.2 CAD RFQ
SROS-M5-10 M5 0.8 10 9 3.3 SROT-510 20 2.4 CAD RFQ
SROS-M5-12 M5 0.8 12 9 3.3 SROT-510 20 2.7 CAD RFQ
Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 Removal Tool Part No. Qty per Pack Mass
(g)		 CAD
Download		 RFQ
SROS-M3-5 M3 0.5 5 5.5 2 SROT-410 20 0.49 CAD RFQ
SROS-M3-6 M3 0.5 6 5.5 2 SROT-410 20 0.53 CAD RFQ
SROS-M3-8 M3 0.5 8 5.5 2 SROT-410 20 0.61 CAD RFQ
SROS-M3-10 M3 0.5 10 5.5 2 SROT-410 20 0.69 CAD RFQ
SROS-M3-12 M3 0.5 12 5.5 2 SROT-410 20 0.77 CAD RFQ
SROS-M3-16 M3 0.5 16 5.5 2 SROT-410 20 0.94 CAD RFQ
SROS-M4-6 M4 0.7 6 7 2.6 SROT-410 20 1 CAD RFQ
SROS-M4-8 M4 0.7 8 7 2.6 SROT-410 20 1.2 CAD RFQ
SROS-M4-10 M4 0.7 10 7 2.6 SROT-410 20 1.3 CAD RFQ
SROS-M4-12 M4 0.7 12 7 2.6 SROT-410 20 1.5 CAD RFQ
SROS-M4-16 M4 0.7 16 7 2.6 SROT-410 20 1.8 CAD RFQ
SROS-M4-20 M4 0.7 20 7 2.6 SROT-410 20 2.1 CAD RFQ
SROS-M4-25 M4 0.7 25 7 2.6 SROT-410 20 2.5 CAD RFQ
SROS-M5-8 M5 0.8 8 9 3.3 SROT-510 20 2.2 CAD RFQ
SROS-M5-10 M5 0.8 10 9 3.3 SROT-510 20 2.4 CAD RFQ
SROS-M5-12 M5 0.8 12 9 3.3 SROT-510 20 2.7 CAD RFQ

●When purchasing less volume than one full bag, a separate handling fee is charged. For details, see the Sold Separately Service.


Related Services

Material/Finish

SROS
Main Body Equivalent to SUS304
Strength Class Equivalent to A2-50

Application

Machinery / Tools / Equipment / Devices disassembly prevention/ Tampering prevention / Theft prevention for outdoor facilities / Security measures / Safety measures

Characteristics

  • The screws can be installed, but not removed, using commercially available slotted screwdrivers.
  • Remove the screws by using SROT Specialty Removal Tool.

Related Products

Remove the screws by using SROT Specialty Removal Tool.
