Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | Screw Part No.＊1 | B＊1 | H | Body Color |
Qty per Pack | Mass (g) |
CAD Download |
RFQ |
|---|---|---|---|---|---|---|---|---|
| Nominal | ||||||||
| SRRIP-4-WH | M5 | 4 | 2.55 | WH | 1 Set (6 pcs) | 0.03 | CAD | RFQ |
| SRRIP-4-BK | M5 | 4 | 2.55 | BK | 1 Set (6 pcs) | 0.03 | CAD | RFQ |
| SRRIP-4-BL | M5 | 4 | 2.55 | BL | 1 Set (6 pcs) | 0.03 | CAD | RFQ |
| SRRIP-4-OR | M5 | 4 | 2.55 | OR | 1 Set (6 pcs) | 0.03 | CAD | RFQ |
| SRRIP-4-YW | M5 | 4 | 2.55 | YW | 1 Set (6 pcs) | 0.03 | CAD | RFQ |
| SRRIP-5-WH | M6 | 5 | 3.1 | WH | 1 Set (6 pcs) | 0.06 | CAD | RFQ |
| SRRIP-5-BK | M6 | 5 | 3.1 | BK | 1 Set (6 pcs) | 0.06 | CAD | RFQ |
| SRRIP-5-BL | M6 | 5 | 3.1 | BL | 1 Set (6 pcs) | 0.06 | CAD | RFQ |
| SRRIP-5-OR | M6 | 5 | 3.1 | OR | 1 Set (6 pcs) | 0.06 | CAD | RFQ |
| SRRIP-5-YW | M6 | 5 | 3.1 | YW | 1 Set (6 pcs) | 0.06 | CAD | RFQ |
| SRRIP-6-WH | M8 | 6 | 4.2 | WH | 1 Set (6 pcs) | 0.11 | CAD | RFQ |
| SRRIP-6-BK | M8 | 6 | 4.2 | BK | 1 Set (6 pcs) | 0.11 | CAD | RFQ |
| SRRIP-6-BL | M8 | 6 | 4.2 | BL | 1 Set (6 pcs) | 0.11 | CAD | RFQ |
| SRRIP-6-OR | M8 | 6 | 4.2 | OR | 1 Set (6 pcs) | 0.11 | CAD | RFQ |
| SRRIP-6-YW | M8 | 6 | 4.2 | YW | 1 Set (6 pcs) | 0.11 | CAD | RFQ |
| SRRIP-8-WH | M10 | 8 | 5.3 | WH | 1 Set (6 pcs) | 0.2 | CAD | RFQ |
| SRRIP-8-BK | M10 | 8 | 5.3 | BK | 1 Set (6 pcs) | 0.2 | CAD | RFQ |
| SRRIP-8-BL | M10 | 8 | 5.3 | BL | 1 Set (6 pcs) | 0.2 | CAD | RFQ |
| SRRIP-8-OR | M10 | 8 | 5.3 | OR | 1 Set (6 pcs) | 0.2 | CAD | RFQ |
| SRRIP-8-YW | M10 | 8 | 5.3 | YW | 1 Set (6 pcs) | 0.2 | CAD | RFQ |
| SRRIP-10-WH | M12 | 10 | 6.4 | WH | 1 Set (6 pcs) | 0.33 | CAD | RFQ |
| SRRIP-10-BK | M12 | 10 | 6.4 | BK | 1 Set (6 pcs) | 0.33 | CAD | RFQ |
| SRRIP-10-BL | M12 | 10 | 6.4 | BL | 1 Set (6 pcs) | 0.33 | CAD | RFQ |
| SRRIP-10-OR | M12 | 10 | 6.4 | OR | 1 Set (6 pcs) | 0.33 | CAD | RFQ |
| SRRIP-10-YW | M12 | 10 | 6.4 | YW | 1 Set (6 pcs) | 0.33 | CAD | RFQ |
| SRRIP-14-WH | M16 | 14 | 8.5 | WH | 1 Set (6 pcs) | 0.88 | CAD | RFQ |
| SRRIP-14-BK | M16 | 14 | 8.5 | BK | 1 Set (6 pcs) | 0.88 | CAD | RFQ |
| SRRIP-14-BL | M16 | 14 | 8.5 | BL | 1 Set (6 pcs) | 0.88 | CAD | RFQ |
| SRRIP-14-OR | M16 | 14 | 8.5 | OR | 1 Set (6 pcs) | 0.88 | CAD | RFQ |
| SRRIP-14-YW | M16 | 14 | 8.5 | YW | 1 Set (6 pcs) | 0.88 | CAD | RFQ |
＊1： Be sure to check the width across flat dimension of the hex socket head cap screws in use. This product is intended for use with hex socket head cap screws (JIS B 1176:2015).
● As the product is molded, its dimensions may vary.
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form hereMaterial/Finish
| SRRIP | |
|---|---|
| Main Body | Plastic (Various Colors) |
Application
Theft prevention for facilitiesEquipment/devices disassembly/tampering prevention
Security measures
Safety measures
Dust countermeasure
Characteristics

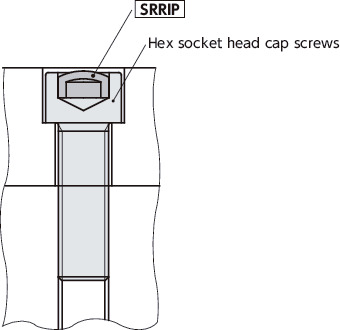

- Recess caps which fit into hex sockets.
Illicit screw removal is prevented. - Usable for screw identification applications as well.
- The use of SRRIP keeps dust and debris out of hex sockets. Streamlines cleaning work and reduces risks of scattering foreign matter.
- This product comes as a 6-piece set.
- There are five color variations available. They can be selected by the end symbol of the part number.
| End Symbol | Main Body Color |
|---|---|
| WH | White |
| BK | Black |
| BL | Blue |
| OR | Orange |
| YW | Yellow |
Usage Example
Precautions for Use
- When mounted, SRRIP can be removed by inserting a sharp tool, but cannot be reused as it will be damaged in the process.
- It may fall out or become stuck depending on the usage conditions. We recommend performing a test under the same usage conditions as in actual usage in advance.
