Titanium Screws

Screws made of titanium. They are lightweight, nonmagnetic, and chemically resistant.

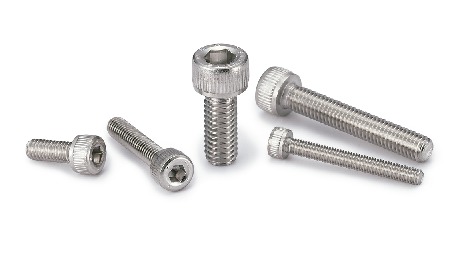

Part Name	Hex Socket Head Cap Screws - Titanium	Hex Socket Head Cap Screws - High Intensity Titanium Alloy	Socket Head Cap Screws with Ultra Low Profile - Titanium	Socket Head Cap Screws with Small Head - Titanium	Socket Head Cap Screws with Small Head - Titanium	Socket Head Cap Screws with Ultra Low Small Head - Titanium	Socket Head Cap Screws with Ultra Low Small Head - Titanium	Titanium Hex Socket Head Cap Screws with Captive Washers	Titanium Hex Socket Head Cap Screws with Captive Washers
Part Number	SNST	SNSTG	SSHT	SNST-SD	SNST-SD-UT	SSHT-SD	SSHT-SD-UT	SNSI1T	SNSI1T-UT
Feature	Lightweight Nonmagnetic Chemical Resistance	High Strength Lightweight Nonmagnetic Corrosion Resistance	Special Low Profile Small Space Lightweight NonMagnetic Chemical Resistance	Small Head Lightweight Non-magnetic Chemical Resistance	Small Head Lightweight Non-magnetic Chemical Resistance	Special Low Profile Space-saving Lightweight Non-magnetic Chemical Resistance Small Head	Special Low Profile Space-saving Lightweight Non-magnetic Chemical Resistance Small Head	Integrated Washers I=1	Integrated Washers I=1
Material	Grade 2 Titanium	Grade 5 Titanium	Grade 2 Titanium	Grade 2 Titanium	Grade 2 Titanium	Grade 2 Titanium	Grade 2 Titanium	Grade 2 Titanium	Grade 2 Titanium
Surface Treatment	Special Chemical Polishing	Special Chemical Polishing	Special Chemical Polishing	Special Chemical Polishing	-	Special Chemical Polishing	-	Special Chemical Polishing	-
Thread Size	M3 ～ M6	M2 ～ M10	M3 ～ M6	M3 ～ M6	M3 ～ M6	M3 ～ M6	M3 ～ M6	M3 ～ M6	M3 ～ M6
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SNST-M3 SNST-M4 SNST-M5 SNST-M6	SNSTG-M10 SNSTG-M2 SNSTG-M2.5 SNSTG-M3 SNSTG-M4 SNSTG-M5 SNSTG-M6 SNSTG-M8	SSHT-M3 SSHT-M4 SSHT-M5 SSHT-M6	SNST-M3-SD SNST-M4-SD SNST-M5-SD SNST-M6-SD	SNST-M3-SD-UT SNST-M4-SD-UT SNST-M5-SD-UT SNST-M6-SD-UT	SSHT-M3-SD SSHT-M4-SD SSHT-M5-SD SSHT-M6-SD	SSHT-M3-SD-UT SSHT-M4-SD-UT SSHT-M5-SD-UT SSHT-M6-SD-UT	SNSI1T-M3 SNSI1T-M4 SNSI1T-M5 SNSI1T-M6	SNSI1T-M3-UT SNSI1T-M4-UT SNSI1T-M5-UT SNSI1T-M6-UT

Part Name	Titanium Hex Socket Head Cap Screws with Captive Washers	Titanium Hex Socket Head Cap Screws with Captive Washers	Cross Recessed Pan Head Machine Screws - Titanium	Cross Recessed Pan Head Machine Screws - High Intensity Titanium Alloy	Titanium Pan Head Machine Screws for Precision Instruments (Miniature Screws)	Cross Recessed Flat Head Machine Screws - Titanium	Cross Recessed Flat Head Machine Screws - High Intensity Titanium Alloy	Hex Nuts / Hex Flange Nuts - Titanium	Hex Nuts / Hex Flange Nuts - Titanium
Part Number	SNSI3T	SNSI3T-UT	SNPT	SNPTG	SNZT	SNFT	SNFTG	SHNT	SHNT-F
Feature	Integrated Washers I=3	Integrated Washers I=3	Lightweight Nonmagnetic Chemical Resistance	High Strength Lightweight Nonmagnetic Corrosion Resistance	Lightweight Nonmagnetic Chemical Resistance	Lightweight Nonmagnetic Chemical Resistance	High Strength Lightweight Nonmagnetic Corrosion Resistance	Lightweight Nonmagnetic Chemical Resistance	Lightweight Nonmagnetic Chemical Resistance With Flange
Material	Grade 2 Titanium	Grade 2 Titanium	Grade 2 Titanium	β Titanium	Grade 2 Titanium	Grade 2 Titanium	β Titanium	Grade 2 Titanium	Grade 2 Titanium
Surface Treatment	Special Chemical Polishing	-	Special Chemical Polishing	Special Chemical Polishing	-	Special Chemical Polishing	Special Chemical Polishing	Special Chemical Polishing	Special Chemical Polishing
Thread Size	M3 ～ M6	M3 ～ M6	M2 ～ M5	M3 ～ M5	M1.6 ～ M2.5	M3 ～ M4	M3 ～ M5	M3 ～ M10	M3 ～ M10
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SNSI3T-M3 SNSI3T-M4 SNSI3T-M5 SNSI3T-M6	SNSI3T-M3-UT SNSI3T-M4-UT SNSI3T-M5-UT SNSI3T-M6-UT	SNPT-M2 SNPT-M2.5 SNPT-M3 SNPT-M4 SNPT-M5	SNPTG-M3 SNPTG-M4 SNPTG-M5	SNZT-M1.6 SNZT-M2 SNZT-M2.5	SNFT-M3 SNFT-M4	SNFTG-M3 SNFTG-M4 SNFTG-M5	SHNT-M10 SHNT-M3 SHNT-M4 SHNT-M5 SHNT-M6 SHNT-M8	SHNT-M10-F SHNT-M3-F SHNT-M4-F SHNT-M5-F SHNT-M6-F SHNT-M8-F

Part Name	Hex Lock Nuts - Titanium	Washers - Titanium	Washers - Titanium	Socket Head Cap Captive Screws - Titanium	Socket Head Cap Captive Screws - High Intensity Titanium	Hex Socket Head Cap Screws with Ventilation Hole - Titanium	Vented Socket Head Cap Screws with Ultra Low Profile - Titanium	Vented Socket Head Cap Screws with Small Head - Titanium	Vented Socket Head Cap Screws with Ultra Low Profile & Small Head - Titanium
Part Number	SWUT	SWAT-F	SWAT-S	SSC-SNST	SSC-SNSTG	SVST	SVSHT	SVST-SD	SVSHT-SD
Feature	Lightweight Nonmagnetic Vibration Resistant	Lightweight Nonmagnetic Chemical Resistance	Lightweight Nonmagnetic Chemical Resistance	Lightweight Non-magnetic Chemical Resistance Captive/Loss Prevention	High Strength Lightweight Non-magnetic Corrosion Resistance Captive/Loss Prevention	Lightweight Nonmagnetic Chemical Resistance	Lightweight Nonmagnetic Chemical Resistance	Small Head Lightweight Non-magnetic Chemical Resistance Lightweight	Special Low Profile Small Head Space-saving Lightweight Non-magnetic Chemical Resistance Lightweight
Material	Grade 2 Titanium	Grade 2 Titanium	Grade 2 Titanium	Grade 2 Titanium	Grade 5 Titanium	Grade 2 Titanium	Grade 2 Titanium	Grade 2 Titanium	Grade 2 Titanium
Surface Treatment	Special Chemical Polishing	-	-	Special Chemical Polishing	-	Special Chemical Polishing	Special Chemical Polishing	Special Chemical Polishing	Special Chemical Polishing
Thread Size	M3 ～ M10	M3 ～ M10	M3 ～ M10	M3 ～ M6	M3 ～ M8	M3 ～ M5	M3 ～ M6	M3 ～ M5	M3 ～ M6
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SWUT-M10 SWUT-M3 SWUT-M4 SWUT-M5 SWUT-M6 SWUT-M8	SWAT-10-F SWAT-3-F SWAT-4-F SWAT-5-F SWAT-6-F SWAT-8-F	SWAT-10-S SWAT-3-S SWAT-4-S SWAT-5-S SWAT-6-S SWAT-8-S	SSC-SNST-M3 SSC-SNST-M4 SSC-SNST-M5 SSC-SNST-M6	SSC-SNSTG-M3 SSC-SNSTG-M4 SSC-SNSTG-M5 SSC-SNSTG-M6 SSC-SNSTG-M8	SVST-M3 SVST-M4 SVST-M5	SVSHT-M3 SVSHT-M4 SVSHT-M5 SVSHT-M6	SVST-M3-SD SVST-M4-SD SVST-M5-SD	SVSHT-M3-SD SVSHT-M4-SD SVSHT-M5-SD SVSHT-M6-SD

Part Name	Phillips Cross Recessed Pan Head Titanium Machine Screws (with Ventilation Hole)	Phillips Cross Recessed Flat Head Titanium Machine Screws (with Ventilation Hole)	Washers with Ventilation Grooves - Titanium	Titanium Hexagon Key
Part Number	SVPT	SVFT	SWAT-VF	SKHTG
Feature	Titanium Phillips Cross Recessed Pan Head Machine Screw Low outgas Nonmagnetic	Titanium Phillips Cross Recessed Flat Head Machine Screw Low outgas Nonmagnetic	Lightweight Nonmagnetic	Non-magnetic Tool
Material	Grade 2 Titanium	Grade 2 Titanium	Grade 2 Titanium	Grade 5 Titanium
Surface Treatment	Special Chemical Polishing	Special Chemical Polishing	-	Barrel Polishing
Thread Size	M3 ～ M5	M3 ～ M4	M3 ～ M5	-
Operating Temperature (℃)	-	-	-	-
CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications
List	SVPT-M3 SVPT-M4 SVPT-M5	SVFT-M3 SVFT-M4	SWAT-3-VF SWAT-4-VF SWAT-5-VF	SKHTG-1.5 SKHTG-2 SKHTG-2.5 SKHTG-3 SKHTG-4 SKHTG-5 SKHTG-6
