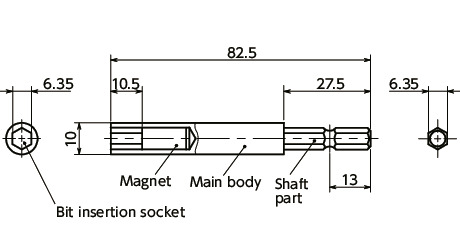

Dimension Drawing
Specs/CAD
| Part Number | Mass (g) |
CAD Download |
RFQ |
|---|---|---|---|
| SKABA-80-6.35 | 37 | CAD | RFQ |
Material/Finish
| SKABA | |
|---|---|
| Main Body | Brass Cathodic Electrodeposition Coating |
| Shaft Part | Alloy Steel Zinc Phosphate Film |
| Magnet | Alnico |
Application
Combination of Short Bit and Tools with Deep Bit Insertion Depth / Tool Shaft Part ExtensionCharacteristics
- This is an adapter for mounting a short bit to a torque screwdriver or electric screwdriver with a deep bit insertion depth.
- The bit is held in place with a magnet, enabling it to be smoothly mounted/removed.
- The shaft part of the tool can be extended by mounting SKABA, making it effective for mounting/removing screws in deep areas as well.

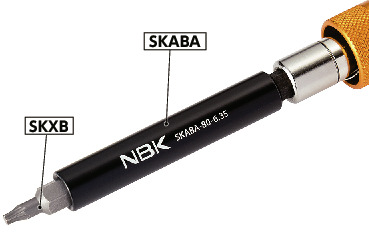

Usage Example
Precautions for Use
- When mounting to power tools such as an electric screwdriver for use, be sure to mount/remove the bit with the power off.
- Do not use in locations exposed to live wires, as it is made of metal.
- Do not use for any applications other than for turning screws.
