Operating PC tablets and LCD monitors at production sites

• NBK Display Mounting Systems allow tablets and monitors to be mounted on various areas of your equipment.
• We can design custom mounting systems to meet the specifications of your display systems.



Preventing the loss of cover/panel screws

• Knobs with a captive function prevent knob/screw loss even when a cover or panel is removed from a frame. The captive function prevents knobs from becoming detached from covers and panels.



Product Code	Product Name

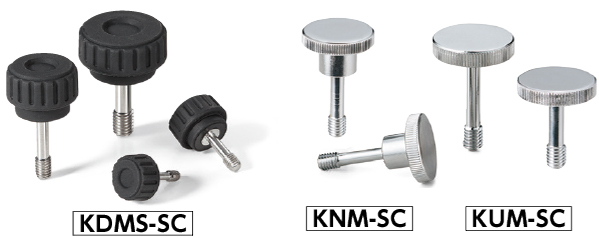

KDMS-SC	Captive Dimple Knob
KNM-SC	Captive Knurled Knob
KUM-SC	Captive Knurled Knob

• Standard captive screws are also available.

Prevent pulls from falling off equipment such as food production and packaging machinery

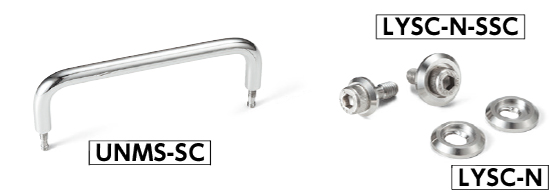

• Use Captive Pull UNMS-SC to avoid the trouble of fixing pulls with welding, etc.
• Use Captive Washer for Pulls LYSC-N to prevent the fallout of mounting screws.



　　　　

Ball plunger selection made easy

• Our Mini Ball Plunger PAF / PAFS Series has a wide product offering in both steel and stainless steel specifications. Unlimited combinations of the specifications below are available.

Product Code	Product Name
PAF	Miniature Ball Plunger(Steel)
PAFS	Miniature Ball Plunger (Stainless Steel)

• Special ball plungers can also be manufactured, modifying specifications such as overall length, shape, screw diameter, and load. Please specify the following conditions when you contact us.
  • Type… Ball type/ or pin type（Please inform us if you intend to add a spacer for the ball type）
  • Shape/Dimension… Nominal diameter of thread, screw pitch, thread length,ball or pin diameter, stroke, overall length
  • Load… Minimum(initial) load/maximum load
  • Material/Finish… Main unit, ball/pin, spring
  • Vibration Resistant Treatment… Required/Not required
  • Operating Conditions… Temperature, atmosphere, service life, etc.

Design options for improved organization

• Levers, knobs, and pulls are available in a variety of colors. Use color to indicate different operational procedures, making them clearer to understand.

• Product series with diverse color variations

Product Code	Product Name

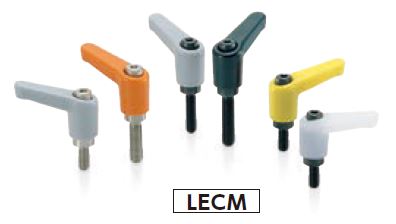

LECM LECF	Plastic Clamp Lever - Miniature Type
LUDM LUDF	Plastic Clamp Lever
KUDM KUDF	Plastic Miniature Knob
KUWM KUWF	Plastic Wing Knob
UUDF	Plastic Pull

• By using our laser engraving service to add code/character information to NBK products, operating procedures can be made easily distinguishable.

Products conforming to SEMI standards

• NBK offers many products which conform to SEMI standard Section 6: Handle Design.
  SEMI (Semiconductor Equipment and Materials International) is a self-regulatory industry standard widely used around the world in areas including semiconductor, FPD manufacturing, and solar power-related industries. This standard recommends the use of handles conforming to the Supplier Ergonomic Success Criteria (SESC) standard, in order to create a safe, comfortable, and convenient working environment.

Product Code	Product name
KRM	Dimple Knob
PB	Plastic Ball Knob
UNF	U-shaped Pull

Various 'custom' services

• NBK products can be easily customized to your desired specifications. ➡  All NBK Additional Service

Screw Cutting Service

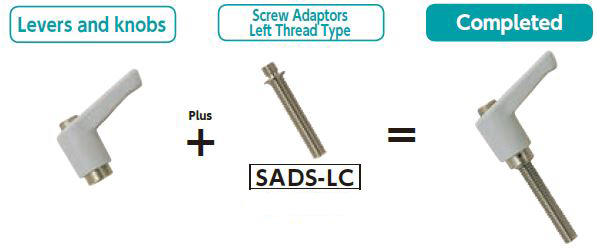

Screw Combination Service

Laser Engraving Service

Vibration Resistant Treatment Service
