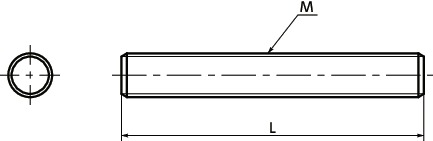

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | L | M (Coarse) Nominal of Thread |
Pitch | Mass (g) |
Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|
| SADS-M8-50-FT | 50 | M8 | 1.25 | 20 | 2.69 | CAD | Cart |
| SADS-M8-60-FT | 60 | M8 | 1.25 | 27 | 2.95 | CAD | Cart |
| SADS-M8-80-FT | 80 | M8 | 1.25 | 33 | 3.17 | CAD | Cart |
| SADS-M8-100-FT | 100 | M8 | 1.25 | 40 | 4.24 | CAD | Cart |
Material/Finish

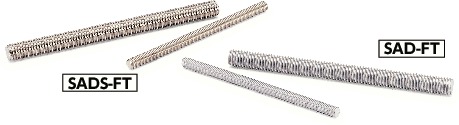

| SADS-FT Made of Stainless Steel | |
|---|---|
| Thread Part | SUS304 |
Characteristics
- By combining with female screw products such as a lever and knob, this may be used as a long screw lever or knob.
- For screw fixing, use a pin stopper or anaerobic adhesive agent.
- If it is repeatedly tightened in combination with a lever or knob, a pin stopper is recommended.
