  • Clamp Levers

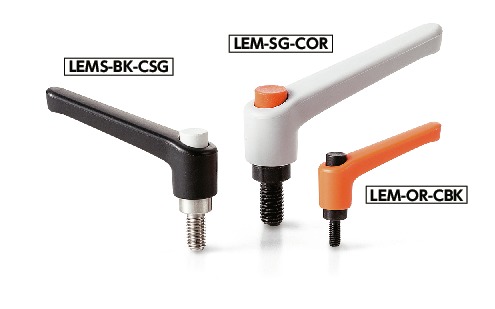

Plastic Clamp Lever, Male Screw - with Push Button

LEM-C

Safety PrecautionsUsage

RoHS Compliant

LEM-CPlastic Clamp Lever, Male Screw - with Push Button

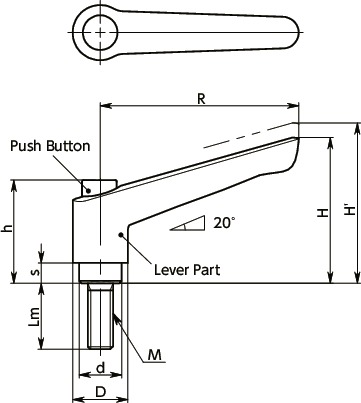

Dimension Drawing

LEM-CPlastic Clamp Lever, Male Screw - with Push Button寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M3
M4
M5
M6
M8
M10
M12
Lm
All
6
8
10
12
16
20
25
32
40
50
63
80
Lever Part
Color
All
BK
OR
SG

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch Lm R H H' h s D d Tooth No. Max. load
(N)		 Max. tightening force
(kN)		 Lever Part
Color		 Mass
(g)		 Price
(USD)		 CAD
Download		 Add to Cart
LEM-3-6-BK-CBK M3 0.5 6 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 10.97 CAD Cart
LEM-3-8-BK-CBK M3 0.5 8 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 10.97 CAD Cart
LEM-3-10-BK-CBK M3 0.5 10 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 10.97 CAD Cart
LEM-3-12-BK-CBK M3 0.5 12 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 10.97 CAD Cart
LEM-3-16-BK-CBK M3 0.5 16 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 10.97 CAD Cart
LEM-3-6-BK-COR M3 0.5 6 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 10.97 CAD Cart
LEM-3-8-BK-COR M3 0.5 8 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 10.97 CAD Cart
LEM-3-10-BK-COR M3 0.5 10 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 10.97 CAD Cart
LEM-3-12-BK-COR M3 0.5 12 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 10.97 CAD Cart
LEM-3-16-BK-COR M3 0.5 16 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 10.97 CAD Cart
LEM-3-6-BK-CSG M3 0.5 6 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 10.97 CAD Cart
LEM-3-8-BK-CSG M3 0.5 8 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 10.97 CAD Cart
LEM-3-10-BK-CSG M3 0.5 10 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 10.97 CAD Cart
LEM-3-12-BK-CSG M3 0.5 12 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 10.97 CAD Cart
LEM-3-16-BK-CSG M3 0.5 16 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 10.97 CAD Cart
LEM-3-6-OR-CBK M3 0.5 6 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 10.97 CAD Cart
LEM-3-8-OR-CBK M3 0.5 8 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 10.97 CAD Cart
LEM-3-10-OR-CBK M3 0.5 10 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 10.97 CAD Cart
LEM-3-12-OR-CBK M3 0.5 12 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 10.97 CAD Cart
LEM-3-16-OR-CBK M3 0.5 16 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 10.97 CAD Cart
LEM-3-6-OR-COR M3 0.5 6 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 10.97 CAD Cart
LEM-3-8-OR-COR M3 0.5 8 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 10.97 CAD Cart
LEM-3-10-OR-COR M3 0.5 10 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 10.97 CAD Cart
LEM-3-12-OR-COR M3 0.5 12 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 10.97 CAD Cart
LEM-3-16-OR-COR M3 0.5 16 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 10.97 CAD Cart
LEM-3-6-OR-CSG M3 0.5 6 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 10.97 CAD Cart
LEM-3-8-OR-CSG M3 0.5 8 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 10.97 CAD Cart
LEM-3-10-OR-CSG M3 0.5 10 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 10.97 CAD Cart
LEM-3-12-OR-CSG M3 0.5 12 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 10.97 CAD Cart
LEM-3-16-OR-CSG M3 0.5 16 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 10.97 CAD Cart
LEM-3-6-SG-CBK M3 0.5 6 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 10.97 CAD Cart
LEM-3-8-SG-CBK M3 0.5 8 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 10.97 CAD Cart
LEM-3-10-SG-CBK M3 0.5 10 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 10.97 CAD Cart
LEM-3-12-SG-CBK M3 0.5 12 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 10.97 CAD Cart
LEM-3-16-SG-CBK M3 0.5 16 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 10.97 CAD Cart
LEM-3-6-SG-COR M3 0.5 6 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 10.97 CAD Cart
LEM-3-8-SG-COR M3 0.5 8 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 10.97 CAD Cart
LEM-3-10-SG-COR M3 0.5 10 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 10.97 CAD Cart
LEM-3-12-SG-COR M3 0.5 12 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 10.97 CAD Cart
LEM-3-16-SG-COR M3 0.5 16 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 10.97 CAD Cart
LEM-3-6-SG-CSG M3 0.5 6 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 10.97 CAD Cart
LEM-3-8-SG-CSG M3 0.5 8 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 10.97 CAD Cart
LEM-3-10-SG-CSG M3 0.5 10 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 10.97 CAD Cart
LEM-3-12-SG-CSG M3 0.5 12 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 10.97 CAD Cart
LEM-3-16-SG-CSG M3 0.5 16 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 10.97 CAD Cart
LEM-4-10-BK-CBK M4 0.7 10 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 15 10.61 CAD Cart
LEM-4-12-BK-CBK M4 0.7 12 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 15 10.61 CAD Cart
LEM-4-16-BK-CBK M4 0.7 16 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 15 10.61 CAD Cart
LEM-4-20-BK-CBK M4 0.7 20 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 15 10.61 CAD Cart
LEM-4-25-BK-CBK M4 0.7 25 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 16 10.61 CAD Cart
LEM-4-32-BK-CBK M4 0.7 32 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 16 10.97 CAD Cart
LEM-4-10-BK-COR M4 0.7 10 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 15 10.61 CAD Cart
LEM-4-12-BK-COR M4 0.7 12 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 15 10.61 CAD Cart
LEM-4-16-BK-COR M4 0.7 16 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 15 10.61 CAD Cart
LEM-4-20-BK-COR M4 0.7 20 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 15 10.61 CAD Cart
LEM-4-25-BK-COR M4 0.7 25 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 16 10.61 CAD Cart
LEM-4-32-BK-COR M4 0.7 32 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 16 10.97 CAD Cart
LEM-4-10-BK-CSG M4 0.7 10 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 15 10.61 CAD Cart
LEM-4-12-BK-CSG M4 0.7 12 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 15 10.61 CAD Cart
LEM-4-16-BK-CSG M4 0.7 16 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 15 10.61 CAD Cart
LEM-4-20-BK-CSG M4 0.7 20 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 15 10.61 CAD Cart
LEM-4-25-BK-CSG M4 0.7 25 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 16 10.61 CAD Cart
LEM-4-32-BK-CSG M4 0.7 32 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 16 10.97 CAD Cart
LEM-4-10-OR-CBK M4 0.7 10 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 15 10.61 CAD Cart
LEM-4-12-OR-CBK M4 0.7 12 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 15 10.61 CAD Cart
LEM-4-16-OR-CBK M4 0.7 16 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 15 10.61 CAD Cart
LEM-4-20-OR-CBK M4 0.7 20 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 15 10.61 CAD Cart
LEM-4-25-OR-CBK M4 0.7 25 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 16 10.61 CAD Cart
LEM-4-32-OR-CBK M4 0.7 32 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 16 10.97 CAD Cart
LEM-4-10-OR-COR M4 0.7 10 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 15 10.61 CAD Cart
LEM-4-12-OR-COR M4 0.7 12 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 15 10.61 CAD Cart
LEM-4-16-OR-COR M4 0.7 16 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 15 10.61 CAD Cart
LEM-4-20-OR-COR M4 0.7 20 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 15 10.61 CAD Cart
LEM-4-25-OR-COR M4 0.7 25 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 16 10.61 CAD Cart
LEM-4-32-OR-COR M4 0.7 32 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 16 10.97 CAD Cart
LEM-4-10-OR-CSG M4 0.7 10 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 15 10.61 CAD Cart
LEM-4-12-OR-CSG M4 0.7 12 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 15 10.61 CAD Cart
LEM-4-16-OR-CSG M4 0.7 16 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 15 10.61 CAD Cart
LEM-4-20-OR-CSG M4 0.7 20 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 15 10.61 CAD Cart
LEM-4-25-OR-CSG M4 0.7 25 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 16 10.61 CAD Cart
LEM-4-32-OR-CSG M4 0.7 32 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 16 10.97 CAD Cart
LEM-4-10-SG-CBK M4 0.7 10 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 15 10.61 CAD Cart
LEM-4-12-SG-CBK M4 0.7 12 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 15 10.61 CAD Cart
LEM-4-16-SG-CBK M4 0.7 16 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 15 10.61 CAD Cart
LEM-4-20-SG-CBK M4 0.7 20 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 15 10.61 CAD Cart
LEM-4-25-SG-CBK M4 0.7 25 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 16 10.61 CAD Cart
LEM-4-32-SG-CBK M4 0.7 32 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 16 10.97 CAD Cart
LEM-4-10-SG-COR M4 0.7 10 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 15 10.61 CAD Cart
LEM-4-12-SG-COR M4 0.7 12 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 15 10.61 CAD Cart
LEM-4-16-SG-COR M4 0.7 16 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 15 10.61 CAD Cart
LEM-4-20-SG-COR M4 0.7 20 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 15 10.61 CAD Cart
LEM-4-25-SG-COR M4 0.7 25 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 16 10.61 CAD Cart
LEM-4-32-SG-COR M4 0.7 32 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 16 10.97 CAD Cart
LEM-4-10-SG-CSG M4 0.7 10 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 15 10.61 CAD Cart
LEM-4-12-SG-CSG M4 0.7 12 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 15 10.61 CAD Cart
LEM-4-16-SG-CSG M4 0.7 16 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 15 10.61 CAD Cart
LEM-4-20-SG-CSG M4 0.7 20 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 15 10.61 CAD Cart
LEM-4-25-SG-CSG M4 0.7 25 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 16 10.61 CAD Cart
LEM-4-32-SG-CSG M4 0.7 32 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 16 10.97 CAD Cart
LEM-5-12-BK-CBK M5 0.8 12 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 16 10.61 CAD Cart
LEM-5-16-BK-CBK M5 0.8 16 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 16 10.61 CAD Cart
LEM-5-20-BK-CBK M5 0.8 20 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 16 10.61 CAD Cart
LEM-5-25-BK-CBK M5 0.8 25 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 17 10.61 CAD Cart
LEM-5-32-BK-CBK M5 0.8 32 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 18 10.61 CAD Cart
LEM-5-40-BK-CBK M5 0.8 40 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 19 10.61 CAD Cart
LEM-5-50-BK-CBK M5 0.8 50 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 20 11.33 CAD Cart
LEM-5-12-BK-COR M5 0.8 12 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 16 10.61 CAD Cart
LEM-5-16-BK-COR M5 0.8 16 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 16 10.61 CAD Cart
LEM-5-20-BK-COR M5 0.8 20 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 16 10.61 CAD Cart
LEM-5-25-BK-COR M5 0.8 25 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 17 10.61 CAD Cart
LEM-5-32-BK-COR M5 0.8 32 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 18 10.61 CAD Cart
LEM-5-40-BK-COR M5 0.8 40 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 19 10.61 CAD Cart
LEM-5-50-BK-COR M5 0.8 50 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 20 11.33 CAD Cart
LEM-5-12-BK-CSG M5 0.8 12 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 16 10.61 CAD Cart
LEM-5-16-BK-CSG M5 0.8 16 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 16 10.61 CAD Cart
LEM-5-20-BK-CSG M5 0.8 20 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 16 10.61 CAD Cart
LEM-5-25-BK-CSG M5 0.8 25 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 17 10.61 CAD Cart
LEM-5-32-BK-CSG M5 0.8 32 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 18 10.61 CAD Cart
LEM-5-40-BK-CSG M5 0.8 40 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 19 10.61 CAD Cart
LEM-5-50-BK-CSG M5 0.8 50 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 20 11.33 CAD Cart
LEM-5-12-OR-CBK M5 0.8 12 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 16 10.61 CAD Cart
LEM-5-16-OR-CBK M5 0.8 16 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 16 10.61 CAD Cart
LEM-5-20-OR-CBK M5 0.8 20 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 16 10.61 CAD Cart
LEM-5-25-OR-CBK M5 0.8 25 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 17 10.61 CAD Cart
LEM-5-32-OR-CBK M5 0.8 32 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 18 10.61 CAD Cart
LEM-5-40-OR-CBK M5 0.8 40 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 19 10.61 CAD Cart
LEM-5-50-OR-CBK M5 0.8 50 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 20 11.33 CAD Cart
LEM-5-12-OR-COR M5 0.8 12 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 16 10.61 CAD Cart
LEM-5-16-OR-COR M5 0.8 16 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 16 10.61 CAD Cart
LEM-5-20-OR-COR M5 0.8 20 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 16 10.61 CAD Cart
LEM-5-25-OR-COR M5 0.8 25 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 17 10.61 CAD Cart
LEM-5-32-OR-COR M5 0.8 32 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 18 10.61 CAD Cart
LEM-5-40-OR-COR M5 0.8 40 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 19 10.61 CAD Cart
LEM-5-50-OR-COR M5 0.8 50 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 20 11.33 CAD Cart
LEM-5-12-OR-CSG M5 0.8 12 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 16 10.61 CAD Cart
LEM-5-16-OR-CSG M5 0.8 16 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 16 10.61 CAD Cart
LEM-5-20-OR-CSG M5 0.8 20 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 16 10.61 CAD Cart
LEM-5-25-OR-CSG M5 0.8 25 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 17 10.61 CAD Cart
LEM-5-32-OR-CSG M5 0.8 32 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 18 10.61 CAD Cart
LEM-5-40-OR-CSG M5 0.8 40 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 19 10.61 CAD Cart
LEM-5-50-OR-CSG M5 0.8 50 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 20 11.33 CAD Cart
LEM-5-12-SG-CBK M5 0.8 12 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 16 10.61 CAD Cart
LEM-5-16-SG-CBK M5 0.8 16 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 16 10.61 CAD Cart
LEM-5-20-SG-CBK M5 0.8 20 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 16 10.61 CAD Cart
LEM-5-25-SG-CBK M5 0.8 25 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 17 10.61 CAD Cart
LEM-5-32-SG-CBK M5 0.8 32 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 18 10.61 CAD Cart
LEM-5-40-SG-CBK M5 0.8 40 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 19 10.61 CAD Cart
LEM-5-50-SG-CBK M5 0.8 50 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 20 11.33 CAD Cart
LEM-5-12-SG-COR M5 0.8 12 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 16 10.61 CAD Cart
LEM-5-16-SG-COR M5 0.8 16 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 16 10.61 CAD Cart
LEM-5-20-SG-COR M5 0.8 20 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 16 10.61 CAD Cart
LEM-5-25-SG-COR M5 0.8 25 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 17 10.61 CAD Cart
LEM-5-32-SG-COR M5 0.8 32 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 18 10.61 CAD Cart
LEM-5-40-SG-COR M5 0.8 40 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 19 10.61 CAD Cart
LEM-5-50-SG-COR M5 0.8 50 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 20 11.33 CAD Cart
LEM-5-12-SG-CSG M5 0.8 12 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 16 10.61 CAD Cart
LEM-5-16-SG-CSG M5 0.8 16 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 16 10.61 CAD Cart
LEM-5-20-SG-CSG M5 0.8 20 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 16 10.61 CAD Cart
LEM-5-25-SG-CSG M5 0.8 25 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 17 10.61 CAD Cart
LEM-5-32-SG-CSG M5 0.8 32 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 18 10.61 CAD Cart
LEM-5-40-SG-CSG M5 0.8 40 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 19 10.61 CAD Cart
LEM-5-50-SG-CSG M5 0.8 50 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 20 11.33 CAD Cart
LEM-6-12-BK-CBK M6 1 12 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 16 10.61 CAD Cart
LEM-6-16-BK-CBK M6 1 16 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 16 10.61 CAD Cart
LEM-6-20-BK-CBK M6 1 20 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 17 10.61 CAD Cart
LEM-6-25-BK-CBK M6 1 25 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 18 10.61 CAD Cart
LEM-6-32-BK-CBK M6 1 32 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 19 10.61 CAD Cart
LEM-6-40-BK-CBK M6 1 40 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 21 10.61 CAD Cart
LEM-6-50-BK-CBK M6 1 50 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 22 11.33 CAD Cart
LEM-6-12-BK-COR M6 1 12 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 16 10.61 CAD Cart
LEM-6-16-BK-COR M6 1 16 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 16 10.61 CAD Cart
LEM-6-20-BK-COR M6 1 20 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 17 10.61 CAD Cart
LEM-6-25-BK-COR M6 1 25 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 18 10.61 CAD Cart
LEM-6-32-BK-COR M6 1 32 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 19 10.61 CAD Cart
LEM-6-40-BK-COR M6 1 40 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 21 10.61 CAD Cart
LEM-6-50-BK-COR M6 1 50 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 22 11.33 CAD Cart
LEM-6-12-BK-CSG M6 1 12 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 16 10.61 CAD Cart
LEM-6-16-BK-CSG M6 1 16 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 16 10.61 CAD Cart
LEM-6-20-BK-CSG M6 1 20 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 17 10.61 CAD Cart
LEM-6-25-BK-CSG M6 1 25 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 18 10.61 CAD Cart
LEM-6-32-BK-CSG M6 1 32 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 19 10.61 CAD Cart
LEM-6-40-BK-CSG M6 1 40 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 21 10.61 CAD Cart
LEM-6-50-BK-CSG M6 1 50 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 22 11.33 CAD Cart
LEM-6-12-OR-CBK M6 1 12 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 16 10.61 CAD Cart
LEM-6-16-OR-CBK M6 1 16 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 16 10.61 CAD Cart
LEM-6-20-OR-CBK M6 1 20 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 17 10.61 CAD Cart
LEM-6-25-OR-CBK M6 1 25 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 18 10.61 CAD Cart
LEM-6-32-OR-CBK M6 1 32 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 19 10.61 CAD Cart
LEM-6-40-OR-CBK M6 1 40 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 21 10.61 CAD Cart
LEM-6-50-OR-CBK M6 1 50 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 22 11.33 CAD Cart
LEM-6-12-OR-COR M6 1 12 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 16 10.61 CAD Cart
LEM-6-16-OR-COR M6 1 16 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 16 10.61 CAD Cart
LEM-6-20-OR-COR M6 1 20 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 17 10.61 CAD Cart
LEM-6-25-OR-COR M6 1 25 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 18 10.61 CAD Cart
LEM-6-32-OR-COR M6 1 32 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 19 10.61 CAD Cart
LEM-6-40-OR-COR M6 1 40 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 21 10.61 CAD Cart
LEM-6-50-OR-COR M6 1 50 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 22 11.33 CAD Cart
LEM-6-12-OR-CSG M6 1 12 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 16 10.61 CAD Cart
LEM-6-16-OR-CSG M6 1 16 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 16 10.61 CAD Cart
LEM-6-20-OR-CSG M6 1 20 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 17 10.61 CAD Cart
LEM-6-25-OR-CSG M6 1 25 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 18 10.61 CAD Cart
LEM-6-32-OR-CSG M6 1 32 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 19 10.61 CAD Cart
LEM-6-40-OR-CSG M6 1 40 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 21 10.61 CAD Cart
LEM-6-50-OR-CSG M6 1 50 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 22 11.33 CAD Cart
LEM-6-12-SG-CBK M6 1 12 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 16 10.61 CAD Cart
LEM-6-16-SG-CBK M6 1 16 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 16 10.61 CAD Cart
LEM-6-20-SG-CBK M6 1 20 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 17 10.61 CAD Cart
LEM-6-25-SG-CBK M6 1 25 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 18 10.61 CAD Cart
LEM-6-32-SG-CBK M6 1 32 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 19 10.61 CAD Cart
LEM-6-40-SG-CBK M6 1 40 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 21 10.61 CAD Cart
LEM-6-50-SG-CBK M6 1 50 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 22 11.33 CAD Cart
LEM-6-12-SG-COR M6 1 12 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 16 10.61 CAD Cart
LEM-6-16-SG-COR M6 1 16 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 16 10.61 CAD Cart
LEM-6-20-SG-COR M6 1 20 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 17 10.61 CAD Cart
LEM-6-25-SG-COR M6 1 25 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 18 10.61 CAD Cart
LEM-6-32-SG-COR M6 1 32 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 19 10.61 CAD Cart
LEM-6-40-SG-COR M6 1 40 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 21 10.61 CAD Cart
LEM-6-50-SG-COR M6 1 50 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 22 11.33 CAD Cart
LEM-6-12-SG-CSG M6 1 12 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 16 10.61 CAD Cart
LEM-6-16-SG-CSG M6 1 16 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 16 10.61 CAD Cart
LEM-6-20-SG-CSG M6 1 20 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 17 10.61 CAD Cart
LEM-6-25-SG-CSG M6 1 25 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 18 10.61 CAD Cart
LEM-6-32-SG-CSG M6 1 32 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 19 10.61 CAD Cart
LEM-6-40-SG-CSG M6 1 40 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 21 10.61 CAD Cart
LEM-6-50-SG-CSG M6 1 50 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 22 11.33 CAD Cart
LEM-6B-12-BK-CBK M6 1 12 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 35 12.06 CAD Cart
LEM-6B-16-BK-CBK M6 1 16 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 36 12.06 CAD Cart
LEM-6B-20-BK-CBK M6 1 20 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 37 12.06 CAD Cart
LEM-6B-25-BK-CBK M6 1 25 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 38 12.06 CAD Cart
LEM-6B-32-BK-CBK M6 1 32 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 39 12.06 CAD Cart
LEM-6B-40-BK-CBK M6 1 40 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 41 12.32 CAD Cart
LEM-6B-50-BK-CBK M6 1 50 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 42 12.32 CAD Cart
LEM-6B-63-BK-CBK M6 1 63 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 44 13.44 CAD Cart
LEM-6B-12-BK-COR M6 1 12 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 35 12.06 CAD Cart
LEM-6B-16-BK-COR M6 1 16 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 36 12.06 CAD Cart
LEM-6B-20-BK-COR M6 1 20 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 37 12.06 CAD Cart
LEM-6B-25-BK-COR M6 1 25 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 38 12.06 CAD Cart
LEM-6B-32-BK-COR M6 1 32 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 39 12.06 CAD Cart
LEM-6B-40-BK-COR M6 1 40 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 41 12.32 CAD Cart
LEM-6B-50-BK-COR M6 1 50 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 42 12.32 CAD Cart
LEM-6B-63-BK-COR M6 1 63 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 44 13.44 CAD Cart
LEM-6B-12-BK-CSG M6 1 12 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 35 12.06 CAD Cart
LEM-6B-16-BK-CSG M6 1 16 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 36 12.06 CAD Cart
LEM-6B-20-BK-CSG M6 1 20 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 37 12.06 CAD Cart
LEM-6B-25-BK-CSG M6 1 25 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 38 12.06 CAD Cart
LEM-6B-32-BK-CSG M6 1 32 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 39 12.06 CAD Cart
LEM-6B-40-BK-CSG M6 1 40 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 41 12.32 CAD Cart
LEM-6B-50-BK-CSG M6 1 50 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 42 12.32 CAD Cart
LEM-6B-63-BK-CSG M6 1 63 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 44 13.44 CAD Cart
LEM-6B-12-OR-CBK M6 1 12 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 35 12.06 CAD Cart
LEM-6B-16-OR-CBK M6 1 16 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 36 12.06 CAD Cart
LEM-6B-20-OR-CBK M6 1 20 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 37 12.06 CAD Cart
LEM-6B-25-OR-CBK M6 1 25 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 38 12.06 CAD Cart
LEM-6B-32-OR-CBK M6 1 32 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 39 12.06 CAD Cart
LEM-6B-40-OR-CBK M6 1 40 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 41 12.32 CAD Cart
LEM-6B-50-OR-CBK M6 1 50 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 42 12.32 CAD Cart
LEM-6B-63-OR-CBK M6 1 63 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 44 13.44 CAD Cart
LEM-6B-12-OR-COR M6 1 12 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 35 12.06 CAD Cart
LEM-6B-16-OR-COR M6 1 16 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 36 12.06 CAD Cart
LEM-6B-20-OR-COR M6 1 20 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 37 12.06 CAD Cart
LEM-6B-25-OR-COR M6 1 25 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 38 12.06 CAD Cart
LEM-6B-32-OR-COR M6 1 32 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 39 12.06 CAD Cart
LEM-6B-40-OR-COR M6 1 40 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 41 12.32 CAD Cart
LEM-6B-50-OR-COR M6 1 50 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 42 12.32 CAD Cart
LEM-6B-63-OR-COR M6 1 63 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 44 13.44 CAD Cart
LEM-6B-12-OR-CSG M6 1 12 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 35 12.06 CAD Cart
LEM-6B-16-OR-CSG M6 1 16 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 36 12.06 CAD Cart
LEM-6B-20-OR-CSG M6 1 20 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 37 12.06 CAD Cart
LEM-6B-25-OR-CSG M6 1 25 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 38 12.06 CAD Cart
LEM-6B-32-OR-CSG M6 1 32 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 39 12.06 CAD Cart
LEM-6B-40-OR-CSG M6 1 40 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 41 12.32 CAD Cart
LEM-6B-50-OR-CSG M6 1 50 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 42 12.32 CAD Cart
LEM-6B-63-OR-CSG M6 1 63 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 44 13.44 CAD Cart
LEM-6B-12-SG-CBK M6 1 12 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 35 12.06 CAD Cart
LEM-6B-16-SG-CBK M6 1 16 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 36 12.06 CAD Cart
LEM-6B-20-SG-CBK M6 1 20 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 37 12.06 CAD Cart
LEM-6B-25-SG-CBK M6 1 25 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 38 12.06 CAD Cart
LEM-6B-32-SG-CBK M6 1 32 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 39 12.06 CAD Cart
LEM-6B-40-SG-CBK M6 1 40 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 41 12.32 CAD Cart
LEM-6B-50-SG-CBK M6 1 50 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 42 12.32 CAD Cart
LEM-6B-63-SG-CBK M6 1 63 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 44 13.44 CAD Cart
LEM-6B-12-SG-COR M6 1 12 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 35 12.06 CAD Cart
LEM-6B-16-SG-COR M6 1 16 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 36 12.06 CAD Cart
LEM-6B-20-SG-COR M6 1 20 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 37 12.06 CAD Cart
LEM-6B-25-SG-COR M6 1 25 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 38 12.06 CAD Cart
LEM-6B-32-SG-COR M6 1 32 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 39 12.06 CAD Cart
LEM-6B-40-SG-COR M6 1 40 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 41 12.32 CAD Cart
LEM-6B-50-SG-COR M6 1 50 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 42 12.32 CAD Cart
LEM-6B-63-SG-COR M6 1 63 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 44 13.44 CAD Cart
LEM-6B-12-SG-CSG M6 1 12 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 35 12.06 CAD Cart
LEM-6B-16-SG-CSG M6 1 16 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 36 12.06 CAD Cart
LEM-6B-20-SG-CSG M6 1 20 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 37 12.06 CAD Cart
LEM-6B-25-SG-CSG M6 1 25 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 38 12.06 CAD Cart
LEM-6B-32-SG-CSG M6 1 32 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 39 12.06 CAD Cart
LEM-6B-40-SG-CSG M6 1 40 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 41 12.32 CAD Cart
LEM-6B-50-SG-CSG M6 1 50 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 42 12.32 CAD Cart
LEM-6B-63-SG-CSG M6 1 63 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 44 13.44 CAD Cart
LEM-8-12-BK-CBK M8 1.25 12 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 38 12.06 CAD Cart
LEM-8-16-BK-CBK M8 1.25 16 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 39 12.06 CAD Cart
LEM-8-20-BK-CBK M8 1.25 20 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 40 12.06 CAD Cart
LEM-8-25-BK-CBK M8 1.25 25 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 42 12.06 CAD Cart
LEM-8-32-BK-CBK M8 1.25 32 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 43 12.06 CAD Cart
LEM-8-40-BK-CBK M8 1.25 40 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 46 12.32 CAD Cart
LEM-8-50-BK-CBK M8 1.25 50 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 49 12.32 CAD Cart
LEM-8-63-BK-CBK M8 1.25 63 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 53 13.44 CAD Cart
LEM-8-12-BK-COR M8 1.25 12 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 38 12.06 CAD Cart
LEM-8-16-BK-COR M8 1.25 16 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 39 12.06 CAD Cart
LEM-8-20-BK-COR M8 1.25 20 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 40 12.06 CAD Cart
LEM-8-25-BK-COR M8 1.25 25 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 42 12.06 CAD Cart
LEM-8-32-BK-COR M8 1.25 32 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 43 12.06 CAD Cart
LEM-8-40-BK-COR M8 1.25 40 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 46 12.32 CAD Cart
LEM-8-50-BK-COR M8 1.25 50 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 49 12.32 CAD Cart
LEM-8-63-BK-COR M8 1.25 63 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 53 13.44 CAD Cart
LEM-8-12-BK-CSG M8 1.25 12 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 38 12.06 CAD Cart
LEM-8-16-BK-CSG M8 1.25 16 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 39 12.06 CAD Cart
LEM-8-20-BK-CSG M8 1.25 20 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 40 12.06 CAD Cart
LEM-8-25-BK-CSG M8 1.25 25 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 42 12.06 CAD Cart
LEM-8-32-BK-CSG M8 1.25 32 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 43 12.06 CAD Cart
LEM-8-40-BK-CSG M8 1.25 40 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 46 12.32 CAD Cart
LEM-8-50-BK-CSG M8 1.25 50 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 49 12.32 CAD Cart
LEM-8-63-BK-CSG M8 1.25 63 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 53 13.44 CAD Cart
LEM-8-12-OR-CBK M8 1.25 12 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 38 12.06 CAD Cart
LEM-8-16-OR-CBK M8 1.25 16 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 39 12.06 CAD Cart
LEM-8-20-OR-CBK M8 1.25 20 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 40 12.06 CAD Cart
LEM-8-25-OR-CBK M8 1.25 25 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 42 12.06 CAD Cart
LEM-8-32-OR-CBK M8 1.25 32 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 43 12.06 CAD Cart
LEM-8-40-OR-CBK M8 1.25 40 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 46 12.32 CAD Cart
LEM-8-50-OR-CBK M8 1.25 50 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 49 12.32 CAD Cart
LEM-8-63-OR-CBK M8 1.25 63 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 53 13.44 CAD Cart
LEM-8-12-OR-COR M8 1.25 12 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 38 12.06 CAD Cart
LEM-8-16-OR-COR M8 1.25 16 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 39 12.06 CAD Cart
LEM-8-20-OR-COR M8 1.25 20 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 40 12.06 CAD Cart
LEM-8-25-OR-COR M8 1.25 25 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 42 12.06 CAD Cart
LEM-8-32-OR-COR M8 1.25 32 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 43 12.06 CAD Cart
LEM-8-40-OR-COR M8 1.25 40 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 46 12.32 CAD Cart
LEM-8-50-OR-COR M8 1.25 50 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 49 12.32 CAD Cart
LEM-8-63-OR-COR M8 1.25 63 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 53 13.44 CAD Cart
LEM-8-12-OR-CSG M8 1.25 12 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 38 12.06 CAD Cart
LEM-8-16-OR-CSG M8 1.25 16 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 39 12.06 CAD Cart
LEM-8-20-OR-CSG M8 1.25 20 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 40 12.06 CAD Cart
LEM-8-25-OR-CSG M8 1.25 25 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 42 12.06 CAD Cart
LEM-8-32-OR-CSG M8 1.25 32 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 43 12.06 CAD Cart
LEM-8-40-OR-CSG M8 1.25 40 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 46 12.32 CAD Cart
LEM-8-50-OR-CSG M8 1.25 50 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 49 12.32 CAD Cart
LEM-8-63-OR-CSG M8 1.25 63 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 53 13.44 CAD Cart
LEM-8-12-SG-CBK M8 1.25 12 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 38 12.06 CAD Cart
LEM-8-16-SG-CBK M8 1.25 16 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 39 12.06 CAD Cart
LEM-8-20-SG-CBK M8 1.25 20 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 40 12.06 CAD Cart
LEM-8-25-SG-CBK M8 1.25 25 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 42 12.06 CAD Cart
LEM-8-32-SG-CBK M8 1.25 32 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 43 12.06 CAD Cart
LEM-8-40-SG-CBK M8 1.25 40 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 46 12.32 CAD Cart
LEM-8-50-SG-CBK M8 1.25 50 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 49 12.32 CAD Cart
LEM-8-63-SG-CBK M8 1.25 63 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 53 13.44 CAD Cart
LEM-8-12-SG-COR M8 1.25 12 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 38 12.06 CAD Cart
LEM-8-16-SG-COR M8 1.25 16 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 39 12.06 CAD Cart
LEM-8-20-SG-COR M8 1.25 20 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 40 12.06 CAD Cart
LEM-8-25-SG-COR M8 1.25 25 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 42 12.06 CAD Cart
LEM-8-32-SG-COR M8 1.25 32 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 43 12.06 CAD Cart
LEM-8-40-SG-COR M8 1.25 40 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 46 12.32 CAD Cart
LEM-8-50-SG-COR M8 1.25 50 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 49 12.32 CAD Cart
LEM-8-63-SG-COR M8 1.25 63 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 53 13.44 CAD Cart
LEM-8-12-SG-CSG M8 1.25 12 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 38 12.06 CAD Cart
LEM-8-16-SG-CSG M8 1.25 16 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 39 12.06 CAD Cart
LEM-8-20-SG-CSG M8 1.25 20 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 40 12.06 CAD Cart
LEM-8-25-SG-CSG M8 1.25 25 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 42 12.06 CAD Cart
LEM-8-32-SG-CSG M8 1.25 32 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 43 12.06 CAD Cart
LEM-8-40-SG-CSG M8 1.25 40 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 46 12.32 CAD Cart
LEM-8-50-SG-CSG M8 1.25 50 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 49 12.32 CAD Cart
LEM-8-63-SG-CSG M8 1.25 63 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 53 13.44 CAD Cart
LEM-8B-16-BK-CBK M8 1.25 16 78 55.4 59.4 36 8 21 16 26 100 7 BK 61 13.98 CAD Cart
LEM-8B-20-BK-CBK M8 1.25 20 78 55.4 59.4 36 8 21 16 26 100 7 BK 62 13.98 CAD Cart
LEM-8B-25-BK-CBK M8 1.25 25 78 55.4 59.4 36 8 21 16 26 100 7 BK 63 13.98 CAD Cart
LEM-8B-32-BK-CBK M8 1.25 32 78 55.4 59.4 36 8 21 16 26 100 7 BK 66 13.98 CAD Cart
LEM-8B-40-BK-CBK M8 1.25 40 78 55.4 59.4 36 8 21 16 26 100 7 BK 70 13.98 CAD Cart
LEM-8B-50-BK-CBK M8 1.25 50 78 55.4 59.4 36 8 21 16 26 100 7 BK 73 13.98 CAD Cart
LEM-8B-63-BK-CBK M8 1.25 63 78 55.4 59.4 36 8 21 16 26 100 7 BK 77 14.74 CAD Cart
LEM-8B-80-BK-CBK M8 1.25 80 78 55.4 59.4 36 8 21 16 26 100 7 BK 82 16.80 CAD Cart
LEM-8B-16-BK-COR M8 1.25 16 78 55.4 59.4 36 8 21 16 26 100 7 BK 61 13.98 CAD Cart
LEM-8B-20-BK-COR M8 1.25 20 78 55.4 59.4 36 8 21 16 26 100 7 BK 62 13.98 CAD Cart
LEM-8B-25-BK-COR M8 1.25 25 78 55.4 59.4 36 8 21 16 26 100 7 BK 63 13.98 CAD Cart
LEM-8B-32-BK-COR M8 1.25 32 78 55.4 59.4 36 8 21 16 26 100 7 BK 66 13.98 CAD Cart
LEM-8B-40-BK-COR M8 1.25 40 78 55.4 59.4 36 8 21 16 26 100 7 BK 70 13.98 CAD Cart
LEM-8B-50-BK-COR M8 1.25 50 78 55.4 59.4 36 8 21 16 26 100 7 BK 73 13.98 CAD Cart
LEM-8B-63-BK-COR M8 1.25 63 78 55.4 59.4 36 8 21 16 26 100 7 BK 77 14.74 CAD Cart
LEM-8B-80-BK-COR M8 1.25 80 78 55.4 59.4 36 8 21 16 26 100 7 BK 82 16.80 CAD Cart
LEM-8B-16-BK-CSG M8 1.25 16 78 55.4 59.4 36 8 21 16 26 100 7 BK 61 13.98 CAD Cart
LEM-8B-20-BK-CSG M8 1.25 20 78 55.4 59.4 36 8 21 16 26 100 7 BK 62 13.98 CAD Cart
LEM-8B-25-BK-CSG M8 1.25 25 78 55.4 59.4 36 8 21 16 26 100 7 BK 63 13.98 CAD Cart
LEM-8B-32-BK-CSG M8 1.25 32 78 55.4 59.4 36 8 21 16 26 100 7 BK 66 13.98 CAD Cart
LEM-8B-40-BK-CSG M8 1.25 40 78 55.4 59.4 36 8 21 16 26 100 7 BK 70 13.98 CAD Cart
LEM-8B-50-BK-CSG M8 1.25 50 78 55.4 59.4 36 8 21 16 26 100 7 BK 73 13.98 CAD Cart
LEM-8B-63-BK-CSG M8 1.25 63 78 55.4 59.4 36 8 21 16 26 100 7 BK 77 14.74 CAD Cart
LEM-8B-80-BK-CSG M8 1.25 80 78 55.4 59.4 36 8 21 16 26 100 7 BK 82 16.80 CAD Cart
LEM-8B-16-OR-CBK M8 1.25 16 78 55.4 59.4 36 8 21 16 26 100 7 OR 61 13.98 CAD Cart
LEM-8B-20-OR-CBK M8 1.25 20 78 55.4 59.4 36 8 21 16 26 100 7 OR 62 13.98 CAD Cart
LEM-8B-25-OR-CBK M8 1.25 25 78 55.4 59.4 36 8 21 16 26 100 7 OR 63 13.98 CAD Cart
LEM-8B-32-OR-CBK M8 1.25 32 78 55.4 59.4 36 8 21 16 26 100 7 OR 66 13.98 CAD Cart
LEM-8B-40-OR-CBK M8 1.25 40 78 55.4 59.4 36 8 21 16 26 100 7 OR 70 13.98 CAD Cart
LEM-8B-50-OR-CBK M8 1.25 50 78 55.4 59.4 36 8 21 16 26 100 7 OR 73 13.98 CAD Cart
LEM-8B-63-OR-CBK M8 1.25 63 78 55.4 59.4 36 8 21 16 26 100 7 OR 77 14.74 CAD Cart
LEM-8B-80-OR-CBK M8 1.25 80 78 55.4 59.4 36 8 21 16 26 100 7 OR 82 16.80 CAD Cart
LEM-8B-16-OR-COR M8 1.25 16 78 55.4 59.4 36 8 21 16 26 100 7 OR 61 13.98 CAD Cart
LEM-8B-20-OR-COR M8 1.25 20 78 55.4 59.4 36 8 21 16 26 100 7 OR 62 13.98 CAD Cart
LEM-8B-25-OR-COR M8 1.25 25 78 55.4 59.4 36 8 21 16 26 100 7 OR 63 13.98 CAD Cart
LEM-8B-32-OR-COR M8 1.25 32 78 55.4 59.4 36 8 21 16 26 100 7 OR 66 13.98 CAD Cart
LEM-8B-40-OR-COR M8 1.25 40 78 55.4 59.4 36 8 21 16 26 100 7 OR 70 13.98 CAD Cart
LEM-8B-50-OR-COR M8 1.25 50 78 55.4 59.4 36 8 21 16 26 100 7 OR 73 13.98 CAD Cart
LEM-8B-63-OR-COR M8 1.25 63 78 55.4 59.4 36 8 21 16 26 100 7 OR 77 14.74 CAD Cart
LEM-8B-80-OR-COR M8 1.25 80 78 55.4 59.4 36 8 21 16 26 100 7 OR 82 16.80 CAD Cart
LEM-8B-16-OR-CSG M8 1.25 16 78 55.4 59.4 36 8 21 16 26 100 7 OR 61 13.98 CAD Cart
LEM-8B-20-OR-CSG M8 1.25 20 78 55.4 59.4 36 8 21 16 26 100 7 OR 62 13.98 CAD Cart
LEM-8B-25-OR-CSG M8 1.25 25 78 55.4 59.4 36 8 21 16 26 100 7 OR 63 13.98 CAD Cart
LEM-8B-32-OR-CSG M8 1.25 32 78 55.4 59.4 36 8 21 16 26 100 7 OR 66 13.98 CAD Cart
LEM-8B-40-OR-CSG M8 1.25 40 78 55.4 59.4 36 8 21 16 26 100 7 OR 70 13.98 CAD Cart
LEM-8B-50-OR-CSG M8 1.25 50 78 55.4 59.4 36 8 21 16 26 100 7 OR 73 13.98 CAD Cart
LEM-8B-63-OR-CSG M8 1.25 63 78 55.4 59.4 36 8 21 16 26 100 7 OR 77 14.74 CAD Cart
LEM-8B-80-OR-CSG M8 1.25 80 78 55.4 59.4 36 8 21 16 26 100 7 OR 82 16.80 CAD Cart
LEM-8B-16-SG-CBK M8 1.25 16 78 55.4 59.4 36 8 21 16 26 100 7 SG 61 13.98 CAD Cart
LEM-8B-20-SG-CBK M8 1.25 20 78 55.4 59.4 36 8 21 16 26 100 7 SG 62 13.98 CAD Cart
LEM-8B-25-SG-CBK M8 1.25 25 78 55.4 59.4 36 8 21 16 26 100 7 SG 63 13.98 CAD Cart
LEM-8B-32-SG-CBK M8 1.25 32 78 55.4 59.4 36 8 21 16 26 100 7 SG 66 13.98 CAD Cart
LEM-8B-40-SG-CBK M8 1.25 40 78 55.4 59.4 36 8 21 16 26 100 7 SG 70 13.98 CAD Cart
LEM-8B-50-SG-CBK M8 1.25 50 78 55.4 59.4 36 8 21 16 26 100 7 SG 73 13.98 CAD Cart
LEM-8B-63-SG-CBK M8 1.25 63 78 55.4 59.4 36 8 21 16 26 100 7 SG 77 14.74 CAD Cart
LEM-8B-80-SG-CBK M8 1.25 80 78 55.4 59.4 36 8 21 16 26 100 7 SG 82 16.80 CAD Cart
LEM-8B-16-SG-COR M8 1.25 16 78 55.4 59.4 36 8 21 16 26 100 7 SG 61 13.98 CAD Cart
LEM-8B-20-SG-COR M8 1.25 20 78 55.4 59.4 36 8 21 16 26 100 7 SG 62 13.98 CAD Cart
LEM-8B-25-SG-COR M8 1.25 25 78 55.4 59.4 36 8 21 16 26 100 7 SG 63 13.98 CAD Cart
LEM-8B-32-SG-COR M8 1.25 32 78 55.4 59.4 36 8 21 16 26 100 7 SG 66 13.98 CAD Cart
LEM-8B-40-SG-COR M8 1.25 40 78 55.4 59.4 36 8 21 16 26 100 7 SG 70 13.98 CAD Cart
LEM-8B-50-SG-COR M8 1.25 50 78 55.4 59.4 36 8 21 16 26 100 7 SG 73 13.98 CAD Cart
LEM-8B-63-SG-COR M8 1.25 63 78 55.4 59.4 36 8 21 16 26 100 7 SG 77 14.74 CAD Cart
LEM-8B-80-SG-COR M8 1.25 80 78 55.4 59.4 36 8 21 16 26 100 7 SG 82 16.80 CAD Cart
LEM-8B-16-SG-CSG M8 1.25 16 78 55.4 59.4 36 8 21 16 26 100 7 SG 61 13.98 CAD Cart
LEM-8B-20-SG-CSG M8 1.25 20 78 55.4 59.4 36 8 21 16 26 100 7 SG 62 13.98 CAD Cart
LEM-8B-25-SG-CSG M8 1.25 25 78 55.4 59.4 36 8 21 16 26 100 7 SG 63 13.98 CAD Cart
LEM-8B-32-SG-CSG M8 1.25 32 78 55.4 59.4 36 8 21 16 26 100 7 SG 66 13.98 CAD Cart
LEM-8B-40-SG-CSG M8 1.25 40 78 55.4 59.4 36 8 21 16 26 100 7 SG 70 13.98 CAD Cart
LEM-8B-50-SG-CSG M8 1.25 50 78 55.4 59.4 36 8 21 16 26 100 7 SG 73 13.98 CAD Cart
LEM-8B-63-SG-CSG M8 1.25 63 78 55.4 59.4 36 8 21 16 26 100 7 SG 77 14.74 CAD Cart
LEM-8B-80-SG-CSG M8 1.25 80 78 55.4 59.4 36 8 21 16 26 100 7 SG 82 16.80 CAD Cart
LEM-10A-20-BK-CBK M10 1.5 20 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 BK 43 12.59 CAD Cart
LEM-10A-25-BK-CBK M10 1.5 25 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 BK 46 12.59 CAD Cart
LEM-10A-32-BK-CBK M10 1.5 32 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 BK 50 12.59 CAD Cart
LEM-10A-40-BK-CBK M10 1.5 40 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 BK 52 12.59 CAD Cart
LEM-10A-50-BK-CBK M10 1.5 50 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 BK 57 14.07 CAD Cart
LEM-10A-63-BK-CBK M10 1.5 63 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 BK 64 14.07 CAD Cart
LEM-10A-80-BK-CBK M10 1.5 80 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 BK 84 14.34 CAD Cart
LEM-10A-20-BK-COR M10 1.5 20 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 BK 43 12.59 CAD Cart
LEM-10A-25-BK-COR M10 1.5 25 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 BK 46 12.59 CAD Cart
LEM-10A-32-BK-COR M10 1.5 32 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 BK 50 12.59 CAD Cart
LEM-10A-40-BK-COR M10 1.5 40 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 BK 52 12.59 CAD Cart
LEM-10A-50-BK-COR M10 1.5 50 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 BK 57 14.07 CAD Cart
LEM-10A-63-BK-COR M10 1.5 63 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 BK 64 14.07 CAD Cart
LEM-10A-80-BK-COR M10 1.5 80 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 BK 84 14.34 CAD Cart
LEM-10A-20-BK-CSG M10 1.5 20 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 BK 43 12.59 CAD Cart
LEM-10A-25-BK-CSG M10 1.5 25 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 BK 46 12.59 CAD Cart
LEM-10A-32-BK-CSG M10 1.5 32 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 BK 50 12.59 CAD Cart
LEM-10A-40-BK-CSG M10 1.5 40 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 BK 52 12.59 CAD Cart
LEM-10A-50-BK-CSG M10 1.5 50 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 BK 57 14.07 CAD Cart
LEM-10A-63-BK-CSG M10 1.5 63 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 BK 64 14.07 CAD Cart
LEM-10A-80-BK-CSG M10 1.5 80 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 BK 84 14.34 CAD Cart
LEM-10A-20-OR-CBK M10 1.5 20 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 OR 43 12.59 CAD Cart
LEM-10A-25-OR-CBK M10 1.5 25 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 OR 46 12.59 CAD Cart
LEM-10A-32-OR-CBK M10 1.5 32 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 OR 50 12.59 CAD Cart
LEM-10A-40-OR-CBK M10 1.5 40 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 OR 52 12.59 CAD Cart
LEM-10A-50-OR-CBK M10 1.5 50 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 OR 57 14.07 CAD Cart
LEM-10A-63-OR-CBK M10 1.5 63 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 OR 64 14.07 CAD Cart
LEM-10A-80-OR-CBK M10 1.5 80 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 OR 84 14.34 CAD Cart
LEM-10A-20-OR-COR M10 1.5 20 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 OR 43 12.59 CAD Cart
LEM-10A-25-OR-COR M10 1.5 25 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 OR 46 12.59 CAD Cart
LEM-10A-32-OR-COR M10 1.5 32 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 OR 50 12.59 CAD Cart
LEM-10A-40-OR-COR M10 1.5 40 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 OR 52 12.59 CAD Cart
LEM-10A-50-OR-COR M10 1.5 50 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 OR 57 14.07 CAD Cart
LEM-10A-63-OR-COR M10 1.5 63 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 OR 64 14.07 CAD Cart
LEM-10A-80-OR-COR M10 1.5 80 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 OR 84 14.34 CAD Cart
LEM-10A-20-OR-CSG M10 1.5 20 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 OR 43 12.59 CAD Cart
LEM-10A-25-OR-CSG M10 1.5 25 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 OR 46 12.59 CAD Cart
LEM-10A-32-OR-CSG M10 1.5 32 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 OR 50 12.59 CAD Cart
LEM-10A-40-OR-CSG M10 1.5 40 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 OR 52 12.59 CAD Cart
LEM-10A-50-OR-CSG M10 1.5 50 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 OR 57 14.07 CAD Cart
LEM-10A-63-OR-CSG M10 1.5 63 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 OR 64 14.07 CAD Cart
LEM-10A-80-OR-CSG M10 1.5 80 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 OR 84 14.34 CAD Cart
LEM-10A-20-SG-CBK M10 1.5 20 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 SG 43 12.59 CAD Cart
LEM-10A-25-SG-CBK M10 1.5 25 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 SG 46 12.59 CAD Cart
LEM-10A-32-SG-CBK M10 1.5 32 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 SG 50 12.59 CAD Cart
LEM-10A-40-SG-CBK M10 1.5 40 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 SG 52 12.59 CAD Cart
LEM-10A-50-SG-CBK M10 1.5 50 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 SG 57 14.07 CAD Cart
LEM-10A-63-SG-CBK M10 1.5 63 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 SG 64 14.07 CAD Cart
LEM-10A-80-SG-CBK M10 1.5 80 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 SG 84 14.34 CAD Cart
LEM-10A-20-SG-COR M10 1.5 20 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 SG 43 12.59 CAD Cart
LEM-10A-25-SG-COR M10 1.5 25 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 SG 46 12.59 CAD Cart
LEM-10A-32-SG-COR M10 1.5 32 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 SG 50 12.59 CAD Cart
LEM-10A-40-SG-COR M10 1.5 40 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 SG 52 12.59 CAD Cart
LEM-10A-50-SG-COR M10 1.5 50 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 SG 57 14.07 CAD Cart
LEM-10A-63-SG-COR M10 1.5 63 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 SG 64 14.07 CAD Cart
LEM-10A-80-SG-COR M10 1.5 80 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 SG 84 14.34 CAD Cart
LEM-10A-20-SG-CSG M10 1.5 20 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 SG 43 12.59 CAD Cart
LEM-10A-25-SG-CSG M10 1.5 25 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 SG 46 12.59 CAD Cart
LEM-10A-32-SG-CSG M10 1.5 32 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 SG 50 12.59 CAD Cart
LEM-10A-40-SG-CSG M10 1.5 40 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 SG 52 12.59 CAD Cart
LEM-10A-50-SG-CSG M10 1.5 50 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 SG 57 14.07 CAD Cart
LEM-10A-63-SG-CSG M10 1.5 63 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 SG 64 14.07 CAD Cart
LEM-10A-80-SG-CSG M10 1.5 80 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 SG 84 14.34 CAD Cart
LEM-10-16-BK-CBK M10 1.5 16 78 55.4 59.4 36 8 21 16 26 200 11 BK 65 13.98 CAD Cart
LEM-10-20-BK-CBK M10 1.5 20 78 55.4 59.4 36 8 21 16 26 200 11 BK 66 13.98 CAD Cart
LEM-10-25-BK-CBK M10 1.5 25 78 55.4 59.4 36 8 21 16 26 200 11 BK 69 13.98 CAD Cart
LEM-10-32-BK-CBK M10 1.5 32 78 55.4 59.4 36 8 21 16 26 200 11 BK 72 13.98 CAD Cart
LEM-10-40-BK-CBK M10 1.5 40 78 55.4 59.4 36 8 21 16 26 200 11 BK 76 13.98 CAD Cart
LEM-10-50-BK-CBK M10 1.5 50 78 55.4 59.4 36 8 21 16 26 200 11 BK 81 13.98 CAD Cart
LEM-10-63-BK-CBK M10 1.5 63 78 55.4 59.4 36 8 21 16 26 200 11 BK 88 14.74 CAD Cart
LEM-10-80-BK-CBK M10 1.5 80 78 55.4 59.4 36 8 21 16 26 200 11 BK 96 16.80 CAD Cart
LEM-10-16-BK-COR M10 1.5 16 78 55.4 59.4 36 8 21 16 26 200 11 BK 65 13.98 CAD Cart
LEM-10-20-BK-COR M10 1.5 20 78 55.4 59.4 36 8 21 16 26 200 11 BK 66 13.98 CAD Cart
LEM-10-25-BK-COR M10 1.5 25 78 55.4 59.4 36 8 21 16 26 200 11 BK 69 13.98 CAD Cart
LEM-10-32-BK-COR M10 1.5 32 78 55.4 59.4 36 8 21 16 26 200 11 BK 72 13.98 CAD Cart
LEM-10-40-BK-COR M10 1.5 40 78 55.4 59.4 36 8 21 16 26 200 11 BK 76 13.98 CAD Cart
LEM-10-50-BK-COR M10 1.5 50 78 55.4 59.4 36 8 21 16 26 200 11 BK 81 13.98 CAD Cart
LEM-10-63-BK-COR M10 1.5 63 78 55.4 59.4 36 8 21 16 26 200 11 BK 88 14.74 CAD Cart
LEM-10-80-BK-COR M10 1.5 80 78 55.4 59.4 36 8 21 16 26 200 11 BK 96 16.80 CAD Cart
LEM-10-16-BK-CSG M10 1.5 16 78 55.4 59.4 36 8 21 16 26 200 11 BK 65 13.98 CAD Cart
LEM-10-20-BK-CSG M10 1.5 20 78 55.4 59.4 36 8 21 16 26 200 11 BK 66 13.98 CAD Cart
LEM-10-25-BK-CSG M10 1.5 25 78 55.4 59.4 36 8 21 16 26 200 11 BK 69 13.98 CAD Cart
LEM-10-32-BK-CSG M10 1.5 32 78 55.4 59.4 36 8 21 16 26 200 11 BK 72 13.98 CAD Cart
LEM-10-40-BK-CSG M10 1.5 40 78 55.4 59.4 36 8 21 16 26 200 11 BK 76 13.98 CAD Cart
LEM-10-50-BK-CSG M10 1.5 50 78 55.4 59.4 36 8 21 16 26 200 11 BK 81 13.98 CAD Cart
LEM-10-63-BK-CSG M10 1.5 63 78 55.4 59.4 36 8 21 16 26 200 11 BK 88 14.74 CAD Cart
LEM-10-80-BK-CSG M10 1.5 80 78 55.4 59.4 36 8 21 16 26 200 11 BK 96 16.80 CAD Cart
LEM-10-16-OR-CBK M10 1.5 16 78 55.4 59.4 36 8 21 16 26 200 11 OR 65 13.98 CAD Cart
LEM-10-20-OR-CBK M10 1.5 20 78 55.4 59.4 36 8 21 16 26 200 11 OR 66 13.98 CAD Cart
LEM-10-25-OR-CBK M10 1.5 25 78 55.4 59.4 36 8 21 16 26 200 11 OR 69 13.98 CAD Cart
LEM-10-32-OR-CBK M10 1.5 32 78 55.4 59.4 36 8 21 16 26 200 11 OR 72 13.98 CAD Cart
LEM-10-40-OR-CBK M10 1.5 40 78 55.4 59.4 36 8 21 16 26 200 11 OR 76 13.98 CAD Cart
LEM-10-50-OR-CBK M10 1.5 50 78 55.4 59.4 36 8 21 16 26 200 11 OR 81 13.98 CAD Cart
LEM-10-63-OR-CBK M10 1.5 63 78 55.4 59.4 36 8 21 16 26 200 11 OR 88 14.74 CAD Cart
LEM-10-80-OR-CBK M10 1.5 80 78 55.4 59.4 36 8 21 16 26 200 11 OR 96 16.80 CAD Cart
LEM-10-16-OR-COR M10 1.5 16 78 55.4 59.4 36 8 21 16 26 200 11 OR 65 13.98 CAD Cart
LEM-10-20-OR-COR M10 1.5 20 78 55.4 59.4 36 8 21 16 26 200 11 OR 66 13.98 CAD Cart
LEM-10-25-OR-COR M10 1.5 25 78 55.4 59.4 36 8 21 16 26 200 11 OR 69 13.98 CAD Cart
LEM-10-32-OR-COR M10 1.5 32 78 55.4 59.4 36 8 21 16 26 200 11 OR 72 13.98 CAD Cart
LEM-10-40-OR-COR M10 1.5 40 78 55.4 59.4 36 8 21 16 26 200 11 OR 76 13.98 CAD Cart
LEM-10-50-OR-COR M10 1.5 50 78 55.4 59.4 36 8 21 16 26 200 11 OR 81 13.98 CAD Cart
LEM-10-63-OR-COR M10 1.5 63 78 55.4 59.4 36 8 21 16 26 200 11 OR 88 14.74 CAD Cart
LEM-10-80-OR-COR M10 1.5 80 78 55.4 59.4 36 8 21 16 26 200 11 OR 96 16.80 CAD Cart
LEM-10-16-OR-CSG M10 1.5 16 78 55.4 59.4 36 8 21 16 26 200 11 OR 65 13.98 CAD Cart
LEM-10-20-OR-CSG M10 1.5 20 78 55.4 59.4 36 8 21 16 26 200 11 OR 66 13.98 CAD Cart
LEM-10-25-OR-CSG M10 1.5 25 78 55.4 59.4 36 8 21 16 26 200 11 OR 69 13.98 CAD Cart
LEM-10-32-OR-CSG M10 1.5 32 78 55.4 59.4 36 8 21 16 26 200 11 OR 72 13.98 CAD Cart
LEM-10-40-OR-CSG M10 1.5 40 78 55.4 59.4 36 8 21 16 26 200 11 OR 76 13.98 CAD Cart
LEM-10-50-OR-CSG M10 1.5 50 78 55.4 59.4 36 8 21 16 26 200 11 OR 81 13.98 CAD Cart
LEM-10-63-OR-CSG M10 1.5 63 78 55.4 59.4 36 8 21 16 26 200 11 OR 88 14.74 CAD Cart
LEM-10-80-OR-CSG M10 1.5 80 78 55.4 59.4 36 8 21 16 26 200 11 OR 96 16.80 CAD Cart
LEM-10-16-SG-CBK M10 1.5 16 78 55.4 59.4 36 8 21 16 26 200 11 SG 65 13.98 CAD Cart
LEM-10-20-SG-CBK M10 1.5 20 78 55.4 59.4 36 8 21 16 26 200 11 SG 66 13.98 CAD Cart
LEM-10-25-SG-CBK M10 1.5 25 78 55.4 59.4 36 8 21 16 26 200 11 SG 69 13.98 CAD Cart
LEM-10-32-SG-CBK M10 1.5 32 78 55.4 59.4 36 8 21 16 26 200 11 SG 72 13.98 CAD Cart
LEM-10-40-SG-CBK M10 1.5 40 78 55.4 59.4 36 8 21 16 26 200 11 SG 76 13.98 CAD Cart
LEM-10-50-SG-CBK M10 1.5 50 78 55.4 59.4 36 8 21 16 26 200 11 SG 81 13.98 CAD Cart
LEM-10-63-SG-CBK M10 1.5 63 78 55.4 59.4 36 8 21 16 26 200 11 SG 88 14.74 CAD Cart
LEM-10-80-SG-CBK M10 1.5 80 78 55.4 59.4 36 8 21 16 26 200 11 SG 96 16.80 CAD Cart
LEM-10-16-SG-COR M10 1.5 16 78 55.4 59.4 36 8 21 16 26 200 11 SG 65 13.98 CAD Cart
LEM-10-20-SG-COR M10 1.5 20 78 55.4 59.4 36 8 21 16 26 200 11 SG 66 13.98 CAD Cart
LEM-10-25-SG-COR M10 1.5 25 78 55.4 59.4 36 8 21 16 26 200 11 SG 69 13.98 CAD Cart
LEM-10-32-SG-COR M10 1.5 32 78 55.4 59.4 36 8 21 16 26 200 11 SG 72 13.98 CAD Cart
LEM-10-40-SG-COR M10 1.5 40 78 55.4 59.4 36 8 21 16 26 200 11 SG 76 13.98 CAD Cart
LEM-10-50-SG-COR M10 1.5 50 78 55.4 59.4 36 8 21 16 26 200 11 SG 81 13.98 CAD Cart
LEM-10-63-SG-COR M10 1.5 63 78 55.4 59.4 36 8 21 16 26 200 11 SG 88 14.74 CAD Cart
LEM-10-80-SG-COR M10 1.5 80 78 55.4 59.4 36 8 21 16 26 200 11 SG 96 16.80 CAD Cart
LEM-10-16-SG-CSG M10 1.5 16 78 55.4 59.4 36 8 21 16 26 200 11 SG 65 13.98 CAD Cart
LEM-10-20-SG-CSG M10 1.5 20 78 55.4 59.4 36 8 21 16 26 200 11 SG 66 13.98 CAD Cart
LEM-10-25-SG-CSG M10 1.5 25 78 55.4 59.4 36 8 21 16 26 200 11 SG 69 13.98 CAD Cart
LEM-10-32-SG-CSG M10 1.5 32 78 55.4 59.4 36 8 21 16 26 200 11 SG 72 13.98 CAD Cart
LEM-10-40-SG-CSG M10 1.5 40 78 55.4 59.4 36 8 21 16 26 200 11 SG 76 13.98 CAD Cart
LEM-10-50-SG-CSG M10 1.5 50 78 55.4 59.4 36 8 21 16 26 200 11 SG 81 13.98 CAD Cart
LEM-10-63-SG-CSG M10 1.5 63 78 55.4 59.4 36 8 21 16 26 200 11 SG 88 14.74 CAD Cart
LEM-10-80-SG-CSG M10 1.5 80 78 55.4 59.4 36 8 21 16 26 200 11 SG 96 16.80 CAD Cart
LEM-12A-25-BK-CBK M12 1.75 25 78 55.4 59.4 36 8 21 16 26 350 16 BK 75 14.48 CAD Cart
LEM-12A-32-BK-CBK M12 1.75 32 78 55.4 59.4 36 8 21 16 26 350 16 BK 80 14.74 CAD Cart
LEM-12A-40-BK-CBK M12 1.75 40 78 55.4 59.4 36 8 21 16 26 350 16 BK 86 14.74 CAD Cart
LEM-12A-50-BK-CBK M12 1.75 50 78 55.4 59.4 36 8 21 16 26 350 16 BK 93 14.74 CAD Cart
LEM-12A-63-BK-CBK M12 1.75 63 78 55.4 59.4 36 8 21 16 26 350 16 BK 101 15.63 CAD Cart
LEM-12A-80-BK-CBK M12 1.75 80 78 55.4 59.4 36 8 21 16 26 350 16 BK 113 17.26 CAD Cart
LEM-12A-25-BK-COR M12 1.75 25 78 55.4 59.4 36 8 21 16 26 350 16 BK 75 14.48 CAD Cart
LEM-12A-32-BK-COR M12 1.75 32 78 55.4 59.4 36 8 21 16 26 350 16 BK 80 14.74 CAD Cart
LEM-12A-40-BK-COR M12 1.75 40 78 55.4 59.4 36 8 21 16 26 350 16 BK 86 14.74 CAD Cart
LEM-12A-50-BK-COR M12 1.75 50 78 55.4 59.4 36 8 21 16 26 350 16 BK 93 14.74 CAD Cart
LEM-12A-63-BK-COR M12 1.75 63 78 55.4 59.4 36 8 21 16 26 350 16 BK 101 15.63 CAD Cart
LEM-12A-80-BK-COR M12 1.75 80 78 55.4 59.4 36 8 21 16 26 350 16 BK 113 17.26 CAD Cart
LEM-12A-25-BK-CSG M12 1.75 25 78 55.4 59.4 36 8 21 16 26 350 16 BK 75 14.48 CAD Cart
LEM-12A-32-BK-CSG M12 1.75 32 78 55.4 59.4 36 8 21 16 26 350 16 BK 80 14.74 CAD Cart
LEM-12A-40-BK-CSG M12 1.75 40 78 55.4 59.4 36 8 21 16 26 350 16 BK 86 14.74 CAD Cart
LEM-12A-50-BK-CSG M12 1.75 50 78 55.4 59.4 36 8 21 16 26 350 16 BK 93 14.74 CAD Cart
LEM-12A-63-BK-CSG M12 1.75 63 78 55.4 59.4 36 8 21 16 26 350 16 BK 101 15.63 CAD Cart
LEM-12A-80-BK-CSG M12 1.75 80 78 55.4 59.4 36 8 21 16 26 350 16 BK 113 17.26 CAD Cart
LEM-12A-25-OR-CBK M12 1.75 25 78 55.4 59.4 36 8 21 16 26 350 16 OR 75 14.48 CAD Cart
LEM-12A-32-OR-CBK M12 1.75 32 78 55.4 59.4 36 8 21 16 26 350 16 OR 80 14.74 CAD Cart
LEM-12A-40-OR-CBK M12 1.75 40 78 55.4 59.4 36 8 21 16 26 350 16 OR 86 14.74 CAD Cart
LEM-12A-50-OR-CBK M12 1.75 50 78 55.4 59.4 36 8 21 16 26 350 16 OR 93 14.74 CAD Cart
LEM-12A-63-OR-CBK M12 1.75 63 78 55.4 59.4 36 8 21 16 26 350 16 OR 101 15.63 CAD Cart
LEM-12A-80-OR-CBK M12 1.75 80 78 55.4 59.4 36 8 21 16 26 350 16 OR 113 17.26 CAD Cart
LEM-12A-25-OR-COR M12 1.75 25 78 55.4 59.4 36 8 21 16 26 350 16 OR 75 14.48 CAD Cart
LEM-12A-32-OR-COR M12 1.75 32 78 55.4 59.4 36 8 21 16 26 350 16 OR 80 14.74 CAD Cart
LEM-12A-40-OR-COR M12 1.75 40 78 55.4 59.4 36 8 21 16 26 350 16 OR 86 14.74 CAD Cart
LEM-12A-50-OR-COR M12 1.75 50 78 55.4 59.4 36 8 21 16 26 350 16 OR 93 14.74 CAD Cart
LEM-12A-63-OR-COR M12 1.75 63 78 55.4 59.4 36 8 21 16 26 350 16 OR 101 15.63 CAD Cart
LEM-12A-80-OR-COR M12 1.75 80 78 55.4 59.4 36 8 21 16 26 350 16 OR 113 17.26 CAD Cart
LEM-12A-25-OR-CSG M12 1.75 25 78 55.4 59.4 36 8 21 16 26 350 16 OR 75 14.48 CAD Cart
LEM-12A-32-OR-CSG M12 1.75 32 78 55.4 59.4 36 8 21 16 26 350 16 OR 80 14.74 CAD Cart
LEM-12A-40-OR-CSG M12 1.75 40 78 55.4 59.4 36 8 21 16 26 350 16 OR 86 14.74 CAD Cart
LEM-12A-50-OR-CSG M12 1.75 50 78 55.4 59.4 36 8 21 16 26 350 16 OR 93 14.74 CAD Cart
LEM-12A-63-OR-CSG M12 1.75 63 78 55.4 59.4 36 8 21 16 26 350 16 OR 101 15.63 CAD Cart
LEM-12A-80-OR-CSG M12 1.75 80 78 55.4 59.4 36 8 21 16 26 350 16 OR 113 17.26 CAD Cart
LEM-12A-25-SG-CBK M12 1.75 25 78 55.4 59.4 36 8 21 16 26 350 16 SG 75 14.48 CAD Cart
LEM-12A-32-SG-CBK M12 1.75 32 78 55.4 59.4 36 8 21 16 26 350 16 SG 80 14.74 CAD Cart
LEM-12A-40-SG-CBK M12 1.75 40 78 55.4 59.4 36 8 21 16 26 350 16 SG 86 14.74 CAD Cart
LEM-12A-50-SG-CBK M12 1.75 50 78 55.4 59.4 36 8 21 16 26 350 16 SG 93 14.74 CAD Cart
LEM-12A-63-SG-CBK M12 1.75 63 78 55.4 59.4 36 8 21 16 26 350 16 SG 101 15.63 CAD Cart
LEM-12A-80-SG-CBK M12 1.75 80 78 55.4 59.4 36 8 21 16 26 350 16 SG 113 17.26 CAD Cart
LEM-12A-25-SG-COR M12 1.75 25 78 55.4 59.4 36 8 21 16 26 350 16 SG 75 14.48 CAD Cart
LEM-12A-32-SG-COR M12 1.75 32 78 55.4 59.4 36 8 21 16 26 350 16 SG 80 14.74 CAD Cart
LEM-12A-40-SG-COR M12 1.75 40 78 55.4 59.4 36 8 21 16 26 350 16 SG 86 14.74 CAD Cart
LEM-12A-50-SG-COR M12 1.75 50 78 55.4 59.4 36 8 21 16 26 350 16 SG 93 14.74 CAD Cart
LEM-12A-63-SG-COR M12 1.75 63 78 55.4 59.4 36 8 21 16 26 350 16 SG 101 15.63 CAD Cart
LEM-12A-80-SG-COR M12 1.75 80 78 55.4 59.4 36 8 21 16 26 350 16 SG 113 17.26 CAD Cart
LEM-12A-25-SG-CSG M12 1.75 25 78 55.4 59.4 36 8 21 16 26 350 16 SG 75 14.48 CAD Cart
LEM-12A-32-SG-CSG M12 1.75 32 78 55.4 59.4 36 8 21 16 26 350 16 SG 80 14.74 CAD Cart
LEM-12A-40-SG-CSG M12 1.75 40 78 55.4 59.4 36 8 21 16 26 350 16 SG 86 14.74 CAD Cart
LEM-12A-50-SG-CSG M12 1.75 50 78 55.4 59.4 36 8 21 16 26 350 16 SG 93 14.74 CAD Cart
LEM-12A-63-SG-CSG M12 1.75 63 78 55.4 59.4 36 8 21 16 26 350 16 SG 101 15.63 CAD Cart
LEM-12A-80-SG-CSG M12 1.75 80 78 55.4 59.4 36 8 21 16 26 350 16 SG 113 17.26 CAD Cart

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here
Part Number
Amount
Price（＄）

Check other products Cart

　　　　　　

Material/Finish

LEM-C
Lever Part Nylon 6 (Various Color)
Thread Part SUM22L
Ferrosoferric Oxide Film (Black)
Push Button Nylon 6 (Various Color)
Serration Ring (Insert) Zinc Die Cast
Spring Stainless Steel Wire or SWPB

Characteristics

  • A plastic clamp lever with push button. Male screw type.
  • When the lever part is pulled up for position adjustment, the force is easily transmitted to help the operation if a push button is available.
  • A serration ring made of zinc die cast is inserted into the lever body made of plastic. They also realize sufficient strength for fitting with metal thread serration.
  • A rich variety of thread sizes from M3 to M12 are available.
  • There are two types of thread part materials:
    LEM-C----Made of steel
    LEMS-C----Made of stainless steel
  • Three color variations for the lever part and three for the push button are available. Each color can be selected by the symbol of the part number.
  • Color variations of the lever part
Symbol Lever Part Color
BK Matte black
SG Matte silver
OR Matte orange
  • Operation Button Color Variations
Symbol Operation Button Color
CBK Matte black
CSG Matte silver
COR Matte orange

Only takes a minute to understand! How to Use Clamp Levers.

Related Services

Product List

LEM-10A-C

LEM-10-C

LEM-12A-C

LEM-3-C

LEM-4-C

LEM-5-C

LEM-6B-C

LEM-6-C

LEM-8B-C

LEM-8-C

Click here to see Clamp Levers

LEFS

Part Name

Plastic Clamp Lever, Female Screw

Part Number

LEFS

Feature

Lightweight
Screw is made from Stainless Steel
Good Design Award

LEFS-MD

Part Name

Metal Detectable Plastic Clamp Levers (Female Screws)

Part Number

LEFS-MD

Feature

Lightweight
Thread Part: Stainless Steel
Metal Detection Supported

LEMS-C

Part Name

Plastic Clamp Lever, Male Screw - with Push Button

Part Number

LEMS-C

Feature

Lightweight
Easy Operation with Button
Good Design Award

LEF-C

Part Name

Plastic Clamp Lever, Female Screw - with Push Button

Part Number

LEF-C

Feature

Lightweight
Easy Operation with Button
Good Design Award

Click here to see Machine Elements

Dial

Dial

Functional Levers

Functional Levers

Scales

Scales

Clamping Screws

Clamping Screws
