  • Clamp Levers

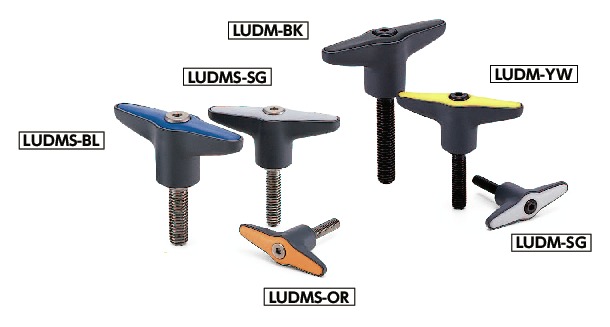

Plastic Clamp Lever, Male Screw

Plastic Clamp Lever - Double Arm Type

LUDMS

Safety PrecautionsUsage

RoHS Compliant

LUDMSPlastic Clamp Lever, Male Screw

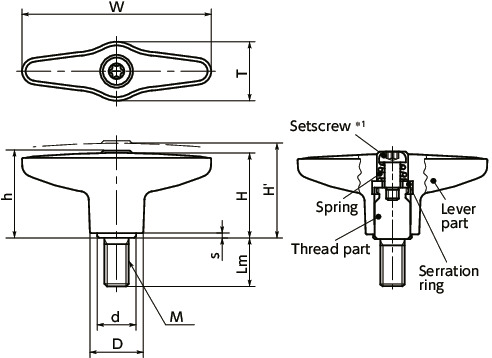

Dimension Drawing

LUDMSPlastic Clamp Levers, Male Screw寸法図

＊1：　Setscrew head shapes have been changed from hex sockets to hexalobular sockets.

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M3
M4
M5
M6
M8
M10
M12
Lm
All
6
8
10
12
16
20
25
32
40
50
63
80
Lever Part
Color
All
BK
BL
OR
SG
YW

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch Lm W H H' h s T D d Tooth No. Max. load
(N)		 Max. tightening force
(kN)		 Lever Part
Color		 Mass
(g)		 Price
(USD)		 CAD
Download		 Add to Cart
LUDMS-52-3-6-BK M3 0.5 6 52 23.5 27 24.5 1.5 15.4 14 10 18 15 0.95 BK 15 15.03 CAD Cart
LUDMS-52-3-6-BL M3 0.5 6 52 23.5 27 24.5 1.5 15.4 14 10 18 15 0.95 BL 15 15.03 CAD Cart
LUDMS-52-3-6-OR M3 0.5 6 52 23.5 27 24.5 1.5 15.4 14 10 18 15 0.95 OR 15 15.03 CAD Cart
LUDMS-52-3-6-SG M3 0.5 6 52 23.5 27 24.5 1.5 15.4 14 10 18 15 0.95 SG 15 15.03 CAD Cart
LUDMS-52-3-6-YW M3 0.5 6 52 23.5 27 24.5 1.5 15.4 14 10 18 15 0.95 YW 15 15.03 CAD Cart
LUDMS-52-3-8-BK M3 0.5 8 52 23.5 27 24.5 1.5 15.4 14 10 18 15 0.95 BK 15 15.03 CAD Cart
LUDMS-52-3-8-BL M3 0.5 8 52 23.5 27 24.5 1.5 15.4 14 10 18 15 0.95 BL 15 15.03 CAD Cart
LUDMS-52-3-8-OR M3 0.5 8 52 23.5 27 24.5 1.5 15.4 14 10 18 15 0.95 OR 15 15.03 CAD Cart
LUDMS-52-3-8-SG M3 0.5 8 52 23.5 27 24.5 1.5 15.4 14 10 18 15 0.95 SG 15 15.03 CAD Cart
LUDMS-52-3-8-YW M3 0.5 8 52 23.5 27 24.5 1.5 15.4 14 10 18 15 0.95 YW 15 15.03 CAD Cart
LUDMS-52-3-10-BK M3 0.5 10 52 23.5 27 24.5 1.5 15.4 14 10 18 15 0.95 BK 16 15.03 CAD Cart
LUDMS-52-3-10-BL M3 0.5 10 52 23.5 27 24.5 1.5 15.4 14 10 18 15 0.95 BL 16 15.03 CAD Cart
LUDMS-52-3-10-OR M3 0.5 10 52 23.5 27 24.5 1.5 15.4 14 10 18 15 0.95 OR 16 15.03 CAD Cart
LUDMS-52-3-10-SG M3 0.5 10 52 23.5 27 24.5 1.5 15.4 14 10 18 15 0.95 SG 16 15.03 CAD Cart
LUDMS-52-3-10-YW M3 0.5 10 52 23.5 27 24.5 1.5 15.4 14 10 18 15 0.95 YW 16 15.03 CAD Cart
LUDMS-52-3-12-BK M3 0.5 12 52 23.5 27 24.5 1.5 15.4 14 10 18 15 0.95 BK 16 15.03 CAD Cart
LUDMS-52-3-12-BL M3 0.5 12 52 23.5 27 24.5 1.5 15.4 14 10 18 15 0.95 BL 16 15.03 CAD Cart
LUDMS-52-3-12-OR M3 0.5 12 52 23.5 27 24.5 1.5 15.4 14 10 18 15 0.95 OR 16 15.03 CAD Cart
LUDMS-52-3-12-SG M3 0.5 12 52 23.5 27 24.5 1.5 15.4 14 10 18 15 0.95 SG 16 15.03 CAD Cart
LUDMS-52-3-12-YW M3 0.5 12 52 23.5 27 24.5 1.5 15.4 14 10 18 15 0.95 YW 16 15.03 CAD Cart
LUDMS-52-3-16-BK M3 0.5 16 52 23.5 27 24.5 1.5 15.4 14 10 18 15 0.95 BK 16 15.03 CAD Cart
LUDMS-52-3-16-BL M3 0.5 16 52 23.5 27 24.5 1.5 15.4 14 10 18 15 0.95 BL 16 15.03 CAD Cart
LUDMS-52-3-16-OR M3 0.5 16 52 23.5 27 24.5 1.5 15.4 14 10 18 15 0.95 OR 16 15.03 CAD Cart
LUDMS-52-3-16-SG M3 0.5 16 52 23.5 27 24.5 1.5 15.4 14 10 18 15 0.95 SG 16 15.03 CAD Cart
LUDMS-52-3-16-YW M3 0.5 16 52 23.5 27 24.5 1.5 15.4 14 10 18 15 0.95 YW 16 15.03 CAD Cart
LUDMS-52-4-10-BK M4 0.7 10 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 BK 16 15.03 CAD Cart
LUDMS-52-4-10-BL M4 0.7 10 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 BL 16 15.03 CAD Cart
LUDMS-52-4-10-OR M4 0.7 10 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 OR 16 15.03 CAD Cart
LUDMS-52-4-10-SG M4 0.7 10 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 SG 16 15.03 CAD Cart
LUDMS-52-4-10-YW M4 0.7 10 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 YW 16 15.03 CAD Cart
LUDMS-52-4-12-BK M4 0.7 12 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 BK 16 15.03 CAD Cart
LUDMS-52-4-12-BL M4 0.7 12 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 BL 16 15.03 CAD Cart
LUDMS-52-4-12-OR M4 0.7 12 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 OR 16 15.03 CAD Cart
LUDMS-52-4-12-SG M4 0.7 12 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 SG 16 15.03 CAD Cart
LUDMS-52-4-12-YW M4 0.7 12 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 YW 16 15.03 CAD Cart
LUDMS-52-4-16-BK M4 0.7 16 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 BK 16 15.03 CAD Cart
LUDMS-52-4-16-BL M4 0.7 16 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 BL 16 15.03 CAD Cart
LUDMS-52-4-16-OR M4 0.7 16 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 OR 16 15.03 CAD Cart
LUDMS-52-4-16-SG M4 0.7 16 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 SG 16 15.03 CAD Cart
LUDMS-52-4-16-YW M4 0.7 16 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 YW 16 15.03 CAD Cart
LUDMS-52-4-20-BK M4 0.7 20 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 BK 16 15.03 CAD Cart
LUDMS-52-4-20-BL M4 0.7 20 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 BL 16 15.03 CAD Cart
LUDMS-52-4-20-OR M4 0.7 20 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 OR 16 15.03 CAD Cart
LUDMS-52-4-20-SG M4 0.7 20 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 SG 16 15.03 CAD Cart
LUDMS-52-4-20-YW M4 0.7 20 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 YW 16 15.03 CAD Cart
LUDMS-52-4-25-BK M4 0.7 25 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 BK 17 15.03 CAD Cart
LUDMS-52-4-25-BL M4 0.7 25 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 BL 17 15.03 CAD Cart
LUDMS-52-4-25-OR M4 0.7 25 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 OR 17 15.03 CAD Cart
LUDMS-52-4-25-SG M4 0.7 25 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 SG 17 15.03 CAD Cart
LUDMS-52-4-25-YW M4 0.7 25 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 YW 17 15.03 CAD Cart
LUDMS-52-4-32-BK M4 0.7 32 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 BK 17 15.03 CAD Cart
LUDMS-52-4-32-BL M4 0.7 32 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 BL 17 15.03 CAD Cart
LUDMS-52-4-32-OR M4 0.7 32 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 OR 17 15.03 CAD Cart
LUDMS-52-4-32-SG M4 0.7 32 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 SG 17 15.03 CAD Cart
LUDMS-52-4-32-YW M4 0.7 32 52 23.5 27 24.5 1.5 15.4 14 10 18 36 1.7 YW 17 15.03 CAD Cart
LUDMS-52-5-12-BK M5 0.8 12 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 BK 17 15.03 CAD Cart
LUDMS-52-5-12-BL M5 0.8 12 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 BL 17 15.03 CAD Cart
LUDMS-52-5-12-OR M5 0.8 12 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 OR 17 15.03 CAD Cart
LUDMS-52-5-12-SG M5 0.8 12 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 SG 17 15.03 CAD Cart
LUDMS-52-5-12-YW M5 0.8 12 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 YW 17 15.03 CAD Cart
LUDMS-52-5-16-BK M5 0.8 16 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 BK 17 15.03 CAD Cart
LUDMS-52-5-16-BL M5 0.8 16 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 BL 17 15.03 CAD Cart
LUDMS-52-5-16-OR M5 0.8 16 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 OR 17 15.03 CAD Cart
LUDMS-52-5-16-SG M5 0.8 16 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 SG 17 15.03 CAD Cart
LUDMS-52-5-16-YW M5 0.8 16 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 YW 17 15.03 CAD Cart
LUDMS-52-5-20-BK M5 0.8 20 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 BK 17 15.03 CAD Cart
LUDMS-52-5-20-BL M5 0.8 20 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 BL 17 15.03 CAD Cart
LUDMS-52-5-20-OR M5 0.8 20 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 OR 17 15.03 CAD Cart
LUDMS-52-5-20-SG M5 0.8 20 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 SG 17 15.03 CAD Cart
LUDMS-52-5-20-YW M5 0.8 20 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 YW 17 15.03 CAD Cart
LUDMS-52-5-25-BK M5 0.8 25 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 BK 18 15.03 CAD Cart
LUDMS-52-5-25-BL M5 0.8 25 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 BL 18 15.03 CAD Cart
LUDMS-52-5-25-OR M5 0.8 25 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 OR 18 15.03 CAD Cart
LUDMS-52-5-25-SG M5 0.8 25 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 SG 18 15.03 CAD Cart
LUDMS-52-5-25-YW M5 0.8 25 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 YW 18 15.03 CAD Cart
LUDMS-52-5-32-BK M5 0.8 32 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 BK 19 15.03 CAD Cart
LUDMS-52-5-32-BL M5 0.8 32 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 BL 19 15.03 CAD Cart
LUDMS-52-5-32-OR M5 0.8 32 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 OR 19 15.03 CAD Cart
LUDMS-52-5-32-SG M5 0.8 32 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 SG 19 15.03 CAD Cart
LUDMS-52-5-32-YW M5 0.8 32 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 YW 19 15.03 CAD Cart
LUDMS-52-5-40-BK M5 0.8 40 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 BK 20 15.63 CAD Cart
LUDMS-52-5-40-BL M5 0.8 40 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 BL 20 15.63 CAD Cart
LUDMS-52-5-40-OR M5 0.8 40 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 OR 20 15.63 CAD Cart
LUDMS-52-5-40-SG M5 0.8 40 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 SG 20 15.63 CAD Cart
LUDMS-52-5-40-YW M5 0.8 40 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 YW 20 15.63 CAD Cart
LUDMS-52-5-50-BK M5 0.8 50 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 BK 21 16.41 CAD Cart
LUDMS-52-5-50-BL M5 0.8 50 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 BL 21 16.41 CAD Cart
LUDMS-52-5-50-OR M5 0.8 50 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 OR 21 16.41 CAD Cart
LUDMS-52-5-50-SG M5 0.8 50 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 SG 21 16.41 CAD Cart
LUDMS-52-5-50-YW M5 0.8 50 52 23.5 27 24.5 1.5 15.4 14 10 18 72 2.7 YW 21 16.41 CAD Cart
LUDMS-52-6-12-BK M6 1 12 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 BK 17 15.03 CAD Cart
LUDMS-52-6-12-BL M6 1 12 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 BL 17 15.03 CAD Cart
LUDMS-52-6-12-OR M6 1 12 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 OR 17 15.03 CAD Cart
LUDMS-52-6-12-SG M6 1 12 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 SG 17 15.03 CAD Cart
LUDMS-52-6-12-YW M6 1 12 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 YW 17 15.03 CAD Cart
LUDMS-52-6-16-BK M6 1 16 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 BK 17 15.03 CAD Cart
LUDMS-52-6-16-BL M6 1 16 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 BL 17 15.03 CAD Cart
LUDMS-52-6-16-OR M6 1 16 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 OR 17 15.03 CAD Cart
LUDMS-52-6-16-SG M6 1 16 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 SG 17 15.03 CAD Cart
LUDMS-52-6-16-YW M6 1 16 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 YW 17 15.03 CAD Cart
LUDMS-52-6-20-BK M6 1 20 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 BK 18 15.03 CAD Cart
LUDMS-52-6-20-BL M6 1 20 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 BL 18 15.03 CAD Cart
LUDMS-52-6-20-OR M6 1 20 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 OR 18 15.03 CAD Cart
LUDMS-52-6-20-SG M6 1 20 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 SG 18 15.03 CAD Cart
LUDMS-52-6-20-YW M6 1 20 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 YW 18 15.03 CAD Cart
LUDMS-52-6-25-BK M6 1 25 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 BK 19 15.03 CAD Cart
LUDMS-52-6-25-BL M6 1 25 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 BL 19 15.03 CAD Cart
LUDMS-52-6-25-OR M6 1 25 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 OR 19 15.03 CAD Cart
LUDMS-52-6-25-SG M6 1 25 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 SG 19 15.03 CAD Cart
LUDMS-52-6-25-YW M6 1 25 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 YW 19 15.03 CAD Cart
LUDMS-52-6-32-BK M6 1 32 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 BK 20 15.03 CAD Cart
LUDMS-52-6-32-BL M6 1 32 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 BL 20 15.03 CAD Cart
LUDMS-52-6-32-OR M6 1 32 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 OR 20 15.03 CAD Cart
LUDMS-52-6-32-SG M6 1 32 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 SG 20 15.03 CAD Cart
LUDMS-52-6-32-YW M6 1 32 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 YW 20 15.03 CAD Cart
LUDMS-52-6-40-BK M6 1 40 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 BK 22 15.63 CAD Cart
LUDMS-52-6-40-BL M6 1 40 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 BL 22 15.63 CAD Cart
LUDMS-52-6-40-OR M6 1 40 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 OR 22 15.63 CAD Cart
LUDMS-52-6-40-SG M6 1 40 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 SG 22 15.63 CAD Cart
LUDMS-52-6-40-YW M6 1 40 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 YW 22 15.63 CAD Cart
LUDMS-52-6-50-BK M6 1 50 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 BK 23 16.41 CAD Cart
LUDMS-52-6-50-BL M6 1 50 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 BL 23 16.41 CAD Cart
LUDMS-52-6-50-OR M6 1 50 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 OR 23 16.41 CAD Cart
LUDMS-52-6-50-SG M6 1 50 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 SG 23 16.41 CAD Cart
LUDMS-52-6-50-YW M6 1 50 52 23.5 27 24.5 1.5 15.4 14 10 18 120 3.8 YW 23 16.41 CAD Cart
LUDMS-67-6-16-BK M6 1 16 67 30 34 31 2 20.8 19 13.5 24 94 3.8 BK 38 21.45 CAD Cart
LUDMS-67-6-16-BL M6 1 16 67 30 34 31 2 20.8 19 13.5 24 94 3.8 BL 38 21.45 CAD Cart
LUDMS-67-6-16-OR M6 1 16 67 30 34 31 2 20.8 19 13.5 24 94 3.8 OR 38 21.45 CAD Cart
LUDMS-67-6-16-SG M6 1 16 67 30 34 31 2 20.8 19 13.5 24 94 3.8 SG 38 21.45 CAD Cart
LUDMS-67-6-16-YW M6 1 16 67 30 34 31 2 20.8 19 13.5 24 94 3.8 YW 38 21.45 CAD Cart
LUDMS-67-6-20-BK M6 1 20 67 30 34 31 2 20.8 19 13.5 24 94 3.8 BK 39 21.45 CAD Cart
LUDMS-67-6-20-BL M6 1 20 67 30 34 31 2 20.8 19 13.5 24 94 3.8 BL 39 21.45 CAD Cart
LUDMS-67-6-20-OR M6 1 20 67 30 34 31 2 20.8 19 13.5 24 94 3.8 OR 39 21.45 CAD Cart
LUDMS-67-6-20-SG M6 1 20 67 30 34 31 2 20.8 19 13.5 24 94 3.8 SG 39 21.45 CAD Cart
LUDMS-67-6-20-YW M6 1 20 67 30 34 31 2 20.8 19 13.5 24 94 3.8 YW 39 21.45 CAD Cart
LUDMS-67-6-25-BK M6 1 25 67 30 34 31 2 20.8 19 13.5 24 94 3.8 BK 40 21.45 CAD Cart
LUDMS-67-6-25-BL M6 1 25 67 30 34 31 2 20.8 19 13.5 24 94 3.8 BL 40 21.45 CAD Cart
LUDMS-67-6-25-OR M6 1 25 67 30 34 31 2 20.8 19 13.5 24 94 3.8 OR 40 21.45 CAD Cart
LUDMS-67-6-25-SG M6 1 25 67 30 34 31 2 20.8 19 13.5 24 94 3.8 SG 40 21.45 CAD Cart
LUDMS-67-6-25-YW M6 1 25 67 30 34 31 2 20.8 19 13.5 24 94 3.8 YW 40 21.45 CAD Cart
LUDMS-67-6-32-BK M6 1 32 67 30 34 31 2 20.8 19 13.5 24 94 3.8 BK 41 21.45 CAD Cart
LUDMS-67-6-32-BL M6 1 32 67 30 34 31 2 20.8 19 13.5 24 94 3.8 BL 41 21.45 CAD Cart
LUDMS-67-6-32-OR M6 1 32 67 30 34 31 2 20.8 19 13.5 24 94 3.8 OR 41 21.45 CAD Cart
LUDMS-67-6-32-SG M6 1 32 67 30 34 31 2 20.8 19 13.5 24 94 3.8 SG 41 21.45 CAD Cart
LUDMS-67-6-32-YW M6 1 32 67 30 34 31 2 20.8 19 13.5 24 94 3.8 YW 41 21.45 CAD Cart
LUDMS-67-6-40-BK M6 1 40 67 30 34 31 2 20.8 19 13.5 24 94 3.8 BK 43 21.45 CAD Cart
LUDMS-67-6-40-BL M6 1 40 67 30 34 31 2 20.8 19 13.5 24 94 3.8 BL 43 21.45 CAD Cart
LUDMS-67-6-40-OR M6 1 40 67 30 34 31 2 20.8 19 13.5 24 94 3.8 OR 43 21.45 CAD Cart
LUDMS-67-6-40-SG M6 1 40 67 30 34 31 2 20.8 19 13.5 24 94 3.8 SG 43 21.45 CAD Cart
LUDMS-67-6-40-YW M6 1 40 67 30 34 31 2 20.8 19 13.5 24 94 3.8 YW 43 21.45 CAD Cart
LUDMS-67-6-50-BK M6 1 50 67 30 34 31 2 20.8 19 13.5 24 94 3.8 BK 44 22.58 CAD Cart
LUDMS-67-6-50-BL M6 1 50 67 30 34 31 2 20.8 19 13.5 24 94 3.8 BL 44 22.58 CAD Cart
LUDMS-67-6-50-OR M6 1 50 67 30 34 31 2 20.8 19 13.5 24 94 3.8 OR 44 22.58 CAD Cart
LUDMS-67-6-50-SG M6 1 50 67 30 34 31 2 20.8 19 13.5 24 94 3.8 SG 44 22.58 CAD Cart
LUDMS-67-6-50-YW M6 1 50 67 30 34 31 2 20.8 19 13.5 24 94 3.8 YW 44 22.58 CAD Cart
LUDMS-67-6-63-BK M6 1 63 67 30 34 31 2 20.8 19 13.5 24 94 3.8 BK 46 23.53 CAD Cart
LUDMS-67-6-63-BL M6 1 63 67 30 34 31 2 20.8 19 13.5 24 94 3.8 BL 46 23.53 CAD Cart
LUDMS-67-6-63-OR M6 1 63 67 30 34 31 2 20.8 19 13.5 24 94 3.8 OR 46 23.53 CAD Cart
LUDMS-67-6-63-SG M6 1 63 67 30 34 31 2 20.8 19 13.5 24 94 3.8 SG 46 23.53 CAD Cart
LUDMS-67-6-63-YW M6 1 63 67 30 34 31 2 20.8 19 13.5 24 94 3.8 YW 46 23.53 CAD Cart
LUDMS-67-8-16-BK M8 1.25 16 67 30 34 31 2 20.8 19 13.5 24 230 7 BK 41 21.45 CAD Cart
LUDMS-67-8-16-BL M8 1.25 16 67 30 34 31 2 20.8 19 13.5 24 230 7 BL 41 21.45 CAD Cart
LUDMS-67-8-16-OR M8 1.25 16 67 30 34 31 2 20.8 19 13.5 24 230 7 OR 41 21.45 CAD Cart
LUDMS-67-8-16-SG M8 1.25 16 67 30 34 31 2 20.8 19 13.5 24 230 7 SG 41 21.45 CAD Cart
LUDMS-67-8-16-YW M8 1.25 16 67 30 34 31 2 20.8 19 13.5 24 230 7 YW 41 21.45 CAD Cart
LUDMS-67-8-20-BK M8 1.25 20 67 30 34 31 2 20.8 19 13.5 24 230 7 BK 42 21.45 CAD Cart
LUDMS-67-8-20-BL M8 1.25 20 67 30 34 31 2 20.8 19 13.5 24 230 7 BL 42 21.45 CAD Cart
LUDMS-67-8-20-OR M8 1.25 20 67 30 34 31 2 20.8 19 13.5 24 230 7 OR 42 21.45 CAD Cart
LUDMS-67-8-20-SG M8 1.25 20 67 30 34 31 2 20.8 19 13.5 24 230 7 SG 42 21.45 CAD Cart
LUDMS-67-8-20-YW M8 1.25 20 67 30 34 31 2 20.8 19 13.5 24 230 7 YW 42 21.45 CAD Cart
LUDMS-67-8-25-BK M8 1.25 25 67 30 34 31 2 20.8 19 13.5 24 230 7 BK 44 21.45 CAD Cart
LUDMS-67-8-25-BL M8 1.25 25 67 30 34 31 2 20.8 19 13.5 24 230 7 BL 44 21.45 CAD Cart
LUDMS-67-8-25-OR M8 1.25 25 67 30 34 31 2 20.8 19 13.5 24 230 7 OR 44 21.45 CAD Cart
LUDMS-67-8-25-SG M8 1.25 25 67 30 34 31 2 20.8 19 13.5 24 230 7 SG 44 21.45 CAD Cart
LUDMS-67-8-25-YW M8 1.25 25 67 30 34 31 2 20.8 19 13.5 24 230 7 YW 44 21.45 CAD Cart
LUDMS-67-8-32-BK M8 1.25 32 67 30 34 31 2 20.8 19 13.5 24 230 7 BK 45 21.45 CAD Cart
LUDMS-67-8-32-BL M8 1.25 32 67 30 34 31 2 20.8 19 13.5 24 230 7 BL 45 21.45 CAD Cart
LUDMS-67-8-32-OR M8 1.25 32 67 30 34 31 2 20.8 19 13.5 24 230 7 OR 45 21.45 CAD Cart
LUDMS-67-8-32-SG M8 1.25 32 67 30 34 31 2 20.8 19 13.5 24 230 7 SG 45 21.45 CAD Cart
LUDMS-67-8-32-YW M8 1.25 32 67 30 34 31 2 20.8 19 13.5 24 230 7 YW 45 21.45 CAD Cart
LUDMS-67-8-40-BK M8 1.25 40 67 30 34 31 2 20.8 19 13.5 24 230 7 BK 48 21.45 CAD Cart
LUDMS-67-8-40-BL M8 1.25 40 67 30 34 31 2 20.8 19 13.5 24 230 7 BL 48 21.45 CAD Cart
LUDMS-67-8-40-OR M8 1.25 40 67 30 34 31 2 20.8 19 13.5 24 230 7 OR 48 21.45 CAD Cart
LUDMS-67-8-40-SG M8 1.25 40 67 30 34 31 2 20.8 19 13.5 24 230 7 SG 48 21.45 CAD Cart
LUDMS-67-8-40-YW M8 1.25 40 67 30 34 31 2 20.8 19 13.5 24 230 7 YW 48 21.45 CAD Cart
LUDMS-67-8-50-BK M8 1.25 50 67 30 34 31 2 20.8 19 13.5 24 230 7 BK 51 22.58 CAD Cart
LUDMS-67-8-50-BL M8 1.25 50 67 30 34 31 2 20.8 19 13.5 24 230 7 BL 51 22.58 CAD Cart
LUDMS-67-8-50-OR M8 1.25 50 67 30 34 31 2 20.8 19 13.5 24 230 7 OR 51 22.58 CAD Cart
LUDMS-67-8-50-SG M8 1.25 50 67 30 34 31 2 20.8 19 13.5 24 230 7 SG 51 22.58 CAD Cart
LUDMS-67-8-50-YW M8 1.25 50 67 30 34 31 2 20.8 19 13.5 24 230 7 YW 51 22.58 CAD Cart
LUDMS-67-8-63-BK M8 1.25 63 67 30 34 31 2 20.8 19 13.5 24 230 7 BK 55 23.53 CAD Cart
LUDMS-67-8-63-BL M8 1.25 63 67 30 34 31 2 20.8 19 13.5 24 230 7 BL 55 23.53 CAD Cart
LUDMS-67-8-63-OR M8 1.25 63 67 30 34 31 2 20.8 19 13.5 24 230 7 OR 55 23.53 CAD Cart
LUDMS-67-8-63-SG M8 1.25 63 67 30 34 31 2 20.8 19 13.5 24 230 7 SG 55 23.53 CAD Cart
LUDMS-67-8-63-YW M8 1.25 63 67 30 34 31 2 20.8 19 13.5 24 230 7 YW 55 23.53 CAD Cart
LUDMS-78-8-20-BK M8 1.25 20 78 35 39 36 2 24.3 22 16 26 200 7 BK 63 26.64 CAD Cart
LUDMS-78-8-20-BL M8 1.25 20 78 35 39 36 2 24.3 22 16 26 200 7 BL 63 26.64 CAD Cart
LUDMS-78-8-20-OR M8 1.25 20 78 35 39 36 2 24.3 22 16 26 200 7 OR 63 26.64 CAD Cart
LUDMS-78-8-20-SG M8 1.25 20 78 35 39 36 2 24.3 22 16 26 200 7 SG 63 26.64 CAD Cart
LUDMS-78-8-20-YW M8 1.25 20 78 35 39 36 2 24.3 22 16 26 200 7 YW 63 26.64 CAD Cart
LUDMS-78-8-25-BK M8 1.25 25 78 35 39 36 2 24.3 22 16 26 200 7 BK 64 26.64 CAD Cart
LUDMS-78-8-25-BL M8 1.25 25 78 35 39 36 2 24.3 22 16 26 200 7 BL 64 26.64 CAD Cart
LUDMS-78-8-25-OR M8 1.25 25 78 35 39 36 2 24.3 22 16 26 200 7 OR 64 26.64 CAD Cart
LUDMS-78-8-25-SG M8 1.25 25 78 35 39 36 2 24.3 22 16 26 200 7 SG 64 26.64 CAD Cart
LUDMS-78-8-25-YW M8 1.25 25 78 35 39 36 2 24.3 22 16 26 200 7 YW 64 26.64 CAD Cart
LUDMS-78-8-32-BK M8 1.25 32 78 35 39 36 2 24.3 22 16 26 200 7 BK 67 26.64 CAD Cart
LUDMS-78-8-32-BL M8 1.25 32 78 35 39 36 2 24.3 22 16 26 200 7 BL 67 26.64 CAD Cart
LUDMS-78-8-32-OR M8 1.25 32 78 35 39 36 2 24.3 22 16 26 200 7 OR 67 26.64 CAD Cart
LUDMS-78-8-32-SG M8 1.25 32 78 35 39 36 2 24.3 22 16 26 200 7 SG 67 26.64 CAD Cart
LUDMS-78-8-32-YW M8 1.25 32 78 35 39 36 2 24.3 22 16 26 200 7 YW 67 26.64 CAD Cart
LUDMS-78-8-40-BK M8 1.25 40 78 35 39 36 2 24.3 22 16 26 200 7 BK 71 26.64 CAD Cart
LUDMS-78-8-40-BL M8 1.25 40 78 35 39 36 2 24.3 22 16 26 200 7 BL 71 26.64 CAD Cart
LUDMS-78-8-40-OR M8 1.25 40 78 35 39 36 2 24.3 22 16 26 200 7 OR 71 26.64 CAD Cart
LUDMS-78-8-40-SG M8 1.25 40 78 35 39 36 2 24.3 22 16 26 200 7 SG 71 26.64 CAD Cart
LUDMS-78-8-40-YW M8 1.25 40 78 35 39 36 2 24.3 22 16 26 200 7 YW 71 26.64 CAD Cart
LUDMS-78-8-50-BK M8 1.25 50 78 35 39 36 2 24.3 22 16 26 200 7 BK 74 27.18 CAD Cart
LUDMS-78-8-50-BL M8 1.25 50 78 35 39 36 2 24.3 22 16 26 200 7 BL 74 27.18 CAD Cart
LUDMS-78-8-50-OR M8 1.25 50 78 35 39 36 2 24.3 22 16 26 200 7 OR 74 27.18 CAD Cart
LUDMS-78-8-50-SG M8 1.25 50 78 35 39 36 2 24.3 22 16 26 200 7 SG 74 27.18 CAD Cart
LUDMS-78-8-50-YW M8 1.25 50 78 35 39 36 2 24.3 22 16 26 200 7 YW 74 27.18 CAD Cart
LUDMS-78-8-63-BK M8 1.25 63 78 35 39 36 2 24.3 22 16 26 200 7 BK 78 28.48 CAD Cart
LUDMS-78-8-63-BL M8 1.25 63 78 35 39 36 2 24.3 22 16 26 200 7 BL 78 28.48 CAD Cart
LUDMS-78-8-63-OR M8 1.25 63 78 35 39 36 2 24.3 22 16 26 200 7 OR 78 28.48 CAD Cart
LUDMS-78-8-63-SG M8 1.25 63 78 35 39 36 2 24.3 22 16 26 200 7 SG 78 28.48 CAD Cart
LUDMS-78-8-63-YW M8 1.25 63 78 35 39 36 2 24.3 22 16 26 200 7 YW 78 28.48 CAD Cart
LUDMS-78-8-80-BK M8 1.25 80 78 35 39 36 2 24.3 22 16 26 200 7 BK 83 31.26 CAD Cart
LUDMS-78-8-80-BL M8 1.25 80 78 35 39 36 2 24.3 22 16 26 200 7 BL 83 31.26 CAD Cart
LUDMS-78-8-80-OR M8 1.25 80 78 35 39 36 2 24.3 22 16 26 200 7 OR 83 31.26 CAD Cart
LUDMS-78-8-80-SG M8 1.25 80 78 35 39 36 2 24.3 22 16 26 200 7 SG 83 31.26 CAD Cart
LUDMS-78-8-80-YW M8 1.25 80 78 35 39 36 2 24.3 22 16 26 200 7 YW 83 31.26 CAD Cart
LUDMS-78-10-20-BK M10 1.5 20 78 35 39 36 2 24.3 22 16 26 390 11 BK 67 26.64 CAD Cart
LUDMS-78-10-20-BL M10 1.5 20 78 35 39 36 2 24.3 22 16 26 390 11 BL 67 26.64 CAD Cart
LUDMS-78-10-20-OR M10 1.5 20 78 35 39 36 2 24.3 22 16 26 390 11 OR 67 26.64 CAD Cart
LUDMS-78-10-20-SG M10 1.5 20 78 35 39 36 2 24.3 22 16 26 390 11 SG 67 26.64 CAD Cart
LUDMS-78-10-20-YW M10 1.5 20 78 35 39 36 2 24.3 22 16 26 390 11 YW 67 26.64 CAD Cart
LUDMS-78-10-25-BK M10 1.5 25 78 35 39 36 2 24.3 22 16 26 390 11 BK 70 26.64 CAD Cart
LUDMS-78-10-25-BL M10 1.5 25 78 35 39 36 2 24.3 22 16 26 390 11 BL 70 26.64 CAD Cart
LUDMS-78-10-25-OR M10 1.5 25 78 35 39 36 2 24.3 22 16 26 390 11 OR 70 26.64 CAD Cart
LUDMS-78-10-25-SG M10 1.5 25 78 35 39 36 2 24.3 22 16 26 390 11 SG 70 26.64 CAD Cart
LUDMS-78-10-25-YW M10 1.5 25 78 35 39 36 2 24.3 22 16 26 390 11 YW 70 26.64 CAD Cart
LUDMS-78-10-32-BK M10 1.5 32 78 35 39 36 2 24.3 22 16 26 390 11 BK 73 26.64 CAD Cart
LUDMS-78-10-32-BL M10 1.5 32 78 35 39 36 2 24.3 22 16 26 390 11 BL 73 26.64 CAD Cart
LUDMS-78-10-32-OR M10 1.5 32 78 35 39 36 2 24.3 22 16 26 390 11 OR 73 26.64 CAD Cart
LUDMS-78-10-32-SG M10 1.5 32 78 35 39 36 2 24.3 22 16 26 390 11 SG 73 26.64 CAD Cart
LUDMS-78-10-32-YW M10 1.5 32 78 35 39 36 2 24.3 22 16 26 390 11 YW 73 26.64 CAD Cart
LUDMS-78-10-40-BK M10 1.5 40 78 35 39 36 2 24.3 22 16 26 390 11 BK 77 26.64 CAD Cart
LUDMS-78-10-40-BL M10 1.5 40 78 35 39 36 2 24.3 22 16 26 390 11 BL 77 26.64 CAD Cart
LUDMS-78-10-40-OR M10 1.5 40 78 35 39 36 2 24.3 22 16 26 390 11 OR 77 26.64 CAD Cart
LUDMS-78-10-40-SG M10 1.5 40 78 35 39 36 2 24.3 22 16 26 390 11 SG 77 26.64 CAD Cart
LUDMS-78-10-40-YW M10 1.5 40 78 35 39 36 2 24.3 22 16 26 390 11 YW 77 26.64 CAD Cart
LUDMS-78-10-50-BK M10 1.5 50 78 35 39 36 2 24.3 22 16 26 390 11 BK 82 27.18 CAD Cart
LUDMS-78-10-50-BL M10 1.5 50 78 35 39 36 2 24.3 22 16 26 390 11 BL 82 27.18 CAD Cart
LUDMS-78-10-50-OR M10 1.5 50 78 35 39 36 2 24.3 22 16 26 390 11 OR 82 27.18 CAD Cart
LUDMS-78-10-50-SG M10 1.5 50 78 35 39 36 2 24.3 22 16 26 390 11 SG 82 27.18 CAD Cart
LUDMS-78-10-50-YW M10 1.5 50 78 35 39 36 2 24.3 22 16 26 390 11 YW 82 27.18 CAD Cart
LUDMS-78-10-63-BK M10 1.5 63 78 35 39 36 2 24.3 22 16 26 390 11 BK 89 28.48 CAD Cart
LUDMS-78-10-63-BL M10 1.5 63 78 35 39 36 2 24.3 22 16 26 390 11 BL 89 28.48 CAD Cart
LUDMS-78-10-63-OR M10 1.5 63 78 35 39 36 2 24.3 22 16 26 390 11 OR 89 28.48 CAD Cart
LUDMS-78-10-63-SG M10 1.5 63 78 35 39 36 2 24.3 22 16 26 390 11 SG 89 28.48 CAD Cart
LUDMS-78-10-63-YW M10 1.5 63 78 35 39 36 2 24.3 22 16 26 390 11 YW 89 28.48 CAD Cart
LUDMS-78-10-80-BK M10 1.5 80 78 35 39 36 2 24.3 22 16 26 390 11 BK 97 31.26 CAD Cart
LUDMS-78-10-80-BL M10 1.5 80 78 35 39 36 2 24.3 22 16 26 390 11 BL 97 31.26 CAD Cart
LUDMS-78-10-80-OR M10 1.5 80 78 35 39 36 2 24.3 22 16 26 390 11 OR 97 31.26 CAD Cart
LUDMS-78-10-80-SG M10 1.5 80 78 35 39 36 2 24.3 22 16 26 390 11 SG 97 31.26 CAD Cart
LUDMS-78-10-80-YW M10 1.5 80 78 35 39 36 2 24.3 22 16 26 390 11 YW 97 31.26 CAD Cart
LUDMS-93-12-25-BK M12 1.75 25 93 41 45 43 3 28.5 26 19 28 580 16 BK 117 33.36 CAD Cart
LUDMS-93-12-25-BL M12 1.75 25 93 41 45 43 3 28.5 26 19 28 580 16 BL 117 33.36 CAD Cart
LUDMS-93-12-25-OR M12 1.75 25 93 41 45 43 3 28.5 26 19 28 580 16 OR 117 33.36 CAD Cart
LUDMS-93-12-25-SG M12 1.75 25 93 41 45 43 3 28.5 26 19 28 580 16 SG 117 33.36 CAD Cart
LUDMS-93-12-25-YW M12 1.75 25 93 41 45 43 3 28.5 26 19 28 580 16 YW 117 33.36 CAD Cart
LUDMS-93-12-32-BK M12 1.75 32 93 41 45 43 3 28.5 26 19 28 580 16 BK 121 33.36 CAD Cart
LUDMS-93-12-32-BL M12 1.75 32 93 41 45 43 3 28.5 26 19 28 580 16 BL 121 33.36 CAD Cart
LUDMS-93-12-32-OR M12 1.75 32 93 41 45 43 3 28.5 26 19 28 580 16 OR 121 33.36 CAD Cart
LUDMS-93-12-32-SG M12 1.75 32 93 41 45 43 3 28.5 26 19 28 580 16 SG 121 33.36 CAD Cart
LUDMS-93-12-32-YW M12 1.75 32 93 41 45 43 3 28.5 26 19 28 580 16 YW 121 33.36 CAD Cart
LUDMS-93-12-40-BK M12 1.75 40 93 41 45 43 3 28.5 26 19 28 580 16 BK 126 33.36 CAD Cart
LUDMS-93-12-40-BL M12 1.75 40 93 41 45 43 3 28.5 26 19 28 580 16 BL 126 33.36 CAD Cart
LUDMS-93-12-40-OR M12 1.75 40 93 41 45 43 3 28.5 26 19 28 580 16 OR 126 33.36 CAD Cart
LUDMS-93-12-40-SG M12 1.75 40 93 41 45 43 3 28.5 26 19 28 580 16 SG 126 33.36 CAD Cart
LUDMS-93-12-40-YW M12 1.75 40 93 41 45 43 3 28.5 26 19 28 580 16 YW 126 33.36 CAD Cart
LUDMS-93-12-50-BK M12 1.75 50 93 41 45 43 3 28.5 26 19 28 580 16 BK 133 34.30 CAD Cart
LUDMS-93-12-50-BL M12 1.75 50 93 41 45 43 3 28.5 26 19 28 580 16 BL 133 34.30 CAD Cart
LUDMS-93-12-50-OR M12 1.75 50 93 41 45 43 3 28.5 26 19 28 580 16 OR 133 34.30 CAD Cart
LUDMS-93-12-50-SG M12 1.75 50 93 41 45 43 3 28.5 26 19 28 580 16 SG 133 34.30 CAD Cart
LUDMS-93-12-50-YW M12 1.75 50 93 41 45 43 3 28.5 26 19 28 580 16 YW 133 34.30 CAD Cart
LUDMS-93-12-63-BK M12 1.75 63 93 41 45 43 3 28.5 26 19 28 580 16 BK 143 36.57 CAD Cart
LUDMS-93-12-63-BL M12 1.75 63 93 41 45 43 3 28.5 26 19 28 580 16 BL 143 36.57 CAD Cart
LUDMS-93-12-63-OR M12 1.75 63 93 41 45 43 3 28.5 26 19 28 580 16 OR 143 36.57 CAD Cart
LUDMS-93-12-63-SG M12 1.75 63 93 41 45 43 3 28.5 26 19 28 580 16 SG 143 36.57 CAD Cart
LUDMS-93-12-63-YW M12 1.75 63 93 41 45 43 3 28.5 26 19 28 580 16 YW 143 36.57 CAD Cart
LUDMS-93-12-80-BK M12 1.75 80 93 41 45 43 3 28.5 26 19 28 580 16 BK 154 39.82 CAD Cart
LUDMS-93-12-80-BL M12 1.75 80 93 41 45 43 3 28.5 26 19 28 580 16 BL 154 39.82 CAD Cart
LUDMS-93-12-80-OR M12 1.75 80 93 41 45 43 3 28.5 26 19 28 580 16 OR 154 39.82 CAD Cart
LUDMS-93-12-80-SG M12 1.75 80 93 41 45 43 3 28.5 26 19 28 580 16 SG 154 39.82 CAD Cart
LUDMS-93-12-80-YW M12 1.75 80 93 41 45 43 3 28.5 26 19 28 580 16 YW 154 39.82 CAD Cart

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here
Part Number
Amount
Price（＄）

Check other products Cart

　　　　　　

Material/Finish

LUDMS
Lever Part Nylon 6 (Various Color)
Thread Part SUS303
Setscrew Stainless Steel
Serration Ring Zinc Die Cast
Spring Stainless Steel Wire

Characteristics

  • A double arm type clamp lever made of plastic.
  • Designed in consideration of the seven principles of universal design. A shape for easy application of forces and operations.
  • About Universal Design ⇒Universal design UDEX® series
  • The rotating radius is about a half of plastic clamp levers. Space-saving.
  • A serration ring made of zinc die cast is inserted into the lever body made of plastic. They also realize sufficient strength for fitting with metal thread serration.
  • There are two types of thread part materials:
    LUDM----Made of steel
    LUDMS----Made of stainless steel
  • A rich variety of thread sizes from M3 to M12 are available.
  • Five-color variations support the color universal design of machines / devices. Two-tone color of dark gray and various colors.
  • Lever part colors can be selected by the end symbol of the part number.
End Symbol Lever Part Color
BK Matte black
SG Matte Silver
OR Matte orange
BL Matte blue
YW Matte yellow

Only takes a minute to understand! How to Use Clamp Levers.

Related Products

SWAS-PPK washers suitable for positioning and fixing slide mechanisms using slotted holes are available. SWAS-PPK

LUDMSPlastic Clamp Levers, Male Screw


Related Services

Product List

LUDMS-52-3

LUDMS-52-4

LUDMS-52-5

LUDMS-52-6

LUDMS-67-6

LUDMS-67-8

LUDMS-78-10

LUDMS-78-8

LUDMS-93-12

Click here to see Clamp Levers

LECMS-LWP

Part Name

Miniature Plastic Clamp Levers with Flat Washers for Slotted Holes

Part Number

LECMS-LWP

Feature

With Flat Washer for Slotted Holes
Miniature
Lightweight
Stainless Steel Threads
With Consideration for Global Warming

LUDM

Part Name

Plastic Clamp Lever, Male Screw

Part Number

LUDM

Feature

Universal Design

LUDF

Part Name

Plastic Clamp Levers, Female Screw

Part Number

LUDF

Feature

Universal Design

LUDFS

Part Name

Plastic Clamp Lever, Female Screw

Part Number

LUDFS

Feature

Universal Design
Screw is made from Stainless Steel

Click here to see Machine Elements

Positioning Brackets

Positioning Brackets

Swivel Mount

Swivel Mount

Dial

Dial

Display Mounting Systems

Display Mounting Systems
