  • Cross Clampers・Shaft Clamping Units

FCCA-12-20

Cross Clamper - Set Screw Type

Safety Precautions

RoHS Compliant

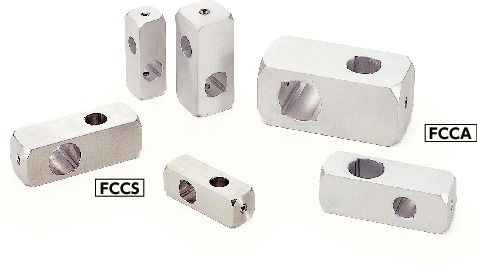

FCCACross Clamper - Set Screw Type

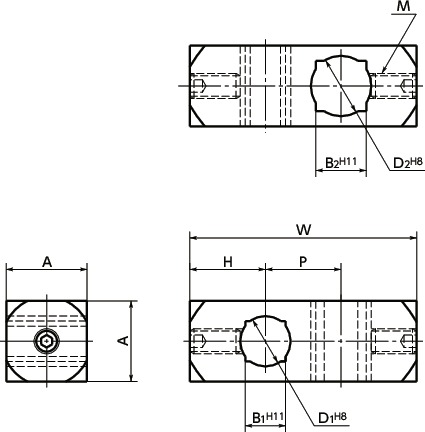

Dimension Drawing

FCCACross Clamper - Set Screw Type寸法図

Unit : mm

Part Number D1 D2 B1 B2 A W P M (Coarse) H Mass
(g)		 Price
(USD)		 CAD
Download		 Add to Cart
FCCA-12-20 12 20 10 16 25 64 24 M6 20 79 31.96 CAD Cart

Part Number
Amount
Price（＄）

Check other products Cart

　　　　　　

Material/Finish

FCCA Made of Aluminum
Main Body Aluminum Alloy
Hex Socket Set Screw SUSXM7

Characteristics

  • The clamper joints 2 shafts with cross.
  • Fix the shafts by hex socket set screws. It is superior in cost effectiveness.
  • Convenient for adjustment of side guide and sensors of the conveyance line.
  • Light aluminum and stainless steel with highly corrosion-resistant are standardized.
  • Compatible with both round shaft and square shaft.
  • All products are provided with hex socket set screw.

Usage Example

In combination with plastic clamp lever LEMS (LEMLEMELEMS) and scale sticker FSS (FSSFST).
