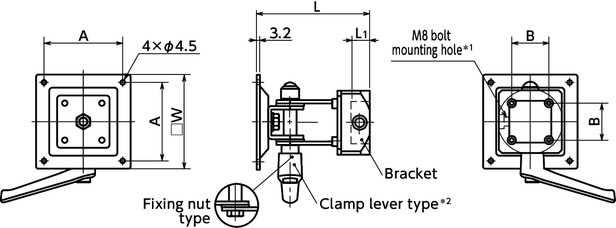

Dimension Drawing
＊1： Hex socket low head bolts (M8 × 16 mm) are provided.
＊2： The clamp lever setscrews for the clamp lever type DFS have been changed from hex sockets to hexalobular sockets.
Specs/CAD
Unit : mm
| Part Number | A | B | W | L1 | L | Max. Load Weight (kg) |
Mass (g) |
Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| DFS-75-AA-40 | 75 | 40 | 90 | 17 | 106 | 6 | 720 | 128.97 | CAD | Cart |
| DFS-100-AA-40 | 100 | 40 | 115 | 17 | 106 | 6 | 820 | 129.45 | CAD | Cart |

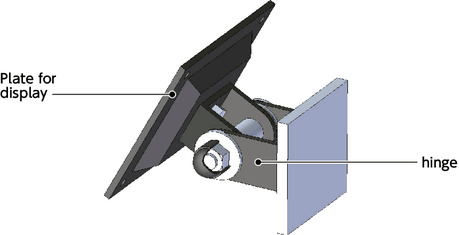

Structure
Material/Finish
| DFS-AF | DFS-AA DFS-PB |
DFSN-AF | DFSN-AA DFSN-PB |
|
|---|---|---|---|---|
| Display Plate | SPHC Electrostatic Coating |
|||
| Hinge | SPCC Electrostatic Coating |
|||
| Clamp Lever | Nylon 6 | - | - | |
| Hex Nut | - | - | S45C Trivalent Chromate Treatment |
|
| Fixing Plate | SS400 Electrostatic Coating |
- | SS400 Electrostatic Coating |
- |
| Bracket | - | A6063 Anodized |
- | A6063 Anodized |
Characteristics

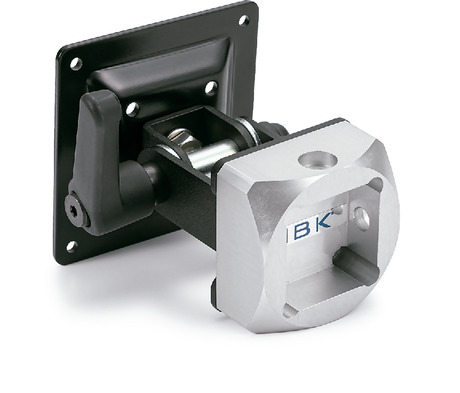

- The display can be tilted by ±90° to the single axis direction.
- By tightening the clamp lever or hexagon nut, securely retain the angle after adjustment.
Clamp lever type ----DFS
Hexagon nut type ----DFSN -
For counterpart, three types of Mounting System for Display are available.
For aluminum frame / For wall panel and sheet metal ----DFS*-AF
For aluminum frame end mounting ----DFS*-AA
For round pipe ----DFS*-PB
Application
Machine tool / Medical equipment / FPD production device / Semiconductor manufacturing device / Packing machine / Food machineryMaximum load weight
| Product ｃode | Max. load weight (kg) |
|---|---|
| DFS | 6 |
| DFSN | 10 |
