Structure

Material/Finish

Characteristics

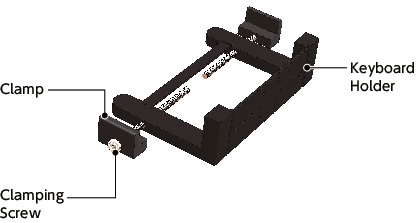

• The keyboard can be completely fixed to the counterpart.
• By tightening the clamping screw, the keyboard is securely fixed and prevent from falling.
• B5 size laptops and 500 mm wide keyboard can be loaded.
• For counterpart, three types of Mounting System for Display are available.
  For aluminum frame / For wall panel and sheet metal ----DKB
  For aluminum frame end mounting ----DKB-AA
  For round pipe ----DKB-PB
• Clamp screws of two sizes (Phillips cross recessed pan head machine screws) are supplied.
  M6 x 40: Used when the keyboard width is 256 mm to 280 mm.
  M6 x 140: Used when the keyboard width is 280 mm to 500 mm.

Application

Option

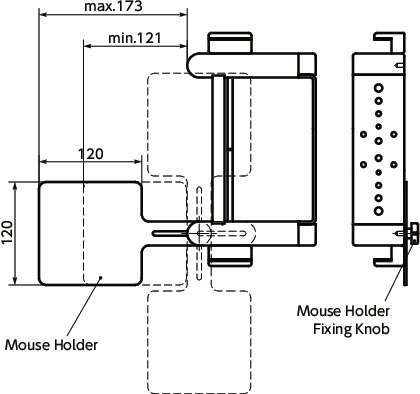

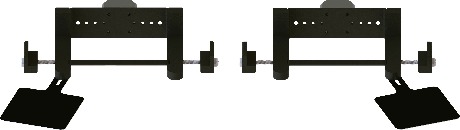

• A mouse holder DKMP is available as an option.
• This may be mounted on either side.

Material/Finish
