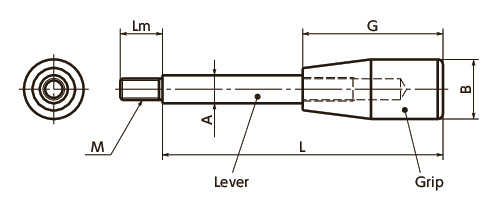

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | Lm | L | A | B | G | Mass (g) |
Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LRGS-6-63 | M6 | 1 | 12 | 63 | 8 | 17 | 38 | 25 | 10.75 | CAD | Cart |
| LRGS-6-80 | M6 | 1 | 12 | 80 | 8 | 17 | 38 | 32 | 11.52 | CAD | Cart |
| LRGS-6-100 | M6 | 1 | 12 | 100 | 8 | 17 | 38 | 40 | 12.00 | CAD | Cart |
| LRGS-8-80 | M8 | 1.25 | 20 | 80 | 10 | 21 | 50 | 53 | 12.78 | CAD | Cart |
| LRGS-8-100 | M8 | 1.25 | 20 | 100 | 10 | 21 | 50 | 65 | 13.00 | CAD | Cart |
| LRGS-8-125 | M8 | 1.25 | 20 | 125 | 10 | 21 | 50 | 81 | 13.72 | CAD | Cart |
| LRGS-10-100 | M10 | 1.5 | 25 | 100 | 12 | 25 | 65 | 97 | 15.02 | CAD | Cart |
| LRGS-10-125 | M10 | 1.5 | 25 | 125 | 12 | 25 | 65 | 119 | 16.33 | CAD | Cart |
| LRGS-10-160 | M10 | 1.5 | 25 | 160 | 12 | 25 | 65 | 149 | 18.02 | CAD | Cart |
| LRGS-12-125 | M12 | 1.75 | 30 | 125 | 14 | 28 | 85 | 163 | 20.87 | CAD | Cart |
| LRGS-12-160 | M12 | 1.75 | 30 | 160 | 14 | 28 | 85 | 205 | 23.37 | CAD | Cart |
| LRGS-12-200 | M12 | 1.75 | 30 | 200 | 14 | 28 | 85 | 253 | 26.34 | CAD | Cart |
Material/Finish
| LRGS | |
|---|---|
| Lever Part | SUS303 |
| Grip | Phenol Resin (Black) |
Characteristics
- The grip is made of phenol resin. It is highly durable.
-

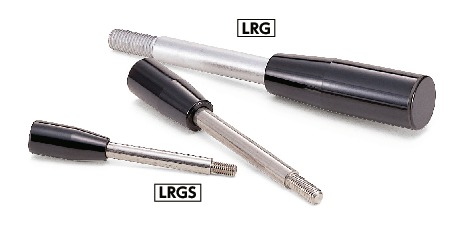

There are two types of the lever part material.
LRG----Made of steel
LRGS----Made of stainless steel
