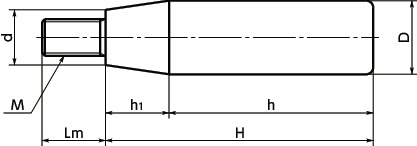

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | D | M (Coarse) Nominal of Thread |
Pitch | Lm | d | H | h | h1 | Mass (g) |
Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GSS-5 | 10 | M5 | 0.8 | 6 | 8 | 40 | 30 | 10 | 25 | 6.55 | CAD | Cart |
| GSS-6 | 13 | M6 | 1 | 7 | 10 | 50 | 37 | 13 | 50 | 8.79 | CAD | Cart |
| GSS-8 | 16 | M8 | 1.25 | 8 | 12 | 64 | 49 | 15 | 100 | 13.17 | CAD | Cart |
| GSS-10 | 20 | M10 | 1.5 | 10 | 15 | 70 | 50 | 20 | 150 | 18.24 | CAD | Cart |
| GSS-12 | 25 | M12 | 1.75 | 13 | 18 | 100 | 70 | 30 | 370 | 35.41 | CAD | Cart |
Material/Finish
| GSS | |
|---|---|
| Main body | SUS304 |
Characteristics

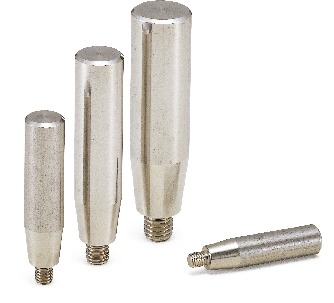

- All stainless steel grip superior in corrosion resistance and strength
