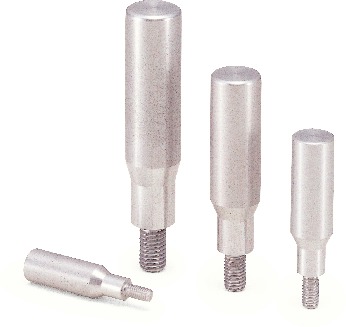

Straight Fixing Grip

Name: HS
Brand: Nabeya Bi-tech Kaisha
Availability: OutOfStock

Safety Precautions

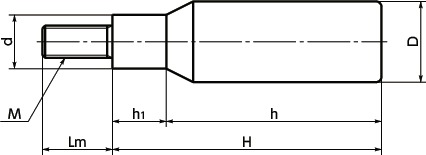

Dimension Drawing

Specs/CAD

Unit : mm

Part Number	D	M (Coarse) Nominal of Thread	Pitch	Lm	d	H	h	h₁	Mass (g)	Price (USD)	CAD Download	Add to Cart
HS-5	12	M5	0.8	10	8	40	32	8	10	5.32	CAD	Cart
HS-6	15	M6	1	13	10	50	40	10	25	6.98	CAD	Cart
HS-8	18	M8	1.25	15	13	65	52	13	45	8.46	CAD	Cart
HS-10	20	M10	1.5	18	16	80	64	16	90	11.21	CAD	Cart

Part Number
Amount
Price（＄）

Check other products Cart

Material/Finish

	HS
Main body	A2017 Anodized (Silver Gray)

Characteristics

Light aluminum grip.
