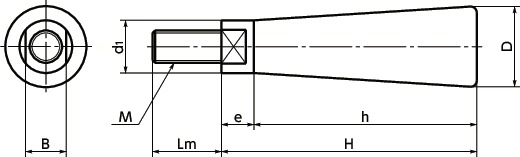

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | D | M (Coarse) Nominal of Thread |
Pitch | Lm | d1 | H | h | e | B | Mass (g) |
Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NP-6 | 16 | M6 | 1 | 13 | 10 | 50 | 43 | 7 | 8 | 30 | 7.00 | CAD | Cart |
| NP-8 | 20 | M8 | 1.25 | 16.5 | 13 | 63.5 | 55.5 | 8 | 10 | 40 | 8.56 | CAD | Cart |
| NP-10 | 25 | M10 | 1.5 | 20 | 16 | 80 | 70 | 10 | 14 | 100 | 11.06 | CAD | Cart |
| NP-12 | 32 | M12 | 1.75 | 18 | 20 | 102 | 89 | 13 | 17 | 180 | 15.40 | CAD | Cart |
Material/Finish
| NP | |
|---|---|
| Grip Part | Nylon 6 |
| Thread Part | SS400 Chrome Plating |
