  • Handles

FS-50

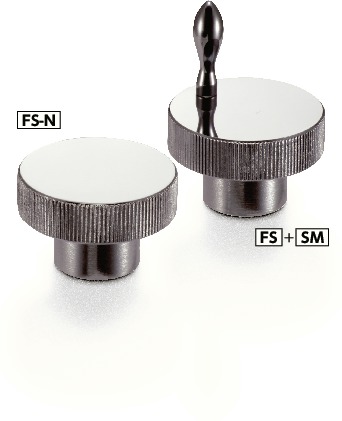

Knurled Handwheel

Safety Precautions

RoHS Compliant

FSKnurled Handwheel

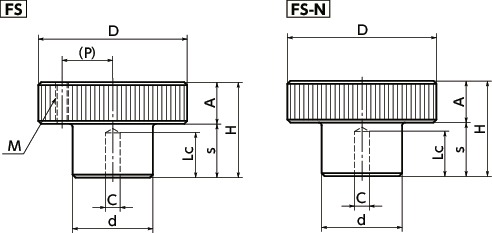

Dimension Drawing

FSKnurled Handwheel寸法図

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch D H A s d C Lc P Mass
(g)		 Price
(USD)		 CAD
Download		 Add to Cart
FS-50 M4 0.7 50 32 14 18 27 5 15 17 415 14.87 CAD Cart

Part Number
Amount
Price（＄）

Check other products Cart

　　　　　　

Material/Finish

FS
Main body FC200
Chrome Plating

Characteristics

  • Products with/without grip mounting holes can be selected by the end symbol of the part number.
    FS----With grip mounting hole
    FS-N----Without grip mounting hole
  • There is no grip supplied with this product. Order a grip separately. ⇒Grips

Product List

Click here to see Handles

FS-N

Part Name

Knurled Handwheel

Part Number

FS-N

Feature

Chrome Plating
Without threaded hole for Grip

D

Part Name

Offset Handwheel

Part Number

D

Feature

Chrome Plating
With threaded hole for Grip

F

Part Name

Flat Handwheel

Part Number

F

Feature

Chrome Plating
With threaded hole for Grip

AH

Part Name

Aluminum Flat Handwheel

Part Number

AH

Feature

AC8A
With threaded hole for Grip
