Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L | B | Qty per Pack | Mass (g) |
Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
| SPE-M5-6-HB | M5 | 0.8 | 6 | 8 | 5 | 0.32 | 25.73 | CAD | Cart |
| SPE-M5-8-HB | M5 | 0.8 | 8 | 8 | 5 | 0.42 | 27.35 | CAD | Cart |
| SPE-M5-10-HB | M5 | 0.8 | 10 | 8 | 5 | 0.53 | 29.98 | CAD | Cart |
| SPE-M5-12-HB | M5 | 0.8 | 12 | 8 | 5 | 0.63 | 32.72 | CAD | Cart |
| SPE-M5-15-HB | M5 | 0.8 | 15 | 8 | 5 | 0.79 | 36.27 | CAD | Cart |
| SPE-M5-18-HB | M5 | 0.8 | 18 | 8 | 5 | 0.95 | 39.44 | CAD | Cart |
| SPE-M5-20-HB | M5 | 0.8 | 20 | 8 | 5 | 1.1 | 41.91 | CAD | Cart |
Material/Finish
| SPE-HB | |
|---|---|

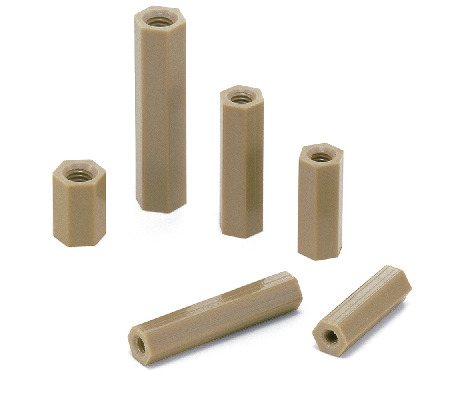

| Main Body | PEEK (Polyether Ether Ketone) (Light Brown) |
| Heat Resistance Temperature＊1 | 260℃ |
＊1： This is the value for the resin material. The operating temperature of the product changes with performance conditions such as tightening torque.
Characteristics
- PEEK is a thermoplastic super engineering plastic superior in physical and chemical properties.
- Excellent chemical resistance. It remains almost unaffected by chemicals other than concentrated sulfuric acid, concentrated nitric acid, and concentrated hydrofluoric acid.
- With excellent heat resistance and water resistance, it retains strength at high temperatures.
- It features outstanding resistance to wear, shock, and fatigue.
- It also has high flame retardance which clears the UL 94 V-0 standard.
- The properties and precautions of plastic screws⇒Plastic Screws
Application
FPD production equipment / Semiconductor devices / Printed circuit board etching devices /Metallic surface treatment equipment and facilities / Chemical plants / Transformers / Electrical and electronic equipment / Hot water pumps /
Chemical pumps
