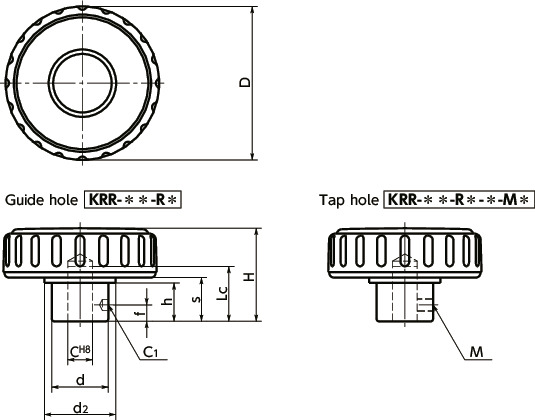

Dimension Drawing
Unit : mm
Material/Finish
| KRR | |
|---|---|
| Knob | Nylon 6 (Matte Black) |
| Hub | Steel Ferrosoferric Oxide Film (Black) |
| Hex Socket Set Screw＊1 | SCM435 Ferrosoferric Oxide Film (Black) |
＊1： Tap hole type only
Characteristics

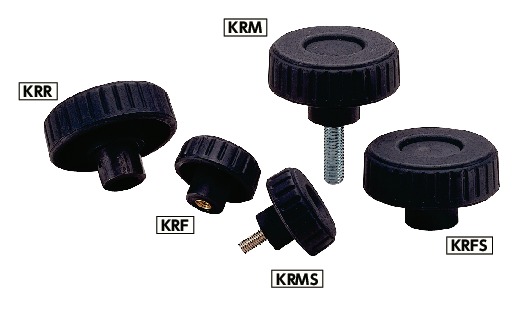

- Three types including male screws KRM and KRMS, female screws KRF and KRFS, and reamed hole type KRR.
- Reamed hole type KRR hub types available include the fixing pin guide hole type and the tap hole type which goes through to the reamed hole.
- The tap hole type is provided with hex socket set screws.
