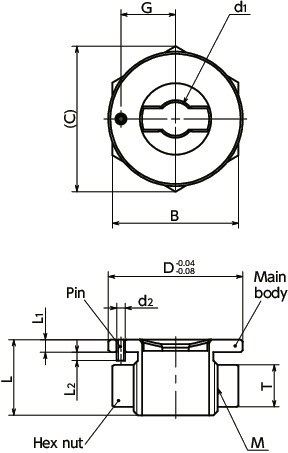

Dimension Drawing
Unit : mm

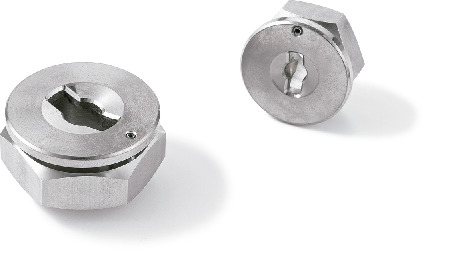

Characteristics
- Dedicated cam base for mounting Quick Clamp Fasteners NQTSNQTS-NINQTS-FNQTS-F-NI to sheet metal.
- The clamp part is tapered, making it easy to insert the Quick Clamp Fastener clamp pin.
Material/Finish
| NQTB-N | |
|---|---|
| Main Body | SCM440 Electroless Nickel Plating |
| Hex Nut | Equivalent to SUS304 |

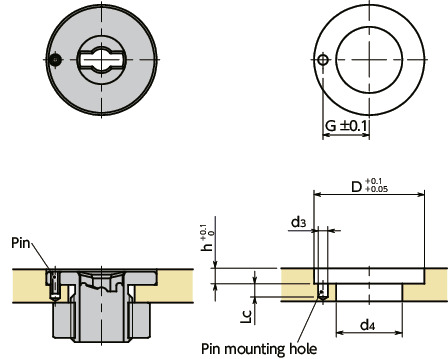

Mounting
Align the phase of the Quick Clamp Fastener NQTSNQTS-NINQTS-FNQTS-F-NI clamp pin and the NQTB-N pin mounting hole for mounting.The NQTB-N pin mounting hole orientation is determined by the pin hole machining position in the mounting plate side.
Unit : mm
| Part Number | D | d4 | h | G | Lc | d3 |
|---|---|---|---|---|---|---|
| NQTB-5-N | 25 | 15 | 3.5 | 10.5 | 3 | 2.2 |
| NQTB-8-N | 32 | 21 | 3.5 | 13 | 3 | 2.2 |
