Name: NSC-M
Brand: Nabeya Bi-tech Kaisha
Availability: OutOfStock

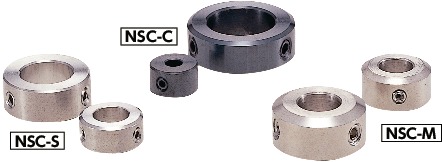

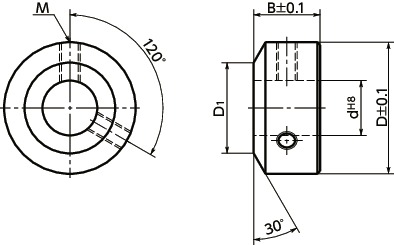

Dimension Drawing

Specs/CAD

Select

d: All; 3; 4; 5; 6; 8; 10; 12; 13; 14; 15; 16; 17; 18; 20; 22; 25; 28; 30; 32; 35; 38; 40; 45; 50

B: All; 5; 6; 8; 10; 12; 15; 7; 18; 14; 16; 20; 22; 25

D: All; 7; 8; 12; 11; 14; 15; 16; 18; 20; 22; 26; 24; 25; 28; 30; 32; 38; 42; 45; 49; 53; 50; 55; 59; 64; 60; 72; 75; 70; 79

Unit : mm

Part Number	d	B	D	D₁	M	Number of Set Screws	Mass (g)	Price (USD)	CAD Download	Add to Cart
NSC-3-5-M	3	5	7	－	M3	1	1	3.99	CAD	Cart
NSC-3-6-M	3	6	7	－	M3	1	1	3.99	CAD	Cart
NSC-3-8-M	3	8	7	－	M3	1	2	3.99	CAD	Cart
NSC-4-5-M	4	5	8	－	M3	1	1	4.37	CAD	Cart
NSC-4-6-M	4	6	12	－	M4	1	5	4.37	CAD	Cart
NSC-4-8-M	4	8	12	－	M4	1	6	4.37	CAD	Cart
NSC-5-5-M	5	5	11	－	M3	1	3	4.75	CAD	Cart
NSC-5-6-M	5	6	14	－	M4	1	6	4.75	CAD	Cart
NSC-5-8-M	5	8	14	－	M4	1	8	4.75	CAD	Cart
NSC-5-10-M	5	10	14	－	M4	1	10	4.75	CAD	Cart
NSC-6-5-M	6	5	12	－	M3	2	3	5.32	CAD	Cart
NSC-6-6-M	6	6	15	－	M4	1	7	5.32	CAD	Cart
NSC-6-8-M	6	8	15	－	M4	1	7	5.32	CAD	Cart
NSC-6-10-M	6	10	16	－	M4	1	13	5.32	CAD	Cart
NSC-8-5-M	8	5	14	－	M3	2	4	5.83	CAD	Cart
NSC-8-6-M	8	6	16	13	M4	2	6	5.83	CAD	Cart
NSC-8-8-M	8	8	16	13	M4	2	9	5.83	CAD	Cart
NSC-8-10-M	8	10	18	13	M4	2	15	5.83	CAD	Cart
NSC-10-5-M	10	5	16	－	M3	2	8	6.08	CAD	Cart
NSC-10-6-M	10	6	18	16	M4	2	8	6.08	CAD	Cart
NSC-10-8-M	10	8	18	16	M4	2	10	6.08	CAD	Cart
NSC-10-10-M	10	10	20	16	M4	2	17	6.08	CAD	Cart
NSC-12-6-M	12	6	20	－	M4	2	8	6.98	CAD	Cart
NSC-12-8-M	12	8	22	20	M4	2	16	6.98	CAD	Cart
NSC-12-10-M	12	10	26	20	M5	2	30	6.98	CAD	Cart
NSC-12-12-M	12	12	26	20	M6	2	36	6.98	CAD	Cart
NSC-13-6-M	13	6	20	－	M4	2	8	7.64	CAD	Cart
NSC-13-8-M	13	8	22	20	M4	2	15	7.64	CAD	Cart
NSC-13-10-M	13	10	26	20	M5	2	29	7.64	CAD	Cart
NSC-14-12-M	14	12	26	20	M5	2	33	8.32	CAD	Cart
NSC-15-6-M	15	6	24	－	M4	2	12	8.61	CAD	Cart
NSC-15-8-M	15	8	25	24	M5	2	19	8.61	CAD	Cart
NSC-15-10-M	15	10	25	24	M5	2	24	8.61	CAD	Cart
NSC-15-12-M	15	12	28	24	M5	2	39	8.61	CAD	Cart
NSC-16-6-M	16	6	24	－	M4	2	11	9.11	CAD	Cart
NSC-16-8-M	16	8	28	24	M5	2	24	9.11	CAD	Cart
NSC-16-10-M	16	10	28	24	M5	2	31	9.11	CAD	Cart
NSC-16-12-M	16	12	28	24	M5	2	37	9.11	CAD	Cart
NSC-17-10-M	17	10	30	26	M6	2	35	9.61	CAD	Cart
NSC-17-12-M	17	12	32	26	M6	2	51	9.61	CAD	Cart
NSC-18-15-M	18	15	32	29	M6	2	61	9.81	CAD	Cart
NSC-20-7-M	20	7	30	－	M5	2	21	10.29	CAD	Cart
NSC-20-10-M	20	10	32	29	M6	2	68	10.29	CAD	Cart
NSC-20-12-M	20	12	32	29	M6	2	44	10.29	CAD	Cart
NSC-20-15-M	20	15	32	29	M6	2	55	10.29	CAD	Cart
NSC-22-18-M	22	18	38	34	M8	2	101	11.45	CAD	Cart
NSC-25-12-M	25	12	38	37	M6	2	58	12.89	CAD	Cart
NSC-25-15-M	25	15	38	37	M6	2	72	12.89	CAD	Cart
NSC-25-18-M	25	18	42	38	M8	2	120	12.89	CAD	Cart
NSC-28-18-M	28	18	45	40	M8	2	130	14.80	CAD	Cart
NSC-30-14-M	30	14	45	42	M8	2	92	15.67	CAD	Cart
NSC-30-16-M	30	16	45	42	M8	2	105	15.67	CAD	Cart
NSC-30-18-M	30	18	49	42	M8	2	157	15.67	CAD	Cart
NSC-30-20-M	30	20	49	42	M8	2	176	15.67	CAD	Cart
NSC-32-20-M	32	20	53	44	M8	2	205	18.02	CAD	Cart
NSC-35-15-M	35	15	50	47	M8	2	114	18.92	CAD	Cart
NSC-35-18-M	35	18	55	47	M8	2	188	18.92	CAD	Cart
NSC-35-20-M	35	20	59	47	M8	2	257	18.92	CAD	Cart
NSC-38-22-M	38	22	64	50	M10	2	330	22.98	CAD	Cart
NSC-40-18-M	40	18	60	55	M10	2	211	24.05	CAD	Cart
NSC-40-22-M	40	22	72	55	M10	2	438	24.05	CAD	Cart
NSC-45-22-M	45	22	75	60	M10	2	446	27.21	CAD	Cart
NSC-50-20-M	50	20	70	65	M10	2	284	29.39	CAD	Cart
NSC-50-25-M	50	25	79	65	M10	2	538	29.39	CAD	Cart

●Hex socket set screw is provided.

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Part Number
Amount
Price（＄）

Check other products Cart

Hints for Correctly Using NBK Products

The video is an example using NSC-CP2(NSC-CP2). You can perform the same operation using this product.

Material/Finish

	NSC-M
Main Body	S45C Electroless Nickel Plating
Hex Socket Set Screw	SUSXM7

Characteristics

Set screw type set collars.
Fastening to the shaft is done with set screws.
Chamfering on one end is larger (bore diameter 8mm or above).
When fixing the bearing, this avoids interference between the set collar and the outer ring.
