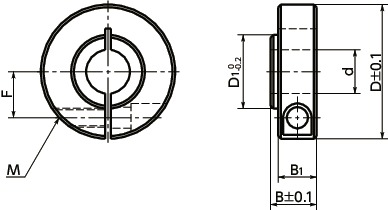

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | d | B | B1 | D | D1 | F | M | Mass (g) |
Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| NSCS-3-8-CB | 3 | 8.5 | 7.5 | 15 | 5 | 4.5 | M3 | 9 | 14.80 | CAD | Cart |
| NSCS-4-8-CB | 4 | 8.5 | 7.5 | 15 | 6 | 4.5 | M3 | 9 | 14.80 | CAD | Cart |
| NSCS-5-8-CB | 5 | 8.5 | 7.5 | 20 | 7.2 | 6 | M3 | 15 | 14.80 | CAD | Cart |
| NSCS-6-8-CB1 | 6 | 8.5 | 7.5 | 20 | 9.4 | 6.5 | M3 | 15 | 15.67 | CAD | Cart |
| NSCS-6-8-CB2 | 6 | 8.5 | 7.5 | 20 | 9.7 | 6.5 | M3 | 15 | 15.67 | CAD | Cart |
| NSCS-6-8-CB3 | 6 | 8.5 | 7.5 | 20 | 9.1 | 6.5 | M3 | 15 | 15.67 | CAD | Cart |
| NSCS-8-8-CB1 | 8 | 8.5 | 7.5 | 20 | 11.7 | 7 | M3 | 14 | 16.84 | CAD | Cart |
| NSCS-8-8-CB2 | 8 | 8.5 | 7.5 | 20 | 13.2 | 7 | M3 | 15 | 16.84 | CAD | Cart |
| NSCS-8-8-CB3 | 8 | 8.5 | 7.5 | 20 | 11.2 | 7 | M3 | 15 | 16.84 | CAD | Cart |
| NSCS-10-11-CB1 | 10 | 11 | 9 | 30 | 14.7 | 9 | M4 | 41 | 17.62 | CAD | Cart |
| NSCS-10-11-CB2 | 10 | 11 | 9 | 30 | 17.2 | 9 | M4 | 42 | 17.62 | CAD | Cart |
| NSCS-10-11-CB3 | 10 | 11 | 9 | 30 | 14.2 | 9 | M4 | 42 | 17.62 | CAD | Cart |
| NSCS-12-11-CB1 | 12 | 11 | 9 | 30 | 17.2 | 10 | M4 | 39 | 18.92 | CAD | Cart |
| NSCS-12-11-CB2 | 12 | 11 | 9 | 30 | 18.7 | 10 | M4 | 41 | 18.92 | CAD | Cart |
| NSCS-12-11-CB3 | 12 | 11 | 9 | 30 | 16.2 | 10 | M4 | 41 | 18.92 | CAD | Cart |
| NSCS-15-12-CB1 | 15 | 12 | 11 | 35 | 20.2 | 12 | M5 | 58 | 20.69 | CAD | Cart |
| NSCS-15-12-CB2 | 15 | 12 | 11 | 35 | 21.7 | 12 | M5 | 59 | 20.69 | CAD | Cart |
| NSCS-15-12-CB3 | 15 | 12 | 11 | 35 | 19.2 | 12 | M5 | 58 | 20.69 | CAD | Cart |
| NSCS-17-12-CB1 | 17 | 12 | 11 | 35 | 22.2 | 13 | M5 | 56 | 20.69 | CAD | Cart |
| NSCS-17-12-CB2 | 17 | 12 | 11 | 35 | 24.2 | 13 | M5 | 56 | 20.69 | CAD | Cart |
| NSCS-17-12-CB3 | 17 | 12 | 11 | 35 | 21.2 | 13 | M5 | 55 | 20.69 | CAD | Cart |
| NSCS-20-12-CB1 | 20 | 12 | 11 | 40 | 27.2 | 14 | M5 | 72 | 22.98 | CAD | Cart |
| NSCS-20-12-CB2 | 20 | 12 | 11 | 40 | 29.2 | 14 | M5 | 73 | 22.98 | CAD | Cart |
| NSCS-20-12-CB3 | 20 | 12 | 11 | 40 | 25.2 | 14 | M5 | 70 | 22.98 | CAD | Cart |
| NSCS-25-15-CB1 | 25 | 15 | 13 | 45 | 31.7 | 17 | M5 | 111 | 24.14 | CAD | Cart |
| NSCS-25-15-CB2 | 25 | 15 | 13 | 45 | 33.2 | 17 | M5 | 110 | 24.14 | CAD | Cart |
| NSCS-25-15-CB3 | 25 | 15 | 13 | 45 | 30.2 | 17 | M5 | 109 | 24.14 | CAD | Cart |
| NSCS-30-15-CB1 | 30 | 15 | 13 | 55 | 38.2 | 20 | M6 | 167 | 30.28 | CAD | Cart |
| NSCS-30-15-CB2 | 30 | 15 | 13 | 55 | 40.2 | 20 | M6 | 167 | 30.28 | CAD | Cart |
| NSCS-30-15-CB3 | 30 | 15 | 13 | 55 | 35.2 | 20 | M6 | 165 | 30.28 | CAD | Cart |
| NSCS-35-15-CB1 | 35 | 15 | 13 | 60 | 43.2 | 23 | M6 | 187 | 31.45 | CAD | Cart |
| NSCS-35-15-CB2 | 35 | 15 | 13 | 60 | 46.2 | 23 | M6 | 191 | 31.45 | CAD | Cart |
| NSCS-35-15-CB3 | 35 | 15 | 13 | 60 | 41.2 | 23 | M6 | 184 | 31.45 | CAD | Cart |
| NSCS-40-17-CB1 | 40 | 17 | 15 | 70 | 48.2 | 26 | M8 | 293 | 40.12 | CAD | Cart |
| NSCS-40-17-CB2 | 40 | 17 | 15 | 70 | 52.2 | 26 | M8 | 298 | 40.12 | CAD | Cart |
| NSCS-40-17-CB3 | 40 | 17 | 15 | 70 | 46.2 | 26 | M8 | 300 | 40.12 | CAD | Cart |
●Hex socket head cap screw is provided.
Hints for Correctly Using NBK Products
The video is an example using NSCS-CP2(NSCS-CP2). You can perform the same operation using this product.
Material/Finish
| NSCS-CB | |
|---|---|
| Main body | S45C Ferrosoferric Oxide Film (Black) |
| with Hexagon Socket Bolt |
SCM435 Ferrosoferric Oxide Film (Black) |
Characteristics

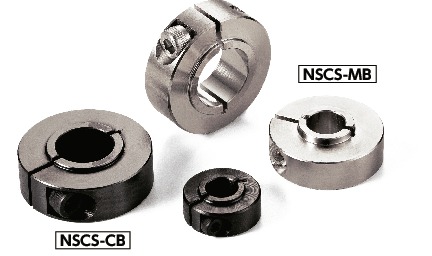

- Set collar for securing bearings.
- It can be fixed by pressing the bearing inner wheel only on the convex of the main body.
- Optimal for securing bearing when it is difficult to fix the snap ring, etc. to the shaft.
- Clamping Type. Mounting and removing are easy. Moreover this does not scratch the shaft.
