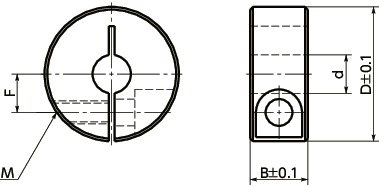

Dimension Drawing
Specs/CAD
Select
Unit : mm
| Part Number | d | B | D | F | M | Mass (g) |
Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
| NSCS-3-8-M | 3 | 8 | 15 | 4.5 | M3 | 10 | 10.23 | CAD | Cart |
| NSCS-4-8-M | 4 | 8 | 15 | 4.5 | M3 | 9 | 10.23 | CAD | Cart |
| NSCS-5-6-M | 5 | 6 | 16 | 5 | M2.6 | 8 | 10.69 | CAD | Cart |
| NSCS-5-8-M | 5 | 8 | 20 | 6 | M3 | 17 | 10.69 | CAD | Cart |
| NSCS-5-10-M | 5 | 10 | 20 | 6 | M4 | 21 | 10.69 | CAD | Cart |
| NSCS-6-6-M | 6 | 6 | 18 | 6 | M2.6 | 10 | 12.90 | CAD | Cart |
| NSCS-6-8-M | 6 | 8 | 20 | 6 | M3 | 17 | 12.90 | CAD | Cart |
| NSCS-6-10-M | 6 | 10 | 20 | 6 | M4 | 21 | 12.90 | CAD | Cart |
| NSCS-8-6-M | 8 | 6 | 22 | 7 | M2.6 | 14 | 14.96 | CAD | Cart |
| NSCS-8-8-M | 8 | 8 | 25 | 8 | M3 | 25 | 14.96 | CAD | Cart |
| NSCS-8-10-M | 8 | 10 | 25 | 8 | M4 | 31 | 14.96 | CAD | Cart |
| NSCS-8-12-M | 8 | 12 | 28 | 8.5 | M5 | 48 | 14.96 | CAD | Cart |
| NSCS-8-15-M | 8 | 15 | 30 | 9 | M6 | 69 | 14.96 | CAD | Cart |
| NSCS-10-6-M | 10 | 6 | 25 | 8 | M2.6 | 17 | 15.41 | CAD | Cart |
| NSCS-10-10-M | 10 | 10 | 30 | 9 | M4 | 44 | 15.41 | CAD | Cart |
| NSCS-10-12-M | 10 | 12 | 30 | 9 | M5 | 54 | 15.41 | CAD | Cart |
| NSCS-10-15-M | 10 | 15 | 35 | 10 | M6 | 92 | 15.41 | CAD | Cart |
| NSCS-12-6-M | 12 | 6 | 25 | 9 | M2.6 | 16 | 15.41 | CAD | Cart |
| NSCS-12-10-M | 12 | 10 | 30 | 10 | M4 | 42 | 15.41 | CAD | Cart |
| NSCS-12-12-M | 12 | 12 | 30 | 10 | M5 | 52 | 15.41 | CAD | Cart |
| NSCS-12-15-M | 12 | 15 | 35 | 11 | M6 | 90 | 15.41 | CAD | Cart |
| NSCS-13-8-M | 13 | 8 | 28 | 11 | M3 | 28 | 16.13 | CAD | Cart |
| NSCS-13-10-M | 13 | 10 | 30 | 10 | M4 | 41 | 16.13 | CAD | Cart |
| NSCS-13-15-M | 13 | 15 | 35 | 11 | M6 | 88 | 16.13 | CAD | Cart |
| NSCS-15-8-M | 15 | 8 | 30 | 11 | M3 | 30 | 17.62 | CAD | Cart |
| NSCS-15-10-M | 15 | 10 | 32 | 11 | M4 | 45 | 17.62 | CAD | Cart |
| NSCS-15-12-M | 15 | 12 | 35 | 12 | M5 | 67 | 17.62 | CAD | Cart |
| NSCS-15-15-M | 15 | 15 | 40 | 13 | M6 | 119 | 17.62 | CAD | Cart |
| NSCS-16-8-M | 16 | 8 | 30 | 11.5 | M3 | 29 | 17.62 | CAD | Cart |
| NSCS-16-10-M | 16 | 10 | 35 | 12 | M4 | 55 | 17.62 | CAD | Cart |
| NSCS-16-12-M | 16 | 12 | 35 | 12 | M5 | 66 | 17.62 | CAD | Cart |
| NSCS-16-15-M | 16 | 15 | 40 | 13 | M6 | 115 | 17.62 | CAD | Cart |
| NSCS-17-15-M | 17 | 15 | 40 | 13 | M6 | 113 | 17.62 | CAD | Cart |
| NSCS-18-15-M | 18 | 15 | 45 | 15 | M6 | 146 | 18.92 | CAD | Cart |
| NSCS-20-8-M | 20 | 8 | 35 | 13 | M3 | 38 | 19.37 | CAD | Cart |
| NSCS-20-10-M | 20 | 10 | 40 | 14 | M4 | 68 | 19.37 | CAD | Cart |
| NSCS-20-12-M | 20 | 12 | 40 | 14 | M5 | 81 | 19.37 | CAD | Cart |
| NSCS-20-15-M | 20 | 15 | 45 | 15 | M6 | 138 | 19.37 | CAD | Cart |
| NSCS-25-10-M | 25 | 10 | 42 | 16.5 | M4 | 65 | 22.10 | CAD | Cart |
| NSCS-25-12-M | 25 | 12 | 45 | 17 | M5 | 96 | 22.10 | CAD | Cart |
| NSCS-25-15-M | 25 | 15 | 50 | 18 | M6 | 159 | 22.10 | CAD | Cart |
| NSCS-30-12-M | 30 | 12 | 50 | 20 | M5 | 110 | 27.21 | CAD | Cart |
| NSCS-30-15-M | 30 | 15 | 55 | 20 | M6 | 184 | 27.21 | CAD | Cart |
| NSCS-35-12-M | 35 | 12 | 55 | 22.5 | M5 | 123 | 30.28 | CAD | Cart |
| NSCS-35-15-M | 35 | 15 | 60 | 23 | M6 | 205 | 30.28 | CAD | Cart |
| NSCS-40-12-M | 40 | 12 | 60 | 25 | M5 | 137 | 34.77 | CAD | Cart |
| NSCS-40-18-M | 40 | 18 | 70 | 26 | M8 | 347 | 34.77 | CAD | Cart |
| NSCS-45-12-M | 45 | 12 | 65 | 28 | M5 | 154 | 43.23 | CAD | Cart |
| NSCS-45-18-M | 45 | 18 | 75 | 28 | M8 | 377 | 43.23 | CAD | Cart |
| NSCS-50-15-M | 50 | 15 | 75 | 30.5 | M6 | 271 | 43.44 | CAD | Cart |
| NSCS-50-18-M | 50 | 18 | 80 | 32 | M8 | 410 | 43.44 | CAD | Cart |
| NSCS-50-22-M | 50 | 22 | 85 | 32 | M10 | 607 | 43.44 | CAD | Cart |
●Hex socket head cap screw is provided.
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form hereHints for Correctly Using NBK Products
The video is an example using NSCS-CP2(NSCS-CP2). You can perform the same operation using this product.
Material/Finish
| NSCS-M | |
|---|---|
| Main Body | S45C Electroless Nickel Plating |
| Hex Socket Head Cap Screw | SUSXM7 |
Characteristics

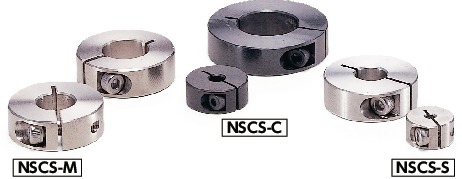

- Clamping type set collars.
- Mounting and removal are easy, with no damage to the shaft.
- Optimal for machines and devices where mounting/removal is frequent, e.g. slide shafts.
