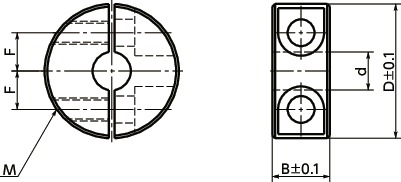

Dimension Drawing
Specs/CAD
Select
Unit : mm
| Part Number | d | B | D | F | M＊1 (Coarse) |
Mass (g) |
Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
| NSCSS-3-8-M | 3 | 8 | 15 | 4.5 | M3 | 9 | 19.24 | CAD | Cart |
| NSCSS-4-8-M | 4 | 8 | 15 | 4.5 | M3 | 9 | 19.77 | CAD | Cart |
| NSCSS-5-6-M | 5 | 6 | 16 | 5 | M2.6 | 7 | 20.91 | CAD | Cart |
| NSCSS-5-8-M | 5 | 8 | 20 | 5.5 | M3 | 13 | 20.91 | CAD | Cart |
| NSCSS-5-10-M | 5 | 10 | 20 | 6 | M4 | 20 | 20.91 | CAD | Cart |
| NSCSS-6-6-M | 6 | 6 | 18 | 6 | M2.6 | 9 | 20.91 | CAD | Cart |
| NSCSS-6-8-M | 6 | 8 | 20 | 6 | M3 | 16 | 20.91 | CAD | Cart |
| NSCSS-6-10-M | 6 | 10 | 20 | 6 | M4 | 19 | 20.91 | CAD | Cart |
| NSCSS-8-6-M | 8 | 6 | 22 | 7 | M2.6 | 13 | 23.34 | CAD | Cart |
| NSCSS-8-8-M | 8 | 8 | 25 | 8 | M3 | 23 | 23.34 | CAD | Cart |
| NSCSS-8-10-M | 8 | 10 | 25 | 8 | M4 | 29 | 23.34 | CAD | Cart |
| NSCSS-8-12-M | 8 | 12 | 28 | 8.5 | M5 | 46 | 23.34 | CAD | Cart |
| NSCSS-8-15-M | 8 | 15 | 30 | 9 | M6 | 64 | 23.34 | CAD | Cart |
| NSCSS-10-6-M | 10 | 6 | 25 | 8 | M2.6 | 16 | 29.50 | CAD | Cart |
| NSCSS-10-10-M | 10 | 10 | 30 | 9 | M4 | 42 | 29.50 | CAD | Cart |
| NSCSS-10-12-M | 10 | 12 | 30 | 9 | M5 | 51 | 29.50 | CAD | Cart |
| NSCSS-10-15-M | 10 | 15 | 35 | 10 | M6 | 86 | 29.50 | CAD | Cart |
| NSCSS-12-6-M | 12 | 6 | 25 | 9 | M2.6 | 15 | 29.50 | CAD | Cart |
| NSCSS-12-10-M | 12 | 10 | 30 | 10 | M4 | 40 | 29.50 | CAD | Cart |
| NSCSS-12-12-M | 12 | 12 | 30 | 10 | M5 | 49 | 29.50 | CAD | Cart |
| NSCSS-12-15-M | 12 | 15 | 35 | 11 | M6 | 84 | 29.50 | CAD | Cart |
| NSCSS-13-8-M | 13 | 8 | 28 | 11 | M3 | 26 | 29.50 | CAD | Cart |
| NSCSS-13-10-M | 13 | 10 | 30 | 10 | M4 | 39 | 29.50 | CAD | Cart |
| NSCSS-13-15-M | 13 | 15 | 35 | 11 | M6 | 82 | 29.50 | CAD | Cart |
| NSCSS-15-8-M | 15 | 8 | 30 | 11 | M3 | 28 | 29.50 | CAD | Cart |
| NSCSS-15-10-M | 15 | 10 | 32 | 11 | M4 | 43 | 29.50 | CAD | Cart |
| NSCSS-15-12-M | 15 | 12 | 35 | 12 | M5 | 65 | 29.50 | CAD | Cart |
| NSCSS-15-15-M | 15 | 15 | 40 | 13 | M6 | 110 | 29.50 | CAD | Cart |
| NSCSS-16-8-M | 16 | 8 | 30 | 11.5 | M3 | 27 | 29.50 | CAD | Cart |
| NSCSS-16-10-M | 16 | 10 | 35 | 12 | M4 | 52 | 29.50 | CAD | Cart |
| NSCSS-16-12-M | 16 | 12 | 35 | 12 | M5 | 62 | 29.50 | CAD | Cart |
| NSCSS-16-15-M | 16 | 15 | 40 | 13 | M6 | 108 | 29.50 | CAD | Cart |
| NSCSS-17-15-M | 17 | 15 | 40 | 13 | M6 | 106 | 33.21 | CAD | Cart |
| NSCSS-18-15-M | 18 | 15 | 45 | 15 | M6 | 136 | 33.02 | CAD | Cart |
| NSCSS-20-8-M | 20 | 8 | 35 | 13 | M3 | 35 | 33.21 | CAD | Cart |
| NSCSS-20-10-M | 20 | 10 | 40 | 14 | M4 | 65 | 33.21 | CAD | Cart |
| NSCSS-20-12-M | 20 | 12 | 40 | 14 | M5 | 77 | 33.21 | CAD | Cart |
| NSCSS-20-15-M | 20 | 15 | 45 | 15 | M6 | 130 | 33.21 | CAD | Cart |
| NSCSS-25-10-M | 25 | 10 | 42 | 16.5 | M4 | 62 | 37.39 | CAD | Cart |
| NSCSS-25-12-M | 25 | 12 | 45 | 17 | M5 | 93 | 37.39 | CAD | Cart |
| NSCSS-25-15-M | 25 | 15 | 50 | 18 | M6 | 153 | 37.39 | CAD | Cart |
| NSCSS-30-12-M | 30 | 12 | 50 | 20 | M5 | 106 | 40.27 | CAD | Cart |
| NSCSS-30-15-M | 30 | 15 | 55 | 20 | M6 | 173 | 40.27 | CAD | Cart |
| NSCSS-35-12-M | 35 | 12 | 55 | 22.5 | M5 | 118 | 43.99 | CAD | Cart |
| NSCSS-35-15-M | 35 | 15 | 60 | 23 | M6 | 200 | 43.99 | CAD | Cart |
| NSCSS-40-12-M | 40 | 12 | 60 | 25 | M5 | 131 | 55.99 | CAD | Cart |
| NSCSS-40-18-M | 40 | 18 | 70 | 26 | M8 | 331 | 55.99 | CAD | Cart |
| NSCSS-45-12-M | 45 | 12 | 65 | 28 | M5 | 148 | 59.31 | CAD | Cart |
| NSCSS-45-18-M | 45 | 18 | 75 | 28 | M8 | 357 | 59.31 | CAD | Cart |
| NSCSS-50-15-M | 50 | 15 | 75 | 30.5 | M6 | 258 | 71.14 | CAD | Cart |
| NSCSS-50-18-M | 50 | 18 | 80 | 32 | M8 | 393 | 71.14 | CAD | Cart |
| NSCSS-50-22-M | 50 | 22 | 85 | 32 | M10 | 581 | 71.14 | CAD | Cart |
＊1： Hex socket head cap screw is provided.
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form hereHints for Correctly Using NBK Products
The video is an example using NSCS-CP2(NSCS-CP2). You can perform the same operation using this product.
Material/Finish
| NSCSS-M | |
|---|---|
| Main Body | S45C Electroless Nickel Plating |
| Hex Socket Head Cap Screw | SUSXM7 |
Characteristics

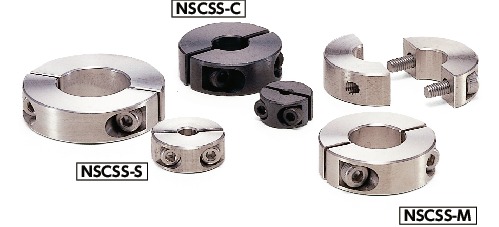

- Split type set collars.
- Because the shaft hole part can be fully split, mounting and removal are easy, with no damage to the shaft.
- Optimal for use with machines and devices that are difficult to disassemble.
