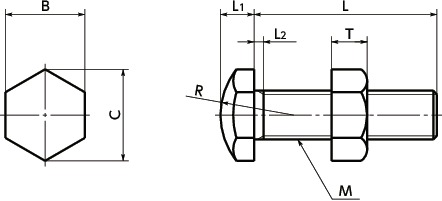

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L | L2 | T | R | B | C | L1 | Mass (g) |
Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SSBS-M6-30-B | M6 | 1 | 30 | 3 | 5 | 10 | 10 | 11.5 | 4 | 11 | 7.44 | CAD | Cart |
| SSBS-M6-40-B | M6 | 1 | 40 | 3 | 5 | 10 | 10 | 11.5 | 4 | 13 | 7.44 | CAD | Cart |
| SSBS-M6-50-B | M6 | 1 | 50 | 3 | 5 | 10 | 10 | 11.5 | 4 | 15 | 7.44 | CAD | Cart |
| SSBS-M8-30-B | M8 | 1.25 | 30 | 3.7 | 6.5 | 12 | 13 | 15 | 5.5 | 21 | 8.32 | CAD | Cart |
| SSBS-M8-40-B | M8 | 1.25 | 40 | 3.7 | 6.5 | 12 | 13 | 15 | 5.5 | 25 | 8.32 | CAD | Cart |
| SSBS-M8-50-B | M8 | 1.25 | 50 | 3.7 | 6.5 | 12 | 13 | 15 | 5.5 | 30 | 8.32 | CAD | Cart |
Material/Finish

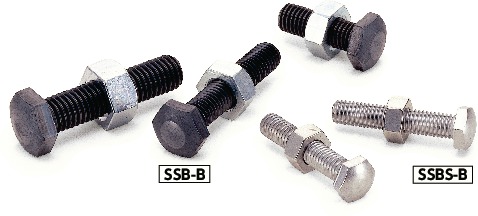

| SSBS-B Made of Stainless Steel | |
|---|---|
| Thread Part | SUS410 Nitriding Treatment (Hardness: 40 HRC or Higher) |
| Lock Nut | SUS304 |
Characteristics
- Hexagon head is round.
- Round part has already been quenched. It is highly abrasion-resistant.
- All products are provided with lock nut.
Usage Example
Use the lock nut on an opposite side of the side that receives the force.
Related Products
The stop pin with excellent abrasion resistance SPM is available for the stopper bolt recipient.SPM
