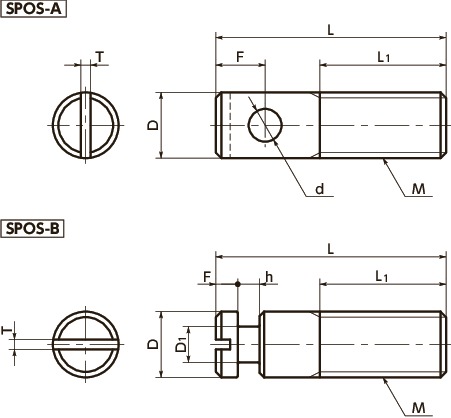

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L | L1 | D | F | d | T | Mass (g) | Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPOS-M5-20-A | M5 | 0.8 | 20 | 10 | 5 | 5 | 2 | 1.2 | 3.5 | 7.34 | CAD | Cart |
| SPOS-M5-25-A | M5 | 0.8 | 25 | 10 | 5 | 5 | 2 | 1.2 | 4 | 7.34 | CAD | Cart |
| SPOS-M5-30-A | M5 | 0.8 | 30 | 10 | 5 | 5 | 2 | 1.2 | 4.5 | 7.34 | CAD | Cart |
Material/Finish
| SPOS | |
|---|---|
| Main Body | SUS303 |
Characteristics

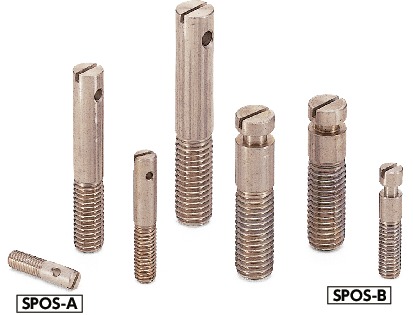

- Post for tensile coil spring.
-
There are bore type and groove type.
SPOS-A----Bore type
SPOS-B----Groove type
