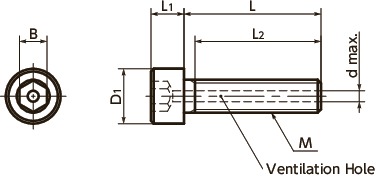

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L | D1 | L1 | L2 | B | d max. |
Mass (g) |
Price (USD) |
CAD Download |
QTY (Piece) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SVSX-M3-6-88 | M3 | 0.5 | 6 | 5.5 | 3 | Full Thread | 2.5 | 1.2 | 0.71 | 4.37 | CAD | Cart |
| SVSX-M3-8-88 | M3 | 0.5 | 8 | 5.5 | 3 | Full Thread | 2.5 | 1.2 | 0.8 | 4.49 | CAD | Cart |
| SVSX-M3-10-88 | M3 | 0.5 | 10 | 5.5 | 3 | Full Thread | 2.5 | 1.2 | 0.88 | 4.89 | CAD | Cart |
| SVSX-M3-12-88 | M3 | 0.5 | 12 | 5.5 | 3 | Full Thread | 2.5 | 1.2 | 0.96 | 5.05 | CAD | Cart |
| SVSX-M3-16-88 | M3 | 0.5 | 16 | 5.5 | 3 | Full Thread | 2.5 | 1.2 | 1.2 | 5.94 | CAD | Cart |
| SVSX-M3-20-88 | M3 | 0.5 | 20 | 5.5 | 3 | Full Thread | 2.5 | 1.2 | 1.4 | 6.92 | CAD | Cart |
| SVSX-M3-25-88 | M3 | 0.5 | 25 | 5.5 | 3 | 18 | 2.5 | 1.2 | 1.6 | 9.50 | CAD | Cart |
| SVSX-M4-6-88 | M4 | 0.7 | 6 | 7 | 4 | Full Thread | 3 | 1.5 | 1.5 | 5.20 | CAD | Cart |
| SVSX-M4-8-88 | M4 | 0.7 | 8 | 7 | 4 | Full Thread | 3 | 1.5 | 1.7 | 5.29 | CAD | Cart |
| SVSX-M4-10-88 | M4 | 0.7 | 10 | 7 | 4 | Full Thread | 3 | 1.5 | 1.8 | 5.74 | CAD | Cart |
| SVSX-M4-12-88 | M4 | 0.7 | 12 | 7 | 4 | Full Thread | 3 | 1.5 | 2 | 5.85 | CAD | Cart |
| SVSX-M4-16-88 | M4 | 0.7 | 16 | 7 | 4 | Full Thread | 3 | 1.5 | 2.3 | 6.35 | CAD | Cart |
| SVSX-M4-20-88 | M4 | 0.7 | 20 | 7 | 4 | Full Thread | 3 | 1.5 | 2.7 | 6.58 | CAD | Cart |
| SVSX-M4-25-88 | M4 | 0.7 | 25 | 7 | 4 | Full Thread | 3 | 1.5 | 3.2 | 7.82 | CAD | Cart |
| SVSX-M5-10-88 | M5 | 0.8 | 10 | 8.5 | 5 | Full Thread | 4 | 1.5 | 2.7 | 6.08 | CAD | Cart |
| SVSX-M5-12-88 | M5 | 0.8 | 12 | 8.5 | 5 | Full Thread | 4 | 1.5 | 3 | 6.35 | CAD | Cart |
| SVSX-M5-16-88 | M5 | 0.8 | 16 | 8.5 | 5 | Full Thread | 4 | 1.5 | 3.5 | 6.92 | CAD | Cart |
| SVSX-M5-20-88 | M5 | 0.8 | 20 | 8.5 | 5 | Full Thread | 4 | 1.5 | 4 | 7.82 | CAD | Cart |
| SVSX-M5-25-88 | M5 | 0.8 | 25 | 8.5 | 5 | Full Thread | 4 | 1.5 | 4.8 | 8.68 | CAD | Cart |
| SVSX-M5-30-88 | M5 | 0.8 | 30 | 8.5 | 5 | 22 | 4 | 1.5 | 5.6 | 9.42 | CAD | Cart |
| SVSX-M6-12-88 | M6 | 1 | 12 | 10 | 6 | Full Thread | 5 | 2 | 5.1 | 6.92 | CAD | Cart |
| SVSX-M6-16-88 | M6 | 1 | 16 | 10 | 6 | Full Thread | 5 | 2 | 5.8 | 8.05 | CAD | Cart |
| SVSX-M6-20-88 | M6 | 1 | 20 | 10 | 6 | Full Thread | 5 | 2 | 6.5 | 8.23 | CAD | Cart |
| SVSX-M6-25-88 | M6 | 1 | 25 | 10 | 6 | Full Thread | 5 | 2 | 7.6 | 9.12 | CAD | Cart |
| SVSX-M6-30-88 | M6 | 1 | 30 | 10 | 6 | Full Thread | 5 | 2 | 8.3 | 10.27 | CAD | Cart |
● Batch cleanroom packing is provided for orders containing multiple items of the same size.
Related Services
Material/Finish
| SVSX | |
|---|---|
| Main Body | SUS316L HiMo |
| Strength Class | 8.8 |
Application
Vacuum devices, vacuum chambers, FPD production equipment,semiconductor devices, and electron microscopes
Characteristics
- Made of high strength stainless steel (Strength class 8.8).
- The ventilation hole easily releases gas trapped in the screw holes of equipment and machines, and supports vacuum drawing of vacuum devices.
- Excellent heat resistance and corrosion resistance.
- Nonmagnetic.
-
About the characteristics of SUS316L HiMo
SNSX-88SNSX-109

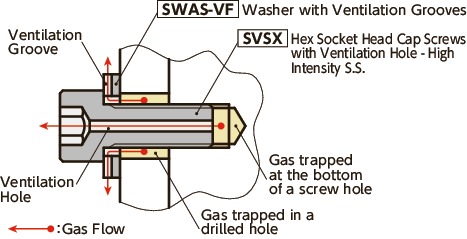

Usage Example
Gas trapped at the bottom of a screw hole is released through SVSX, and gas trapped in a drilled hole is released through SWAS-VF
