Dimension Drawing
Unit : mm
| Part Number | M (Fine) Nominal of Thread |
Pitch | H | D1 | h | B | tB | Recommended Torque (N・m) |
SCAP Part No. | Mass (g) |
Price (USD) |
CAD Download |
QTY (Piece) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCAP-8-CE | M12 | 1 | 11 | 16 | 5 | 13 | 4 | 0.6 | SNCPS-M8 | 5.8 | 74.81 | CAD | Cart |
● Batch cleanroom packing is provided for orders containing multiple items of the same size.
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form hereMaterial/Finish
| SCAP-CE Cover Caps |
|
|---|---|
| Main Body | Al2O3 （99.5％ Alumina） |
Application
Film formation equipment, etching devices, FPD production equipment, and semiconductor devicesCharacteristics

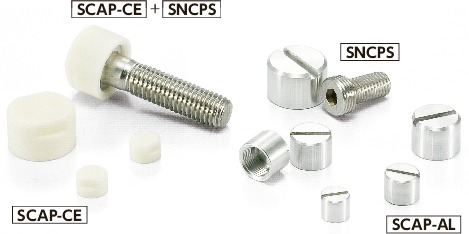

- Combine SCAPCover Cap and SNCPSSocket Head Cap Screw for Cover Cap.
- These caps prevent the corrosion of screw heads due to vacuum chamber processing gas and plasma.
-
SCAPhas 2 material types as standard.
SCAP-AL----Aluminum alloy
SCAP-CE----Ceramic - The screw connection section is made of stainless steel, so this product has a higher tightening strength than aluminum or ceramic screws.
- Cleanroom wash and cleanroom packing are completed.⇒Cleanroom Wash / Cleanroom Packing Service
- Other requested materials such as Inconel＊1 and Hastelloy＊1 can be used for Cover Caps.
＊1： Inconel is a registered trademark of Special Metals Corporation.
＊1： Hastelloy is a registered trademark of Haynes International, Inc.
