Dimension Drawing
Specs/CAD
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L | B | L1 | L2 | Mass (g) | Price (USD) |
CAD Download |
QTY (Piece) |
|---|---|---|---|---|---|---|---|---|---|---|
| SNHDS-M20-50 | M20 | 2.5 | 50 | 30 | 13 | 46 | 185 | 53.01 | CAD | Cart |
| SNHDS-M20-60 | M20 | 2.5 | 60 | 30 | 13 | 46 | 209 | 58.00 | CAD | Cart |
| SNHDS-M20-70 | M20 | 2.5 | 70 | 30 | 13 | 46 | 234 | 63.09 | CAD | Cart |
| SNHDS-M20-80 | M20 | 2.5 | 80 | 30 | 13 | 46 | 258 | 68.64 | CAD | Cart |
Related Services
Material/Finish
| SNHDS | |
|---|---|
| Main body | UNS S31803 |
Application
Seawater desalination equipment / Seawater intake pump /Offshore instruments / Food machinery / Food production line
Characteristics

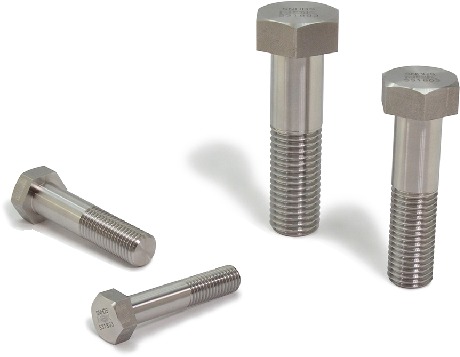

- Made of duplex stainless steel, combining the best of austenitic and ferritic steel.
- Excellent strength and corrosion resistance compared to SUS316L.
- It has magnetism.
- For applications in chloride environments such as seawater.
Mechanical Properties
| UNS S31803 | SUS316L | |
|---|---|---|
| Tensile strength（N/mm2） | 620 or above | 480 or above |
| 0.2% Proof Stress (N/mm2) | 450 or above | 175 or above |
| Extension（％） | 18 or above | 40 or above |
| Hardness（HRB） | （106 or less） | 90 or less |
Values in chart are for reference only. They are not guaranteed values.
