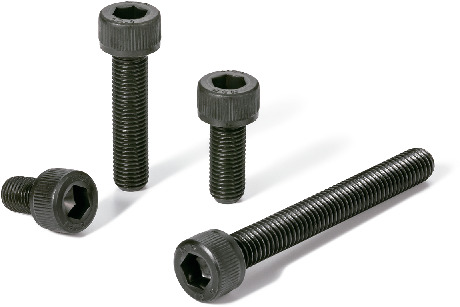

SNS-J/Socket Head Cap Screws

RoHS Compliant

  • High strength
  • High Specific Strength
SNS-JSocket Head Cap Screws

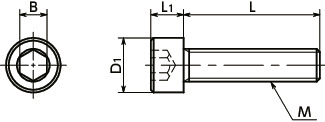

Dimension Drawing

SNS-JSocket Head Cap Screws寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M3
M4
M5
M6
M8
M10
M12
M16
L
All
4
5
6
8
10
12
16
20
25
30
35
40
45
50
60
70
80

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 B Qty per Pack Mass
(g)		 Price
(USD)		 CAD
Download		 QTY
(Pack)
SNS-M3-4 M3 0.5 4 5.5 3 2.5 50 0.65 21.84 CAD Cart
SNS-M3-5 M3 0.5 5 5.5 3 2.5 50 0.69 8.58 CAD Cart
SNS-M3-6 M3 0.5 6 5.5 3 2.5 50 0.73 7.03 CAD Cart
SNS-M3-8 M3 0.5 8 5.5 3 2.5 50 0.8 7.03 CAD Cart
SNS-M3-10 M3 0.5 10 5.5 3 2.5 50 0.88 7.03 CAD Cart
SNS-M3-12 M3 0.5 12 5.5 3 2.5 50 0.96 7.03 CAD Cart
SNS-M3-16 M3 0.5 16 5.5 3 2.5 50 1.2 7.03 CAD Cart
SNS-M3-20 M3 0.5 20 5.5 3 2.5 50 1.3 7.80 CAD Cart
SNS-M3-25 M3 0.5 25 5.5 3 2.5 50 1.5 21.84 CAD Cart
SNS-M4-5 M4 0.7 5 7 4 3 50 1.5 10.93 CAD Cart
SNS-M4-6 M4 0.7 6 7 4 3 50 1.6 7.80 CAD Cart
SNS-M4-8 M4 0.7 8 7 4 3 50 1.7 7.03 CAD Cart
SNS-M4-10 M4 0.7 10 7 4 3 50 1.9 7.03 CAD Cart
SNS-M4-12 M4 0.7 12 7 4 3 50 2 7.03 CAD Cart
SNS-M4-16 M4 0.7 16 7 4 3 50 2.3 7.03 CAD Cart
SNS-M4-20 M4 0.7 20 7 4 3 50 2.6 7.80 CAD Cart
SNS-M4-25 M4 0.7 25 7 4 3 50 2.9 8.58 CAD Cart
SNS-M4-30 M4 0.7 30 7 4 3 50 3.2 23.40 CAD Cart
SNS-M4-35 M4 0.7 35 7 4 3 50 3.6 31.18 CAD Cart
SNS-M5-6 M5 0.8 6 8.5 5 4 50 2.9 9.37 CAD Cart
SNS-M5-8 M5 0.8 8 8.5 5 4 50 3.1 8.58 CAD Cart
SNS-M5-10 M5 0.8 10 8.5 5 4 50 3.3 8.58 CAD Cart
SNS-M5-12 M5 0.8 12 8.5 5 4 50 3.5 8.58 CAD Cart
SNS-M5-16 M5 0.8 16 8.5 5 4 50 4 8.58 CAD Cart
SNS-M5-20 M5 0.8 20 8.5 5 4 50 4.4 8.58 CAD Cart
SNS-M5-25 M5 0.8 25 8.5 5 4 50 5 10.93 CAD Cart
SNS-M5-30 M5 0.8 30 8.5 5 4 50 5.5 25.74 CAD Cart
SNS-M5-35 M5 0.8 35 8.5 5 4 50 6.1 30.40 CAD Cart
SNS-M5-40 M5 0.8 40 8.5 5 4 50 6.6 39.76 CAD Cart
SNS-M6-8 M6 1 8 10 6 5 50 4.8 10.15 CAD Cart
SNS-M6-10 M6 1 10 10 6 5 50 5.1 10.15 CAD Cart
SNS-M6-12 M6 1 12 10 6 5 50 5.5 10.15 CAD Cart
SNS-M6-16 M6 1 16 10 6 5 50 6.1 10.93 CAD Cart
SNS-M6-20 M6 1 20 10 6 5 50 6.7 11.70 CAD Cart
SNS-M6-25 M6 1 25 10 6 5 50 7.5 11.70 CAD Cart
SNS-M6-30 M6 1 30 10 6 5 50 8.3 14.05 CAD Cart
SNS-M6-35 M6 1 35 10 6 5 50 9.1 41.31 CAD Cart
SNS-M6-40 M6 1 40 10 6 5 50 9.8 46.78 CAD Cart
SNS-M6-45 M6 1 45 10 6 5 50 11 51.46 CAD Cart
SNS-M6-50 M6 1 50 10 6 5 50 12 53.01 CAD Cart
SNS-M8-10 M8 1.25 10 13 8 6 20 11 10.61 CAD Cart
SNS-M8-12 M8 1.25 12 13 8 6 20 12 10.61 CAD Cart
SNS-M8-16 M8 1.25 16 13 8 6 20 13 7.80 CAD Cart
SNS-M8-20 M8 1.25 20 13 8 6 20 14 8.12 CAD Cart
SNS-M8-25 M8 1.25 25 13 8 6 20 16 10.00 CAD Cart
SNS-M8-30 M8 1.25 30 13 8 6 20 17 10.00 CAD Cart
SNS-M8-35 M8 1.25 35 13 8 6 20 19 10.00 CAD Cart
SNS-M8-40 M8 1.25 40 13 8 6 20 20 24.64 CAD Cart
SNS-M8-45 M8 1.25 45 13 8 6 20 21 26.82 CAD Cart
SNS-M8-50 M8 1.25 50 13 8 6 20 23 29.01 CAD Cart
SNS-M8-60 M8 1.25 60 13 8 6 20 26 33.06 CAD Cart
SNS-M10-16 M10 1.5 16 16 10 8 10 22 8.12 CAD Cart
SNS-M10-20 M10 1.5 20 16 10 8 10 24 8.12 CAD Cart
SNS-M10-25 M10 1.5 25 16 10 8 10 26 8.12 CAD Cart
SNS-M10-30 M10 1.5 30 16 10 8 10 29 8.12 CAD Cart
SNS-M10-35 M10 1.5 35 16 10 8 10 31 8.12 CAD Cart
SNS-M10-40 M10 1.5 40 16 10 8 10 33 12.48 CAD Cart
SNS-M10-45 M10 1.5 45 16 10 8 10 35 19.65 CAD Cart
SNS-M10-50 M10 1.5 50 16 10 8 10 38 22.15 CAD Cart
SNS-M10-60 M10 1.5 60 16 10 8 10 42 26.82 CAD Cart
SNS-M12-30 M12 1.75 30 18 12 10 5 41 7.03 CAD Cart
SNS-M12-35 M12 1.75 35 18 12 10 5 45 7.34 CAD Cart
SNS-M12-40 M12 1.75 40 18 12 10 5 48 7.80 CAD Cart
SNS-M12-45 M12 1.75 45 18 12 10 5 51 8.27 CAD Cart
SNS-M12-50 M12 1.75 50 18 12 10 5 55 9.06 CAD Cart
SNS-M12-60 M12 1.75 60 18 12 10 5 61 18.26 CAD Cart
SNS-M16-40 M16 2 40 24 16 14 1 97 3.44 CAD Cart
SNS-M16-45 M16 2 45 24 16 14 1 103 3.60 CAD Cart
SNS-M16-50 M16 2 50 24 16 14 1 110 3.75 CAD Cart
SNS-M16-60 M16 2 60 24 16 14 1 122 4.23 CAD Cart
SNS-M16-70 M16 2 70 24 16 14 1 134 7.97 CAD Cart
SNS-M16-80 M16 2 80 24 16 14 1 146 8.89 CAD Cart

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here
Part Number
Amount
Price（＄）

Check other products Cart

　　　　　　

Related Services

Material/Finish

SNS-J
Main Body SCM435
Ferrosoferric Oxide Film (Black)
Strength Class 12.9

Characteristics

  • Complies with JIS B 1176, ISO 4762, and DIN 912. For details on shape and dimensions, please refer to the "Technical Information (JIS B 1176, ISO 4762)".
  • Strength class is 12.9. High strength.
  • M3 - M16. Selection from abundant size variations is available to suit the device or equipment.
