Socket Button Head Cap Screws - Inch Thread

SNBS(INCH)

Safety Precautions

RoHS Compliant

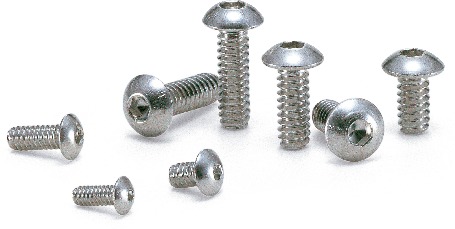

SNBS(INCH)Socket Button Head Cap Screws - Inch Thread

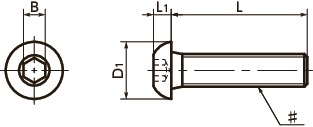

Dimension Drawing

SNBS(INCH)Socket Button Head Cap Screws - Inch Thread寸法図

Specs/CAD

Select

♯Nominal
All
No.4-40UNC
No.5-40UNC
No.6-32UNC
No.8-32UNC
No.10-24UNC
No.10-32UNF
1/4-20UNC
L
All
3/16"
1/4"
5/16"
3/8"
1/2"
5/8"
3/4"
7/8"
1"

Unit : inch

Part Number ♯Nominal L D1 L1 B Qty per Pack Mass
(g)		 Price
(USD)		 CAD
Download		 QTY
(Pack)
SNBS-#4-40-3/16 No.4-40UNC 3/16 0.213 0.059 1/16 10 0.35 15.03 CAD Cart
SNBS-#4-40-1/4 No.4-40UNC 1/4 0.213 0.059 1/16 10 0.41 10.30 CAD Cart
SNBS-#4-40-5/16 No.4-40UNC 5/16 0.213 0.059 1/16 10 0.47 10.40 CAD Cart
SNBS-#4-40-3/8 No.4-40UNC 3/8 0.213 0.059 1/16 10 0.53 10.73 CAD Cart
SNBS-#4-40-1/2 No.4-40UNC 1/2 0.213 0.059 1/16 10 0.65 11.28 CAD Cart
SNBS-#5-40-1/4 No.5-40UNC 1/4 0.238 0.066 5/64 10 0.53 21.65 CAD Cart
SNBS-#5-40-3/8 No.5-40UNC 3/8 0.238 0.066 5/64 10 0.69 22.78 CAD Cart
SNBS-#5-40-1/2 No.5-40UNC 1/2 0.238 0.066 5/64 10 0.85 23.94 CAD Cart
SNBS-#6-32-1/4 No.6-32UNC 1/4 0.262 0.073 5/64 10 0.67 11.09 CAD Cart
SNBS-#6-32-5/16 No.6-32UNC 5/16 0.262 0.073 5/64 10 0.77 11.28 CAD Cart
SNBS-#6-32-3/8 No.6-32UNC 3/8 0.262 0.073 5/64 10 0.86 11.62 CAD Cart
SNBS-#6-32-1/2 No.6-32UNC 1/2 0.262 0.073 5/64 10 1 12.09 CAD Cart
SNBS-#6-32-5/8 No.6-32UNC 5/8 0.262 0.073 5/64 10 1.2 13.02 CAD Cart
SNBS-#6-32-3/4 No.6-32UNC 3/4 0.262 0.073 5/64 10 1.4 14.60 CAD Cart
SNBS-#8-32-1/4 No.8-32UNC 1/4 0.312 0.087 3/32 10 1.1 12.05 CAD Cart
SNBS-#8-32-3/8 No.8-32UNC 3/8 0.312 0.087 3/32 10 1.3 12.47 CAD Cart
SNBS-#8-32-1/2 No.8-32UNC 1/2 0.312 0.087 3/32 10 1.6 13.19 CAD Cart
SNBS-#8-32-5/8 No.8-32UNC 5/8 0.312 0.087 3/32 10 1.9 15.53 CAD Cart
SNBS-#8-32-3/4 No.8-32UNC 3/4 0.312 0.087 3/32 10 2.1 16.91 CAD Cart
SNBS-#10-24-1/4 No.10-24UNC 1/4 0.361 0.101 1/8 10 1.5 12.86 CAD Cart
SNBS-#10-24-3/8 No.10-24UNC 3/8 0.361 0.101 1/8 10 1.8 14.14 CAD Cart
SNBS-#10-24-1/2 No.10-24UNC 1/2 0.361 0.101 1/8 10 2.2 15.36 CAD Cart
SNBS-#10-24-5/8 No.10-24UNC 5/8 0.361 0.101 1/8 10 2.5 16.77 CAD Cart
SNBS-#10-24-3/4 No.10-24UNC 3/4 0.361 0.101 1/8 10 2.9 17.58 CAD Cart
SNBS-#10-24-7/8 No.10-24UNC 7/8 0.361 0.101 1/8 10 3.2 18.36 CAD Cart
SNBS-#10-24-1 No.10-24UNC 1 0.361 0.101 1/8 10 3.6 20.43 CAD Cart
SNBS-#10-32-1/4 No.10-32UNF 1/4 0.361 0.101 1/8 10 1.5 12.86 CAD Cart
SNBS-#10-32-3/8 No.10-32UNF 3/8 0.361 0.101 1/8 10 1.9 14.14 CAD Cart
SNBS-#10-32-1/2 No.10-32UNF 1/2 0.361 0.101 1/8 10 2.3 15.36 CAD Cart
SNBS-#10-32-5/8 No.10-32UNF 5/8 0.361 0.101 1/8 10 2.6 16.77 CAD Cart
SNBS-#10-32-3/4 No.10-32UNF 3/4 0.361 0.101 1/8 10 3 17.58 CAD Cart
SNBS-#10-32-7/8 No.10-32UNF 7/8 0.361 0.101 1/8 10 3.4 18.36 CAD Cart
SNBS-#10-32-1 No.10-32UNF 1 0.361 0.101 1/8 10 3.8 20.43 CAD Cart
SNBS-1/4-20-3/8 1/4-20UNC 3/8 0.437 0.132 5/32 10 3.3 23.10 CAD Cart
SNBS-1/4-20-1/2 1/4-20UNC 1/2 0.437 0.132 5/32 10 3.9 21.83 CAD Cart
SNBS-1/4-20-5/8 1/4-20UNC 5/8 0.437 0.132 5/32 10 4.6 23.40 CAD Cart
SNBS-1/4-20-3/4 1/4-20UNC 3/4 0.437 0.132 5/32 10 5.2 24.85 CAD Cart
SNBS-1/4-20-7/8 1/4-20UNC 7/8 0.437 0.132 5/32 10 5.8 27.11 CAD Cart
SNBS-1/4-20-1 1/4-20UNC 1 0.437 0.132 5/32 10 6.4 28.69 CAD Cart

●All dimensions are in inches.

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here
Part Number
Amount
Price（＄）

Check other products Cart

　　　　　　

Related Services

Material/Finish

SNBS(INCH)
Main Body Stainless Steel（Grade：A2）
Strength Class A2-50

Application

Equipment and devices using inch screw specifications

Characteristics

  • Socket button head cap screws with inch thread.
  • ANSI B18.3 compliance.
  • Install and remove by using SKH(INCH) Specialty Key.SKH(INCH)
  • Also, products with special specifications such as dimensions, shapes, materials, surface treatments, cleanroom washing and special packaging are available.⇒We can make a screw like this one
