SPA-P(INCH)/Plastic Inch Cross Recessed Pan Head Machine Screws - RENY

Safety PrecautionsProperty

RoHS Compliant

  • High strength
  • Light Weight
  • High Specific Strength

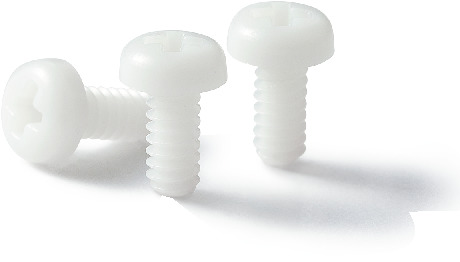

SPA-P(INCH)Plastic Inch Cross Recessed Pan Head Machine Screws - RENY

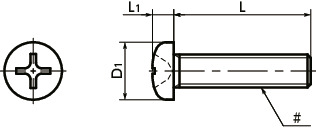

Dimension Drawing

SPA-P(INCH)Plastic Inch Cross Recessed Pan Head Machine Screws - RENY寸法図

Specs/CAD

Select

# Nominal of Thread
All
No.2-56UNC
No.4-40UNC
No.6-32UNC
No.8-32UNC
No.10-32UNF
1/4-20UNC
L
All
3/16"
1/4"
5/16"
3/8"
1/2"
5/8"
3/4"
7/8"
1"
1 1/4"

Unit : inch

Part Number # Nominal of Thread L D1 L1 Cross-recessed Socket No. Tensile Breaking
Load (N)＊1		 Torsional
Torque
(N・m)＊1		 Qty per Pack Mass
(g)		 Price
(USD)		 CAD
Download		 QTY
(Pack)
SPA-#2-56-3/16-P No.2-56UNC 3/16 0.167 0.058 1 417 0.14 20 0.062 11.23 CAD Cart
SPA-#2-56-1/4-P No.2-56UNC 1/4 0.167 0.058 1 417 0.14 20 0.071 11.23 CAD Cart
SPA-#2-56-5/16-P No.2-56UNC 5/16 0.167 0.058 1 417 0.14 20 0.08 11.23 CAD Cart
SPA-#2-56-3/8-P No.2-56UNC 3/8 0.167 0.058 1 417 0.14 20 0.089 11.23 CAD Cart
SPA-#2-56-3/16-P(100) No.2-56UNC 3/16 0.167 0.058 1 417 0.14 100 0.062 31.25 CAD Cart
SPA-#2-56-1/4-P(100) No.2-56UNC 1/4 0.167 0.058 1 417 0.14 100 0.071 31.25 CAD Cart
SPA-#2-56-5/16-P(100) No.2-56UNC 5/16 0.167 0.058 1 417 0.14 100 0.08 32.50 CAD Cart
SPA-#2-56-3/8-P(100) No.2-56UNC 3/8 0.167 0.058 1 417 0.14 100 0.089 32.50 CAD Cart
SPA-#2-56-3/16-P(1000) No.2-56UNC 3/16 0.167 0.058 1 417 0.14 1000 0.062 237.50 CAD Cart
SPA-#2-56-1/4-P(1000) No.2-56UNC 1/4 0.167 0.058 1 417 0.14 1000 0.071 237.50 CAD Cart
SPA-#2-56-5/16-P(1000) No.2-56UNC 5/16 0.167 0.058 1 417 0.14 1000 0.08 250.00 CAD Cart
SPA-#2-56-3/8-P(1000) No.2-56UNC 3/8 0.167 0.058 1 417 0.14 1000 0.089 250.00 CAD Cart
SPA-#4-40-1/4-P No.4-40UNC 1/4 0.219 0.08 1 618 0.28 10 0.1 5.46 CAD Cart
SPA-#4-40-5/16-P No.4-40UNC 5/16 0.219 0.08 1 618 0.28 10 0.11 5.67 CAD Cart
SPA-#4-40-3/8-P No.4-40UNC 3/8 0.219 0.08 1 618 0.28 10 0.11 5.82 CAD Cart
SPA-#4-40-1/2-P No.4-40UNC 1/2 0.219 0.08 1 618 0.28 10 0.12 6.55 CAD Cart
SPA-#4-40-5/8-P No.4-40UNC 5/8 0.219 0.08 1 618 0.28 10 0.12 6.74 CAD Cart
SPA-#4-40-3/4-P No.4-40UNC 3/4 0.219 0.08 1 618 0.28 10 0.13 6.90 CAD Cart
SPA-#4-40-7/8-P No.4-40UNC 7/8 0.219 0.08 1 618 0.28 10 0.13 6.90 CAD Cart
SPA-#4-40-1-P No.4-40UNC 1 0.219 0.08 1 618 0.28 10 0.14 7.17 CAD Cart
SPA-#4-40-1/4-P(100) No.4-40UNC 1/4 0.219 0.08 1 618 0.28 100 0.1 31.25 CAD Cart
SPA-#4-40-5/16-P(100) No.4-40UNC 5/16 0.219 0.08 1 618 0.28 100 0.11 31.25 CAD Cart
SPA-#4-40-3/8-P(100) No.4-40UNC 3/8 0.219 0.08 1 618 0.28 100 0.11 32.50 CAD Cart
SPA-#4-40-1/2-P(100) No.4-40UNC 1/2 0.219 0.08 1 618 0.28 100 0.12 37.50 CAD Cart
SPA-#4-40-5/8-P(100) No.4-40UNC 5/8 0.219 0.08 1 618 0.28 100 0.12 38.75 CAD Cart
SPA-#4-40-3/4-P(100) No.4-40UNC 3/4 0.219 0.08 1 618 0.28 100 0.13 40.00 CAD Cart
SPA-#4-40-7/8-P(100) No.4-40UNC 7/8 0.219 0.08 1 618 0.28 100 0.13 40.00 CAD Cart
SPA-#4-40-1-P(100) No.4-40UNC 1 0.219 0.08 1 618 0.28 100 0.14 41.25 CAD Cart
SPA-#4-40-1/4-P(1000) No.4-40UNC 1/4 0.219 0.08 1 618 0.28 1000 0.1 237.50 CAD Cart
SPA-#4-40-5/16-P(1000) No.4-40UNC 5/16 0.219 0.08 1 618 0.28 1000 0.11 250.00 CAD Cart
SPA-#4-40-3/8-P(1000) No.4-40UNC 3/8 0.219 0.08 1 618 0.28 1000 0.11 250.00 CAD Cart
SPA-#4-40-1/2-P(1000) No.4-40UNC 1/2 0.219 0.08 1 618 0.28 1000 0.12 287.50 CAD Cart
SPA-#4-40-5/8-P(1000) No.4-40UNC 5/8 0.219 0.08 1 618 0.28 1000 0.12 300.00 CAD Cart
SPA-#4-40-3/4-P(1000) No.4-40UNC 3/4 0.219 0.08 1 618 0.28 1000 0.13 300.00 CAD Cart
SPA-#4-40-7/8-P(1000) No.4-40UNC 7/8 0.219 0.08 1 618 0.28 1000 0.13 312.50 CAD Cart
SPA-#4-40-1-P(1000) No.4-40UNC 1 0.219 0.08 1 618 0.28 1000 0.14 312.50 CAD Cart
SPA-#6-32-1/4-P No.6-32UNC 1/4 0.270 0.097 2 978 0.55 20 0.25 11.85 CAD Cart
SPA-#6-32-5/16-P No.6-32UNC 5/16 0.270 0.097 2 978 0.55 20 0.28 12.16 CAD Cart
SPA-#6-32-3/8-P No.6-32UNC 3/8 0.270 0.097 2 978 0.55 20 0.30 12.79 CAD Cart
SPA-#6-32-1/2-P No.6-32UNC 1/2 0.270 0.097 2 978 0.55 20 0.35 14.66 CAD Cart
SPA-#6-32-5/8-P No.6-32UNC 5/8 0.270 0.097 2 978 0.55 20 0.40 15.28 CAD Cart
SPA-#6-32-3/4-P No.6-32UNC 3/4 0.270 0.097 2 978 0.55 20 0.45 16.53 CAD Cart
SPA-#6-32-7/8-P No.6-32UNC 7/8 0.270 0.097 2 978 0.55 20 0.50 17.15 CAD Cart
SPA-#6-32-1-P No.6-32UNC 1 0.270 0.097 2 978 0.55 20 0.55 17.46 CAD Cart
SPA-#6-32-1/4-P(100) No.6-32UNC 1/4 0.270 0.097 2 978 0.55 100 0.25 33.75 CAD Cart
SPA-#6-32-5/16-P(100) No.6-32UNC 5/16 0.270 0.097 2 978 0.55 100 0.28 35.00 CAD Cart
SPA-#6-32-3/8-P(100) No.6-32UNC 3/8 0.270 0.097 2 978 0.55 100 0.30 36.25 CAD Cart
SPA-#6-32-1/2-P(100) No.6-32UNC 1/2 0.270 0.097 2 978 0.55 100 0.35 41.25 CAD Cart
SPA-#6-32-5/8-P(100) No.6-32UNC 5/8 0.270 0.097 2 978 0.55 100 0.40 42.50 CAD Cart
SPA-#6-32-3/4-P(100) No.6-32UNC 3/4 0.270 0.097 2 978 0.55 100 0.45 46.25 CAD Cart
SPA-#6-32-7/8-P(100) No.6-32UNC 7/8 0.270 0.097 2 978 0.55 100 0.50 47.50 CAD Cart
SPA-#6-32-1-P(100) No.6-32UNC 1 0.270 0.097 2 978 0.55 100 0.55 50.00 CAD Cart
SPA-#6-32-1/4-P(1000) No.6-32UNC 1/4 0.270 0.097 2 978 0.55 1000 0.25 262.50 CAD Cart
SPA-#6-32-5/16-P(1000) No.6-32UNC 5/16 0.270 0.097 2 978 0.55 1000 0.28 275.00 CAD Cart
SPA-#6-32-3/8-P(1000) No.6-32UNC 3/8 0.270 0.097 2 978 0.55 1000 0.30 287.50 CAD Cart
SPA-#6-32-1/2-P(1000) No.6-32UNC 1/2 0.270 0.097 2 978 0.55 1000 0.35 312.50 CAD Cart
SPA-#6-32-5/8-P(1000) No.6-32UNC 5/8 0.270 0.097 2 978 0.55 1000 0.40 325.00 CAD Cart
SPA-#6-32-3/4-P(1000) No.6-32UNC 3/4 0.270 0.097 2 978 0.55 1000 0.45 350.00 CAD Cart
SPA-#6-32-7/8-P(1000) No.6-32UNC 7/8 0.270 0.097 2 978 0.55 1000 0.50 362.50 CAD Cart
SPA-#6-32-1-P(1000) No.6-32UNC 1 0.270 0.097 2 978 0.55 1000 0.55 375.00 CAD Cart
SPA-#8-32-1/4-P No.8-32UNC 1/4 0.322 0.115 2 1485 1.07 20 0.39 17.46 CAD Cart
SPA-#8-32-5/16-P No.8-32UNC 5/16 0.322 0.115 2 1485 1.07 20 0.43 19.64 CAD Cart
SPA-#8-32-3/8-P No.8-32UNC 3/8 0.322 0.115 2 1485 1.07 20 0.46 22.14 CAD Cart
SPA-#8-32-1/2-P No.8-32UNC 1/2 0.322 0.115 2 1485 1.07 20 0.53 22.45 CAD Cart
SPA-#8-32-5/8-P No.8-32UNC 5/8 0.322 0.115 2 1485 1.07 20 0.60 24.01 CAD Cart
SPA-#8-32-3/4-P No.8-32UNC 3/4 0.322 0.115 2 1485 1.07 20 0.67 25.57 CAD Cart
SPA-#8-32-7/8-P No.8-32UNC 7/8 0.322 0.115 2 1485 1.07 20 0.74 29.00 CAD Cart
SPA-#8-32-1-P No.8-32UNC 1 0.322 0.115 2 1485 1.07 20 0.81 31.18 CAD Cart
SPA-#8-32-1/4-P(100) No.8-32UNC 1/4 0.322 0.115 2 1485 1.07 100 0.39 50.00 CAD Cart
SPA-#8-32-5/16-P(100) No.8-32UNC 5/16 0.322 0.115 2 1485 1.07 100 0.43 55.00 CAD Cart
SPA-#8-32-3/8-P(100) No.8-32UNC 3/8 0.322 0.115 2 1485 1.07 100 0.46 61.25 CAD Cart
SPA-#8-32-1/2-P(100) No.8-32UNC 1/2 0.322 0.115 2 1485 1.07 100 0.53 62.50 CAD Cart
SPA-#8-32-5/8-P(100) No.8-32UNC 5/8 0.322 0.115 2 1485 1.07 100 0.60 67.50 CAD Cart
SPA-#8-32-3/4-P(100) No.8-32UNC 3/4 0.322 0.115 2 1485 1.07 100 0.67 71.25 CAD Cart
SPA-#8-32-7/8-P(100) No.8-32UNC 7/8 0.322 0.115 2 1485 1.07 100 0.74 81.25 CAD Cart
SPA-#8-32-1-P(100) No.8-32UNC 1 0.322 0.115 2 1485 1.07 100 0.81 87.50 CAD Cart
SPA-#8-32-1/4-P(500) No.8-32UNC 1/4 0.322 0.115 2 1485 1.07 500 0.39 193.75 CAD Cart
SPA-#8-32-5/16-P(500) No.8-32UNC 5/16 0.322 0.115 2 1485 1.07 500 0.43 218.75 CAD Cart
SPA-#8-32-3/8-P(500) No.8-32UNC 3/8 0.322 0.115 2 1485 1.07 500 0.46 243.75 CAD Cart
SPA-#8-32-1/2-P(200) No.8-32UNC 1/2 0.322 0.115 2 1485 1.07 200 0.53 97.50 CAD Cart
SPA-#8-32-5/8-P(200) No.8-32UNC 5/8 0.322 0.115 2 1485 1.07 200 0.60 105.00 CAD Cart
SPA-#10-32-3/8-P No.10-32UNF 3/8 0.373 0.133 2 2152 1.49 20 0.68 23.07 CAD Cart
SPA-#10-32-1/2-P No.10-32UNF 1/2 0.373 0.133 2 2152 1.49 20 0.77 22.45 CAD Cart
SPA-#10-32-5/8-P No.10-32UNF 5/8 0.373 0.133 2 2152 1.49 20 0.87 27.12 CAD Cart
SPA-#10-32-3/4-P No.10-32UNF 3/4 0.373 0.133 2 2152 1.49 20 0.96 28.68 CAD Cart
SPA-#10-32-7/8-P No.10-32UNF 7/8 0.373 0.133 2 2152 1.49 20 1.1 31.18 CAD Cart
SPA-#10-32-1-P No.10-32UNF 1 0.373 0.133 2 2152 1.49 20 1.2 34.61 CAD Cart
SPA-#10-32-3/8-P(100) No.10-32UNF 3/8 0.373 0.133 2 2152 1.49 100 0.68 63.75 CAD Cart
SPA-#10-32-1/2-P(100) No.10-32UNF 1/2 0.373 0.133 2 2152 1.49 100 0.77 71.25 CAD Cart
SPA-#10-32-5/8-P(100) No.10-32UNF 5/8 0.373 0.133 2 2152 1.49 100 0.87 76.25 CAD Cart
SPA-#10-32-3/4-P(100) No.10-32UNF 3/4 0.373 0.133 2 2152 1.49 100 0.96 81.25 CAD Cart
SPA-#10-32-7/8-P(100) No.10-32UNF 7/8 0.373 0.133 2 2152 1.49 100 1.1 87.50 CAD Cart
SPA-#10-32-1-P(100) No.10-32UNF 1 0.373 0.133 2 2152 1.49 100 1.2 96.25 CAD Cart
SPA-#10-32-3/8-P(200) No.10-32UNF 3/8 0.373 0.133 2 2152 1.49 200 0.68 100.00 CAD Cart
SPA-#10-32-1/2-P(200) No.10-32UNF 1/2 0.373 0.133 2 2152 1.49 200 0.77 110.00 CAD Cart
SPA-1/4-20-3/8-P 1/4-20UNC 3/8 0.492 0.175 3 3129 3.00 20 1.4 25.57 CAD Cart
SPA-1/4-20-1/2-P 1/4-20UNC 1/2 0.492 0.175 3 3129 3.00 20 1.6 29.00 CAD Cart
SPA-1/4-20-5/8-P 1/4-20UNC 5/8 0.492 0.175 3 3129 3.00 20 1.7 29.93 CAD Cart
SPA-1/4-20-3/4-P 1/4-20UNC 3/4 0.492 0.175 3 3129 3.00 20 1.9 32.11 CAD Cart
SPA-1/4-20-7/8-P 1/4-20UNC 7/8 0.492 0.175 3 3129 3.00 20 2.0 34.61 CAD Cart
SPA-1/4-20-1-P 1/4-20UNC 1 0.492 0.175 3 3129 3.00 20 2.2 38.03 CAD Cart
SPA-1/4-20-1 1/4-P 1/4-20UNC 1 1/4 0.492 0.175 3 3129 3.00 20 2.5 42.40 CAD Cart
SPA-1/4-20-3/8-P(100) 1/4-20UNC 3/8 0.492 0.175 3 3129 3.00 100 1.4 71.25 CAD Cart
SPA-1/4-20-1/2-P(100) 1/4-20UNC 1/2 0.492 0.175 3 3129 3.00 100 1.6 81.25 CAD Cart
SPA-1/4-20-5/8-P(100) 1/4-20UNC 5/8 0.492 0.175 3 3129 3.00 100 1.7 83.75 CAD Cart
SPA-1/4-20-3/4-P(100) 1/4-20UNC 3/4 0.492 0.175 3 3129 3.00 100 1.9 90.00 CAD Cart
SPA-1/4-20-7/8-P(100) 1/4-20UNC 7/8 0.492 0.175 3 3129 3.00 100 2.0 96.25 CAD Cart
SPA-1/4-20-1-P(100) 1/4-20UNC 1 0.492 0.175 3 3129 3.00 100 2.2 106.25 CAD Cart
SPA-1/4-20-1 1/4-P(100) 1/4-20UNC 1 1/4 0.492 0.175 3 3129 3.00 100 2.5 118.75 CAD Cart

＊1：　Values in chart are for reference only. They are not guaranteed values. The recommended tightening torque is 50% of the torsional torque.

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here
Part Number
Amount
Price（＄）

Check other products Cart

　　　　　　

Related Services

Material/Finish

SPA-P(INCH)
Main Body RENYTM＊1 (50% Glass Fiber Reinforced Polyamide MXD6)
(Ivory)
Heat Resistance
Temperature＊2		 105℃

＊1：　RENYTM is a trademark or registered trademark of Mitsubishi Gas Chemical Company, Inc.
＊2：　This is the value for the resin material. The operating temperature of the product changes with performance conditions such as tightening torque.


Application

Heat insulation and dew condensation prevention of refrigerating and freezing facilities
Electrical and electronic equipment / Offshore instruments / Plating facilities

Characteristics

  • RENYTM Phillips cross recessed pan head machine screws.
  • Inch screw type.
  • RENYTM is a thermoplastic engineering plastic with excellent tensile and bending strength.
  • It is highly fatigue-resistant and has excellent creep and heat insulation properties.
  • While it is nearly as strong as metal, its weight is approximately 1/5 of iron.
  • For the properties and precautions for use of plastic screws, see “Properties of Plastic Screws.”⇒Plastic Screws
