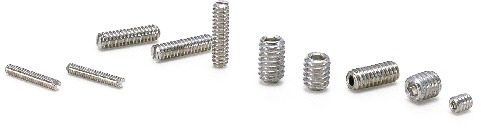

Set Screws for Precision Instruments

SNTS-FP

Miniature

SNTS-FPSet Screws for Precision Instruments

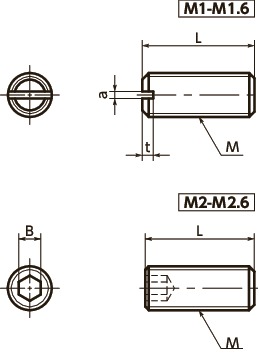

Dimension Drawing

Specs/CAD

Select

M (Coarse) Nominal of Thread: All; M1; M1.4; M1.6; M2; M2.5; M2.6

L: All; 3; 4; 5; 6

Unit : mm

Part Number	M (Coarse) Nominal of Thread	Pitch	L	a	t	B	Max. Torque (N・m)	Qty per Pack	Mass (g)	Price (USD)	CAD Download	QTY (Pack)
SNTS-M1-3-FP	M1	0.25	3	0.35	0.35	-	0.003	10	0.012	27.81	CAD	Cart
SNTS-M1-4-FP	M1	0.25	4	0.35	0.35	-	0.003	10	0.016	27.81	CAD	Cart
SNTS-M1-5-FP	M1	0.25	5	0.35	0.35	-	0.003	10	0.019	27.81	CAD	Cart
SNTS-M1-6-FP	M1	0.25	6	0.35	0.35	-	0.003	10	0.023	27.81	CAD	Cart
SNTS-M1.4-3-FP	M1.4	0.3	3	0.4	0.45	-	0.02	10	0.022	24.96	CAD	Cart
SNTS-M1.4-4-FP	M1.4	0.3	4	0.4	0.45	-	0.02	10	0.031	24.96	CAD	Cart
SNTS-M1.4-5-FP	M1.4	0.3	5	0.4	0.45	-	0.02	10	0.04	24.96	CAD	Cart
SNTS-M1.4-6-FP	M1.4	0.3	6	0.4	0.45	-	0.02	10	0.049	24.96	CAD	Cart
SNTS-M1.6-3-FP	M1.6	0.35	3	0.4	0.5	-	0.03	10	0.029	24.96	CAD	Cart
SNTS-M1.6-4-FP	M1.6	0.35	4	0.4	0.5	-	0.03	10	0.04	24.96	CAD	Cart
SNTS-M1.6-5-FP	M1.6	0.35	5	0.4	0.5	-	0.03	10	0.051	24.96	CAD	Cart
SNTS-M1.6-6-FP	M1.6	0.35	6	0.4	0.5	-	0.03	10	0.062	24.96	CAD	Cart
SNTS-M2-3-FP	M2	0.4	3	-	-	0.9	0.2	10	0.041	8.02	CAD	Cart
SNTS-M2-4-FP	M2	0.4	4	-	-	0.9	0.2	10	0.058	8.02	CAD	Cart
SNTS-M2-5-FP	M2	0.4	5	-	-	0.9	0.2	10	0.075	8.02	CAD	Cart
SNTS-M2-6-FP	M2	0.4	6	-	-	0.9	0.2	10	0.092	8.02	CAD	Cart
SNTS-M2.5-4-FP	M2.5	0.45	4	-	-	1.3	0.4	10	0.081	8.02	CAD	Cart
SNTS-M2.5-5-FP	M2.5	0.45	5	-	-	1.3	0.4	10	0.055	8.02	CAD	Cart
SNTS-M2.5-6-FP	M2.5	0.45	6	-	-	1.3	0.4	10	0.13	8.02	CAD	Cart
SNTS-M2.6-4-FP	M2.6	0.45	4	-	-	1.3	0.4	10	0.094	8.02	CAD	Cart
SNTS-M2.6-5-FP	M2.6	0.45	5	-	-	1.3	0.4	10	0.13	8.02	CAD	Cart

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Part Number
Amount
Price（＄）

Check other products Cart

Related Services

Material/Finish

	M1-M1.6	M2-M2.6
Main Body	Stainless Steel	SUSXM7 (Equivalent to SUS304)

Application

Reducing the size of equipment and devices
Compact precision instruments

Characteristics

Miniature screws for precision instruments in sizes from M1 to M2.6.
Set screws with flat point.

Usage Example

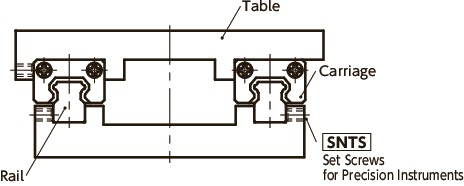

To locate and fix miniature linear guideway rails and tables.

SNTS-FPSet Screws for Precision Instruments

Product List

SNTS-M1.4-FP

SNTS-M1.6-FP

SNTS-M1-FP

SNTS-M2.5-FP

SNTS-M2.6-FP

SNTS-M2-FP
