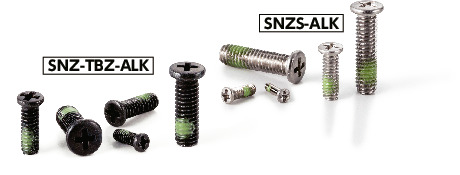

Pan Head Machine Screws for Precision Instruments (Miniature Screws with Nylon Patch)

SNZ-TBZ-ALK

Safety Precautions

RoHS Compliant

  • Vibration resistant treatment
  • Miniature
SNZ-TBZ-ALKPan Head Machine Screws for Precision Instruments (Miniature Screws with Nylon Patch)

Dimension Drawing

SNZ-TBZ-ALKPan Head Machine Screws for Precision Instruments (Miniature Screws with Nylon Patch)寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M1.4
M1.7
M2
M2.6
L
All
2
3
4
5
6
8
2.5
3.5

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 s＊1 L2 Cross-recessed
Socket Number		 Max. Tightening
Torque
(N・m)		 Qty per Pack Mass
(g)		 Price
(USD)		 CAD
Download		 QTY
(Pack)
SNZ-M1.4-2-TBZ-ALK M1.4 0.3 2 2 0.5 0 1.1 0 0.05 50 0.023 21.76 CAD Cart
SNZ-M1.4-3-TBZ-ALK M1.4 0.3 3 2 0.5 0 1.1 0 0.05 50 0.031 21.76 CAD Cart
SNZ-M1.4-4-TBZ-ALK M1.4 0.3 4 2 0.5 0.6 1.1 0 0.05 50 0.04 21.76 CAD Cart
SNZ-M1.4-5-TBZ-ALK M1.4 0.3 5 2 0.5 0.6 1.1 0 0.05 50 0.048 21.76 CAD Cart
SNZ-M1.4-6-TBZ-ALK M1.4 0.3 6 2 0.5 0.6 1.1 0 0.05 50 0.057 21.76 CAD Cart
SNZ-M1.4-8-TBZ-ALK M1.4 0.3 8 2 0.5 0.6 1.1 0 0.05 50 0.074 22.34 CAD Cart
SNZ-M1.7-2-TBZ-ALK M1.7 0.35 2 2.5 0.5 0 1.3 0 0.09 50 0.037 21.76 CAD Cart
SNZ-M1.7-3-TBZ-ALK M1.7 0.35 3 2.5 0.5 0 1.3 0 0.09 50 0.049 21.76 CAD Cart
SNZ-M1.7-4-TBZ-ALK M1.7 0.35 4 2.5 0.5 0.7 1.3 0 0.09 50 0.062 21.76 CAD Cart
SNZ-M1.7-5-TBZ-ALK M1.7 0.35 5 2.5 0.5 0.7 1.3 0 0.09 50 0.075 21.76 CAD Cart
SNZ-M1.7-6-TBZ-ALK M1.7 0.35 6 2.5 0.5 0.7 1.3 0 0.09 50 0.087 21.76 CAD Cart
SNZ-M1.7-8-TBZ-ALK M1.7 0.35 8 2.5 0.5 0.7 1.3 0 0.09 50 0.11 21.76 CAD Cart
SNZ-M2-2-TBZ-ALK M2 0.4 2 3 0.6 0 1.6 0 0.18 50 0.055 21.76 CAD Cart
SNZ-M2-2.5-TBZ-ALK M2 0.4 2.5 3 0.6 0 1.6 0 0.18 50 0.063 21.76 CAD Cart
SNZ-M2-3-TBZ-ALK M2 0.4 3 3 0.6 0 1.6 0 0.18 50 0.072 20.41 CAD Cart
SNZ-M2-3.5-TBZ-ALK M2 0.4 3.5 3 0.6 0 1.6 0 0.18 50 0.08 21.76 CAD Cart
SNZ-M2-4-TBZ-ALK M2 0.4 4 3 0.6 0.8 1.6 0 0.18 50 0.089 21.76 CAD Cart
SNZ-M2-5-TBZ-ALK M2 0.4 5 3 0.6 0.8 1.6 0 0.18 50 0.1 19.64 CAD Cart
SNZ-M2-6-TBZ-ALK M2 0.4 6 3 0.6 0.8 1.6 0 0.18 50 0.12 21.76 CAD Cart
SNZ-M2-8-TBZ-ALK M2 0.4 8 3 0.6 0.8 1.6 0 0.18 50 0.16 22.34 CAD Cart
SNZ-M2.6-3-TBZ-ALK M2.6 0.45 3 4 0.8 0 2.1 0 0.39 50 0.14 19.64 CAD Cart
SNZ-M2.6-4-TBZ-ALK M2.6 0.45 4 4 0.8 0.9 2.1 0 0.39 50 0.18 22.34 CAD Cart
SNZ-M2.6-5-TBZ-ALK M2.6 0.45 5 4 0.8 0.9 2.1 0 0.39 50 0.21 22.34 CAD Cart
SNZ-M2.6-6-TBZ-ALK M2.6 0.45 6 4 0.8 0.9 2.1 0 0.39 50 0.24 22.34 CAD Cart
SNZ-M2.6-8-TBZ-ALK M2.6 0.45 8 4 0.8 0.9 2.1 0 0.39 50 0.3 22.34 CAD Cart
Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 s＊1 L2 Cross-recessed
Socket Number		 Max. Tightening
Torque
(N・m)		 Qty per Pack Mass
(g)		 Price
(USD)		 CAD
Download		 QTY
(Pack)
SNZ-M1.4-2-TBZ-ALK M1.4 0.3 2 2 0.5 0 1.1 0 0.05 50 0.023 21.76 CAD Cart
SNZ-M1.4-3-TBZ-ALK M1.4 0.3 3 2 0.5 0 1.1 0 0.05 50 0.031 21.76 CAD Cart
SNZ-M1.4-4-TBZ-ALK M1.4 0.3 4 2 0.5 0.6 1.1 0 0.05 50 0.04 21.76 CAD Cart
SNZ-M1.4-5-TBZ-ALK M1.4 0.3 5 2 0.5 0.6 1.1 0 0.05 50 0.048 21.76 CAD Cart
SNZ-M1.4-6-TBZ-ALK M1.4 0.3 6 2 0.5 0.6 1.1 0 0.05 50 0.057 21.76 CAD Cart
SNZ-M1.4-8-TBZ-ALK M1.4 0.3 8 2 0.5 0.6 1.1 0 0.05 50 0.074 22.34 CAD Cart
SNZ-M1.7-2-TBZ-ALK M1.7 0.35 2 2.5 0.5 0 1.3 0 0.09 50 0.037 21.76 CAD Cart
SNZ-M1.7-3-TBZ-ALK M1.7 0.35 3 2.5 0.5 0 1.3 0 0.09 50 0.049 21.76 CAD Cart
SNZ-M1.7-4-TBZ-ALK M1.7 0.35 4 2.5 0.5 0.7 1.3 0 0.09 50 0.062 21.76 CAD Cart
SNZ-M1.7-5-TBZ-ALK M1.7 0.35 5 2.5 0.5 0.7 1.3 0 0.09 50 0.075 21.76 CAD Cart
SNZ-M1.7-6-TBZ-ALK M1.7 0.35 6 2.5 0.5 0.7 1.3 0 0.09 50 0.087 21.76 CAD Cart
SNZ-M1.7-8-TBZ-ALK M1.7 0.35 8 2.5 0.5 0.7 1.3 0 0.09 50 0.11 21.76 CAD Cart
SNZ-M2-2-TBZ-ALK M2 0.4 2 3 0.6 0 1.6 0 0.18 50 0.055 21.76 CAD Cart
SNZ-M2-2.5-TBZ-ALK M2 0.4 2.5 3 0.6 0 1.6 0 0.18 50 0.063 21.76 CAD Cart
SNZ-M2-3-TBZ-ALK M2 0.4 3 3 0.6 0 1.6 0 0.18 50 0.072 20.41 CAD Cart
SNZ-M2-3.5-TBZ-ALK M2 0.4 3.5 3 0.6 0 1.6 0 0.18 50 0.08 21.76 CAD Cart
SNZ-M2-4-TBZ-ALK M2 0.4 4 3 0.6 0.8 1.6 0 0.18 50 0.089 21.76 CAD Cart
SNZ-M2-5-TBZ-ALK M2 0.4 5 3 0.6 0.8 1.6 0 0.18 50 0.1 19.64 CAD Cart
SNZ-M2-6-TBZ-ALK M2 0.4 6 3 0.6 0.8 1.6 0 0.18 50 0.12 21.76 CAD Cart
SNZ-M2-8-TBZ-ALK M2 0.4 8 3 0.6 0.8 1.6 0 0.18 50 0.16 22.34 CAD Cart
SNZ-M2.6-3-TBZ-ALK M2.6 0.45 3 4 0.8 0 2.1 0 0.39 50 0.14 19.64 CAD Cart
SNZ-M2.6-4-TBZ-ALK M2.6 0.45 4 4 0.8 0.9 2.1 0 0.39 50 0.18 22.34 CAD Cart
SNZ-M2.6-5-TBZ-ALK M2.6 0.45 5 4 0.8 0.9 2.1 0 0.39 50 0.21 22.34 CAD Cart
SNZ-M2.6-6-TBZ-ALK M2.6 0.45 6 4 0.8 0.9 2.1 0 0.39 50 0.24 22.34 CAD Cart
SNZ-M2.6-8-TBZ-ALK M2.6 0.45 8 4 0.8 0.9 2.1 0 0.39 50 0.3 22.34 CAD Cart
Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 s＊1 L2 Cross-recessed
Socket Number		 Max. Tightening
Torque
(N・m)		 Qty per Pack Mass
(g)		 Price
(USD)		 CAD
Download		 QTY
(Pack)
SNZ-M1.4-2-TBZ-ALK M1.4 0.3 2 2 0.5 0 1.1 0 0.05 50 0.023 21.76 CAD Cart
SNZ-M1.4-3-TBZ-ALK M1.4 0.3 3 2 0.5 0 1.1 0 0.05 50 0.031 21.76 CAD Cart
SNZ-M1.4-4-TBZ-ALK M1.4 0.3 4 2 0.5 0.6 1.1 0 0.05 50 0.04 21.76 CAD Cart
SNZ-M1.4-5-TBZ-ALK M1.4 0.3 5 2 0.5 0.6 1.1 0 0.05 50 0.048 21.76 CAD Cart
SNZ-M1.4-6-TBZ-ALK M1.4 0.3 6 2 0.5 0.6 1.1 0 0.05 50 0.057 21.76 CAD Cart
SNZ-M1.4-8-TBZ-ALK M1.4 0.3 8 2 0.5 0.6 1.1 0 0.05 50 0.074 22.34 CAD Cart
SNZ-M1.7-2-TBZ-ALK M1.7 0.35 2 2.5 0.5 0 1.3 0 0.09 50 0.037 21.76 CAD Cart
SNZ-M1.7-3-TBZ-ALK M1.7 0.35 3 2.5 0.5 0 1.3 0 0.09 50 0.049 21.76 CAD Cart
SNZ-M1.7-4-TBZ-ALK M1.7 0.35 4 2.5 0.5 0.7 1.3 0 0.09 50 0.062 21.76 CAD Cart
SNZ-M1.7-5-TBZ-ALK M1.7 0.35 5 2.5 0.5 0.7 1.3 0 0.09 50 0.075 21.76 CAD Cart
SNZ-M1.7-6-TBZ-ALK M1.7 0.35 6 2.5 0.5 0.7 1.3 0 0.09 50 0.087 21.76 CAD Cart
SNZ-M1.7-8-TBZ-ALK M1.7 0.35 8 2.5 0.5 0.7 1.3 0 0.09 50 0.11 21.76 CAD Cart
SNZ-M2-2-TBZ-ALK M2 0.4 2 3 0.6 0 1.6 0 0.18 50 0.055 21.76 CAD Cart
SNZ-M2-2.5-TBZ-ALK M2 0.4 2.5 3 0.6 0 1.6 0 0.18 50 0.063 21.76 CAD Cart
SNZ-M2-3-TBZ-ALK M2 0.4 3 3 0.6 0 1.6 0 0.18 50 0.072 20.41 CAD Cart
SNZ-M2-3.5-TBZ-ALK M2 0.4 3.5 3 0.6 0 1.6 0 0.18 50 0.08 21.76 CAD Cart
SNZ-M2-4-TBZ-ALK M2 0.4 4 3 0.6 0.8 1.6 0 0.18 50 0.089 21.76 CAD Cart
SNZ-M2-5-TBZ-ALK M2 0.4 5 3 0.6 0.8 1.6 0 0.18 50 0.1 19.64 CAD Cart
SNZ-M2-6-TBZ-ALK M2 0.4 6 3 0.6 0.8 1.6 0 0.18 50 0.12 21.76 CAD Cart
SNZ-M2-8-TBZ-ALK M2 0.4 8 3 0.6 0.8 1.6 0 0.18 50 0.16 22.34 CAD Cart
SNZ-M2.6-3-TBZ-ALK M2.6 0.45 3 4 0.8 0 2.1 0 0.39 50 0.14 19.64 CAD Cart
SNZ-M2.6-4-TBZ-ALK M2.6 0.45 4 4 0.8 0.9 2.1 0 0.39 50 0.18 22.34 CAD Cart
SNZ-M2.6-5-TBZ-ALK M2.6 0.45 5 4 0.8 0.9 2.1 0 0.39 50 0.21 22.34 CAD Cart
SNZ-M2.6-6-TBZ-ALK M2.6 0.45 6 4 0.8 0.9 2.1 0 0.39 50 0.24 22.34 CAD Cart
SNZ-M2.6-8-TBZ-ALK M2.6 0.45 8 4 0.8 0.9 2.1 0 0.39 50 0.3 22.34 CAD Cart
Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 s＊1 L2 Cross-recessed
Socket Number		 Max. Tightening
Torque
(N・m)		 Qty per Pack Mass
(g)		 Price
(USD)		 CAD
Download		 QTY
(Pack)
SNZ-M1.4-2-TBZ-ALK M1.4 0.3 2 2 0.5 0 1.1 0 0.05 50 0.023 21.76 CAD Cart
SNZ-M1.4-3-TBZ-ALK M1.4 0.3 3 2 0.5 0 1.1 0 0.05 50 0.031 21.76 CAD Cart
SNZ-M1.4-4-TBZ-ALK M1.4 0.3 4 2 0.5 0.6 1.1 0 0.05 50 0.04 21.76 CAD Cart
SNZ-M1.4-5-TBZ-ALK M1.4 0.3 5 2 0.5 0.6 1.1 0 0.05 50 0.048 21.76 CAD Cart
SNZ-M1.4-6-TBZ-ALK M1.4 0.3 6 2 0.5 0.6 1.1 0 0.05 50 0.057 21.76 CAD Cart
SNZ-M1.4-8-TBZ-ALK M1.4 0.3 8 2 0.5 0.6 1.1 0 0.05 50 0.074 22.34 CAD Cart
SNZ-M1.7-2-TBZ-ALK M1.7 0.35 2 2.5 0.5 0 1.3 0 0.09 50 0.037 21.76 CAD Cart
SNZ-M1.7-3-TBZ-ALK M1.7 0.35 3 2.5 0.5 0 1.3 0 0.09 50 0.049 21.76 CAD Cart
SNZ-M1.7-4-TBZ-ALK M1.7 0.35 4 2.5 0.5 0.7 1.3 0 0.09 50 0.062 21.76 CAD Cart
SNZ-M1.7-5-TBZ-ALK M1.7 0.35 5 2.5 0.5 0.7 1.3 0 0.09 50 0.075 21.76 CAD Cart
SNZ-M1.7-6-TBZ-ALK M1.7 0.35 6 2.5 0.5 0.7 1.3 0 0.09 50 0.087 21.76 CAD Cart
SNZ-M1.7-8-TBZ-ALK M1.7 0.35 8 2.5 0.5 0.7 1.3 0 0.09 50 0.11 21.76 CAD Cart
SNZ-M2-2-TBZ-ALK M2 0.4 2 3 0.6 0 1.6 0 0.18 50 0.055 21.76 CAD Cart
SNZ-M2-2.5-TBZ-ALK M2 0.4 2.5 3 0.6 0 1.6 0 0.18 50 0.063 21.76 CAD Cart
SNZ-M2-3-TBZ-ALK M2 0.4 3 3 0.6 0 1.6 0 0.18 50 0.072 20.41 CAD Cart
SNZ-M2-3.5-TBZ-ALK M2 0.4 3.5 3 0.6 0 1.6 0 0.18 50 0.08 21.76 CAD Cart
SNZ-M2-4-TBZ-ALK M2 0.4 4 3 0.6 0.8 1.6 0 0.18 50 0.089 21.76 CAD Cart
SNZ-M2-5-TBZ-ALK M2 0.4 5 3 0.6 0.8 1.6 0 0.18 50 0.1 19.64 CAD Cart
SNZ-M2-6-TBZ-ALK M2 0.4 6 3 0.6 0.8 1.6 0 0.18 50 0.12 21.76 CAD Cart
SNZ-M2-8-TBZ-ALK M2 0.4 8 3 0.6 0.8 1.6 0 0.18 50 0.16 22.34 CAD Cart
SNZ-M2.6-3-TBZ-ALK M2.6 0.45 3 4 0.8 0 2.1 0 0.39 50 0.14 19.64 CAD Cart
SNZ-M2.6-4-TBZ-ALK M2.6 0.45 4 4 0.8 0.9 2.1 0 0.39 50 0.18 22.34 CAD Cart
SNZ-M2.6-5-TBZ-ALK M2.6 0.45 5 4 0.8 0.9 2.1 0 0.39 50 0.21 22.34 CAD Cart
SNZ-M2.6-6-TBZ-ALK M2.6 0.45 6 4 0.8 0.9 2.1 0 0.39 50 0.24 22.34 CAD Cart
SNZ-M2.6-8-TBZ-ALK M2.6 0.45 8 4 0.8 0.9 2.1 0 0.39 50 0.3 22.34 CAD Cart

＊1：　If L＜4, dimension s is 0.

Part Number
Amount
Price（＄）

Check other products Cart

　　　　　　

Material/Finish

SNZ-TBZ-ALK
Main Body SWCH16A
Black Trivalent Chromate Treatment
Nylon Patch Nylon 11

Application

Reducing the size of equipment and devices / Compact precision instruments / Return and fall prevention of screws

Characteristics

  • M1.4-M2.6. Miniature screw with nylon patch for precision instruments.
  • The friction of the nylon adhered to the thread suppresses the return rotation of the thread.
  • Even if the tightening force is lost, the return rotation is suppressed, preventing the screws from falling off.
  • The heat resistance temperature of nylon patch is 120℃.
  • Pan head machine screw type with low head height. For applications with limited overhead space.
