SNZ-TZB/Cross Recessed Micro Pan Head Screws - Type 0-1

Safety Precautions

RoHS Compliant

  • Miniature
SNZ-TZBCross Recessed Micro Pan Head Screws - Type 0-1

Dimension Drawing

SNZ-TZBCross Recessed Micro Pan Head Screws - Type 0-1寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M1
M1.2
M1.4
M1.6
M1.7
M2
M2.5
M2.6
L
All
3
4
2
2.5
5
1.5
3.5
6
8
10
12
14
16
18

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 Cross-recessed Socket No. Max. Tightening
Torque
(N・m)		 Qty per Pack Mass
(g)		 Price
(USD)		 CAD
Download		 QTY
(Pack)
SNZ-M1-3-TZB M1 0.25 3 1.8 0.5 0 0.02 50 0.02 7.02 CAD Cart
SNZ-M1-4-TZB M1 0.25 4 1.8 0.5 0 0.02 50 0.02 7.02 CAD Cart
SNZ-M1.2-2-TZB M1.2 0.25 2 1.8 0.5 0 0.05 50 0.02 7.02 CAD Cart
SNZ-M1.2-2.5-TZB M1.2 0.25 2.5 1.8 0.5 0 0.05 50 0.02 7.02 CAD Cart
SNZ-M1.2-3-TZB M1.2 0.25 3 1.8 0.5 0 0.05 50 0.02 7.02 CAD Cart
SNZ-M1.2-4-TZB M1.2 0.25 4 1.8 0.5 0 0.05 50 0.03 7.02 CAD Cart
SNZ-M1.2-5-TZB M1.2 0.25 5 1.8 0.5 0 0.05 50 0.04 7.02 CAD Cart
SNZ-M1.4-1.5-TZB M1.4 0.3 1.5 2 0.5 0 0.07 50 0.02 7.02 CAD Cart
SNZ-M1.4-2-TZB M1.4 0.3 2 2 0.5 0 0.07 50 0.02 7.02 CAD Cart
SNZ-M1.4-2.5-TZB M1.4 0.3 2.5 2 0.5 0 0.07 50 0.03 7.02 CAD Cart
SNZ-M1.4-3-TZB M1.4 0.3 3 2 0.5 0 0.07 50 0.03 7.02 CAD Cart
SNZ-M1.4-3.5-TZB M1.4 0.3 3.5 2 0.5 0 0.07 50 0.03 7.02 CAD Cart
SNZ-M1.4-4-TZB M1.4 0.3 4 2 0.5 0 0.07 50 0.04 7.02 CAD Cart
SNZ-M1.4-5-TZB M1.4 0.3 5 2 0.5 0 0.07 50 0.05 7.02 CAD Cart
SNZ-M1.4-6-TZB M1.4 0.3 6 2 0.5 0 0.07 50 0.06 7.02 CAD Cart
SNZ-M1.4-8-TZB M1.4 0.3 8 2 0.5 0 0.07 50 0.07 7.02 CAD Cart
SNZ-M1.4-10-TZB M1.4 0.3 10 2 0.5 0 0.07 50 0.09 7.02 CAD Cart
SNZ-M1.4-12-TZB M1.4 0.3 12 2 0.5 0 0.07 50 0.1 7.02 CAD Cart
SNZ-M1.6-1.5-TZB M1.6 0.35 1.5 2.4 0.55 0 0.11 50 0.03 7.80 CAD Cart
SNZ-M1.6-2-TZB M1.6 0.35 2 2.4 0.55 0 0.11 50 0.03 7.80 CAD Cart
SNZ-M1.6-2.5-TZB M1.6 0.35 2.5 2.4 0.55 0 0.11 50 0.04 7.80 CAD Cart
SNZ-M1.6-3-TZB M1.6 0.35 3 2.4 0.55 0 0.11 50 0.04 7.80 CAD Cart
SNZ-M1.6-3.5-TZB M1.6 0.35 3.5 2.4 0.55 0 0.11 50 0.05 7.80 CAD Cart
SNZ-M1.6-4-TZB M1.6 0.35 4 2.4 0.55 0 0.11 50 0.05 7.80 CAD Cart
SNZ-M1.6-5-TZB M1.6 0.35 5 2.4 0.55 0 0.11 50 0.06 7.80 CAD Cart
SNZ-M1.6-6-TZB M1.6 0.35 6 2.4 0.55 0 0.11 50 0.07 7.80 CAD Cart
SNZ-M1.6-8-TZB M1.6 0.35 8 2.4 0.55 0 0.11 50 0.09 7.80 CAD Cart
SNZ-M1.6-10-TZB M1.6 0.35 10 2.4 0.55 0 0.11 50 0.12 7.80 CAD Cart
SNZ-M1.6-12-TZB M1.6 0.35 12 2.4 0.55 0 0.11 50 0.14 7.80 CAD Cart
SNZ-M1.7-1.5-TZB M1.7 0.35 1.5 2.5 0.5 0 0.14 50 0.03 7.80 CAD Cart
SNZ-M1.7-2-TZB M1.7 0.35 2 2.5 0.5 0 0.14 50 0.04 7.80 CAD Cart
SNZ-M1.7-2.5-TZB M1.7 0.35 2.5 2.5 0.5 0 0.14 50 0.04 7.80 CAD Cart
SNZ-M1.7-3-TZB M1.7 0.35 3 2.5 0.5 0 0.14 50 0.05 7.80 CAD Cart
SNZ-M1.7-3.5-TZB M1.7 0.35 3.5 2.5 0.5 0 0.14 50 0.05 7.80 CAD Cart
SNZ-M1.7-4-TZB M1.7 0.35 4 2.5 0.5 0 0.14 50 0.06 7.80 CAD Cart
SNZ-M1.7-5-TZB M1.7 0.35 5 2.5 0.5 0 0.14 50 0.07 7.80 CAD Cart
SNZ-M1.7-6-TZB M1.7 0.35 6 2.5 0.5 0 0.14 50 0.09 7.80 CAD Cart
SNZ-M1.7-8-TZB M1.7 0.35 8 2.5 0.5 0 0.14 50 0.11 7.80 CAD Cart
SNZ-M1.7-10-TZB M1.7 0.35 10 2.5 0.5 0 0.14 50 0.14 7.80 CAD Cart
SNZ-M1.7-12-TZB M1.7 0.35 12 2.5 0.5 0 0.14 50 0.16 7.80 CAD Cart
SNZ-M1.7-14-TZB M1.7 0.35 14 2.5 0.5 0 0.14 50 0.19 7.80 CAD Cart
SNZ-M2-1.5-TZB M2 0.4 1.5 3 0.6 0 0.22 50 0.05 7.80 CAD Cart
SNZ-M2-2-TZB M2 0.4 2 3 0.6 0 0.22 50 0.06 7.80 CAD Cart
SNZ-M2-2.5-TZB M2 0.4 2.5 3 0.6 0 0.22 50 0.07 7.80 CAD Cart
SNZ-M2-3-TZB M2 0.4 3 3 0.6 0 0.22 50 0.08 7.80 CAD Cart
SNZ-M2-3.5-TZB M2 0.4 3.5 3 0.6 0 0.22 50 0.09 7.80 CAD Cart
SNZ-M2-4-TZB M2 0.4 4 3 0.6 0 0.22 50 0.1 7.80 CAD Cart
SNZ-M2-5-TZB M2 0.4 5 3 0.6 0 0.22 50 0.11 7.80 CAD Cart
SNZ-M2-6-TZB M2 0.4 6 3 0.6 0 0.22 50 0.13 7.80 CAD Cart
SNZ-M2-8-TZB M2 0.4 8 3 0.6 0 0.22 50 0.16 7.80 CAD Cart
SNZ-M2-10-TZB M2 0.4 10 3 0.6 0 0.22 50 0.2 7.80 CAD Cart
SNZ-M2-12-TZB M2 0.4 12 3 0.6 0 0.22 50 0.23 7.80 CAD Cart
SNZ-M2-14-TZB M2 0.4 14 3 0.6 0 0.22 50 0.27 7.80 CAD Cart
SNZ-M2-16-TZB M2 0.4 16 3 0.6 0 0.22 50 0.31 7.80 CAD Cart
SNZ-M2-18-TZB M2 0.4 18 3 0.6 0 0.22 50 0.35 7.80 CAD Cart
SNZ-M2.5-3-TZB M2.5 0.45 3 3.8 0.9 0 0.46 50 0.14 8.58 CAD Cart
SNZ-M2.5-4-TZB M2.5 0.45 4 3.8 0.9 0 0.46 50 0.17 8.58 CAD Cart
SNZ-M2.5-5-TZB M2.5 0.45 5 3.8 0.9 0 0.46 50 0.2 8.58 CAD Cart
SNZ-M2.5-6-TZB M2.5 0.45 6 3.8 0.9 0 0.46 50 0.22 8.58 CAD Cart
SNZ-M2.6-2.5-TZB M2.6 0.45 2.5 4 0.8 0 0.53 50 0.14 8.58 CAD Cart
SNZ-M2.6-3-TZB M2.6 0.45 3 4 0.8 0 0.53 50 0.15 8.58 CAD Cart
SNZ-M2.6-3.5-TZB M2.6 0.45 3.5 4 0.8 0 0.53 50 0.16 8.58 CAD Cart
SNZ-M2.6-4-TZB M2.6 0.45 4 4 0.8 0 0.53 50 0.19 8.58 CAD Cart
SNZ-M2.6-5-TZB M2.6 0.45 5 4 0.8 0 0.53 50 0.22 8.58 CAD Cart
SNZ-M2.6-6-TZB M2.6 0.45 6 4 0.8 0 0.53 50 0.25 8.58 CAD Cart
SNZ-M2.6-8-TZB M2.6 0.45 8 4 0.8 0 0.53 50 0.31 8.58 CAD Cart
SNZ-M2.6-10-TZB M2.6 0.45 10 4 0.8 0 0.53 50 0.37 8.58 CAD Cart
SNZ-M2.6-12-TZB M2.6 0.45 12 4 0.8 0 0.53 50 0.43 8.58 CAD Cart

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here
Part Number
Amount
Price（＄）

Check other products Cart

　　　　　　

Related Services

Material/Finish

SNZ-TZB
Main Body Steel
Trivalent Chromate Treatment

Application

For making devices and equipment more compact
Compact precision equipment

Characteristics

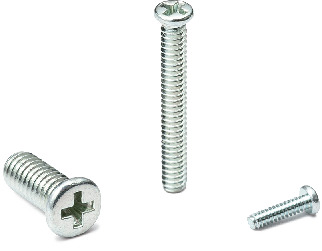

  • Miniature screws for precision instruments (No. 0 Class 1).
  • M1 - M2.6.
  • Pan head machine screw type with low head height. For applications with limited overhead space.

Product List

Click here to see Micro Screws

SPE-MF

Part Name

Plastic Screw - Cross Recessed Flat Head Machine Screws for Precision Instruments - PEEK

Part Number

SPE-MF

Feature

Chemical-proof
Heat-resistant
For precision equipment

SPA-MF

Part Name

Plastic Screw - Cross Recessed Flat Head Machine Screws for Precision Instruments - RENY

Part Number

SPA-MF

Feature

High Strength
High Specific Strength
For precision equipment

SNZ-TZB-ALK

Part Name

Cross Recessed Micro Pan Head Screws with Nylon Patch - Type 0-1

Part Number

SNZ-TZB-ALK

Feature

Pan Head Machine Screws
for Precision Instruments
Nylon Patch

SNZ-TBZ
