SNZ2-TBZ/Cross Recessed Micro Pan Head Screws - Type 0-2

Safety Precautions

RoHS Compliant

  • Miniature

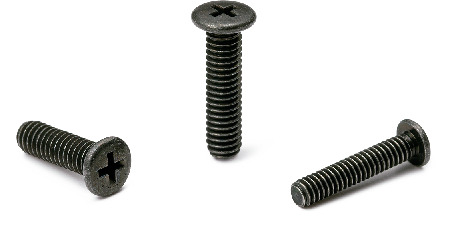

SNZ2-TBZCross Recessed Micro Pan Head Screws - Type 0-2

Dimension Drawing

SNZ2-TBZCross Recessed Micro Pan Head Screws - Type 0-2寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M1.4
M1.6
M1.7
M2
M2.5
M2.6
L
All
2
2.5
3
3.5
4
5
6
8
10
1.5

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 Cross-recessed Socket No. Max. Tightening
Torque
(N・m)		 Qty per Pack Mass
(g)		 Price
(USD)		 CAD
Download		 QTY
(Pack)
SNZ2-M1.4-2-TBZ M1.4 0.3 2 2.5 0.5 0 0.07 50 0.03 8.58 CAD Cart
SNZ2-M1.4-2.5-TBZ M1.4 0.3 2.5 2.5 0.5 0 0.07 50 0.04 8.58 CAD Cart
SNZ2-M1.4-3-TBZ M1.4 0.3 3 2.5 0.5 0 0.07 50 0.04 8.58 CAD Cart
SNZ2-M1.4-3.5-TBZ M1.4 0.3 3.5 2.5 0.5 0 0.07 50 0.04 8.58 CAD Cart
SNZ2-M1.4-4-TBZ M1.4 0.3 4 2.5 0.5 0 0.07 50 0.05 8.58 CAD Cart
SNZ2-M1.4-5-TBZ M1.4 0.3 5 2.5 0.5 0 0.07 50 0.06 8.58 CAD Cart
SNZ2-M1.4-6-TBZ M1.4 0.3 6 2.5 0.5 0 0.07 50 0.06 8.58 CAD Cart
SNZ2-M1.4-8-TBZ M1.4 0.3 8 2.5 0.5 0 0.07 50 0.08 8.58 CAD Cart
SNZ2-M1.4-10-TBZ M1.4 0.3 10 2.5 0.5 0 0.07 50 0.1 8.58 CAD Cart
SNZ2-M1.6-2-TBZ M1.6 0.35 2 2.8 0.55 0 0.11 50 0.04 9.36 CAD Cart
SNZ2-M1.6-2.5-TBZ M1.6 0.35 2.5 2.8 0.55 0 0.11 50 0.05 9.36 CAD Cart
SNZ2-M1.6-3-TBZ M1.6 0.35 3 2.8 0.55 0 0.11 50 0.05 9.36 CAD Cart
SNZ2-M1.6-3.5-TBZ M1.6 0.35 3.5 2.8 0.55 0 0.11 50 0.06 9.36 CAD Cart
SNZ2-M1.6-4-TBZ M1.6 0.35 4 2.8 0.55 0 0.11 50 0.06 9.36 CAD Cart
SNZ2-M1.6-5-TBZ M1.6 0.35 5 2.8 0.55 0 0.11 50 0.07 9.36 CAD Cart
SNZ2-M1.6-6-TBZ M1.6 0.35 6 2.8 0.55 0 0.11 50 0.08 9.36 CAD Cart
SNZ2-M1.6-8-TBZ M1.6 0.35 8 2.8 0.55 0 0.11 50 0.1 9.36 CAD Cart
SNZ2-M1.6-10-TBZ M1.6 0.35 10 2.8 0.55 0 0.11 50 0.12 9.36 CAD Cart
SNZ2-M1.7-2-TBZ M1.7 0.35 2 3.0 0.5 0 0.14 50 0.05 9.36 CAD Cart
SNZ2-M1.7-2.5-TBZ M1.7 0.35 2.5 3.0 0.5 0 0.14 50 0.05 9.36 CAD Cart
SNZ2-M1.7-3-TBZ M1.7 0.35 3 3.0 0.5 0 0.14 50 0.06 9.36 CAD Cart
SNZ2-M1.7-4-TBZ M1.7 0.35 4 3.0 0.5 0 0.14 50 0.07 9.36 CAD Cart
SNZ2-M1.7-6-TBZ M1.7 0.35 6 3.0 0.5 0 0.14 50 0.09 9.36 CAD Cart
SNZ2-M1.7-8-TBZ M1.7 0.35 8 3.0 0.5 0 0.14 50 0.12 9.36 CAD Cart
SNZ2-M1.7-10-TBZ M1.7 0.35 10 3.0 0.5 0 0.14 50 0.14 9.36 CAD Cart
SNZ2-M2-1.5-TBZ M2 0.4 1.5 3.5 0.6 0 0.22 50 0.06 9.36 CAD Cart
SNZ2-M2-2-TBZ M2 0.4 2 3.5 0.6 0 0.22 50 0.07 9.36 CAD Cart
SNZ2-M2-2.5-TBZ M2 0.4 2.5 3.5 0.6 0 0.22 50 0.08 9.36 CAD Cart
SNZ2-M2-3-TBZ M2 0.4 3 3.5 0.6 0 0.22 50 0.09 9.36 CAD Cart
SNZ2-M2-3.5-TBZ M2 0.4 3.5 3.5 0.6 0 0.22 50 0.1 9.36 CAD Cart
SNZ2-M2-4-TBZ M2 0.4 4 3.5 0.6 0 0.22 50 0.1 9.36 CAD Cart
SNZ2-M2-5-TBZ M2 0.4 5 3.5 0.6 0 0.22 50 0.12 9.36 CAD Cart
SNZ2-M2-6-TBZ M2 0.4 6 3.5 0.6 0 0.22 50 0.14 9.36 CAD Cart
SNZ2-M2-8-TBZ M2 0.4 8 3.5 0.6 0 0.22 50 0.17 9.36 CAD Cart
SNZ2-M2-10-TBZ M2 0.4 10 3.5 0.6 0 0.22 50 0.21 9.36 CAD Cart
SNZ2-M2.5-3-TBZ M2.5 0.45 3 4.3 0.9 0 0.46 50 0.16 10.14 CAD Cart
SNZ2-M2.5-4-TBZ M2.5 0.45 4 4.3 0.9 0 0.46 50 0.18 10.14 CAD Cart
SNZ2-M2.5-5-TBZ M2.5 0.45 5 4.3 0.9 0 0.46 50 0.21 10.14 CAD Cart
SNZ2-M2.5-6-TBZ M2.5 0.45 6 4.3 0.9 0 0.46 50 0.24 10.14 CAD Cart
SNZ2-M2.5-8-TBZ M2.5 0.45 8 4.3 0.9 0 0.46 50 0.3 10.14 CAD Cart
SNZ2-M2.6-2.5-TBZ M2.6 0.45 2.5 4.5 0.8 0 0.53 50 0.16 10.14 CAD Cart
SNZ2-M2.6-3-TBZ M2.6 0.45 3 4.5 0.8 0 0.53 50 0.17 10.14 CAD Cart
SNZ2-M2.6-3.5-TBZ M2.6 0.45 3.5 4.5 0.8 0 0.53 50 0.19 10.14 CAD Cart
SNZ2-M2.6-4-TBZ M2.6 0.45 4 4.5 0.8 0 0.53 50 0.2 10.14 CAD Cart
SNZ2-M2.6-5-TBZ M2.6 0.45 5 4.5 0.8 0 0.53 50 0.23 10.14 CAD Cart
SNZ2-M2.6-6-TBZ M2.6 0.45 6 4.5 0.8 0 0.53 50 0.26 10.14 CAD Cart
SNZ2-M2.6-8-TBZ M2.6 0.45 8 4.5 0.8 0 0.53 50 0.32 10.14 CAD Cart
SNZ2-M2.6-10-TBZ M2.6 0.45 10 4.5 0.8 0 0.53 50 0.39 10.14 CAD Cart

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here
Part Number
Amount
Price（＄）

Check other products Cart

　　　　　　

Related Services

Material/Finish

SNZ2-TBZ
Main Body Steel
Black Trivalent Chromate Treatment

Application

For making devices and equipment more compact
Compact precision equipment

Characteristics

  • Miniature screws for precision instruments (No. 0 Class 2).
  • M1.4 - M2.6.
  • Pan head machine screw type with low head height. For applications with limited overhead space.
